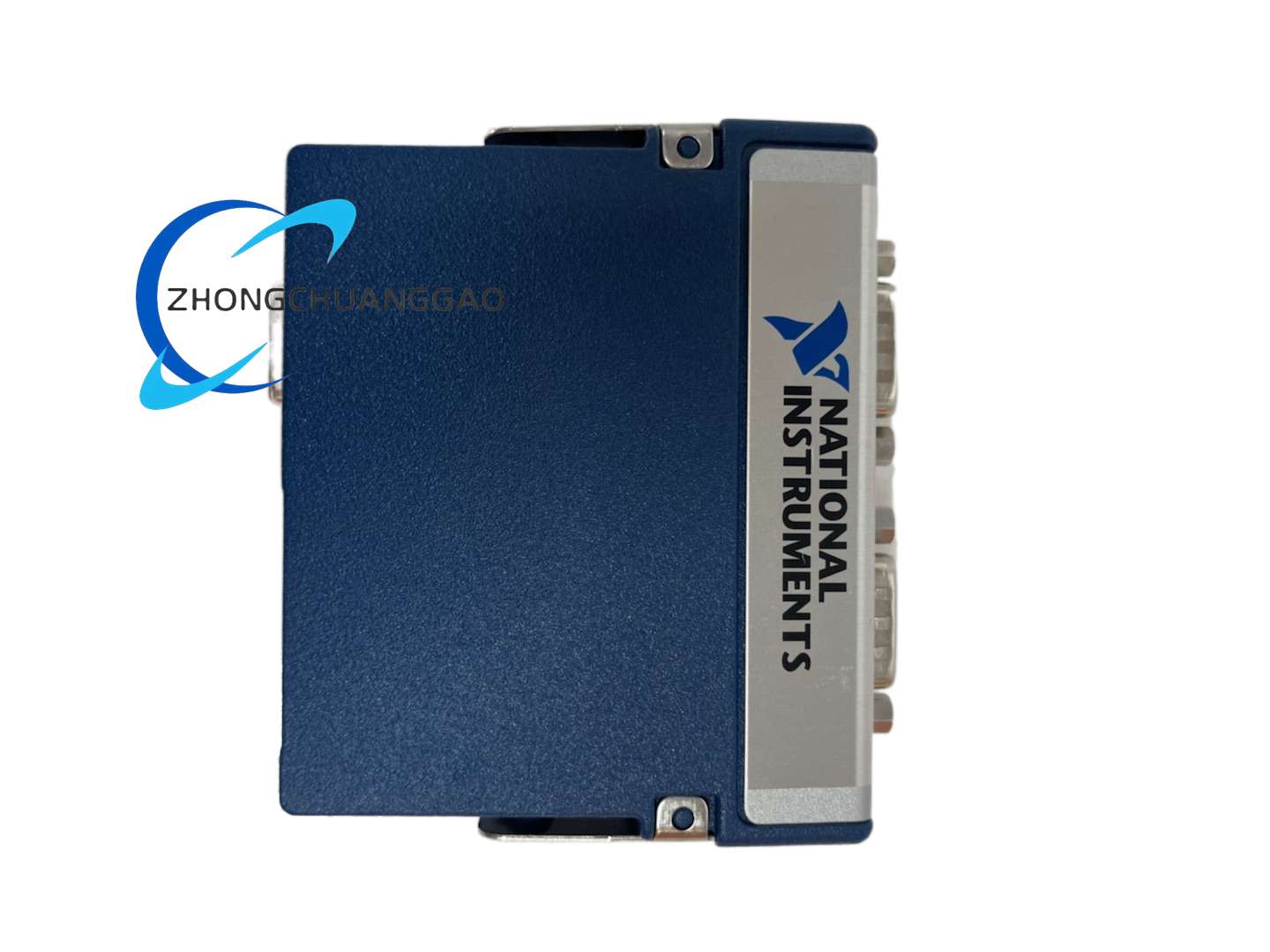

NI-9853

Product Name:​ C Series 2-Port High-Speed CAN Interface Module
Product Introduction:

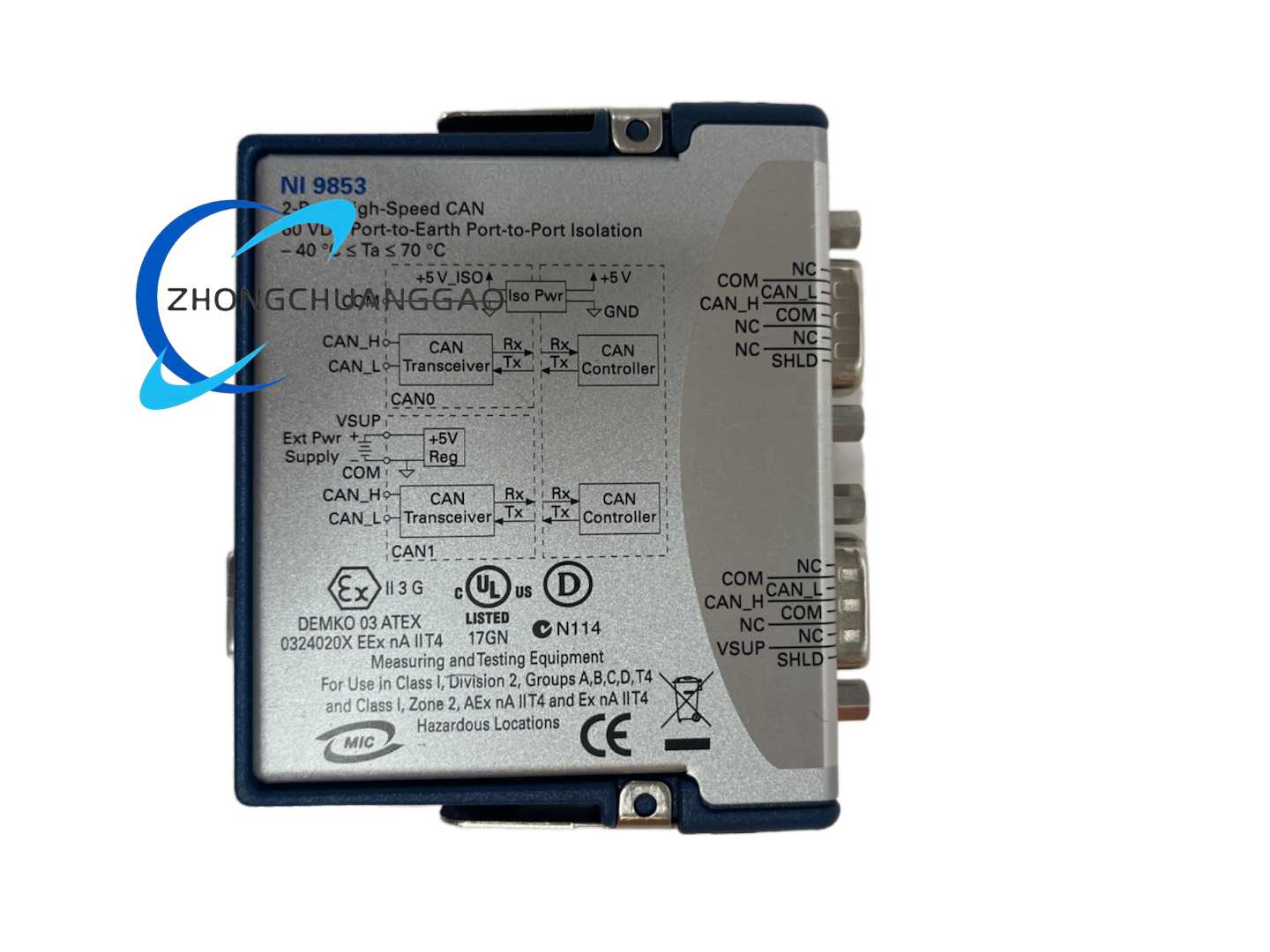

Dual isolated HS-CAN port for CompactRIO/CompactDAQ. Each port independently runs NXP SJA1000 controller + TJA1041 transceiver.
Category:
Description
Technical Specifications:

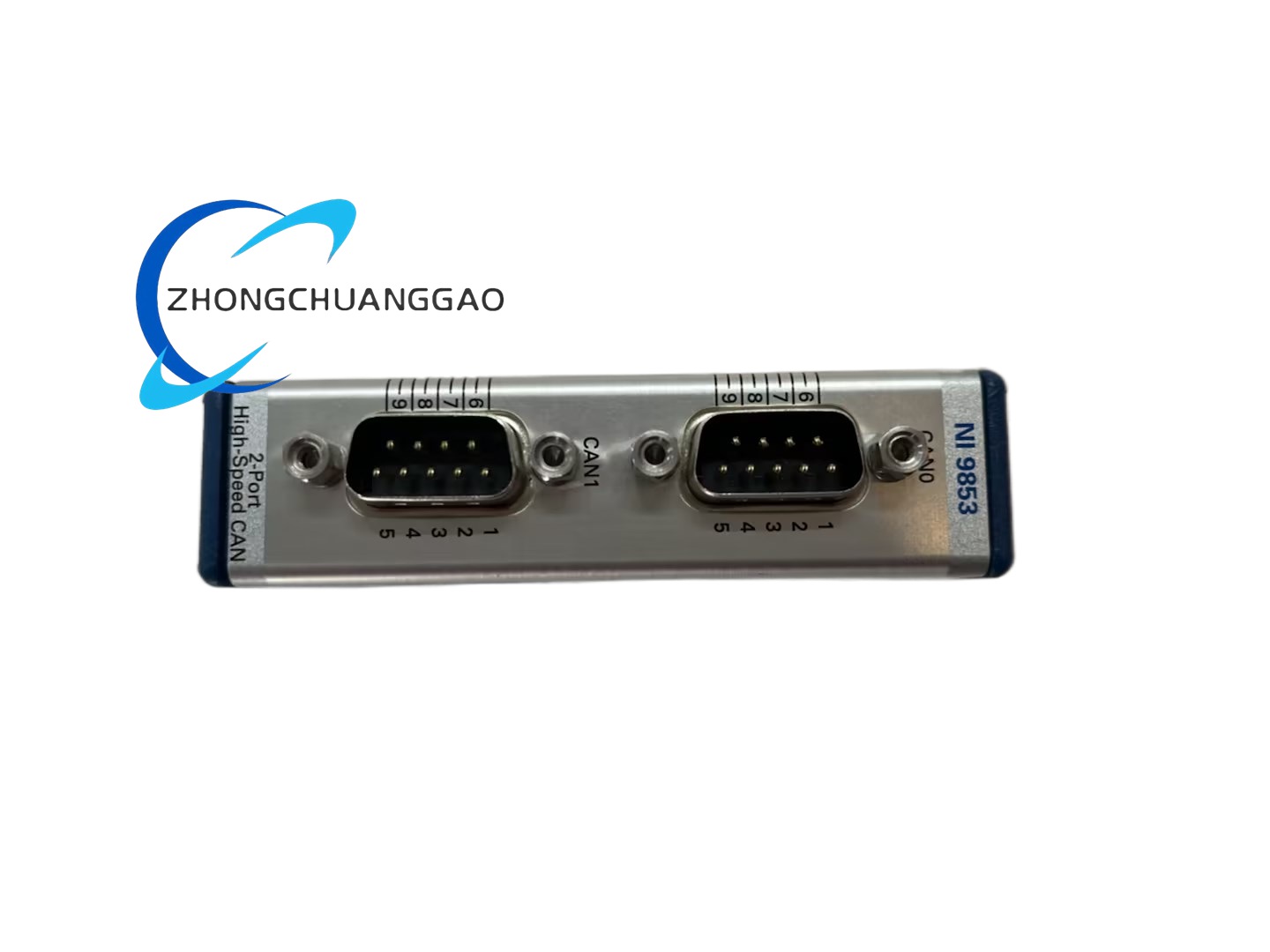

  • Ports:​ 2 × 9-pin D-Sub, mutually isolated and chassis-isolated
  • Standard:​ ISO 11898, CAN 2.0B, 11/29-bit IDs
  • Baud:​ Up to 1 Mbps
  • CAN0:​ Bus-powered, no external VSUP needed
  • CAN1:​ Requires 8–25 V on VSUP (or 9–30 V per variant)
  • Bus voltage tolerance:​ −27 to +40 V DC
  • Isolation:​ 60 V DC continuous port-port/chassis, 500 Vrms withstand
  • Power from chassis:​ 625 mW TX / 400 mW RX / 25 µW sleep
  • MTBF:​ 1,816,913 h @ 25 °C
  • Temp:​ −40 °C to +70 °C
Features:​ Dual independent CAN networks, sleep mode, LED per port, FPGA/RT support in LabVIEW.
Applications:​ Automotive CAN logging, machine CANopen/DeviceNet bridges, cRIO CAN gateway.
Installation Notes:​ Terminate bus with 120 Ω at both ends; shield to SHLD pin; CAN1 needs external VSUP from bus or PSU.
