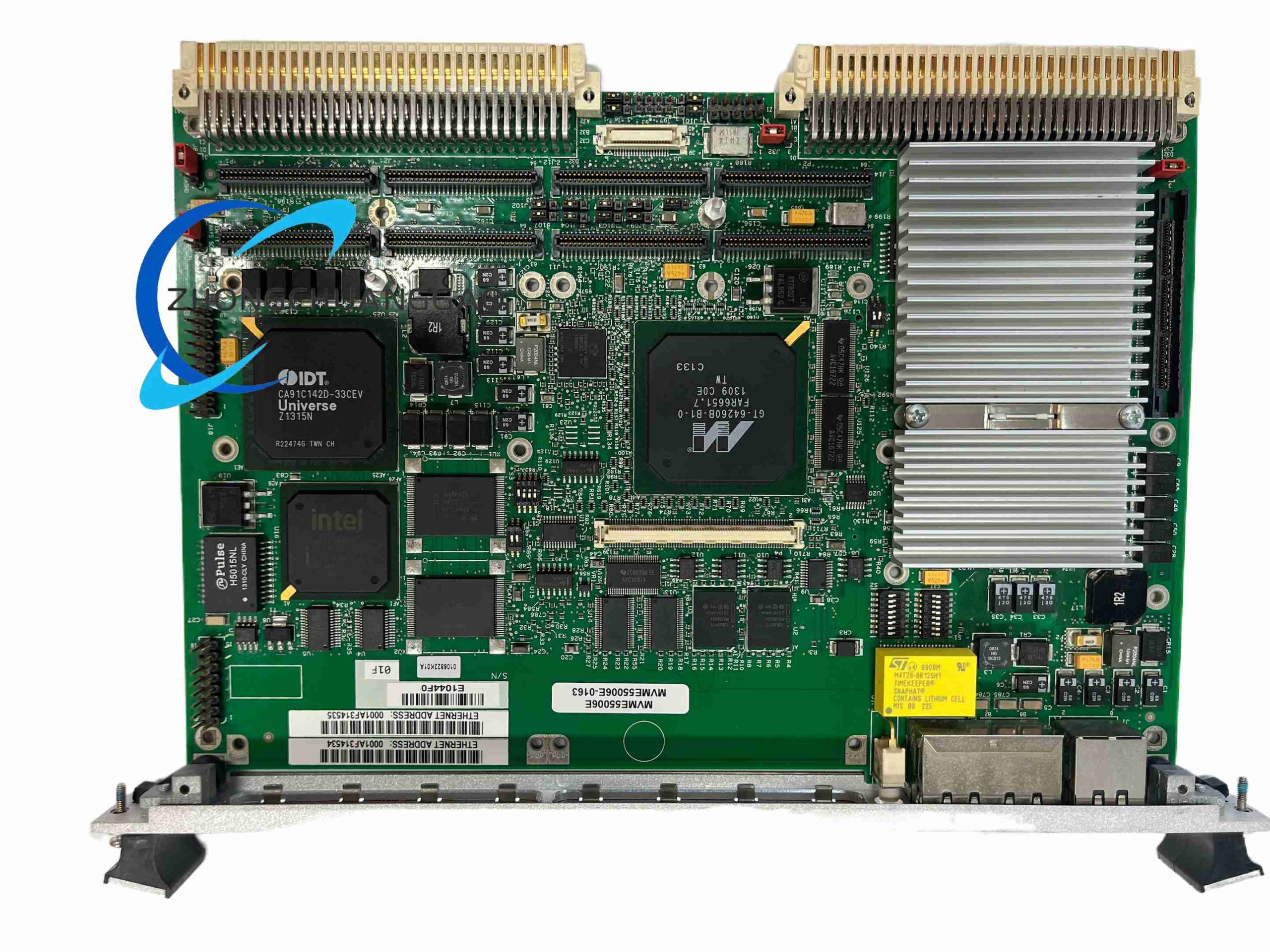

Motorola MVME55006E-0163 - Image 1
Motorola MVME55006E-0163 - Image 2
Motorola MVME55006E-0163 - Image 3
Click to enlarge

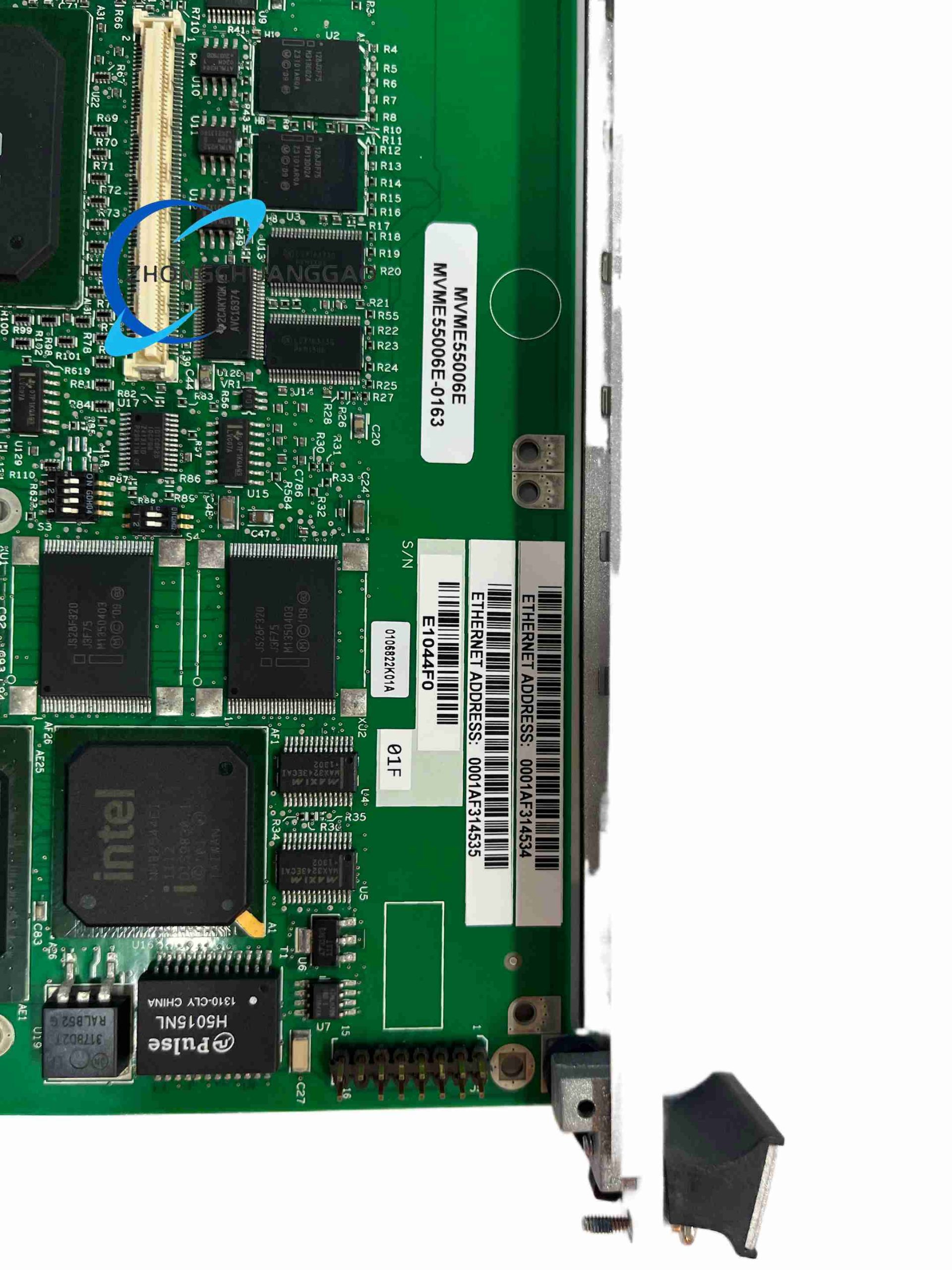

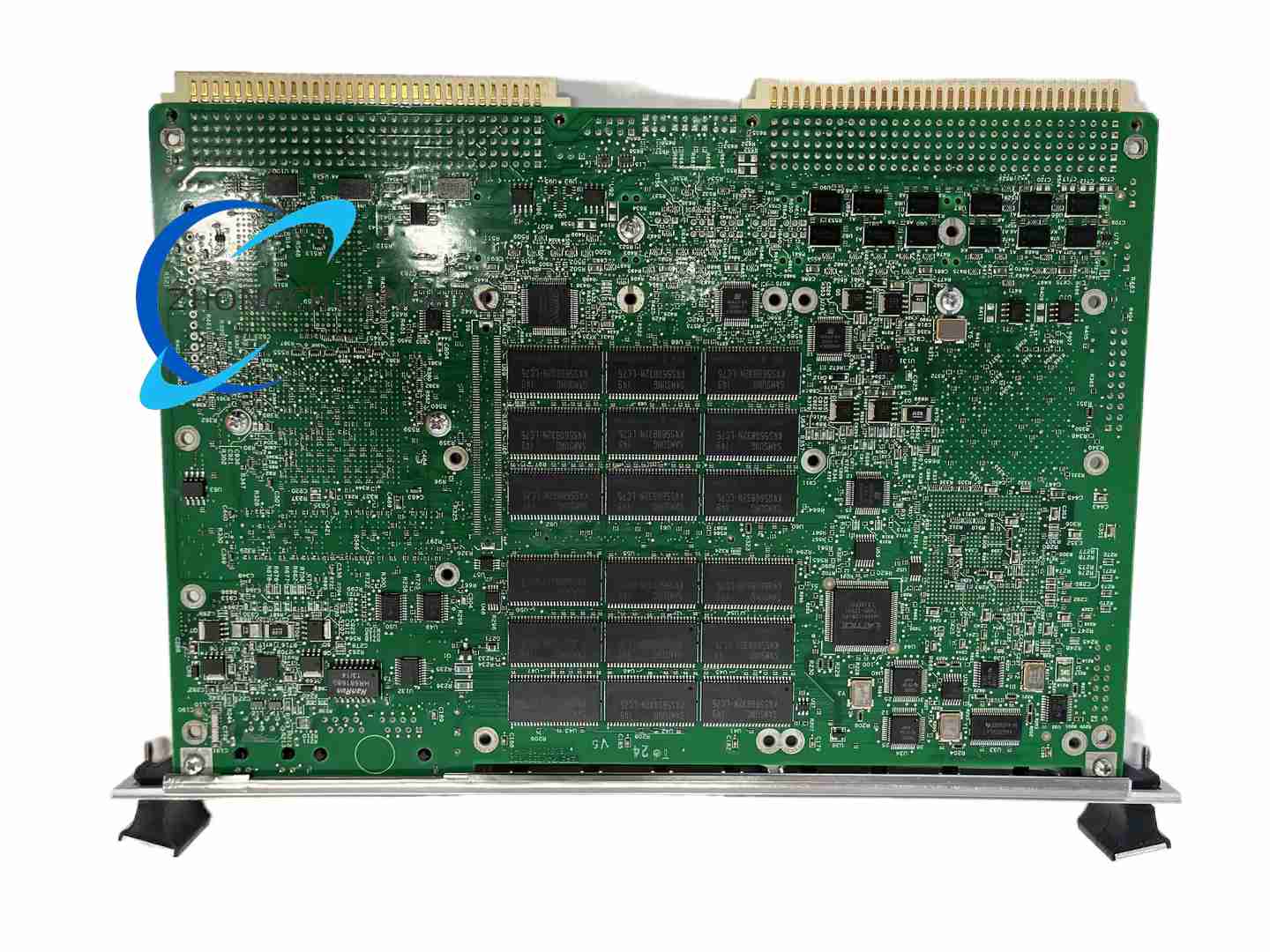

Motorola MVME55006E-0163
Motorola MVME55006E-0163 - Image 2
Motorola MVME55006E-0163 - Image 3

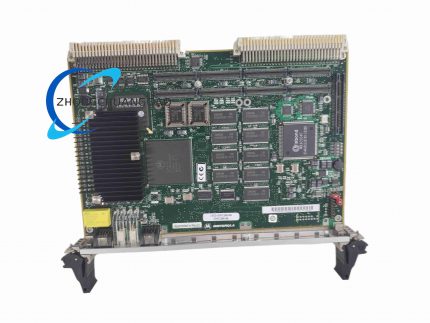

Motorola MVME2400-0361
Motorola MVME2400-0361
Back to products
SAM MXM402
SAM MXM402

Motorola MVME55006E-0163

Product Name:​ MVME5500-6E-0163 Flagship MPC7455 VME SBC
Product Brief:​ Highest-performance Motorola VME SBC; 1 GHz+ MPC7455 with AltiVec, Gigabit Ethernet, dual PMC, for compute-heavy defense and medical imaging.
Category:
Description
Processor:​ MPC7455 1.0–1.267 GHz, 32/32 KB L1, 256 KB on-die L2, 2 MB L3, AltiVec
Memory:​ 512 MB on-board ECC SDRAM, +512 MB via mezzanine (1 GB max), 40 MB Flash (32 MB soldered + 8 MB socket)
Chipset:​ Marvell Discovery, 133 MHz host + SDRAM bus
Bus:​ VME64 via Universe II, A32/D64
PCI/PMC:​ Dual 64-bit 33/66 MHz PCI, 2 × PMC sites, optional 64-bit PCI mezzanine for 2 more PMCs
Networking:​ 1 × Gigabit Ethernet, 1 × 10/100Base-TX
Serial:​ 2 × UART
Mechanical:​ Single-slot 6U VME, 233.4 × 160 mm
Power:​ +5 V, +3.3 V, +12 V, 25–30 W typ.
Environment:​ 0–60 °C commercial, -40–+71 °C rugged option
OS:​ VxWorks 6.x, Linux PPC, Integrity
Applications:​ MRI reconstruction, radar track fusion, virtual combat trainer
Install Notes:​ Requires 1.5 A +3.3 V rail—verify backplane PSU headroom before populating both PMCs.
Cautions:​ L3 cache SRAM sensitive to prolonged >70 °C; log thermal margin in enclosed racks.
