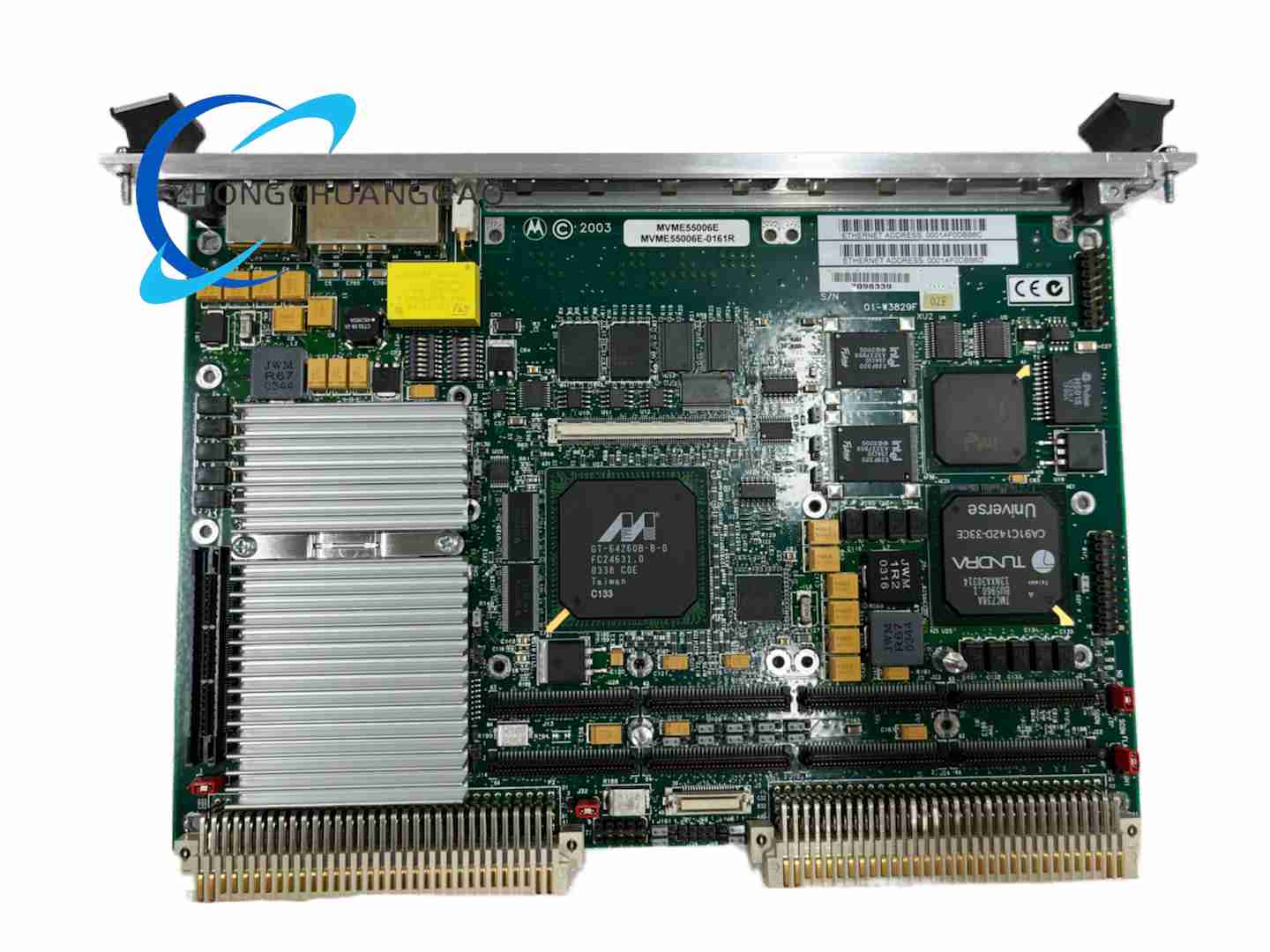

Motorola MVME5500-6E-0161R - Image 1

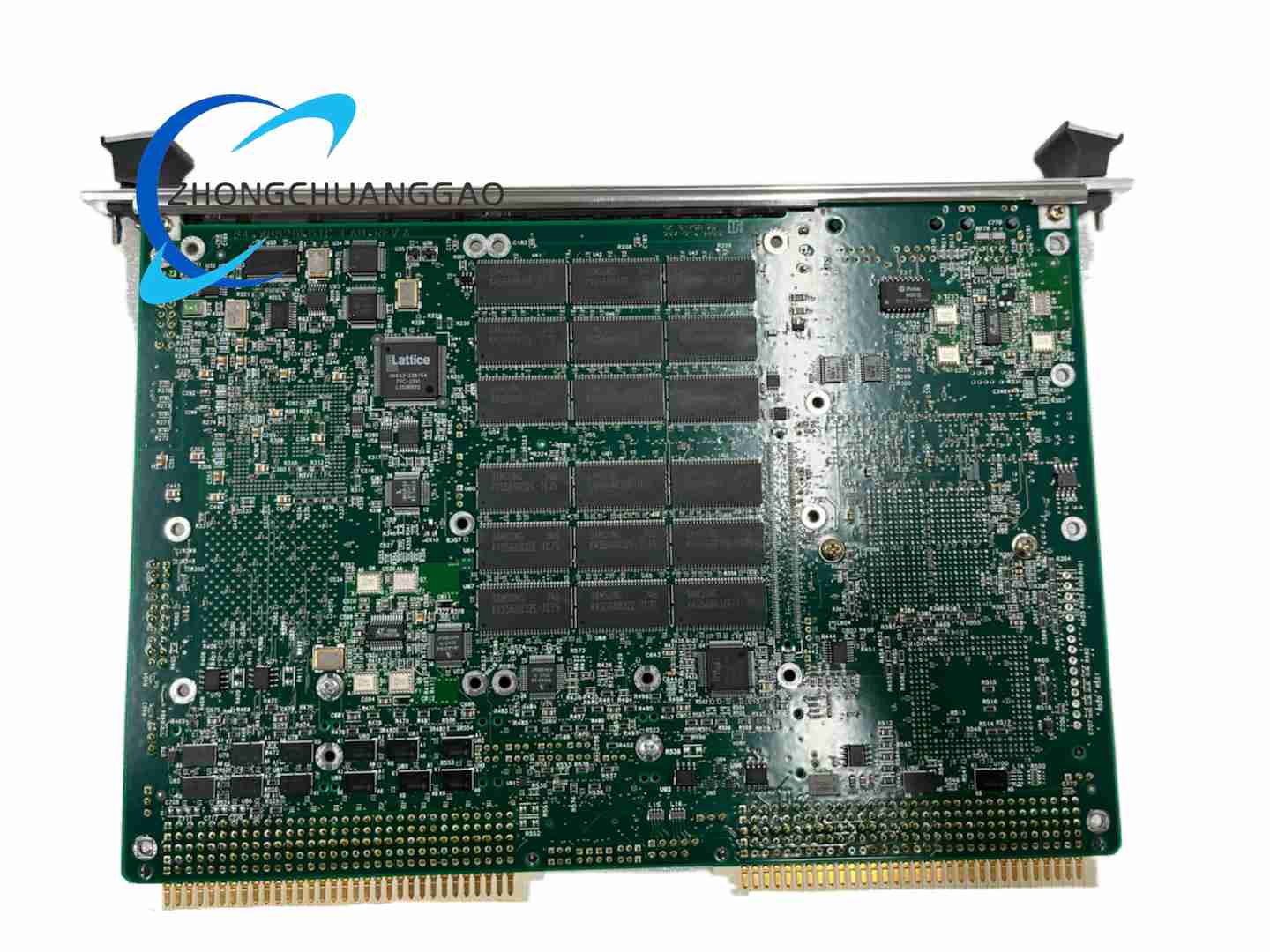

Motorola MVME5500-6E-0161R - Image 2
Click to enlarge
Motorola MVME5500-6E-0161R
Motorola MVME5500-6E-0161R - Image 2

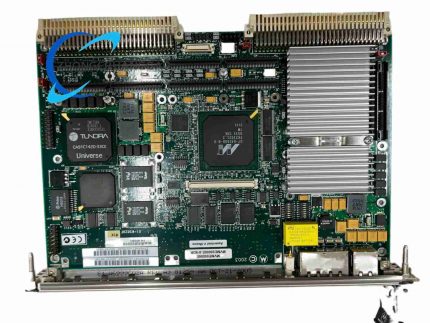

Motorola MVME5500-0163
Motorola MVME5500-0163
Back to products
IMS MX-CS100-701
IMS MX-CS100-701

Motorola MVME5500-6E-0161R

Product Name
Motorola MVME5500-6E-0161R VME64x PowerPC single-board computer
Product Overview
MVME5500-6E-0161R is a configuration variant in the Motorola MVME5500 family. It uses the MPC7455 PowerPC architecture and is intended for long-life VME systems needing higher computing power with PMC and Gigabit Ethernet expansion.
Category:
Description
Processor
MPC7455 PowerPC G4e at 1 GHz. AltiVec coprocessor. 32 KB L1 instruction/data cache. Large on-chip L2 cache and external L3 cache depending on build.
Memory
Configuration-dependent SDRAM, commonly 512 MB to 1 GB ECC SDRAM. Flash memory banks for boot and application firmware.
Bus And Expansion
VME64x backplane support. PCI-X or high-speed PCI bridging depending on configuration. PMC expansion, often single or dual PMC depending on ordering option. Gigabit Ethernet base configuration.
Network And I/O
Dual Gigabit Ethernet on many MVME5500 variants. Serial ports for console and diagnostics. PMC sites for added I/O, networking, storage, or DSP functions.
Operating Environment
Extended-temperature builds commonly rated -40 °C to +85 °C. Standard builds commonly 0 °C to +55 °C or 0 °C to +70 °C.
Applications
Defense computing, semiconductor tool control, industrial VME refresh projects, aerospace systems, and critical infrastructure automation.
Usage Notes
The trailing R usually indicates revision or RoHS-related variant, not a different processor family. Confirm exact ordering-code memory, PMC count, and Ethernet configuration from the board label. Do not assume all MVME5500-016x boards have identical PMC and flash options.
