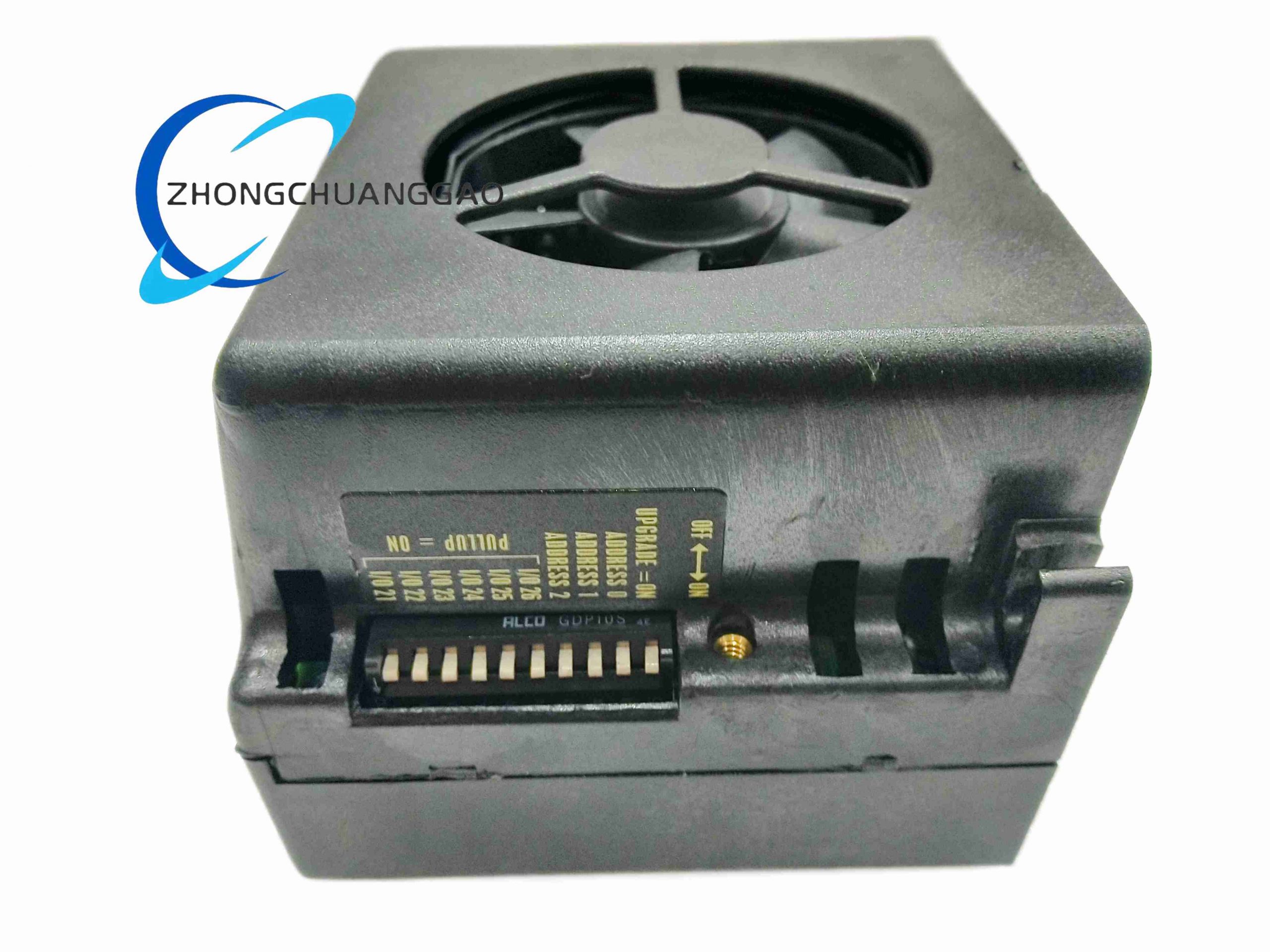

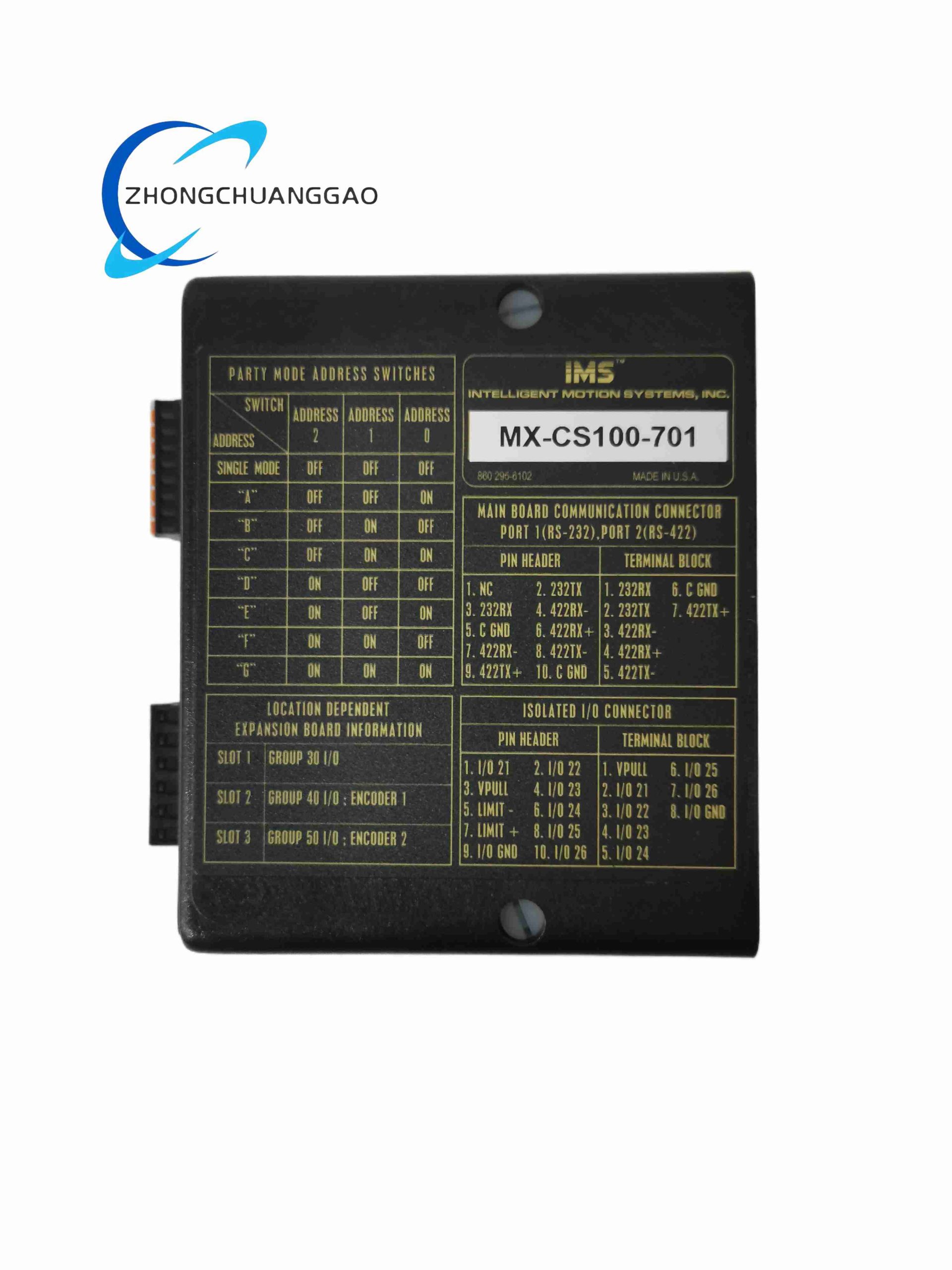

IMS MicroLYNX MX-CS100-701 microstepping stepper motor driver/controller
Product Overview
MX-CS100-701 is a MicroLYNX-series microstepping driver/controller for bipolar two-phase or four-phase stepper motors. It is used for precise motion control in automation, instrumentation, and semiconductor-related equipment.
Category:
Description
Input Power
24 VDC to 75 VDC input supply.
Output Current
5 A continuous, 7 A peak. Bipolar stepper drive output.
Motor Support
2-phase or 4-phase bipolar stepper motors.
Step Resolution
Microstepping up to 51200 steps depending on configuration.
Control I/O
Six digital I/O lines, 5 VDC to 24 VDC compatible. RS-232 and RS-485 communication.
Functions
Indexing, velocity control, position control, and microstepping current control.
Applications
Automation equipment, laboratory instruments, semiconductor handlers, motion stages, packaging machines, and precision positioning systems.
Installation Requirements
Mount in a clean, ventilated enclosure. Separate motor power wiring from control signal wiring. Use shielded encoder and communication cables where noise is present.
Usage Notes
Set current limit before connecting the motor. Avoid exceeding 75 VDC input. Prevent sustained overheating by providing adequate cooling. Verify RS-232/RS-485 termination and baud rate before network operation.
