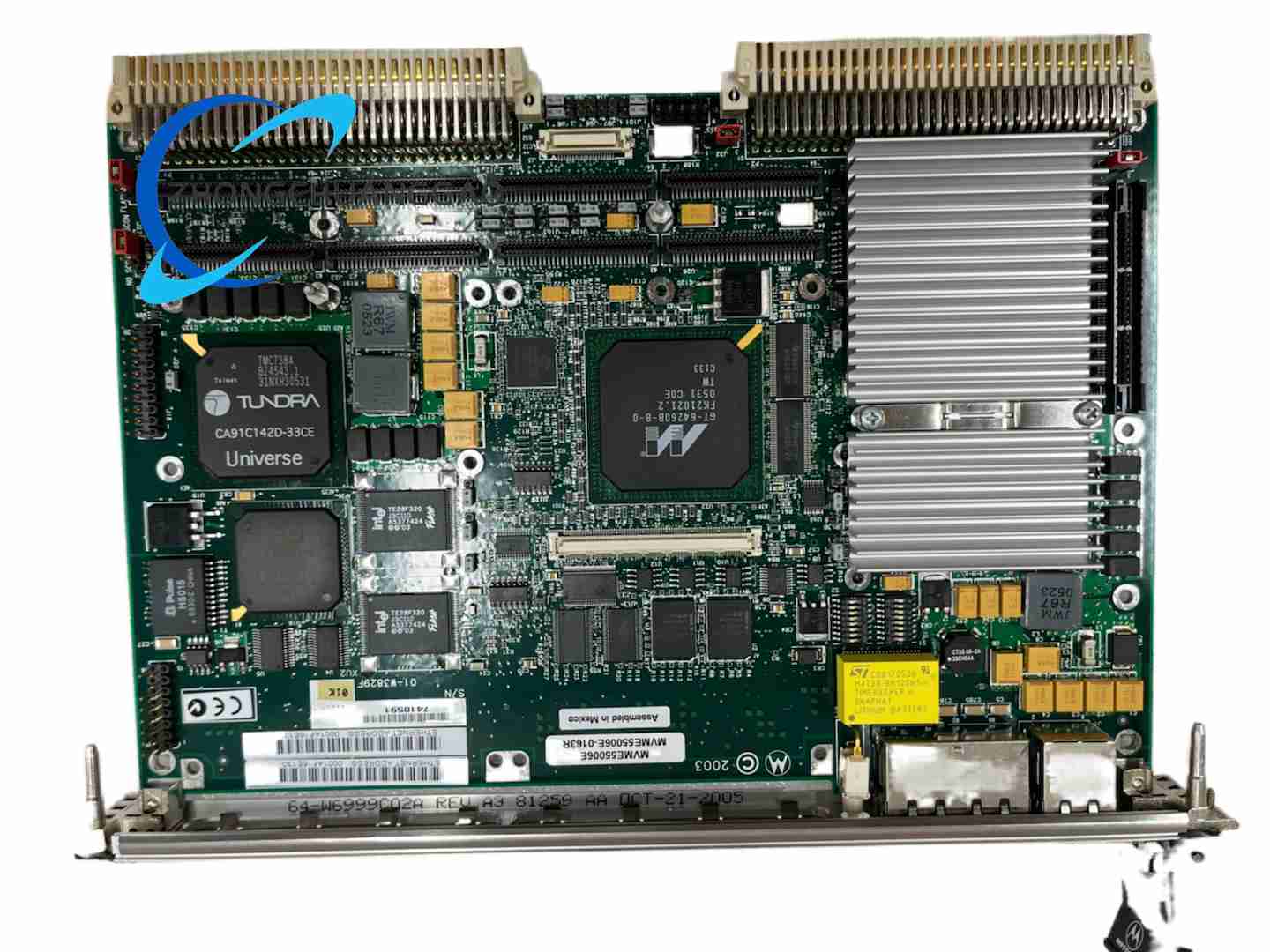

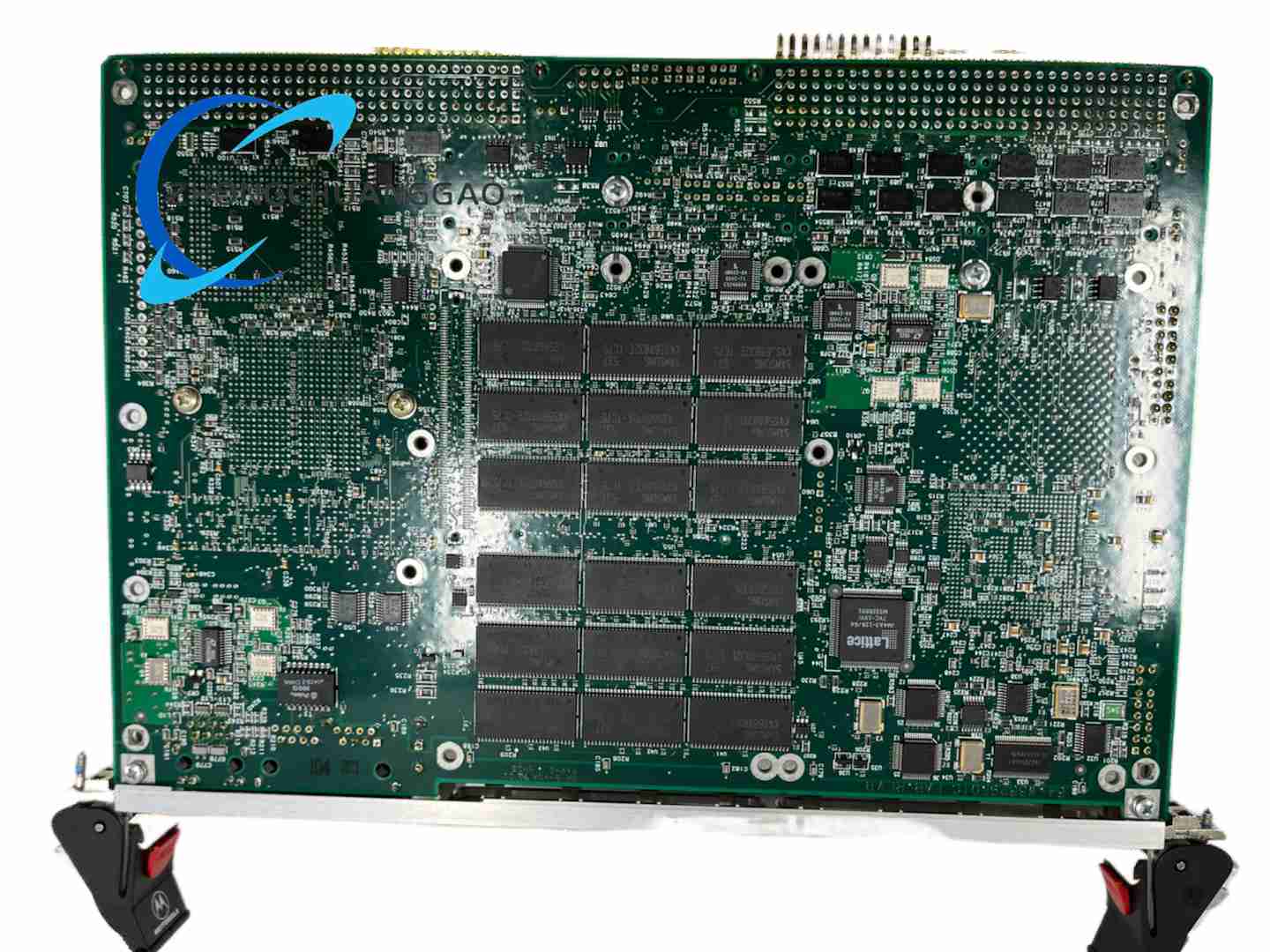

Motorola MVME5500-0163 6U VMEbus PowerPC single-board computer
Product Overview
MVME5500-0163 is a high-performance VME64x SBC based on the MPC7455 PowerPC processor. It is designed for compute-intensive embedded applications requiring Gigabit Ethernet, high-speed PCI, and VME64x backplane performance.
Category:
Description
Processor
Motorola/Freescale MPC7455 PowerPC at 1 GHz. 32 KB L1 instruction cache and 32 KB L1 data cache. 256 KB on-chip L2 cache. 2 MB L3 cache. AltiVec vector processing unit.
Memory
512 MB on-board 133 MHz ECC SDRAM. Expandable to 1 GB using memory mezzanine. 32 MB and 8 MB flash banks. CompactFlash support.
Bus And Expansion
VME64x with Universe II interface. 2eSST transfers up to 320 MB/s. Two independent 64-bit PCI buses at 33/66 MHz. Two PMC sites.
Network And I/O
One Gigabit Ethernet 1000Base-T. One 10/100Base-TX Ethernet. Two RS-232/422/485 serial ports. NVRAM, RTC, watchdog, and programmable timers.
System Controller
Marvell system controller with 133 MHz host bus and SDRAM memory bus.
Power Requirement
+5 V DC ±5 percent and ±12 V DC ±10 percent. Typical consumption around 30 W.
Operating Environment
0 °C to +70 °C commercial/industrial. -40 °C to +85 °C rugged/extended versions. 5% to 95% non-condensing humidity.
Operating Systems
VxWorks, Linux, QNX, Windows CE.
Applications
Radar signal processing, military mission computing, medical imaging, machine vision, high-speed data acquisition, motion control, telecom infrastructure, and aerospace computing.
Usage Notes
Confirm backplane supports VME64x and 2eSST before enabling high-speed transfers. Use matched PMC modules for 33/66 MHz PCI buses. Provide adequate chassis cooling for 1 GHz PowerPC operation.
