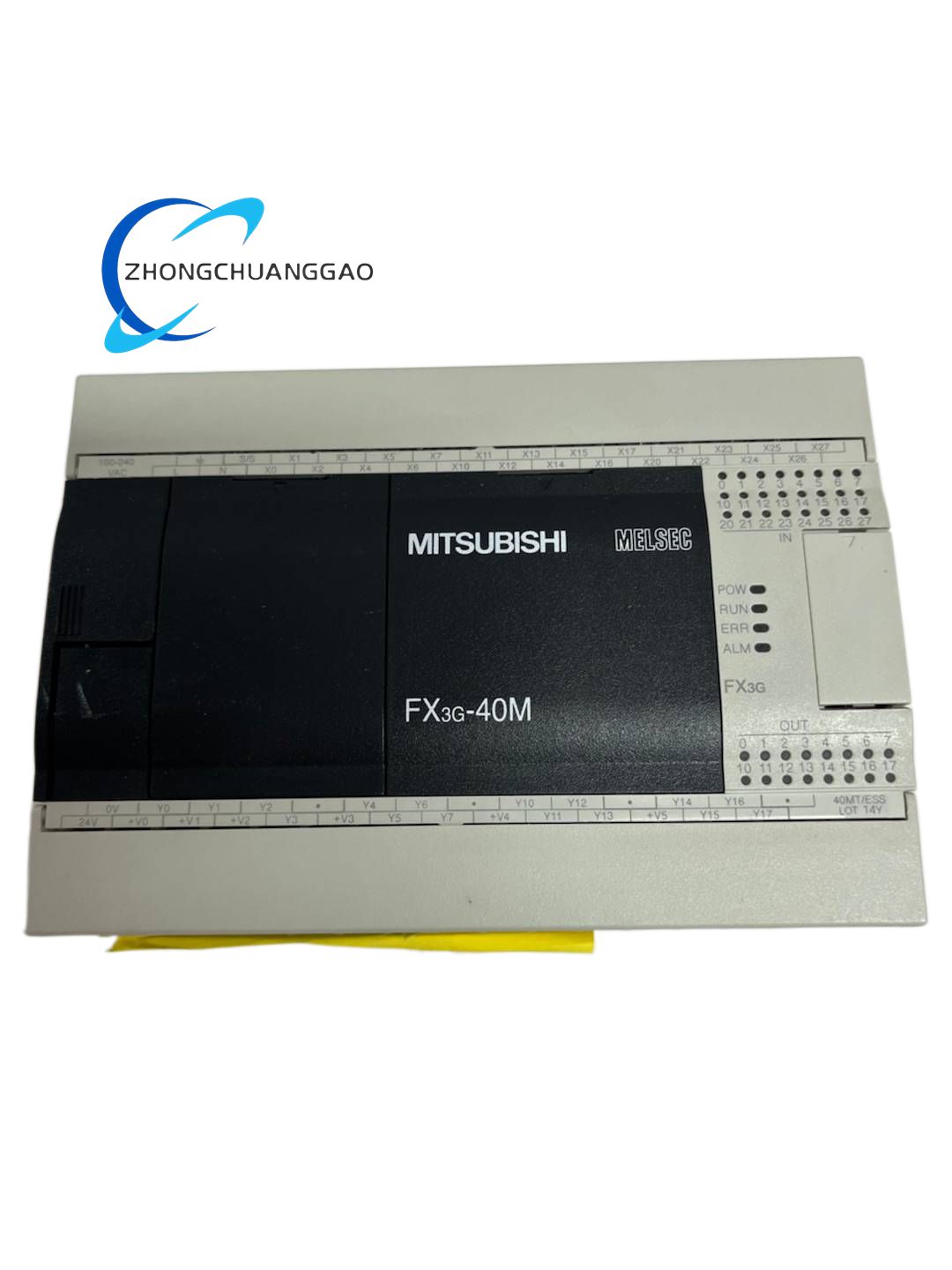

Mitsubishi FX3G-40MTESS - Image 1
Click to enlarge

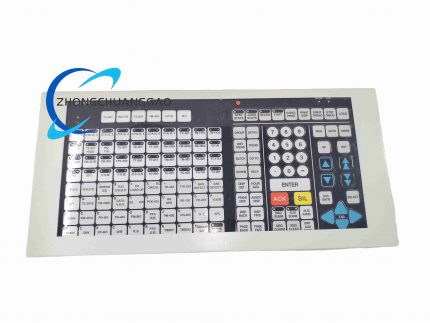

Honeywell FW-23-13
Honeywell FW-23-13
Back to products
Mitsubishi FX-316
Mitsubishi FX-316

Mitsubishi FX3G-40MTESS

  • Product Name: MELSEC-F Series FX3G Micro Programmable Logic Controller (Main Unit)
  • Product Introduction: A third-generation compact PLC from Mitsubishi Electric, featuring 40 I/O points​ (24 Inputs / 16 Outputs) with Transistor Sinking (ESS)​ outputs, AC power supply, and enhanced high-speed processing for motion and positioning tasks.
Category:
Description
  • Technical Specifications:
    • Power Supply: AC 100–240 V
    • I/O Configuration: 24 DI (DC 24 V sink/source), 16 DO (Transistor, Sink type)
    • Program Capacity: 32,000 steps (EEPROM, expandable +32K)
    • Processing Speed: 0.21 µs/step (basic LD instruction)
    • High-Speed Pulse Output: 1 axis up to 100 kHz (ESS version limitation vs standard FX3G 2-axis)
    • Communication Ports: Built-in USB, RS-422
    • Local I/O Expansion: Up to 128 local + 256 remote points
    • Operating Temp: 0 °C to 55 °C
    • Dimensions: 130 × 90 × 86 mm (W×H×D), Weight ~0.7 kg
  • Functional Features:
    • Positioning Control: Drives stepper/servo motors via high-speed pulse trains.
    • Rich Instruction Set: 29 basic, 124 applied instructions, supports SFC programming.
    • Built-in Real-Time Clock​ (on most FX3G variants) and battery-backed memory.
  • Material & Structure: Flame-retardant ABS/Polycarbonate housing with DIN rail mounting clips; removable terminal blocks for easy wiring.
  • Application Scenarios: Packaging machinery, conveyor sorting, small assembly lines, CNC auxiliary control, and laboratory automation.
  • Working Principle: Scans inputs → executes user ladder/instruction list from EEPROM → updates outputs via transistor switching at the end of scan cycle.
  • Installation & Notes: Ensure ESS (Sink)​ output wiring matches the external load polarity (common terminal to negative). Avoid exceeding 0.5 A per point on transistor outputs. Program using GX Works2 or GX Developer.
