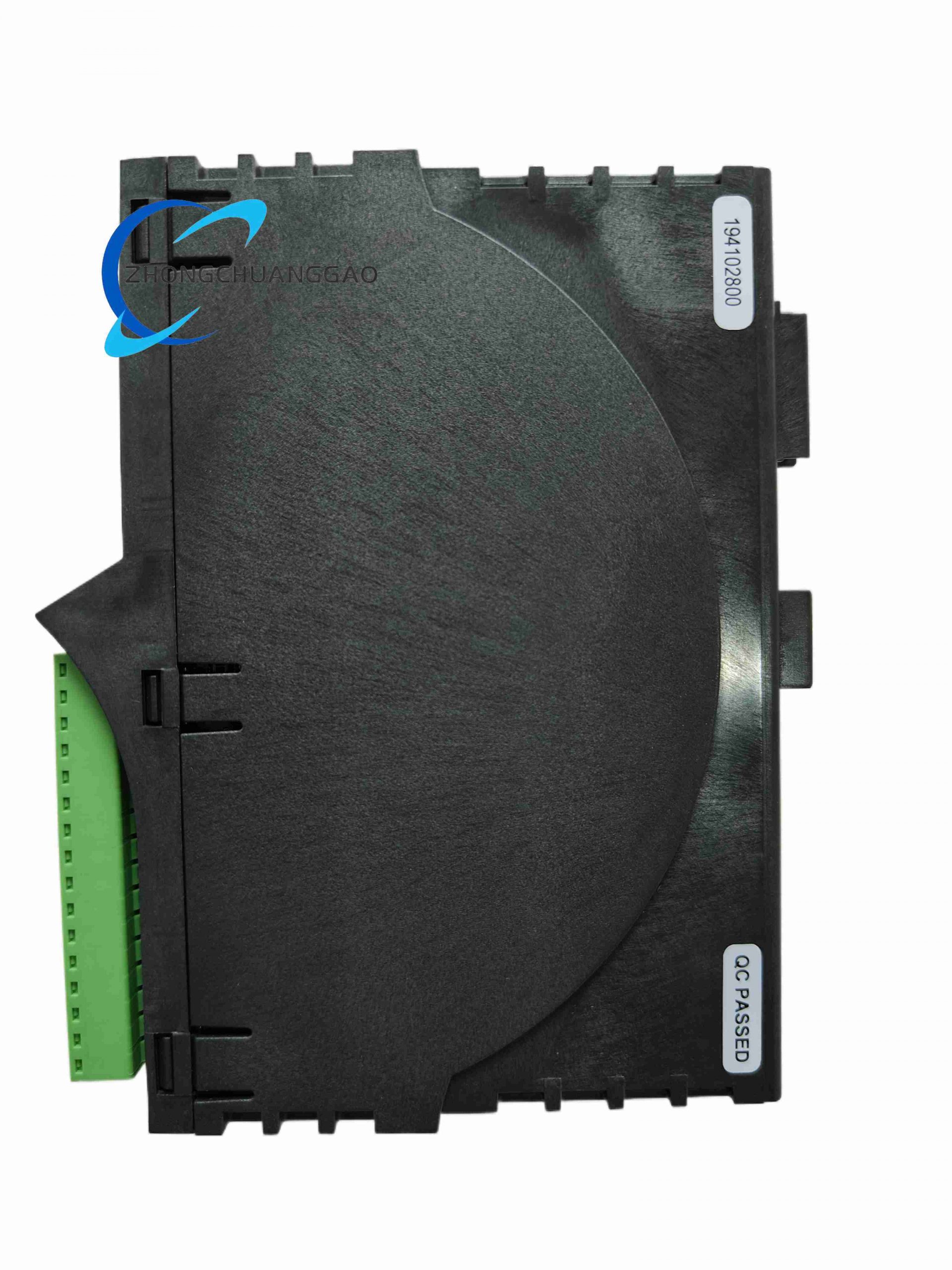

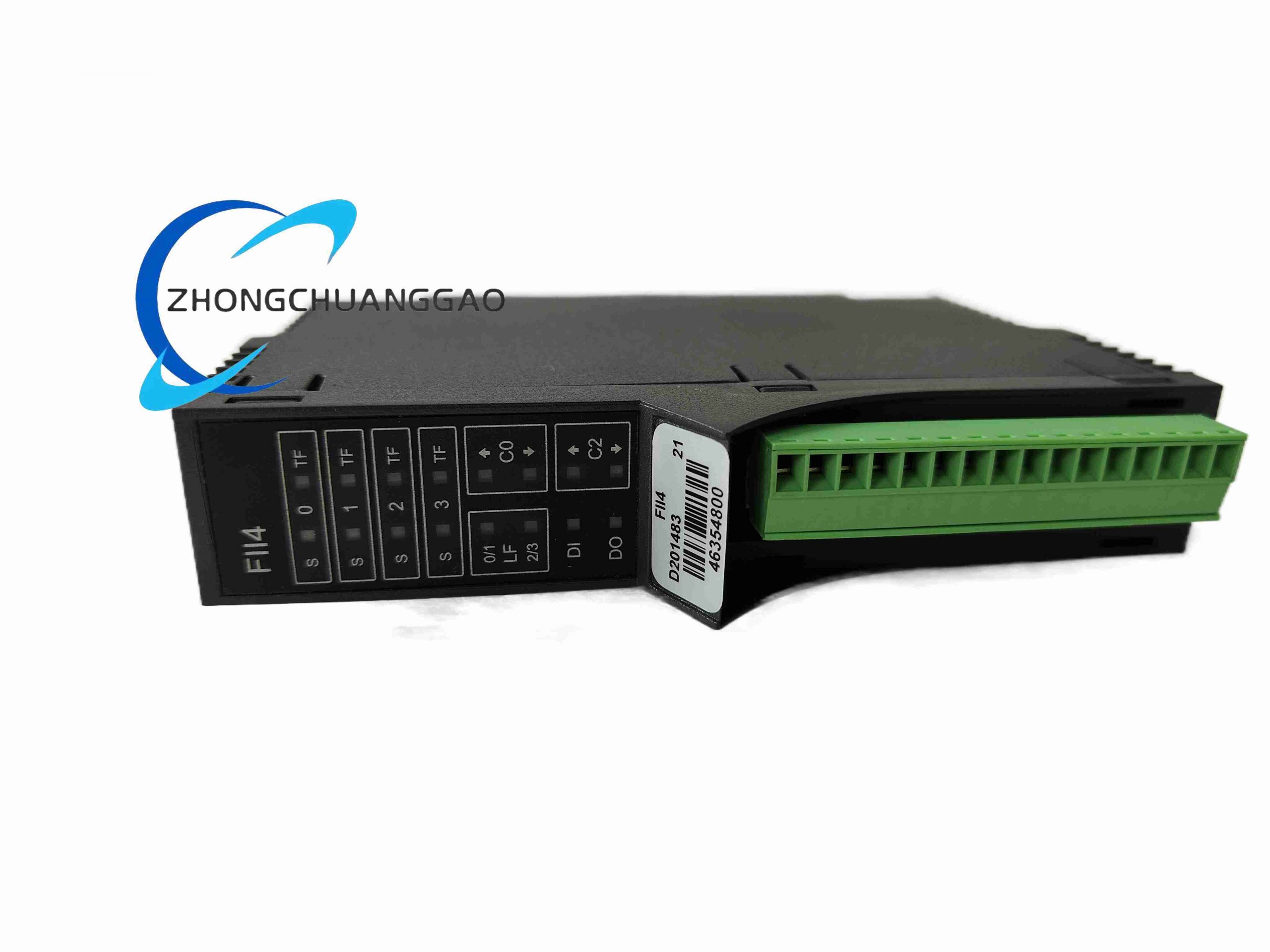

METSO D201483

Product Name:​ Metso Neles Smart Valve Positioner Module, D201483
Product Type:​ Advanced pneumatic valve positioner with HART
Technical Specifications:
  • Input Signal:​ 4–20 mA DC + HART protocol
Category:
Description
  • Supply Pressure:​ 1.4–7 bar (20–100 psi)
  • Output Pressure:​ 0.2–1.0 MPa to actuator
  • Stem Travel:​ Adjustable 10–100 mm (linear); 0–90° rotary
  • Linearity:​ ±0.5 % of span
  • Hysteresis:​ < 0.3 %
  • Response Time:​ < 2 s (0–100 % stroke)
  • Air Consumption:​ < 0.1 Nl/min (steady state)
  • Enclosure:​ IP66 / NEMA 4X, aluminium die-cast, SS internals
  • Operating Temp.:​ –40 °C to +85 °C
  • Certification:​ ATEX, IECEx, SIL 2, CE
  • Mounting:​ Direct on actuator (NAMUR VDI/VDE 3845)
Features:​ Advanced valve diagnostics via HART (stiction, packing friction, seat wear trend), auto-calibration, low steady-state air consumption, fail-safe programmable.
