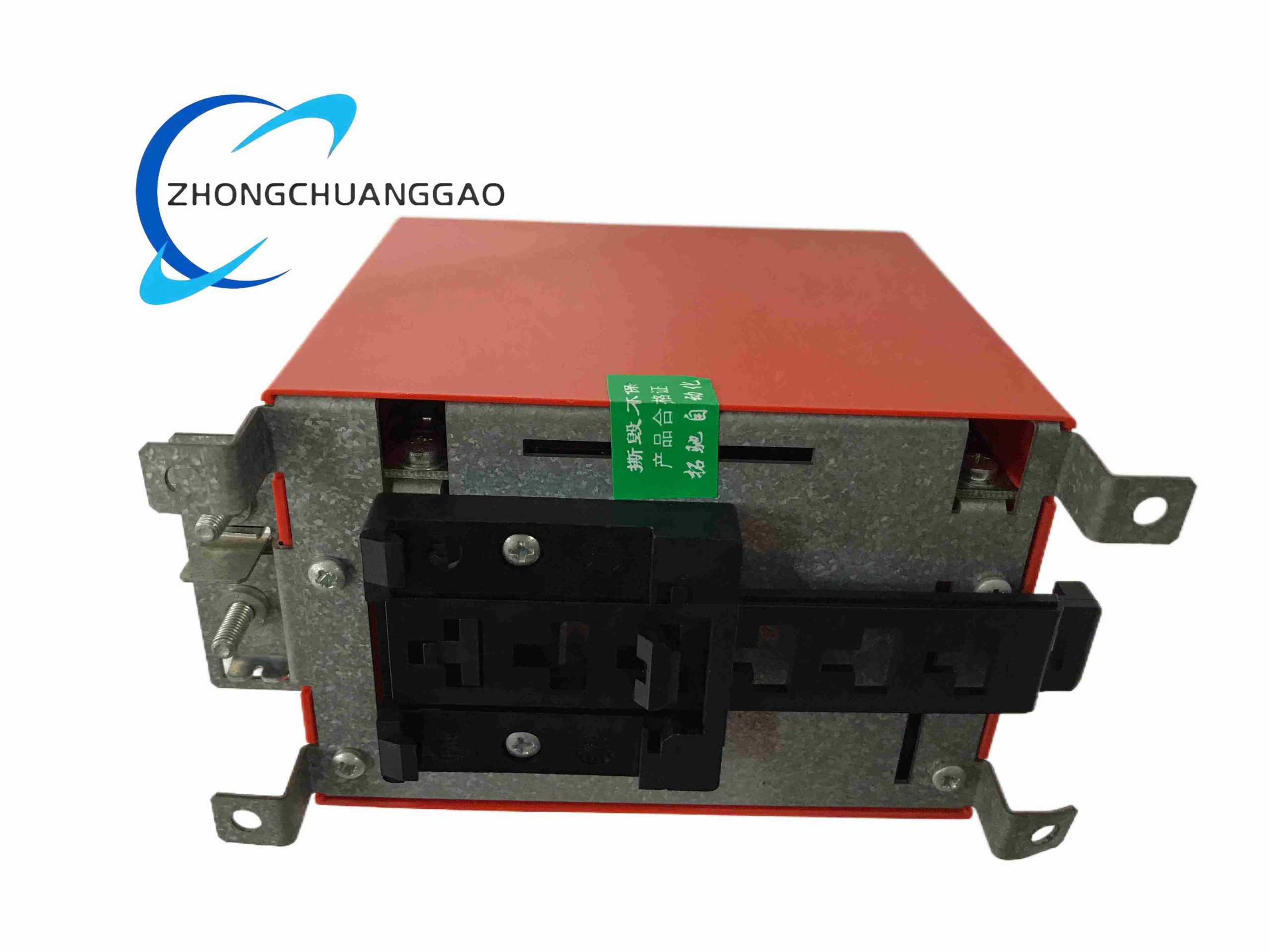

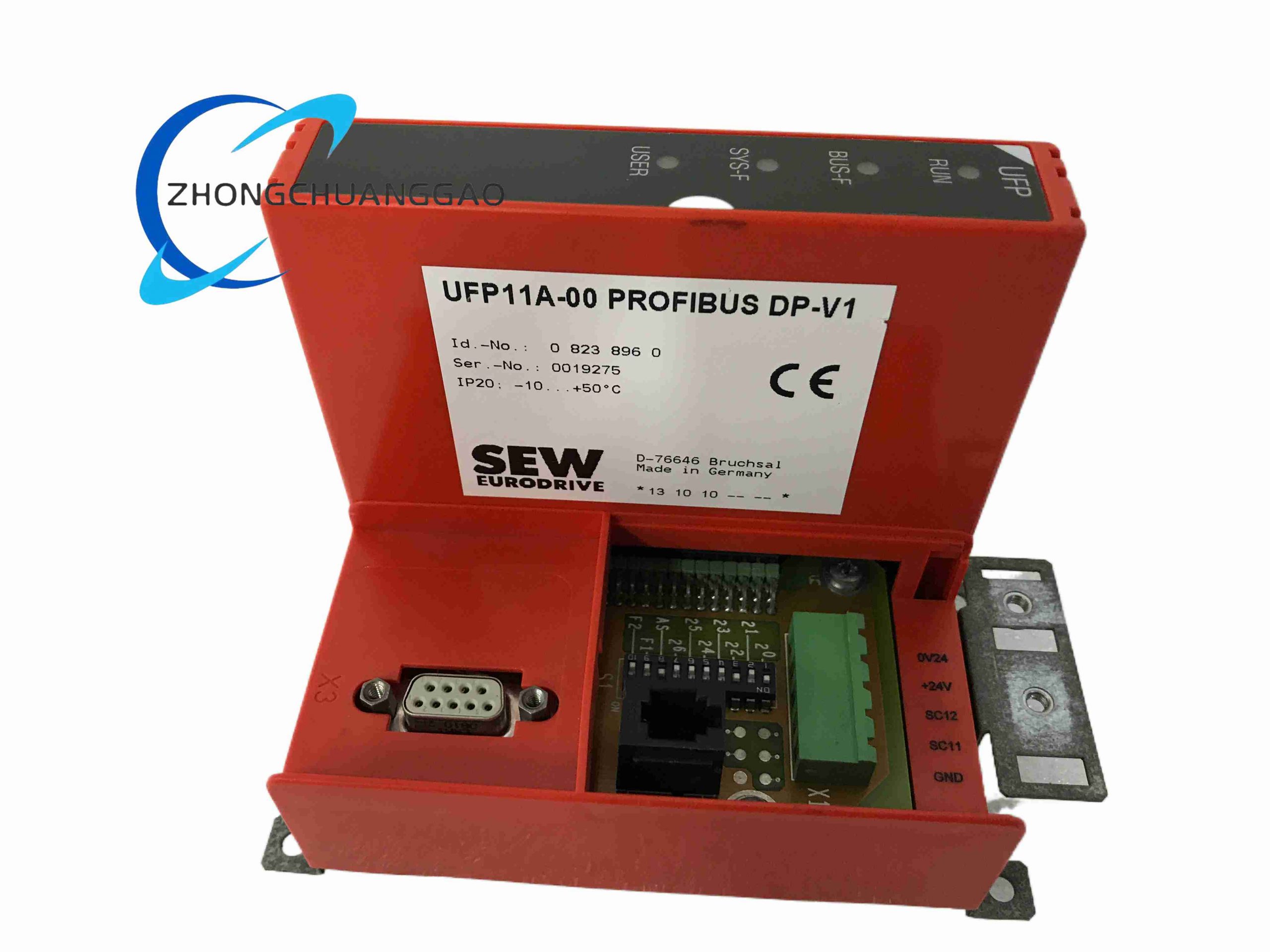

SEW-EURODRIVE UFP11A-00

Product Name: PROFIBUS DP-V1 Fieldbus Interface Card

Product Introduction: UFP11A-00 is SEW-EURODRIVE plug-in communication option card, used for connecting SEW drive inverter to PROFIBUS DP-V1 industrial fieldbus network.

Category:
Description

Technical Specifications

Supply voltage: 18 ~ 30 VDC Max power consumption: 200 mA @ 24VDC Communication physical layer: RS485 Baud rate: 9.6 kbit/s ~ 12 Mbit/s auto baud Connector: 9 pin Sub-D Dimension:75.4 × 144 × 106 mm Operating temperature: 0 °C ~ +40 °C

Functional Features

Support PROFIBUS DP-V1 cyclic process data and acyclic parameter access. Built-in bus terminating resistor switch. Support SBus internal communication with multiple inverters. Diagnostic information reading via bus.

Application Scenarios

Automated production line, conveyor system, packaging machine, material handling equipment, SEW MOVIDRIVE drive system.

Material Composition

Card housing: Reinforced plastic Circuit board: FR-4 substrate Connector: Gold plated copper alloy

Structural Characteristics

Plug-in option card for inverter slot. Front panel with 9-pin Sub-D bus port and status LED.

Working Principle

Convert PROFIBUS DP-V1 bus protocol data to SBus internal drive communication protocol, realize data exchange between PLC master station and SEW inverters.

Installation Requirements

Power off inverter before inserting card. Install card into designated option slot of drive. Set bus terminating resistor ON when it is at bus terminal node. Use PROFIBUS shielded twisted pair cable.

Usage Notes

Set station address correctly before network startup. Ground cable shield at one end. Do not hot swap the card while inverter powered on.
