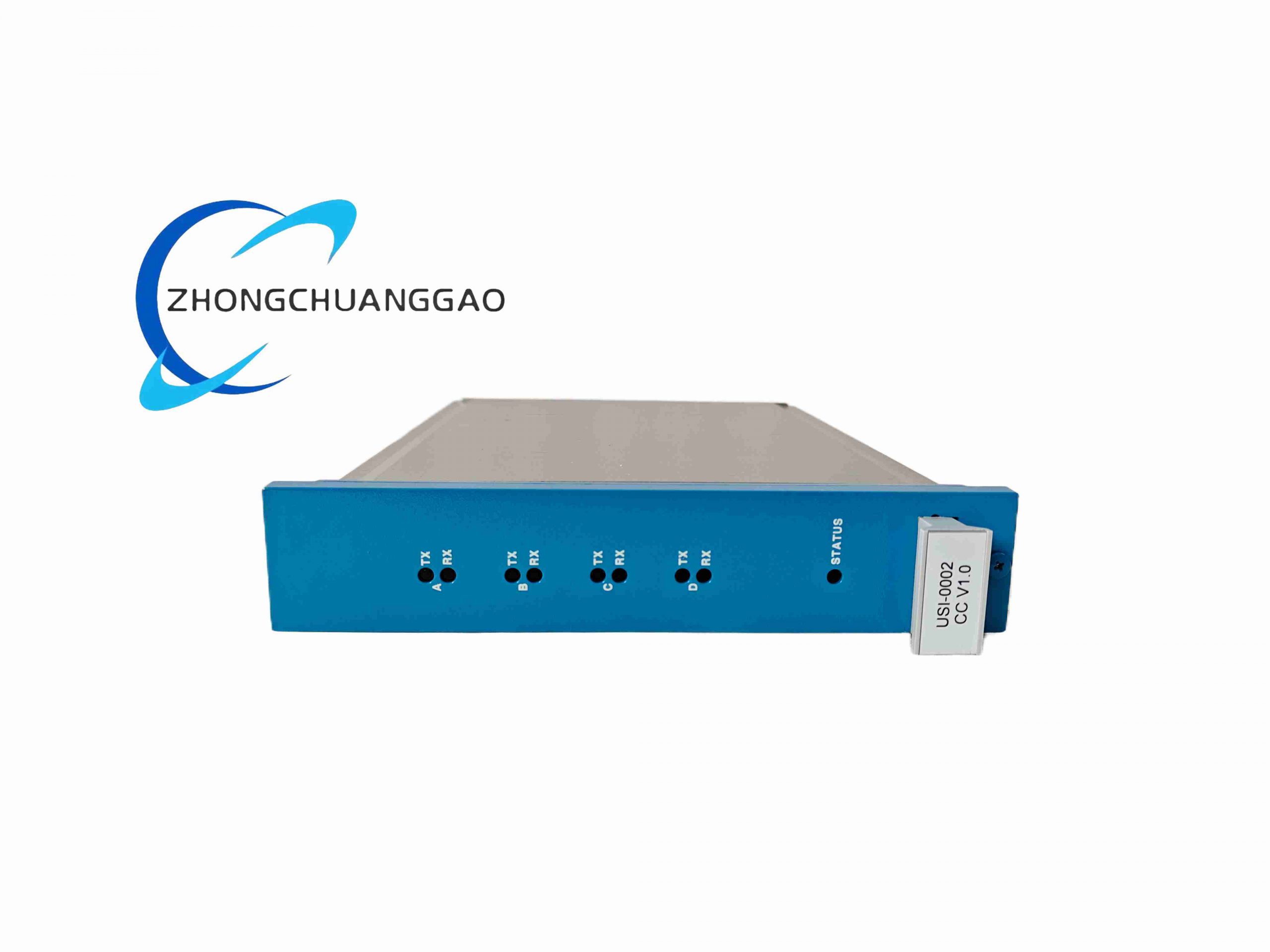

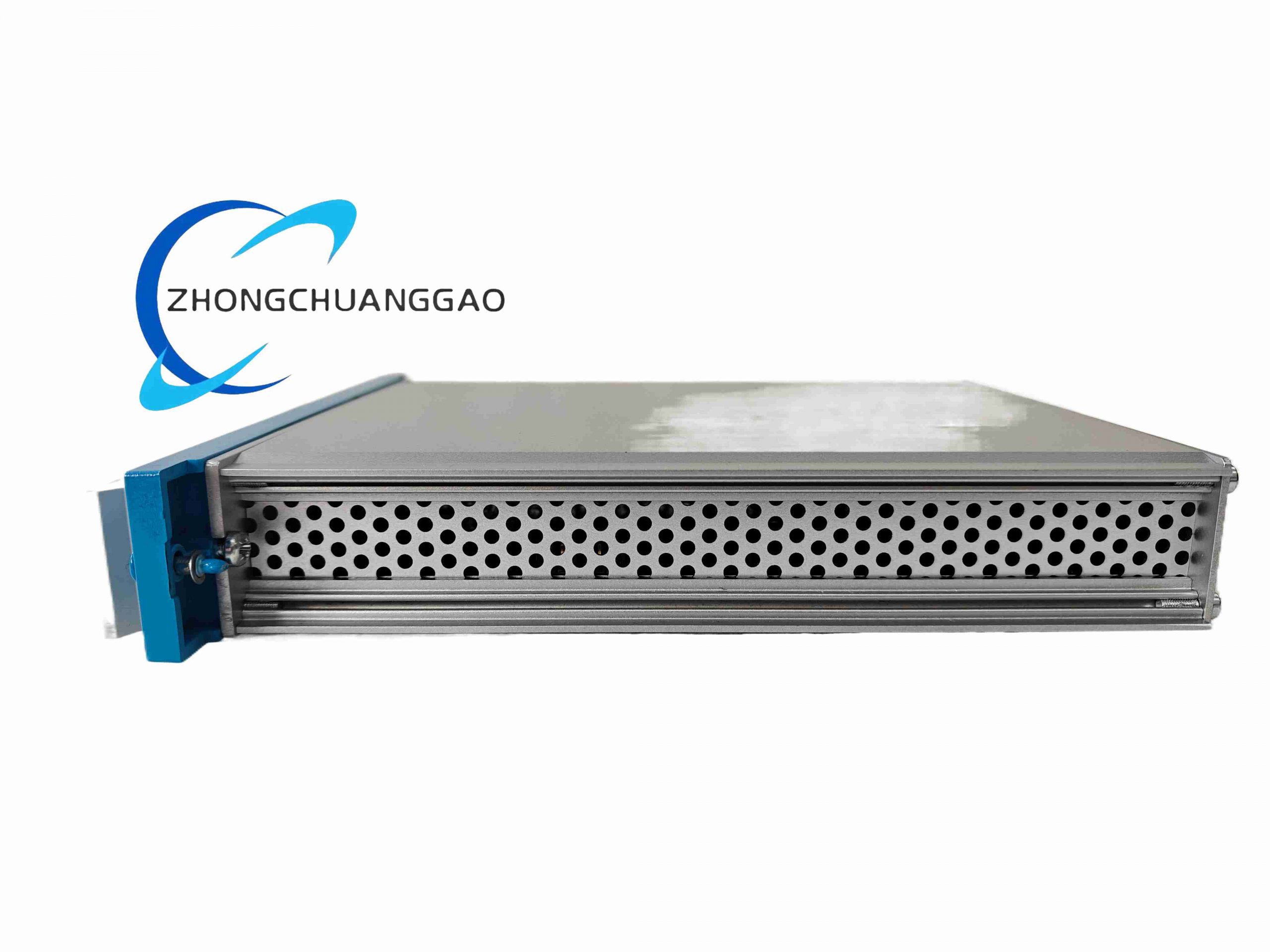

Honeywell FC-USI-0002

Product Name: Universal Serial Interface Module
Product Introduction: Part of Honeywell’s Safety Manager or Experion PKS interfacing modules, designed to provide universal serial communication (RS-232/RS-485/Modbus) between the safety system and third-party devices or subsystems.

Category: Honeywell

Description

Technical Specifications & Performance Parameters:
- Interface Ports: Typically multiple serial ports (RS-232, RS-485 isolated)
- Protocols: Modbus RTU/ASCII, Honeywell proprietary, potentially others
- Galvanic Isolation: Port-to-port and port-to-backplane isolation
- Operating Voltage: 24 V DC from backplane
- Data Rate: Configurable up to 115.2 kbps or higher depending on standard
Functional Features: Bridges safety controller to non-safe PLCs, analyzers, or SCADA; built-in buffer and diagnostic LEDs; redundant communication paths in some configurations.
Material & Structural Characteristics: Slot-based module with DB9 or terminal block front connectors, industrial-grade PCB with EMI shielding.
Application Scenarios: Integrating gas detectors, vibration monitors, turbine auxiliaries, or legacy DCS with Safety Manager; non-safety data exchange requiring isolation.
Working Principle: Maps serial data streams to memory blocks in the safety controller via backplane driver; handles packet framing, CRC, and timeout diagnostics transparently.
Installation Requirements: Insert into designated chassis slot or terminal base; connect serial cables with proper shielding; terminate RS-485 lines with 120 ohm resistors if applicable.
Usage Precautions: Serial data is typically non-SIL; do not use for safety-critical inter-trip without additional validation; ensure baud rate and parity match connected device; protect against ground loops using isolated ports.
