HIMA F3003 SILWORX 209

Product Name: HIMA HIMatrix F30 03 SILworX 20/9 Safety Controller Module
Product Introduction: Central Processing Unit (CPU) module for HIMA HIMatrix F30 compact safety controller, pre-licensed with SILworX engineering software reference (20/9 denoting memory/program specs), executing safety logic up to SIL 3.

Category: HIMA

Description

Technical Specifications:
- Model Code: F30 03, SILworX 20/9 (20 MB program, 9 MB data memory reference)
- Processor: 32-bit RISC dual-core Lockstep safety CPU
- Program Memory: 20 MB
- Data Memory: 9 MB (variables, diagnostics, event logs)
- Integrated I/O (F35 variant context): Typically paired with F35 body (24 DI, 8 DO, 8 AI, 2 counters) or used as CPU for F30 base
- Safety Certification: SIL 3 (IEC 61508), SIL 4 (CENELEC EN 50126/50128/50129 for rail), PL e, TÜV certified
- Communication Interfaces: 2 x Ethernet (SafeEthernet, Modbus TCP, OPC UA), 1 x RS-232 (debug/service)
- Watchdog: Hardware watchdog + periodic memory/CPU self-test (<10 ms cycle)
- Operating Temperature: 0°C to +60°C (some variants -20°C to +60°C)
- Supply Voltage: 24 V DC (redundant input support)
Functional Features: Executes certified safety application code; cyclic self-diagnostics; supports SafeEthernet networking; integrated web server (diag); non-volatile memory for retentive data.
Performance Parameters: Logic execution response < 10 ms; high diagnostic coverage (DC > 99%); supports complex interlocking logic.
Material Composition: Metal/Flame-retardant enclosure; conformal coated PCB.

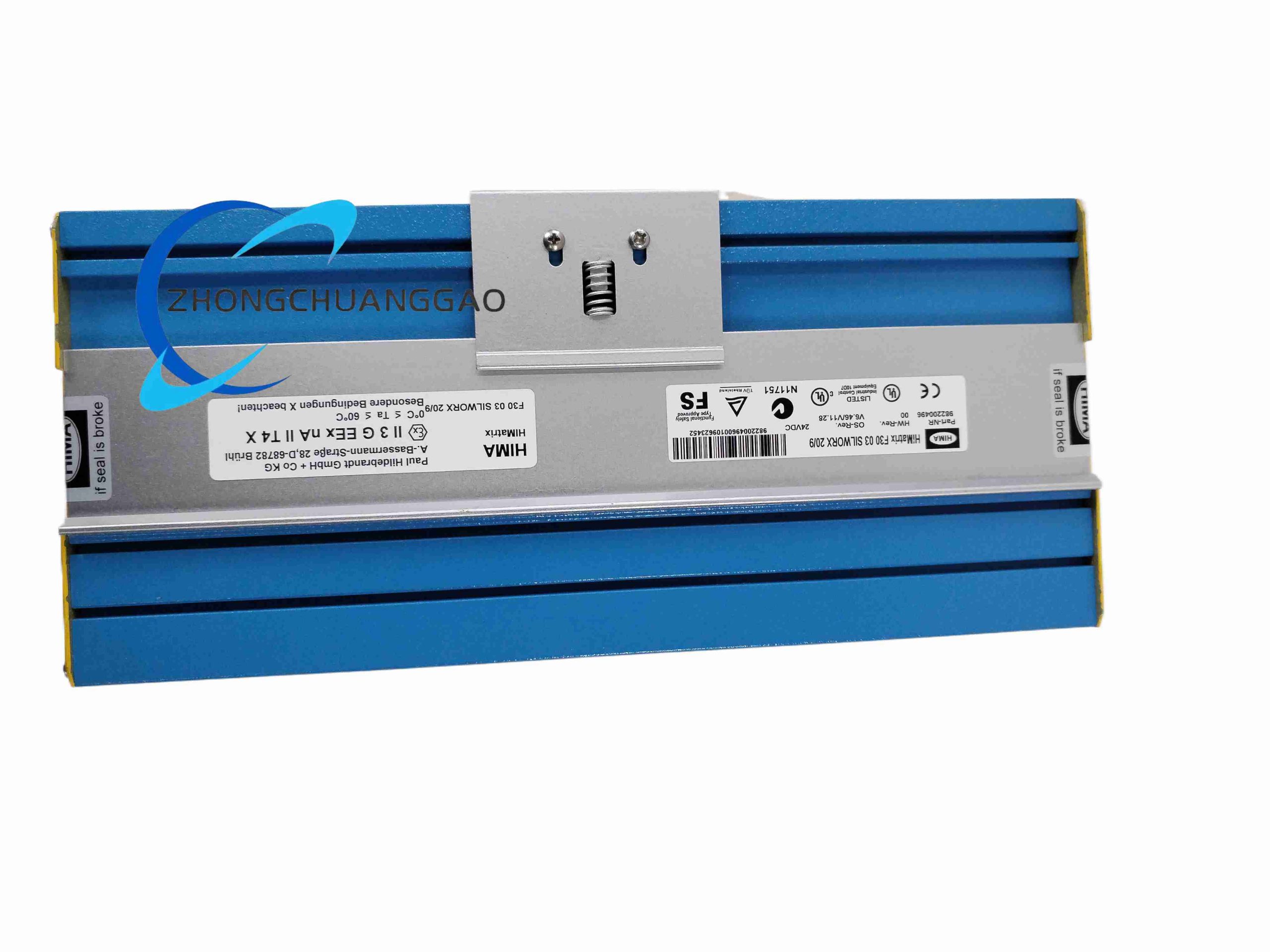

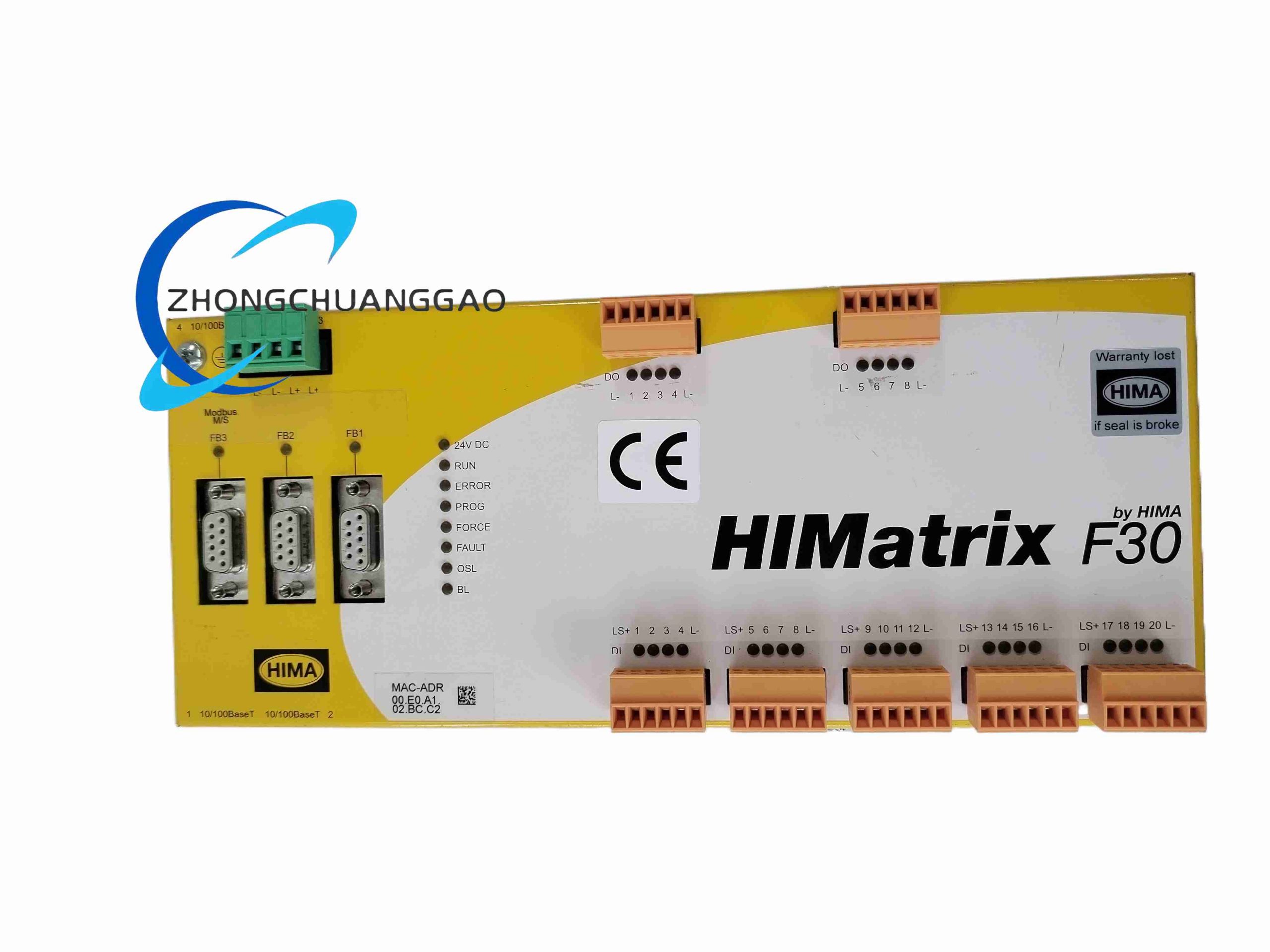

Structural Characteristics: Compact F30/F35 form factor; front LEDs for RUN, FAULT, I/O, ETN status; rear backplane connector; DIN rail mountable.
Working Principle: Lockstep CPUs execute identical code in parallel comparing results; any mismatch triggers safe state; inputs read via isolated interfaces; outputs set via failsafe drivers; communication via redundant safe protocols ensures data integrity.
Advantages: Pre-certified SIL 3/SIL 4 platform reducing validation effort; compact all-in-one or modular flexibility; SILworX provides integrated safety lifecycle management; high MTBF.
Applicable Industries: Railway (Signaling, Rolling Stock), Oil & Gas (ESD), Chemical, Power Plants, Machine Building.
Model Series: HIMA HIMatrix F30 / F35 Series Safety Controllers.
Installation Requirements: Mount on 35 mm DIN rail inside IP20 cabinet; connect 24 V DC with reverse polarity protection; ensure Ethernet cabling shielded for industrial EMC; ground PE terminal.
Usage Precautions: Do not modify safety logic without re-certification workflow in SILworX; ensure firmware matches project version; monitor FAULT LED; avoid static discharge during handling; use only TÜV approved libraries for SIL logic.
