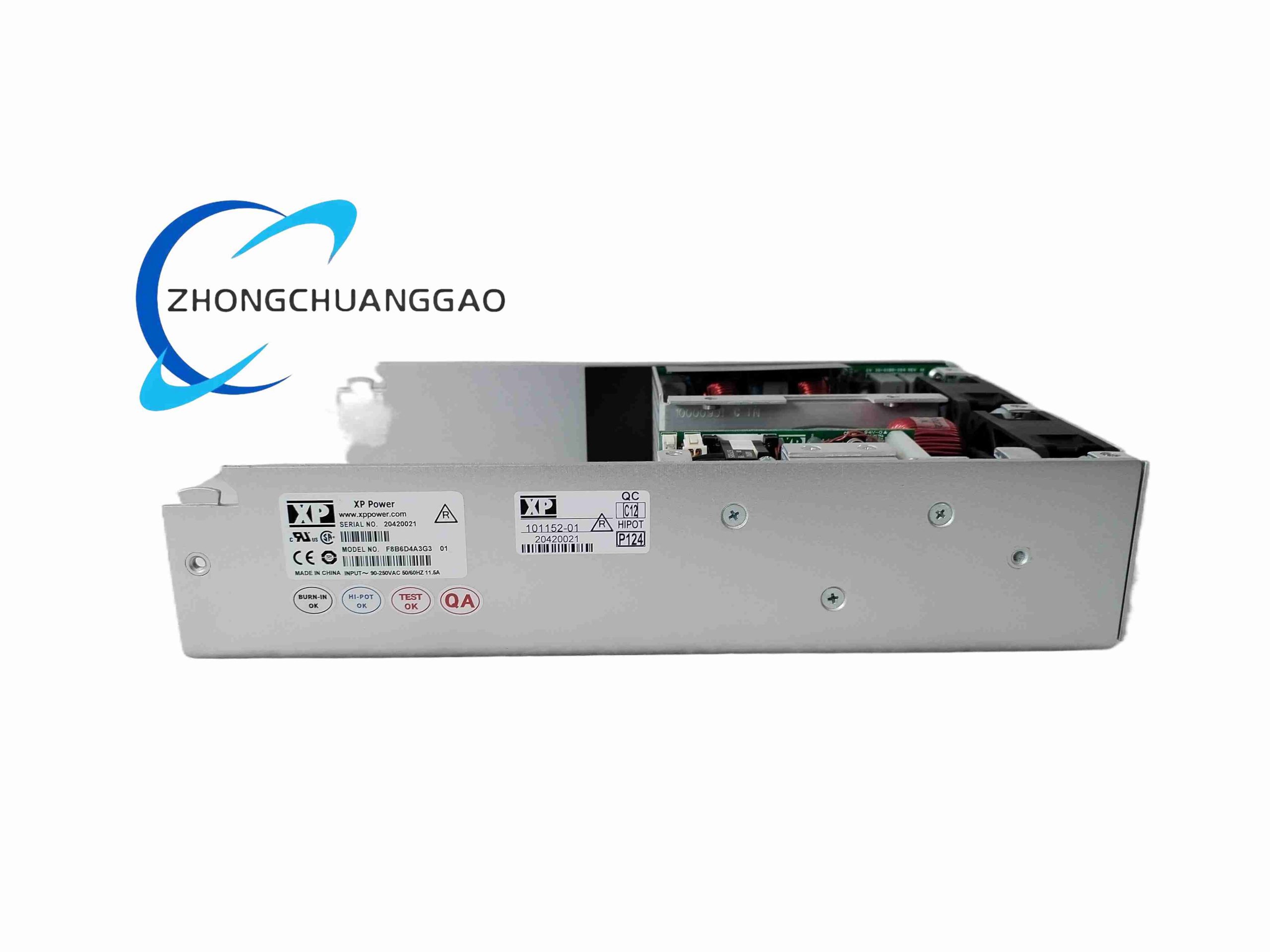

XP Power F8B6D4A3G3 - Image 1
XP Power F8B6D4A3G3 - Image 2
XP Power F8B6D4A3G3 - Image 3
XP Power F8B6D4A3G3 - Image 4
Click to enlarge
XP Power F8B6D4A3G3
XP Power F8B6D4A3G3 - Image 2
XP Power F8B6D4A3G3 - Image 3
XP Power F8B6D4A3G3 - Image 4
KoYo F4-16DA-1
KoYo F4-16DA-1
Back to products
HIMA F3003 SILWORX 209
HIMA F3003 SILWORX 209

XP Power F8B6D4A3G3

  • Product Name: XP Power F8B6D4A3G3 AC/DC Enclosed Switch Mode Power Supply
  • Product Introduction: High-efficiency 600W medical-grade enclosed power supply with 12 V / 50 A​ single output, designed for medical, industrial, and ICT applications requiring BF-type patient protection.
Category:
Description
  • Technical Specifications:
    • Output Power: 600 W
    • Output Voltage/Current: 12 V DC​ / 50 A
    • Input Voltage: 90-264 V AC, 47-63 Hz (Universal Input)
    • Efficiency: Up to 94%​ (typical at half load), >92%​ at full load
    • Safety Certifications: IEC 60601-1 Ed.3​ (BF type, 2×MOPP), IEC 62368-1, UL/CSA
    • Patient Leakage Current: < 100 µA
    • Protection Features: OVP, OCP, SCP (hiccup mode), OTP
    • Cooling: Forced air (built-in thermostatically controlled fan), natural convection derated to 400 W
    • Dimensions: 254 x 127 x 40.6 mm​ (L x W x H, 1U​ height)
    • Operating Temperature: -20°C to +70°C​ (with linear derating above 50°C)
    • Communication: Optional PMBus​ 1.3 / SMBus interface
  • Functional Features: Active Power Factor Correction (PFC); remote sense compensation; 2×MOPP​ (Means of Patient Protection) isolation; green power LED indicator; remote on/off control (model dependent).
  • Performance Parameters: MTBF > 100,000 hours; hold-up time per spec; ripple & noise per IEC 60601limits; regulation line/load per industrial class.
  • Material Composition: Aluminum enclosure for heat dissipation and shielding; FR4 PCB with high-temperature rated components; UL recognized internal wiring.
  • Structural Characteristics: Enclosed chassis mount with mounting flanges; I/O connectors (screw terminal or bus bar); integral fan grille; 1U standard rack-compatible footprint.
  • Working Principle: AC input filtered and rectified to high voltage DC; LLC resonant converter​ topology steps down voltage with high efficiency; secondary side regulated via PWM/PFM control; isolated feedback ensures stable 12 V​ output; digital interface monitors telemetry.
  • Advantages: Dual medical/industrial certification; high power density in 1U; low leakage current for patient-connected equipment; smart fan reduces acoustic noise.
  • Applicable Industries: Medical (Ultrasound, Dialysis, Imaging, Life Support), Industrial Automation, Test & Measurement, Communications Infrastructure.
  • Model Series: XP Power F Series​ (High power industrial/medical AC-DC).
  • Installation Requirements: Mount on flat surface with adequate clearance for airflow (fan intake/exhaust); secure with 4 screws via flange; ensure earth ground bonded to chassis; provide 10-15 mm​ spacing top/bottom for convection.
  • Usage Precautions: Ensure output not exceeded 50 A​ continuous; derate linearly from 50°C to 70°C; do not block fan; verify PMBus​ pinout if interface used; disconnect AC before servicing; confirm 2×MOPP​ grounding scheme in medical applications.
