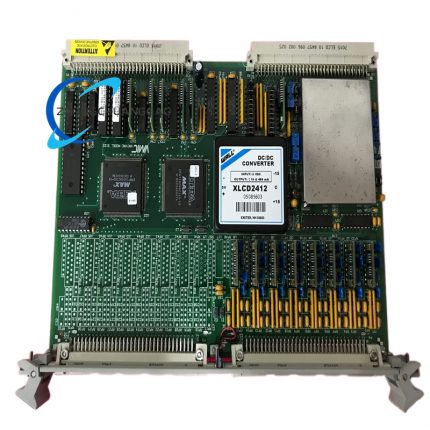

GE VMIVME-3122-020000 High-Performance 16-Bit Analog-to-Digital Converter Board
GE VMIVME-3122-020000 High-Performance 16-Bit Analog-to-Digital Converter Board
Back to products
GE WESTERM D20C Status Input Module
GE WESTERM D20C Status Input Module

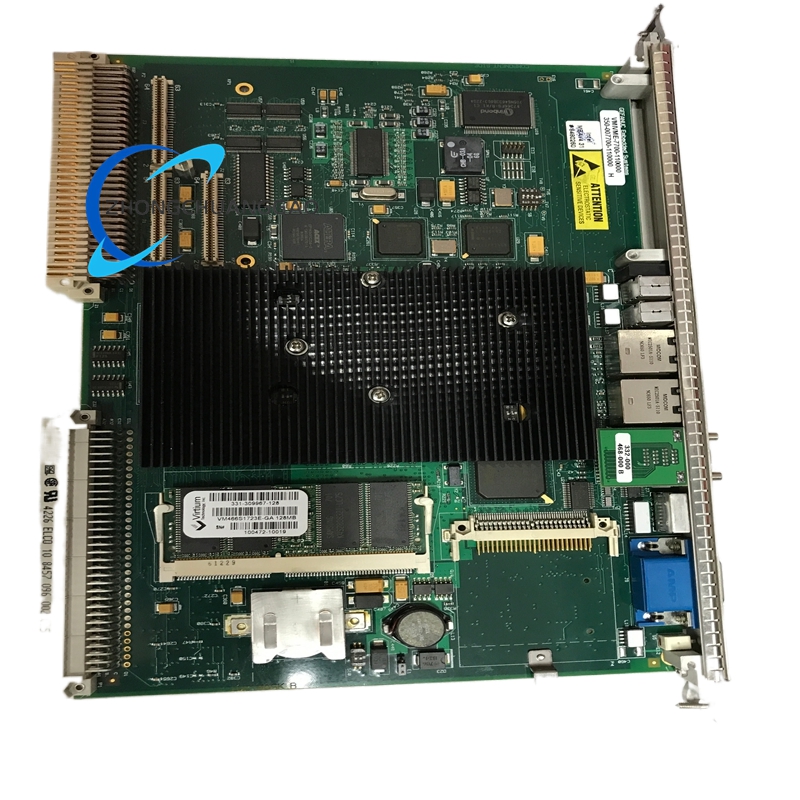

GE VMIVME-7700-110000 VMEbus Single Board Computer

Product Overview
The GE VMIVME-7700-110000 is a high-performance single board computer (SBC) designed for industrial automation and control systems. It is based on the Intel ultra-low voltage Celeron processor and supports the VMEbus architecture, making it suitable for demanding applications requiring reliable real-time performance and high computational capabilities.

Category:
Description

Technical Specifications

  • Processor: Intel ultra-low voltage Celeron (400 MHz or 650 MHz) with 256 KB L2 cache
  • Memory: Accepts a 144-pin SODIMM PC100 module, supporting up to 512 MB of SDRAM
  • Graphics: Integrated 2D/3D graphics accelerator supporting resolutions up to 1600 x 1200
  • Storage: CompactFlash slot (optional up to 1 GB) for bootable storage
  • Network: Dual Ethernet controllers supporting 10BaseT and 100BaseTX interfaces
  • USB: Dual front-panel USB ports with support for isochronous data transfer and hot-plugging
  • Serial Ports: Two 16550-compatible serial ports with independent 16-byte FIFOs, supporting baud rates up to 115 kbaud
  • Timers: Two 16-bit and two 32-bit programmable timers
  • Non-Volatile Memory: 32 KB non-volatile SRAM for storing critical system data
  • Expansion: One PMC site (IEEE-1386.1 PCI Mezzanine Card standard)
  • VMEbus Support: A32/A24/D32/D16/D08(EO)/MBLT64/BLT32 modes, with support for VME64
  • BIOS: Extended ROM BIOS supporting network booting via PXE, BOOTP, and DHCP

Functional Characteristics

  • High Performance: The Intel Celeron processor provides sufficient computational power for complex control tasks.
  • Rich I/O Capabilities: Multiple USB, serial, and Ethernet ports enable seamless integration with various peripherals and networks.
  • Flexible Storage Options: CompactFlash support allows for easy system booting and data storage.
  • Reliable Graphics: Integrated graphics accelerator supports high-resolution displays for enhanced visualization.
  • Robust Timer Functions: Multiple programmable timers facilitate precise timing control in industrial processes.
  • Non-Volatile Memory: Ensures data retention during power failures, critical for maintaining system integrity.
  • VMEbus Compatibility: Supports a wide range of VMEbus modes, ensuring compatibility with existing VMEbus systems.
  • Network Booting: Enables remote system booting and management, reducing maintenance efforts.

Application Scenarios

  • Industrial Automation: Used in factory automation systems for controlling and monitoring machinery and processes.
  • Power Generation: Essential for turbine control systems in power plants, ensuring stable and efficient power generation.
  • Process Control: Applied in chemical, petrochemical, and other process industries for real-time control and monitoring.
  • Transportation: Utilized in railway signaling and control systems for safe and efficient train operations.
  • Military and Aerospace: Suitable for military and aerospace applications requiring high reliability and performance in harsh environments.
