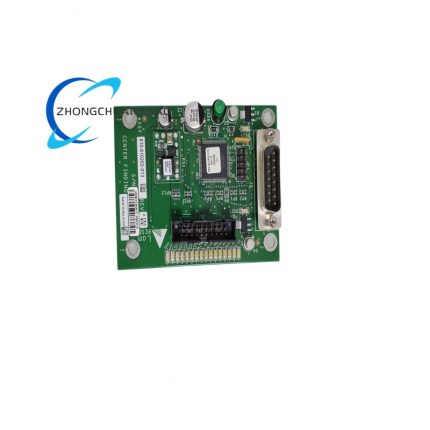

LAM 810-810202-013
LAM 810-810202-013
Back to products
GE IS430SNUAH1A
GE IS430SNUAH1A

GE IS420ESWCH2A

Product Name: GE IS420ESWCH2A — Excitation System Controller (Mark VI Series)

Product Overview:
The GE IS420ESWCH2A is an excitation system controller module within the GE Mark VIe control system family. It regulates the field current of a synchronous generator or motor, controlling terminal voltage and reactive power output.

Category:
Description

Technical Specifications:

  • Type: Static Excitation System Controller
  • Input Signals: PT (voltage), CT (current), VT (terminal voltage), VB (bus voltage)
  • Output: Firing pulse commands to thyristor bridge (6-pulse or 12-pulse)
  • Control Modes: AVR (Automatic Voltage Regulator), PF (Power Factor), VAR (Reactive Power)
  • Communication: Modbus TCP/IP, Profibus, GE SRTP
  • Redundancy: Dual-channel hot standby
  • Supply Voltage: 24 VDC / 120 VAC / 240 VAC (selectable)

Functional Features:

  • Adaptive voltage regulation with load compensation
  • Under-excitation limiter (UEL) and over-excitation limiter (OEL)
  • Power system stabilizer (PSS) for damping oscillations
  • Fault recording with 64-event sequence-of-events (SOE) buffer
  • LED status indicators on front panel

Performance Parameters:

Parameter Value
Voltage Regulation Accuracy ± 0.1% of setpoint
Response Time (step load) < 50 ms
Firing Resolution 0.1° electrical
Operating Temperature -20°C to +70°C
MTBF > 200,000 hours
CE Compliance Yes (EN 61000-6-2, EN 61000-6-4)

Material Composition:

  • Enclosure: NEMA 4X Fiberglass Reinforced Polyester (FRP)
  • PCB: FR-4, conformal coated (silicone)
  • Connectors: DIN 41612, IEC 60309
  • Terminal Blocks: Phoenix Contact, UL listed

Structural Features:

  • DIN rail or panel mount
  • Front-accessible terminal blocks for wiring
  • LED indicators: POWER, RUN, FAULT, ALARM
  • Hinged door for module access

Working Principle:
The controller receives voltage and current feedback from the generator. The AVR algorithm compares the measured terminal voltage to the reference setpoint and computes the required field current. Firing pulses are generated at the correct phase angle to control the thyristor bridge output, which drives the generator’s field winding. The PSS adds a supplementary signal to the AVR output to damp low-frequency power oscillations.

Key Advantages:

  • ± 0.1% voltage regulation ensures stable grid operation
  • Dual-channel redundancy provides seamless failover
  • Built-in limiters protect the generator from excitation faults

Applicable Industries: Power generation (thermal, hydro, gas turbine), industrial motor drives, marine propulsion

Installation Requirements:

  • Mount in control panel with adequate ventilation (minimum 100 CFM)
  • Grounding: single-point, < 1 Ω
  • Cable routing: separate power and signal cables by > 150 mm
  • Configuration via GE ToolboxST software (USB or Ethernet)

Usage Notes:

  • Perform calibration check annually using GE ToolboxST
  • Replace fan filter every 6 months
  • Log all fault events for trend analysis
