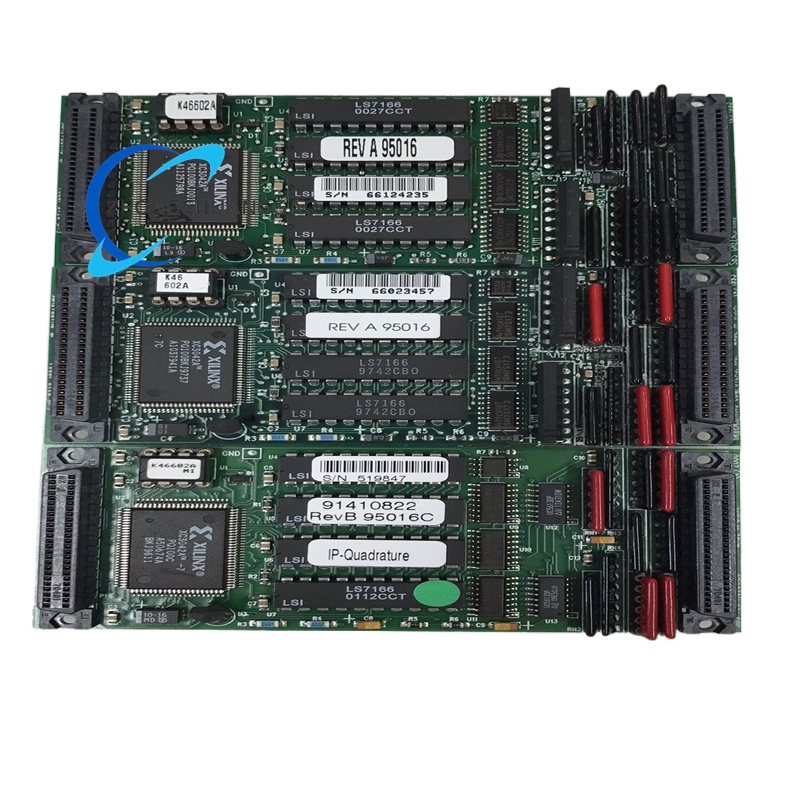

GE IP-QUADRATURE

Technical Specifications:

• Channel Configuration: Four independent quadrature decoder channels, each configurable as a general-purpose counter.
• Resolution: 24-bit resolution per channel, ensuring high-precision position measurement.
• Counting Frequency: Maximum counting frequency of up to 10 MHz in general-purpose counter mode and up to 1.2 MHz in quadrature counting mode (higher in X1 and X2 modes).
• Input Types: Supports both differential (RS-422) and single-ended (TTL/CMOS) input signals, offering flexibility in encoder connectivity.
• Pre-scaler: Programmable pre-scaler settings (X1, X2, or X4) to adapt to various encoder resolutions and counting requirements.
• Interrupt Capability: Supports borrow interrupt and match interrupt, enabling real-time event handling and system responsiveness.
• Polarity Programming: Each channel’s input polarity (X and Y) can be independently programmed to suit different encoder configurations.
• Dynamic Reading: Features a 24-bit output latch for accurate “on-the-fly” reading of quadrature position values, ensuring data integrity during high-speed operations.
• Power Consumption: Low-power design, suitable for battery-powered applications and energy-efficient systems.

Functional Characteristics:

• High Integration: Combines four quadrature decoder channels into a single module, saving valuable circuit board space and reducing system complexity.
• Flexible Configuration: Offers a wide range of programmable options, including counting modes, input polarities, and interrupt settings, to adapt to diverse application needs.
• High-Speed Counting: Capable of handling high-frequency counting tasks, making it ideal for applications requiring rapid position or speed updates.
• Reliable Performance: Built with robust components and designed for industrial environments, ensuring stable and reliable operation under harsh conditions.
• Easy Integration: Seamlessly integrates with various host systems and controllers, facilitating straightforward system design and implementation.

Application Scenarios:

• Industrial Automation: Used for measuring and monitoring rotational angles, displacements, and other physical quantities in production lines, assembly lines, and robotic systems.
• Motion Control: Essential for precise position and speed control in servo systems, stepper motor drives, and CNC machines, ensuring accurate and smooth motion.
• Process Control: Applied in chemical, pharmaceutical, and other process industries to control valves, pumps, and other equipment, optimizing process efficiency and product quality.
• Building Automation: Manages lighting, HVAC, and other building systems, improving energy efficiency and occupant comfort through precise control and monitoring.
• Transportation Systems: Utilized in traffic signal control, elevator systems, and other transportation applications, enhancing system reliability and safety through accurate position feedback.
