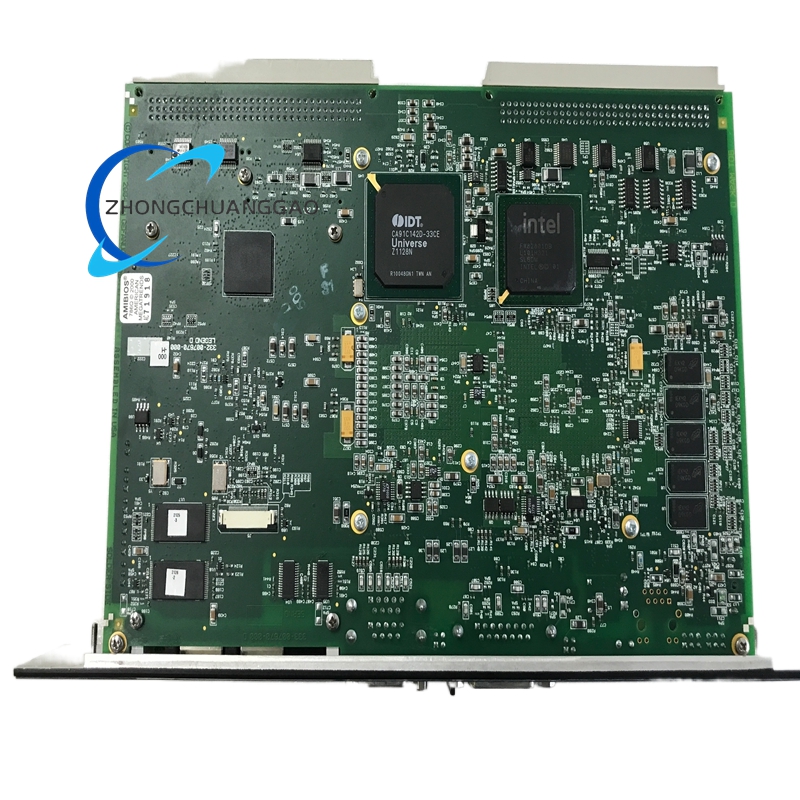

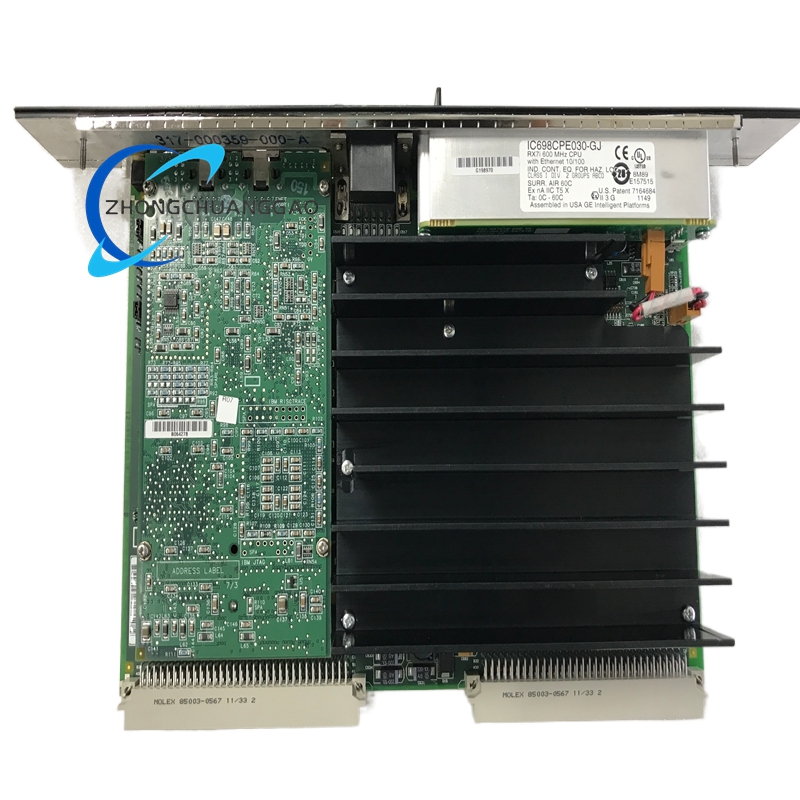

GE IC698CPE030-GK Central Processing Unit

Technical Specifications

Processor

• Processor Type: 600 MHz Pentium-M microprocessor

• Floating Point Support: Yes

Memory

• User Memory: 64 Mbytes

• User Flash Memory: 64 Mbytes non-volatile flash for program and data storage

• Battery-backed User Memory for data retention during power loss

Performance

• Boolean Execution Speed: 0.069 milliseconds per 1000 Boolean contacts/coils

• I/O Capacity: Up to 32K bits of discrete I/O and 32K words of analog I/O

• Maximum Blocks: Up to 512 blocks downloadable to CPU, each with up to 128KB memory

Communication Interfaces

• Ethernet Ports: Two 10/100 Mbps Ethernet ports with auto-detecting network speed

• Configuration Options: Half-duplex and full-duplex operation modes

• RS-232 Serial Port: One isolated RS-232 port

• RS-485 Serial Port: One isolated RS-485 port

• Station Manager Port: One RS-232 Ethernet station manager port

• Serial Protocols: Modbus RTU Slave, SNP, Serial I/O

Power Requirements

• Input Voltage: 24 VDC

• Power Consumption: 12 W

Environmental Specifications

• Operating Temperature: -20°C to 60°C

• Storage Temperature: -40°C to 85°C

• Vibration Resistance: 5 g up to 2 kHz

• Shock Resistance: 30 g

• Protection Rating: IP67

Physical Characteristics

• Mounting: DIN rail mounting

• Rack Interface: VME64 standard format backplane communication

Functional Features

High-Performance Processing Architecture
The module features a 600 MHz Pentium-M microprocessor that delivers powerful computing capabilities suitable for executing complex control algorithms and logic in real-time . The processor supports floating-point operations and provides rapid Boolean execution for demanding automation tasks .

Large Memory Capacity with Battery Backup
The IC698CPE030-GK provides 64 Mbytes of user memory and 64 Mbytes of non-volatile flash storage . The battery-backed memory ensures program and data retention during power interruptions, while the non-volatile flash preserves critical system information permanently . A lithium battery pack maintains the calendar clock and memory when external power is lost .

Advanced Communication Capabilities
Dual embedded Ethernet ports enable seamless communication with programmers, HMI devices, and network infrastructure . The module supports RS-232 and RS-485 serial interfaces with multiple protocols including Modbus RTU Slave, SNP, and Serial I/O . An additional RS-232 station manager port provides dedicated access for system configuration and diagnostics .

Comprehensive Self-Diagnostics
Upon power-up, the CPU initiates a complete self-diagnostic check . The front panel LED indicators display the initialization status in a specific sequence, with the OK LED blinking during startup and remaining illuminated once normal operation is confirmed .

Flexible Memory Configuration
The module supports configurable data and program memory allocation, allowing users to optimize memory utilization based on specific application requirements . Auto-located symbolic variables simplify programming and reduce development time . Bulk memory access capabilities enhance data transfer efficiency .

Support for Series 90-70 Modules
The CPU maintains full compatibility with Series 90-70 discrete and analog I/O modules, communications modules, and other option modules, including VME modules . This broad compatibility protects existing infrastructure investments while enabling system upgrades.

Integrated Web and FTP Server
The built-in web server and FTP functionality support up to 16 simultaneous connections for remote monitoring, configuration, and file transfer operations . These features facilitate remote diagnostics and maintenance without requiring physical access to the controller.

Application Scenarios

Automotive Manufacturing
The IC698CPE030-GK controls various automation tasks on automotive production lines, including assembly operations, painting systems, and quality testing stations . The high processing speed and large I/O capacity support complex sequencing and coordination requirements in vehicle manufacturing environments.

Electronics and Semiconductor Manufacturing
This CPU module provides precision control and data acquisition capabilities for semiconductor fabrication, printed circuit board assembly, and electronic component testing . The fast Boolean execution and analog I/O handling support the exacting requirements of electronics production.

Process Control in Chemical and Petrochemical Industries
The processor handles automation control and safety monitoring in chemical production processes, ensuring operational stability and safety compliance . The rugged environmental specifications and reliable performance suit harsh industrial conditions.

Pharmaceutical Manufacturing
The CPU module enables precise control of pharmaceutical processes to ensure drug manufacturing meets regulatory standards . The non-volatile memory and battery-backed data retention support validation requirements and batch recordkeeping.

Food and Beverage Production
The IC698CPE030-GK provides automated control for food and beverage production lines, ensuring product quality, safety, and traceability . The IP67 protection rating supports washdown environments common in food processing facilities.

Material Handling and Logistics
The module controls material handling systems, including conveyor networks, automated storage and retrieval systems, and sortation equipment . The fast I/O response and communication capabilities support real-time coordination of material flow.

Packaging and Assembly Operations
The CPU manages packaging machinery and assembly systems, coordinating servo motion, product inspection, and reject mechanisms . The multiple communication ports enable integration with vision systems and barcode readers.

Power Generation and Utilities
The processor monitors and controls electrical power systems, including generation, transmission, and distribution equipment . The robust construction and extended temperature range support deployment in outdoor and harsh utility environments.

Building Automation
The IC698CPE030-GK controls building systems including HVAC, lighting, access control, and elevator operations . The modular design and multiple communication protocols enable integration with diverse building equipment.

High-Performance Applications
The CPU supports demanding applications requiring high processing speeds and data throughput, including motion control systems, robotics control, and real-time image processing . The 600 MHz processor and optimized I/O handling deliver the performance needed for these advanced applications.

System Compatibility

• Platform: PACSystems RX7i series

• Rack Type: RX7i I/O rack with VME64 backplane

• I/O Support: Series 90-70 discrete and analog I/O modules

• Option Modules: Series 90-70 communications modules and VME modules

• Programming Software: Proficy Machine Edition PLC-Logic Developer

• Programming Languages: Ladder Logic, Structured Text, Instruction List

• Battery Replacement: IC698ACC701 lithium battery pack
