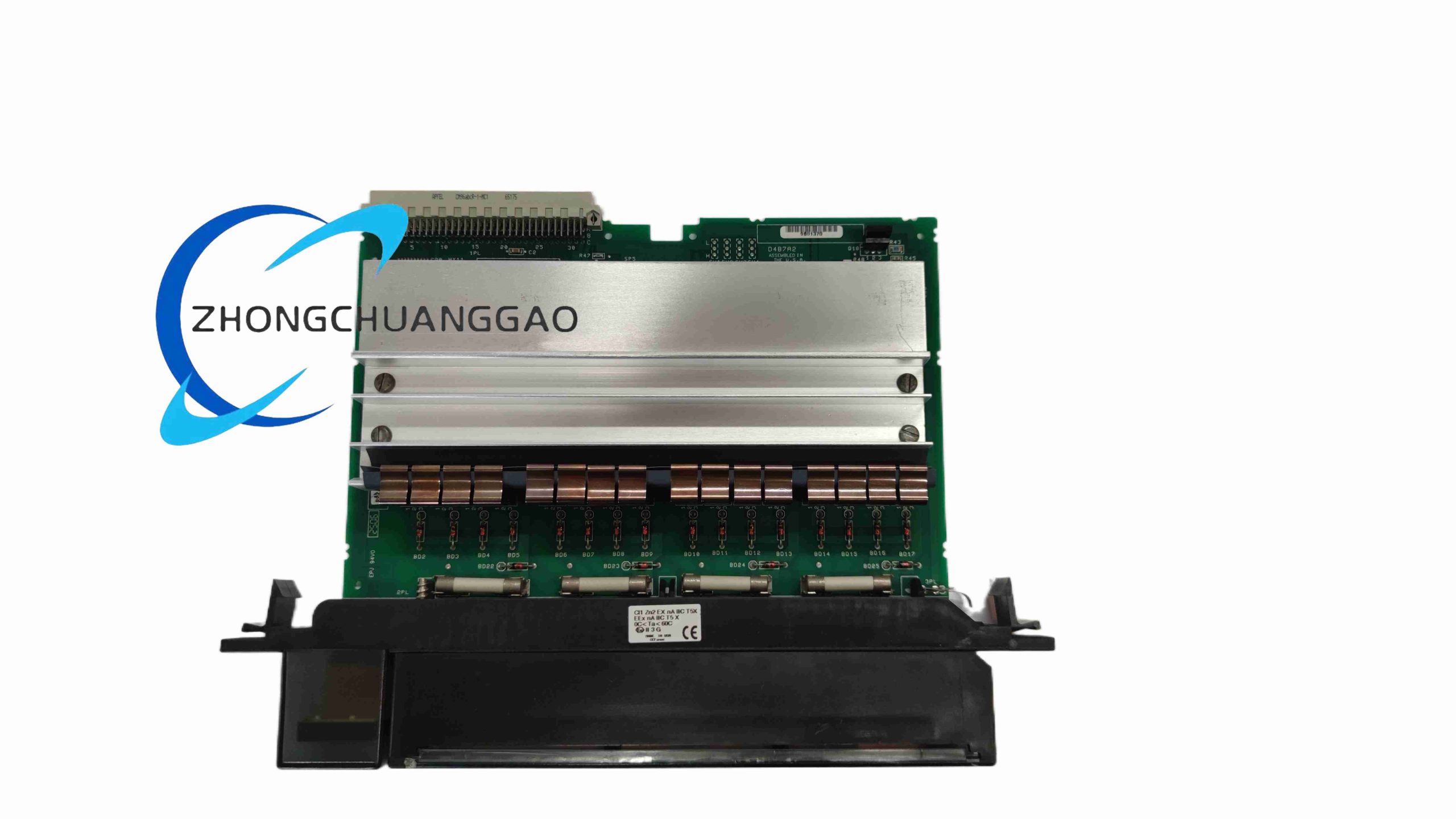

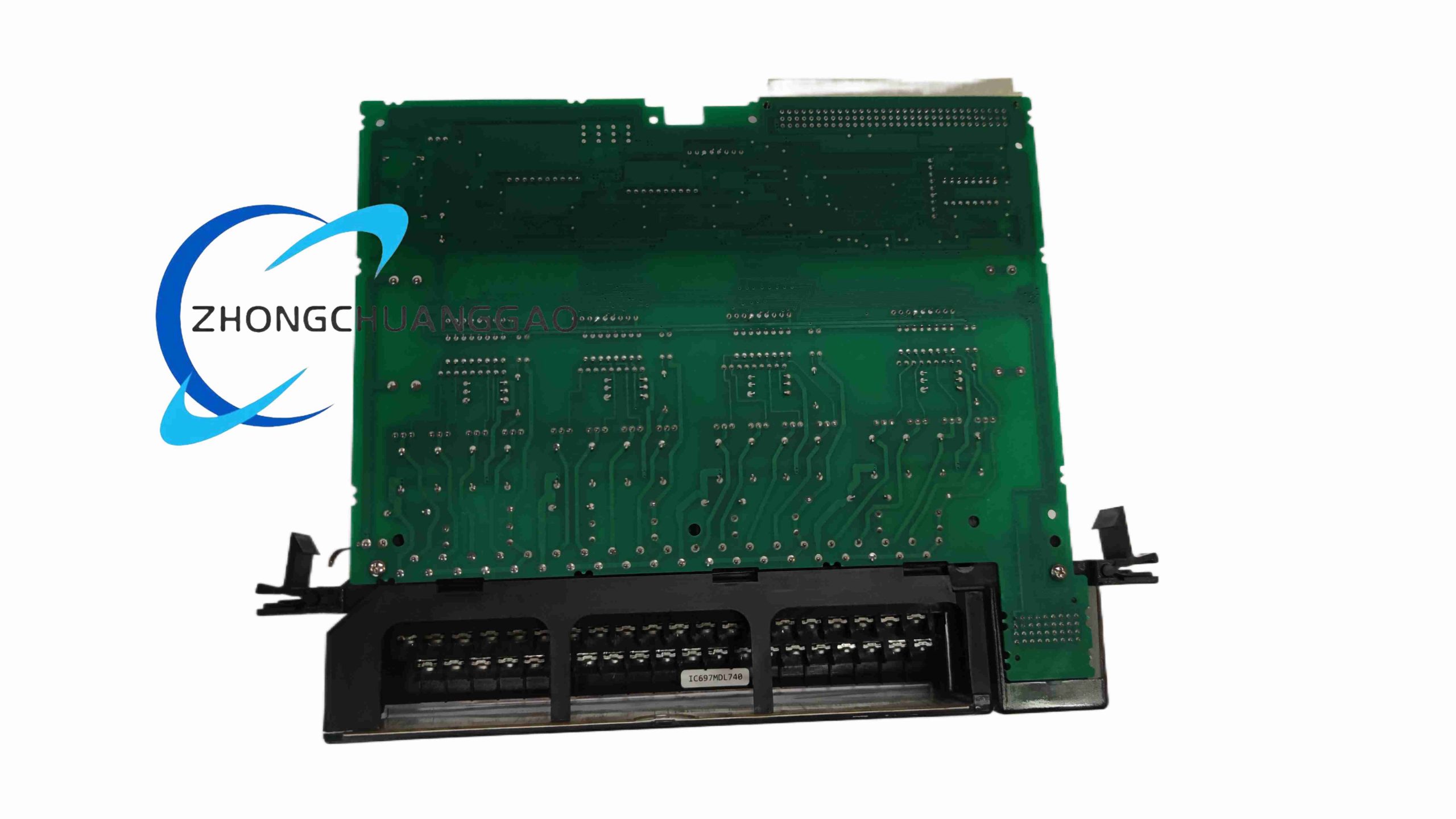

GE IC697MDL740

  • Product Name: GE Fanuc Series 90-70 IC697MDL740 Discrete Output Module
  • Product Introduction: A 16-point positive logic (sourcing) discrete DC output module designed for the GE 90-70 PLC system, capable of driving high-current loads directly without intermediate relays.
Category:
Description
  • Technical Specifications:
    • Outputs: 16 points (grouped, typically 4 groups of 4 or 2 groups of 8)
    • Output Voltage: 24 … 48 V DC (Operating range 20 … 60 V DC)
    • Output Current: 2.0 A per point (max), 4.0 A per group (max)
    • Inrush Current: 20 A for 20 ms
    • Isolation: 1500 V AC (Logic to Field)
    • Response Time: ≤ 2 ms (On/Off)
    • Backplane Current: approx. 0.15 A @ 5V DC
  • Functional Features:
    • Positive Logic (Sourcing): Module supplies +V to the load; load sinks to common.
    • Diagnostics: Individual LED for each output point, overcurrent/short circuit protection per channel/group.
    • Hot Swap: Can be replaced without powering down the rack (under specific conditions/maintenance mode).
  • Application Scenarios: Driving solenoids, contactor coils, large indicators, motor starters in power plants, petrochemical plants, automotive assembly.
  • Material & Structure:
    • Housing: Aluminum alloy / UL94 V-0 rated plastic
    • Mounting: GE 90-70 I/O Rack (rack-mounted)
    • Weight: approx. 1.08 … 2.44 lbs (0.5 … 1.1 kg)
  • Operating Conditions:
    • Temperature: 0 … +60 °C (operating)
    • Humidity: 5 … 95 % non-condensing
  • Installation Notes: Requires external 24/48V DC supply wired to the module’s field power terminals; ensure common wiring is robust enough for grouped current; verify positive logic wiring (source type) to prevent miswiring with sink-type devices.
