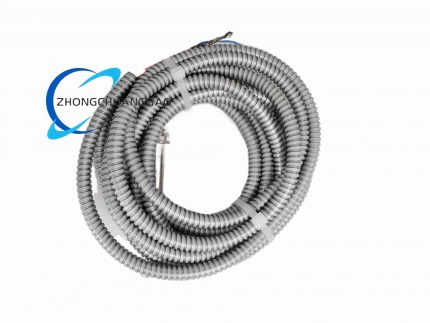

EPRO PR9376/010-011
EPRO PR9376/010-011

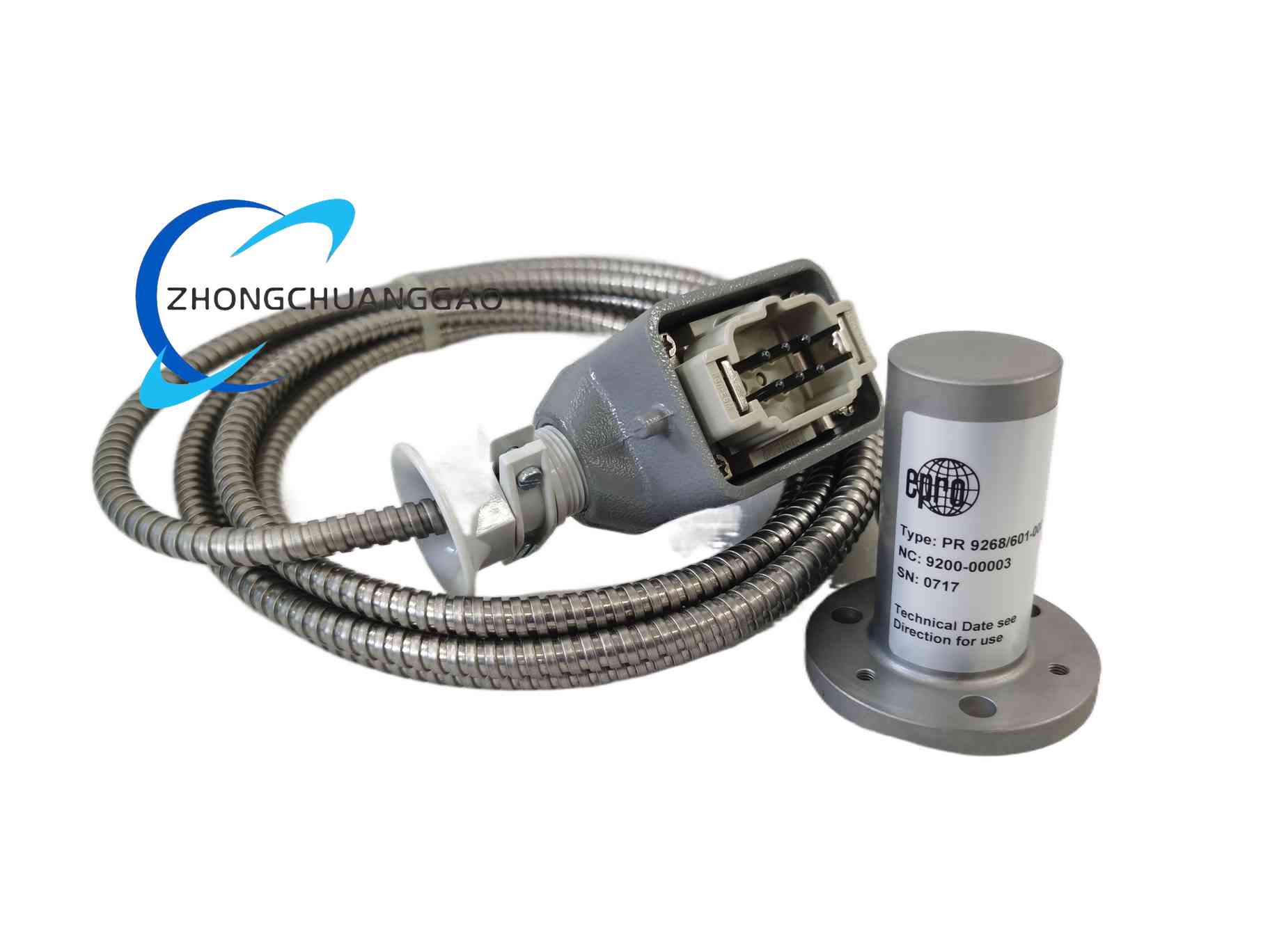

EPRO PR9268/601-000

Product Name:​ Electrodynamic (Moving-Coil) Absolute Velocity Seismometer
Product Introduction:​ Self-generating vibration pickup measuring casing/housing velocity, no external excitation needed.
Technical Specifications:
  • Sensitivity: 28.5 mV/mm/s
Category:
Description
  • Frequency: 4–1000 Hz (±3 dB)
  • Measurable velocity: 0–100 mm/s RMS
  • Temp range: -30 °C to +200 °C
  • Mount: M8 stud or magnetic base
  • Cable: 5 m shielded low-noise, optional 300 m max with compensation
  • Protection: IP65
  • Housing: stainless + epoxy potting
Working Principle:​ Spring-mass coil moves in permanent magnet field; induced EMF proportional to velocity.
Applications:​ Turbine pedestal vibration, fan casing, gearbox housing, compliant with ISO 10817.
Notes:​ Not for shaft relative motion; calibrate every 2–3 years; avoid strong AC magnetic fields parallel to axis.
