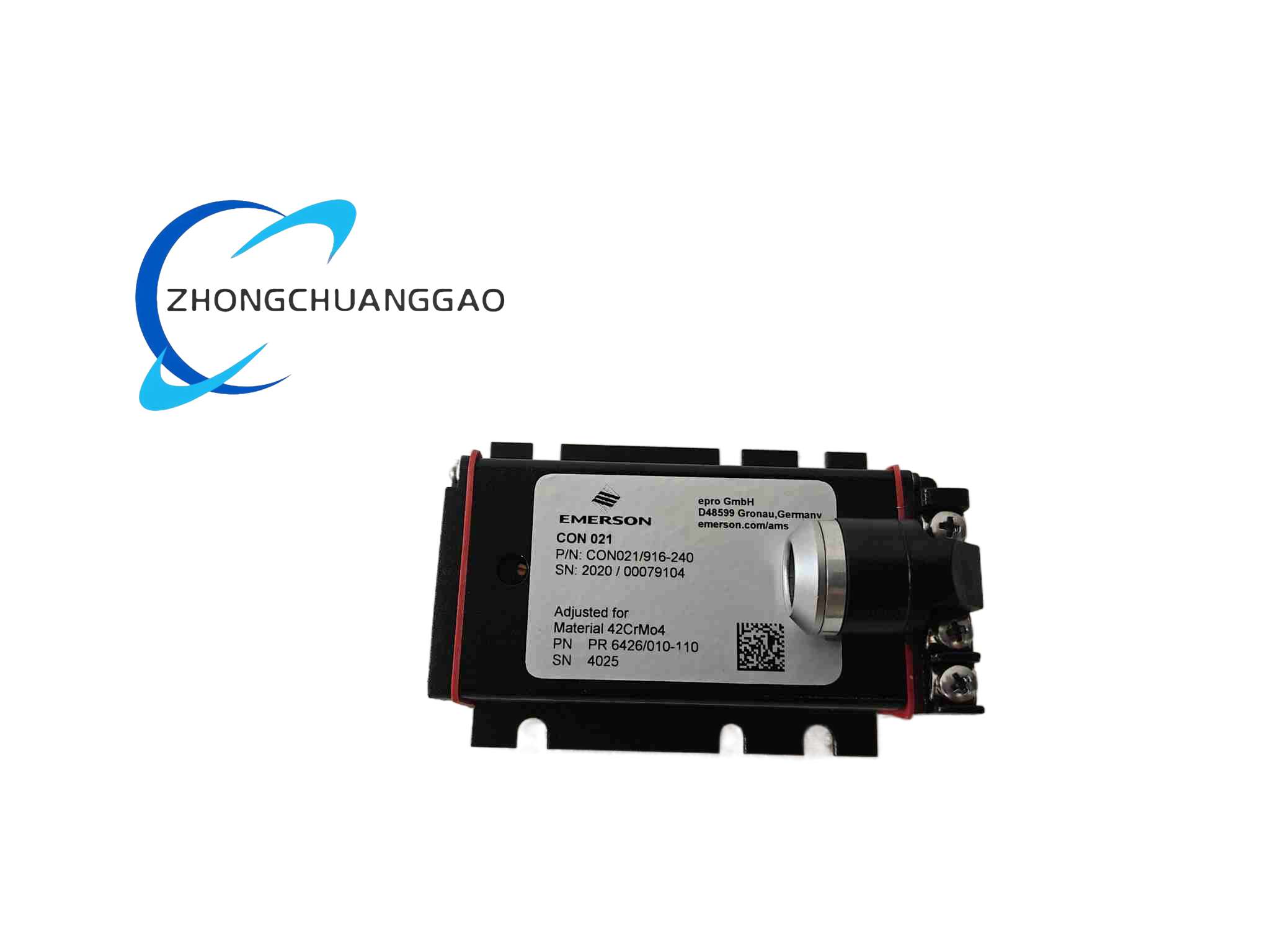

EPRO PR6426/010-110 + CON021/916-240

Product Name:​ Long-Stroke Eddy-Current Vibration/Position System
Product Introduction:​ PR6426/010-110 probe + CON021/916-240 conditioner calibrated for extended 24 mm total span (±12 mm class, typical usable ±4 to ±8 mm depending gap). Used where large thermal growth exists.
Category:
Description
Technical Specifications:
  • Probe: 8 mm or 32 mm body variant (M10×1), stainless
  • CON021/916-240: -23…-32 V DC in, -4…-20 V DC / 4–20 mA out
  • Linearity: ≤3.5 % FS on 24 mm span
  • Frequency: 0–10 kHz
  • Probe -25…+125 °C (up to 180 °C option), CON021 -30…+100 °C
  • IP67 probe, IP20 conditioner
Features:​ Temperature compensated, short-circuit/open-circuit probe detection, DIN/panel mount.
Applications:​ Generator rotor axial shift, paper machine rolls, cement kiln support shafts.
Installation:​ Large initial gap (5.5–7.5 mm) must be set with feeler gauge; locknut secures against vibration loosening.
