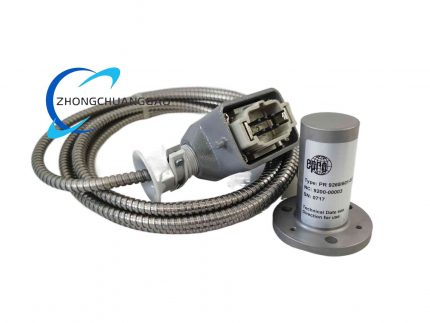

EPRO PR9268/601-000
EPRO PR9268/601-000
Back to products

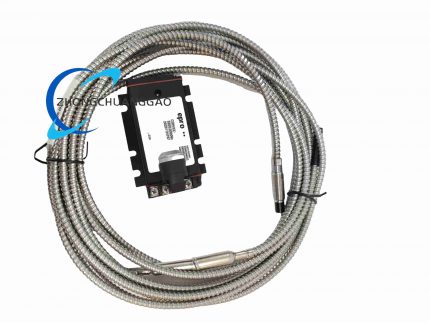

EPRO PR6423/000-003
EPRO PR6423/000-003

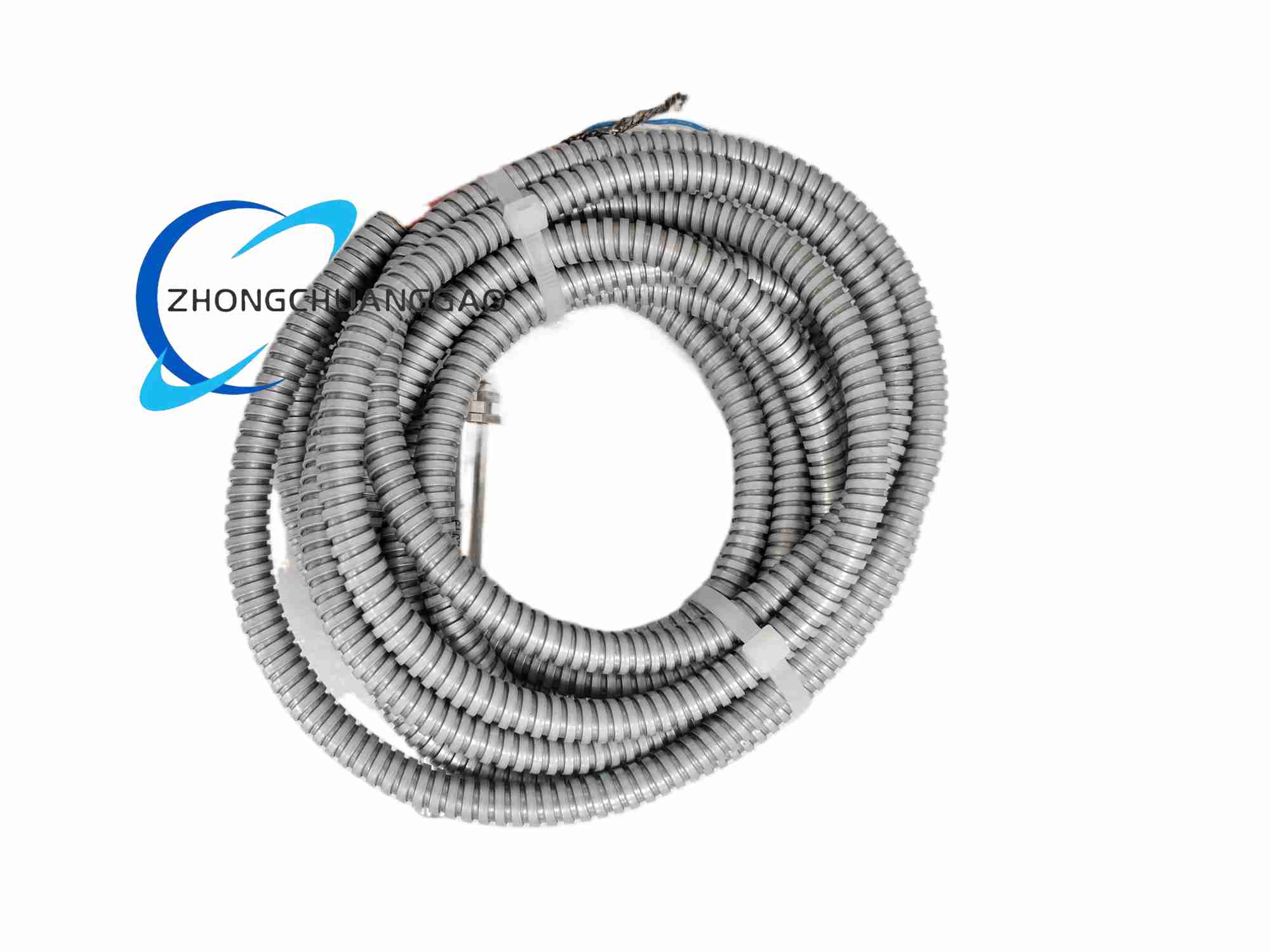

EPRO PR9376/010-011

Product Name:​ Hall-Effect Speed/Proximity Sensor (with optional CON021)
Product Introduction:​ 14 mm cylindrical non-contact magnetic sensor for gear-tooth counting, RPM, overspeed, key-phase.
Technical Specifications:
  • Principle: Hall differential bridge
Category:
Description
  • Air gap: 1.0 mm (module 1 gear), 1.5 mm (module ≥2)
  • Max frequency: 12 kHz (~720,000 cpm)
  • Output: square wave, Hi >10 V / Lo <1 V at 12 V DC, rise/fall ~1 µs
  • Supply: 10–30 V DC, <25 mA
  • Cable: 5 m PTFE, IP67 stainless body
  • Temp: -25 °C to +100 °C
  • With CON021: 0–20 kHz, -4…-20 V DC, IP20 driver
Applications:​ Turbine speed, compressor RPM, phase reference, API 670 overspeed trip front-end.
Notes:​ Target must be ferromagnetic; plastic/non-magnetic gears invisible.
