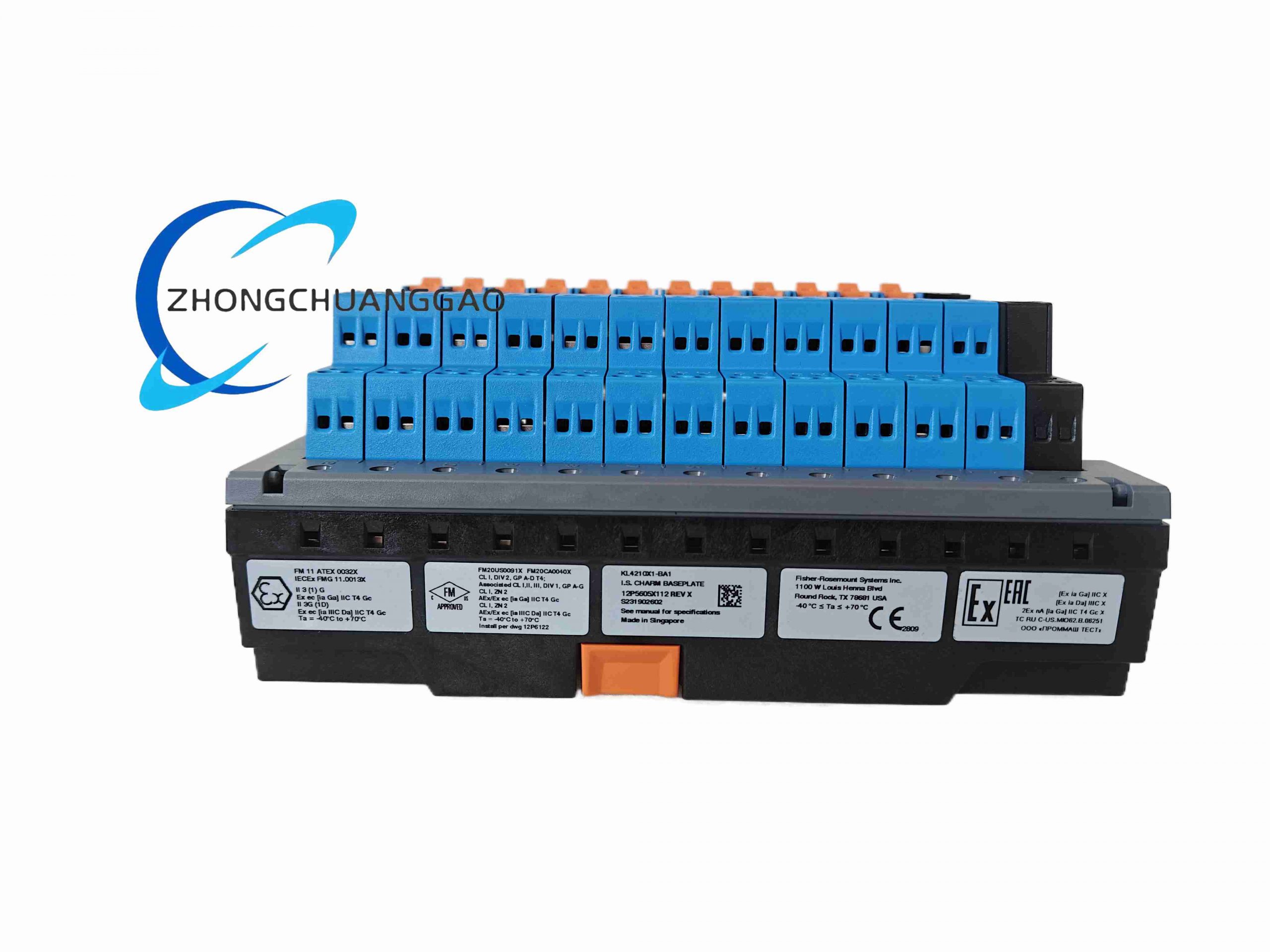

Emerson SE4608T01 - Image 1

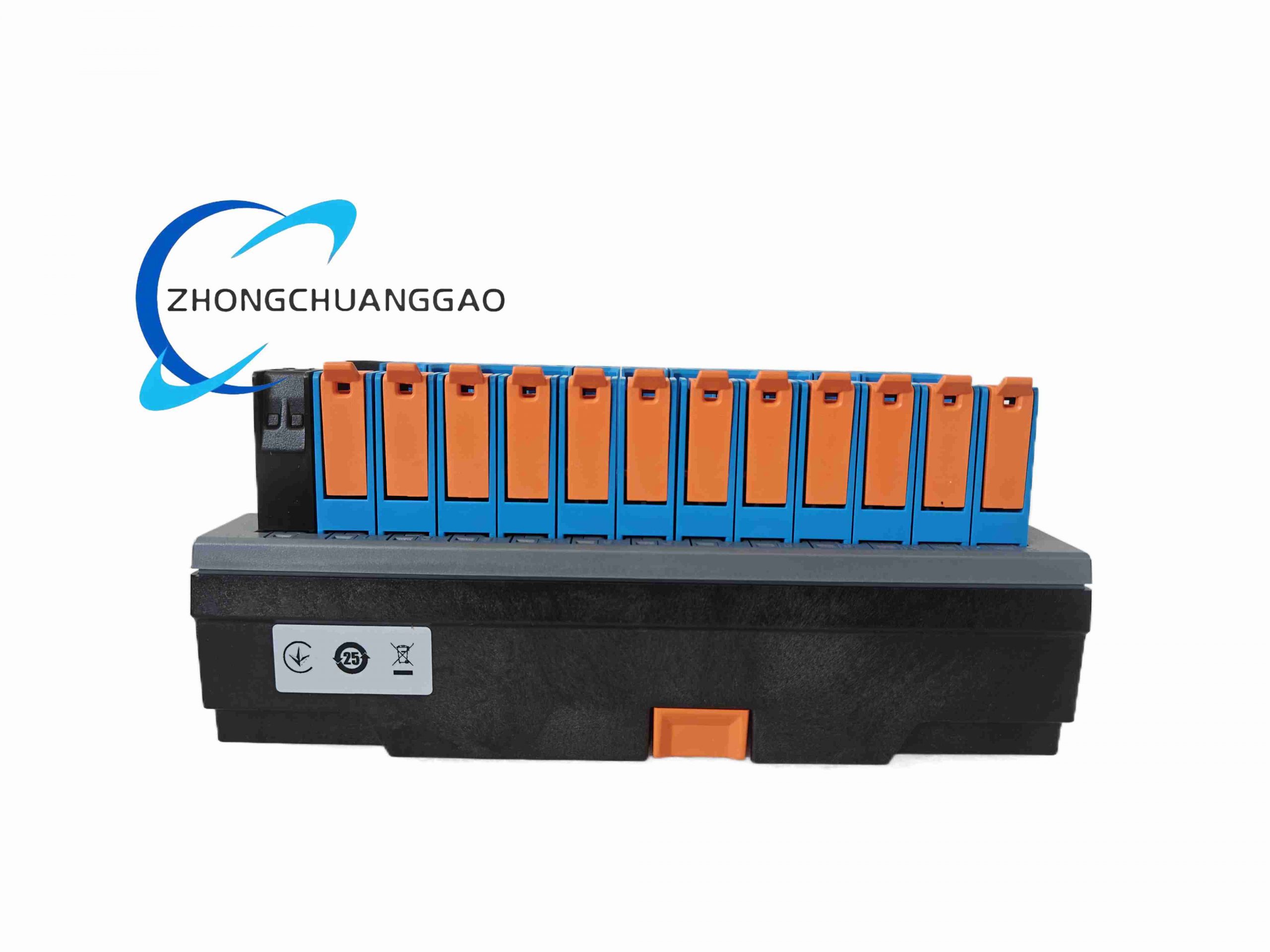

Emerson SE4608T01 - Image 2
Click to enlarge
Emerson SE4608T01
Emerson SE4608T01 - Image 2
Emerson SE4006P2
Emerson SE4006P2
Back to products
Emerson SE5009
Emerson SE5009

Emerson SE4608T01

Product Name:​ Emerson DeltaV SE4608T01 Programmable Logic Controller Module
Product Brief:
The SE4608T01 is a DeltaV-series programmable logic module providing local sequencing, interlock logic, and I/O handling for smaller standalone or hybrid applications integrated into the DeltaV architecture.
Category:
Description
Technical Specifications:
  • Supply Voltage:​ 24 VDC nominal (from carrier)
  • Output Rating:​ 2 A per output point (typical)
  • Memory:​ 1 MB user program memory
  • Programming Languages:​ Ladder Logic (IEC 61131-3), Function Block, Structured Text
  • Communication Ports:​ Ethernet/IP, Modbus RTU (via serial), RS-232/485
  • Operating Temperature:​ -20 °C to +60 °C
  • Humidity:​ 5 %–95 % RH non-condensing
  • Certifications:​ CE, UL, FM Class I Div 2
Features:
Supports online download of logic changes. Integrated diagnostics via DeltaV workstation. Expandable with local I/O racks.
Applications:​ Packaging lines, batch sequence control, HVAC, water/wastewater pump stations, skid-mounted process units.
