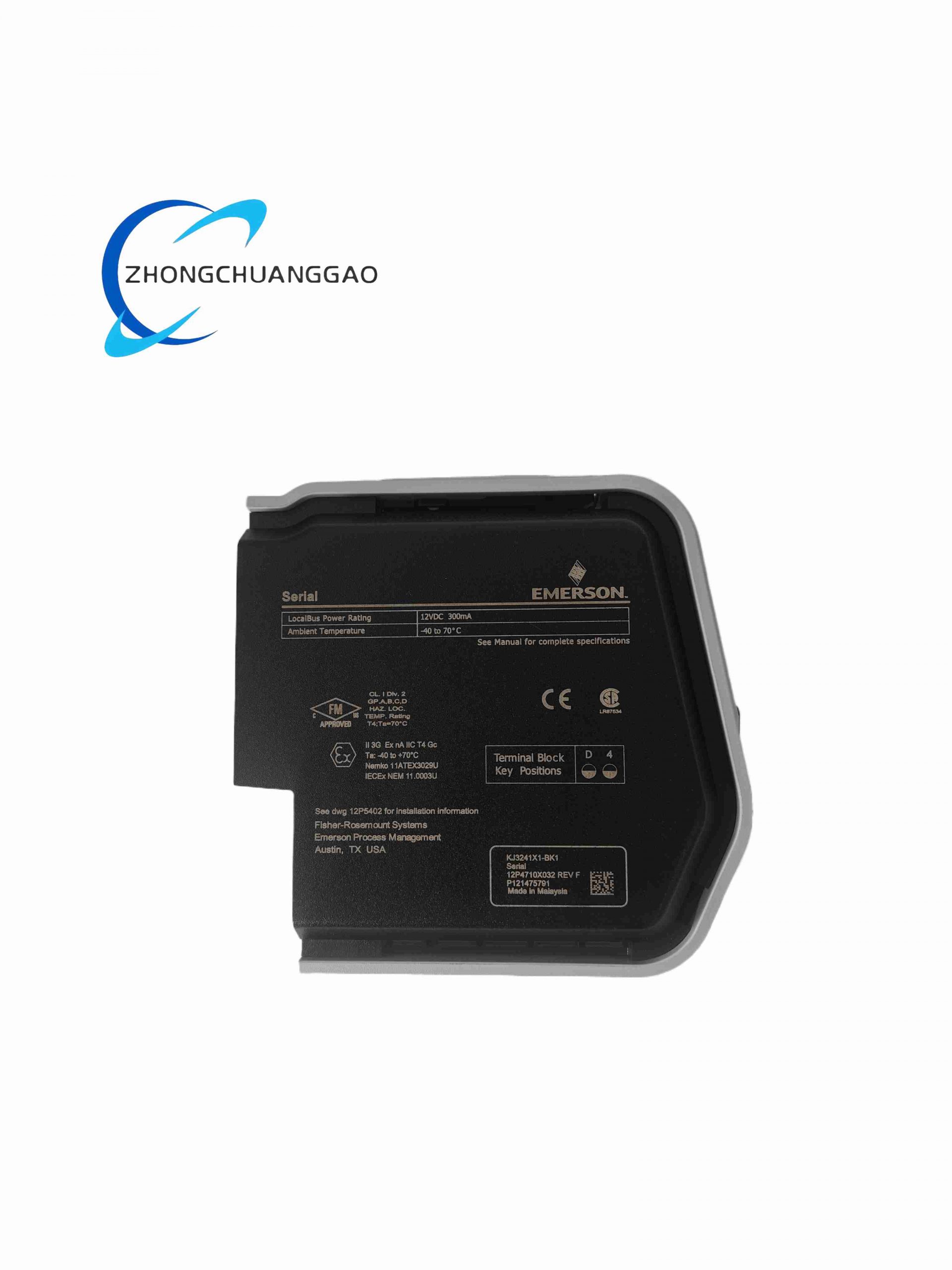

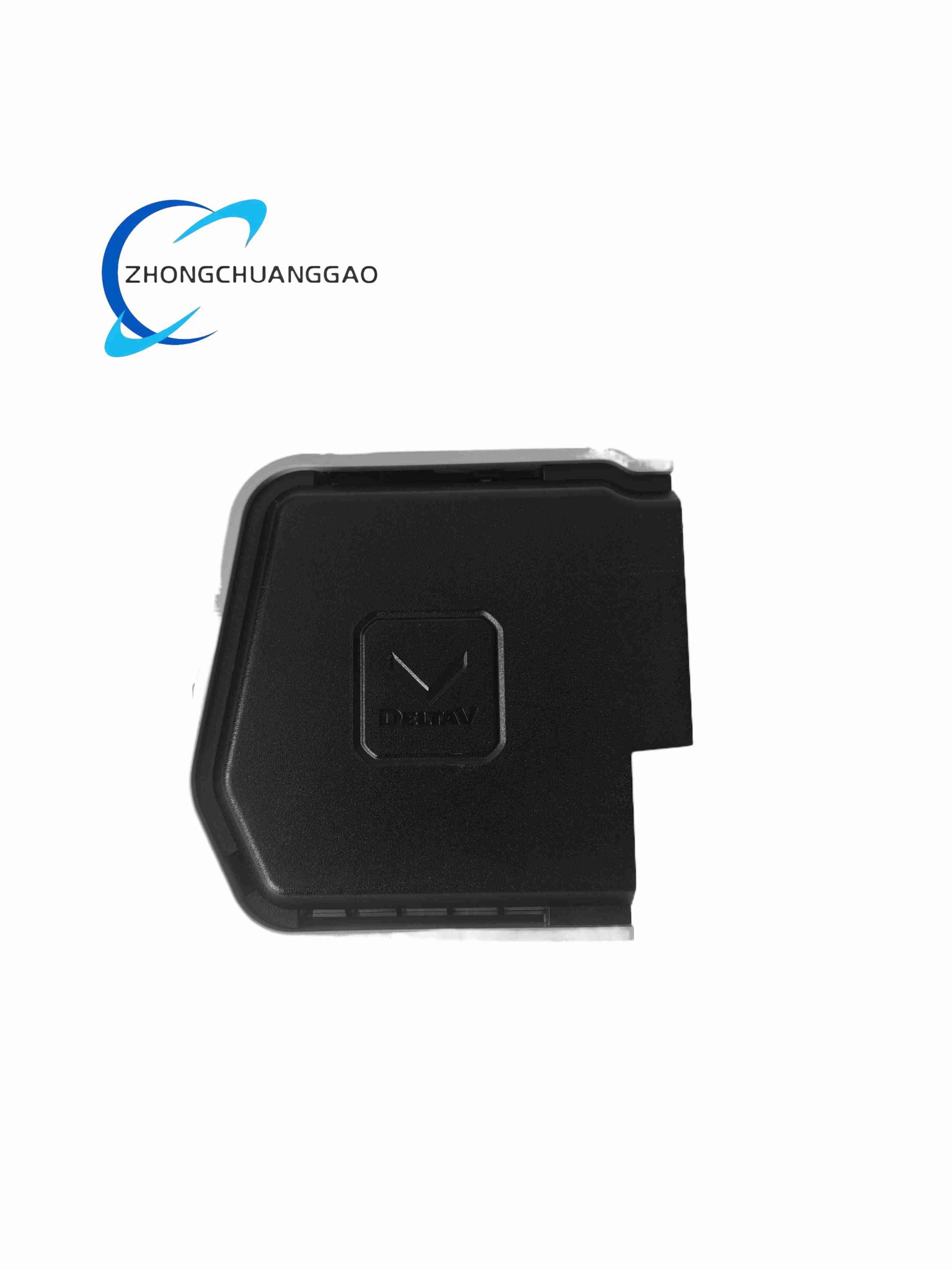

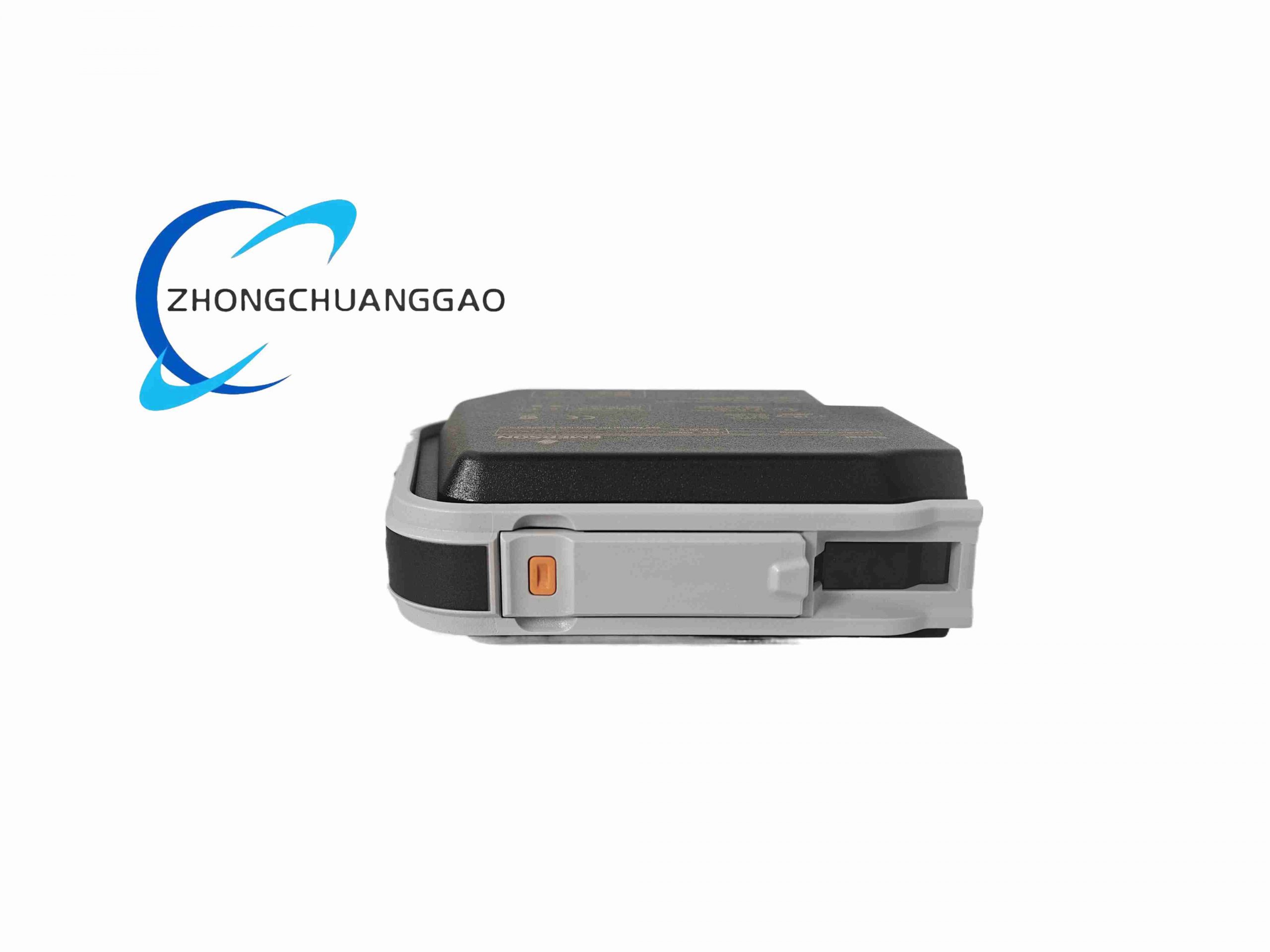

Emerson SE4006P2

Product Brief:
The SE4006P2 is a serial communications interface module for the Emerson DeltaV distributed control system (DCS). It provides two independent serial ports to connect DeltaV controllers to third-party devices such as analyzers, weigh scales, barcode readers, and Modbus RTU/ASCII instruments.
Category:
Description
Technical Specifications:
  • Serial Ports:​ 2 × independent, software-configurable RS-232, RS-422 (full duplex), RS-485 (half/full duplex)
  • Baud Rate:​ 300 to 115,200 bps (software selectable)
  • Data Format:​ 7/8 data bits, 1/2 stop bits, even/odd/no parity
  • Datasets:​ 32 per card (16 per port)
  • Power Supply:​ 12 VDC from DeltaV local bus, typ. 300 mA
  • Isolation:​ Each port optically isolated from system and from each other (1500 V DC test)
  • Operating Temperature:​ -40 °C to +70 °C
  • Storage Temperature:​ -40 °C to +85 °C
  • Humidity:​ 5 % to 95 % RH, non-condensing
  • Vibration:​ 1 mm p-p @ 2–13.2 Hz; 0.7 g @ 13.2–150 Hz
  • Shock:​ 10 g, 11 ms half-sine
  • Dimensions (approx.):​ 170 × 105 × 32 mm
  • Weight:​ approx. 0.12 kg
  • Mounting:​ DeltaV S-series carrier / backplane slot
Features & Working Principle:
Communicates via DeltaV redundant peer bus; translates serial ASCII/RTU frames into DeltaV parameter updates. Supports redundant module auto-switchover. Configured through DeltaV Explorer — no jumpers required.
Installation & Notes:
Install in designated S-series I/O slot. Ensure proper 120 Ω termination on RS-485 networks. External shield must be grounded at the cabinet. Do not mix isolated and non-isolated serial devices on the same port pair.
Applications:​ Oil & gas, petrochemical, power generation, pharmaceutical process plants — interfacing smart field devices to DCS.
