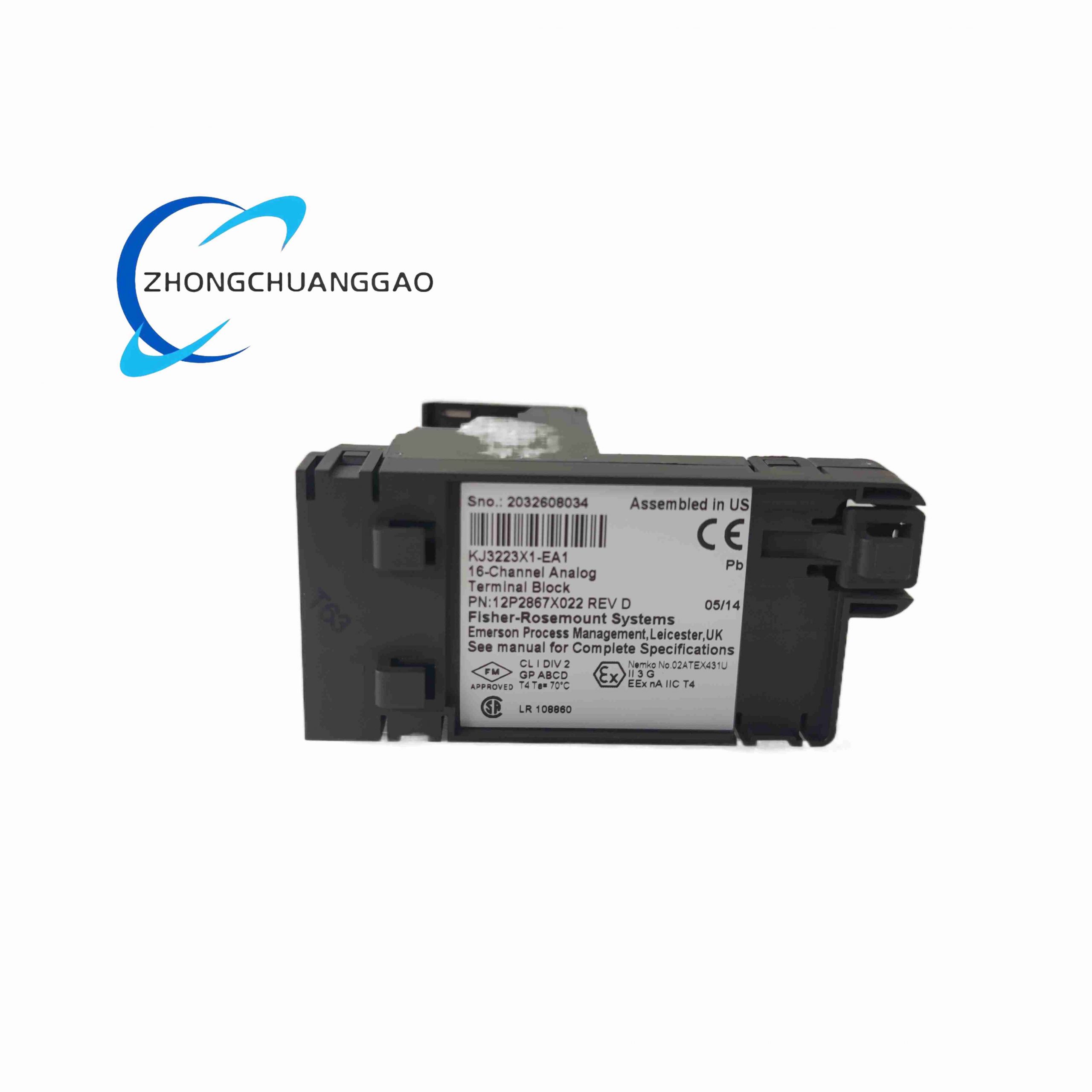

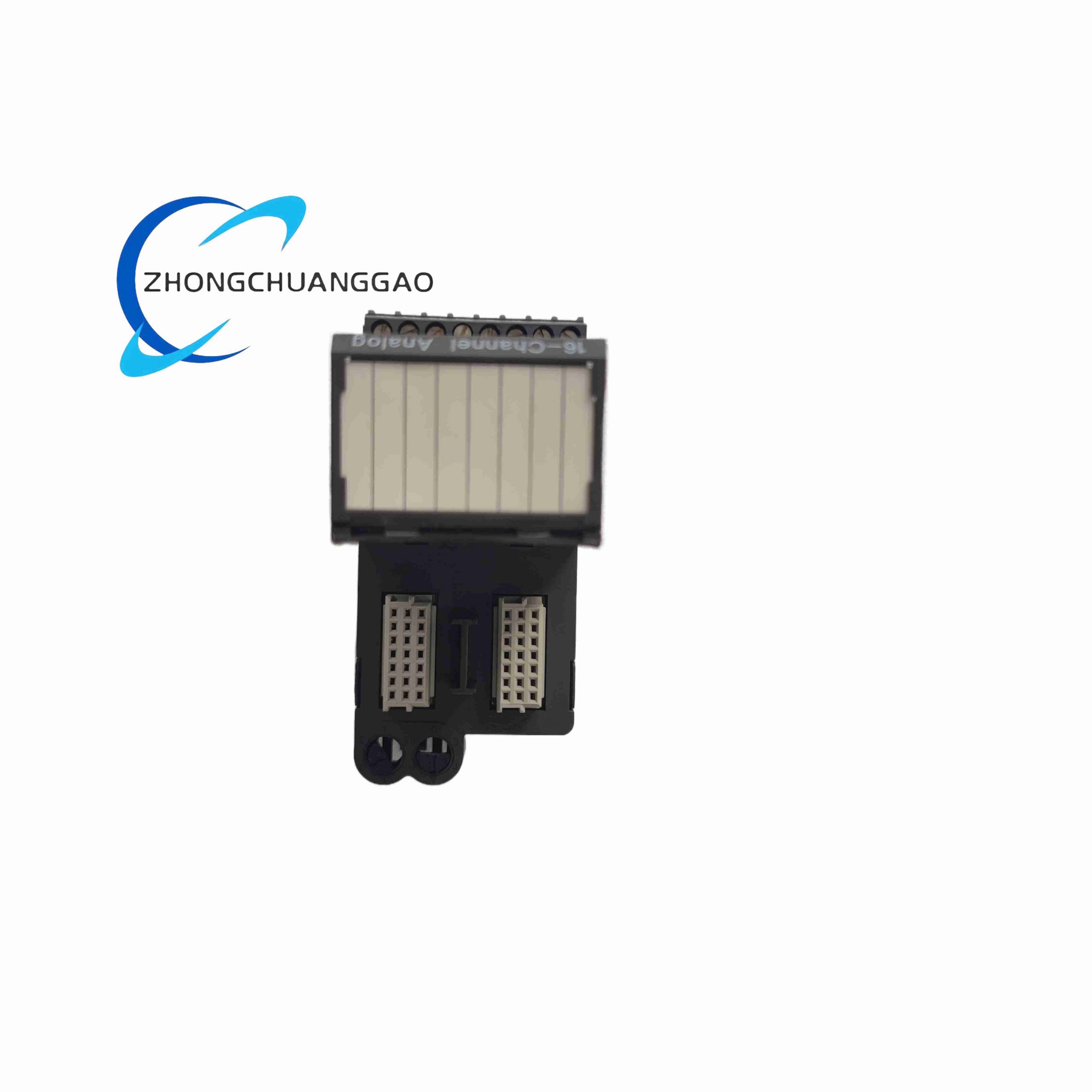

Emerson KJ3223X1-EA1

Product Name
  • DeltaV Analog Input Module (Enhanced/K Series Variant)
Product Introduction
  • Enhanced-performance analog input module within the KJ3223X1 family for DeltaV systems.
Category:
Description
  • Supports multiple signal types with improved diagnostics and denser channel packaging.
Technical Specifications (Typical)
  • Channels: 8/16 configurable
  • Signal Types: 4–20 mA, HART, Voltage (0–10 V etc.)
  • Accuracy: ±0.1 % FS
  • Resolution: 16-bit
  • Diagnostics: Wire break, out-of-range, transient fault logging
  • Isolation: Galvanic
  • Temp Range: -40 °C to +70 °C
  • Mounting: DeltaV carrier compliant
Applications
  • Critical process measurement in SIL-rated loops.
  • Integration of smart HART field devices.
  • Continuous process control in refining, chemical, and power sectors.
