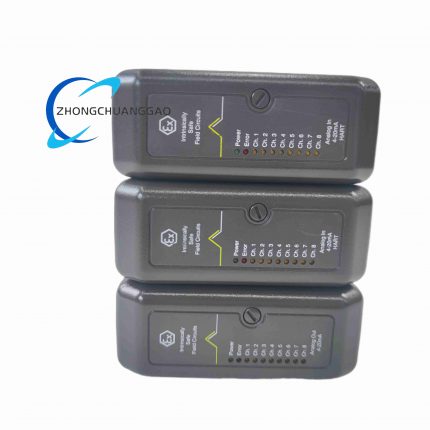

Emerson KJ3102X1-BB1
Emerson KJ3102X1-BB1

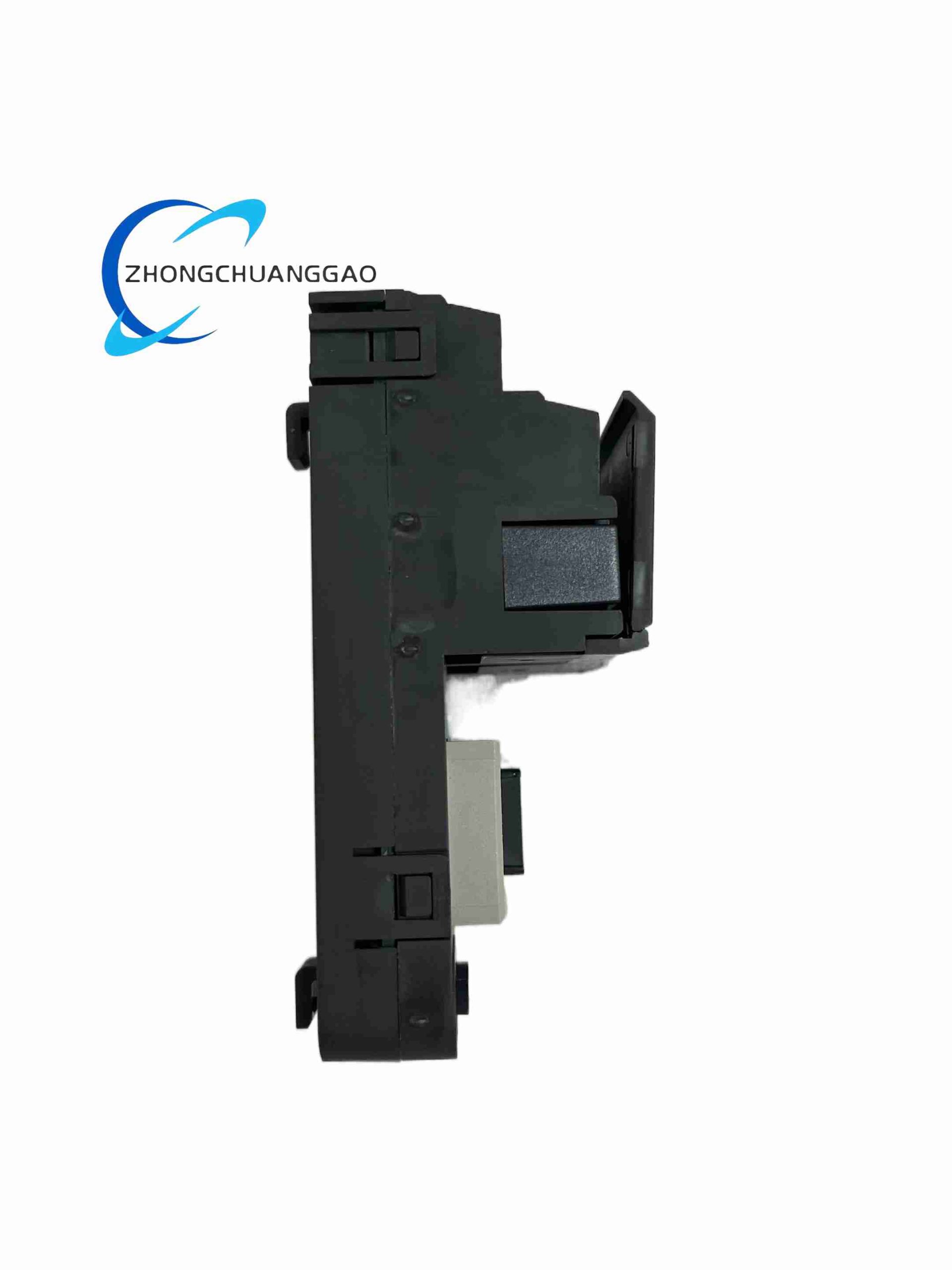

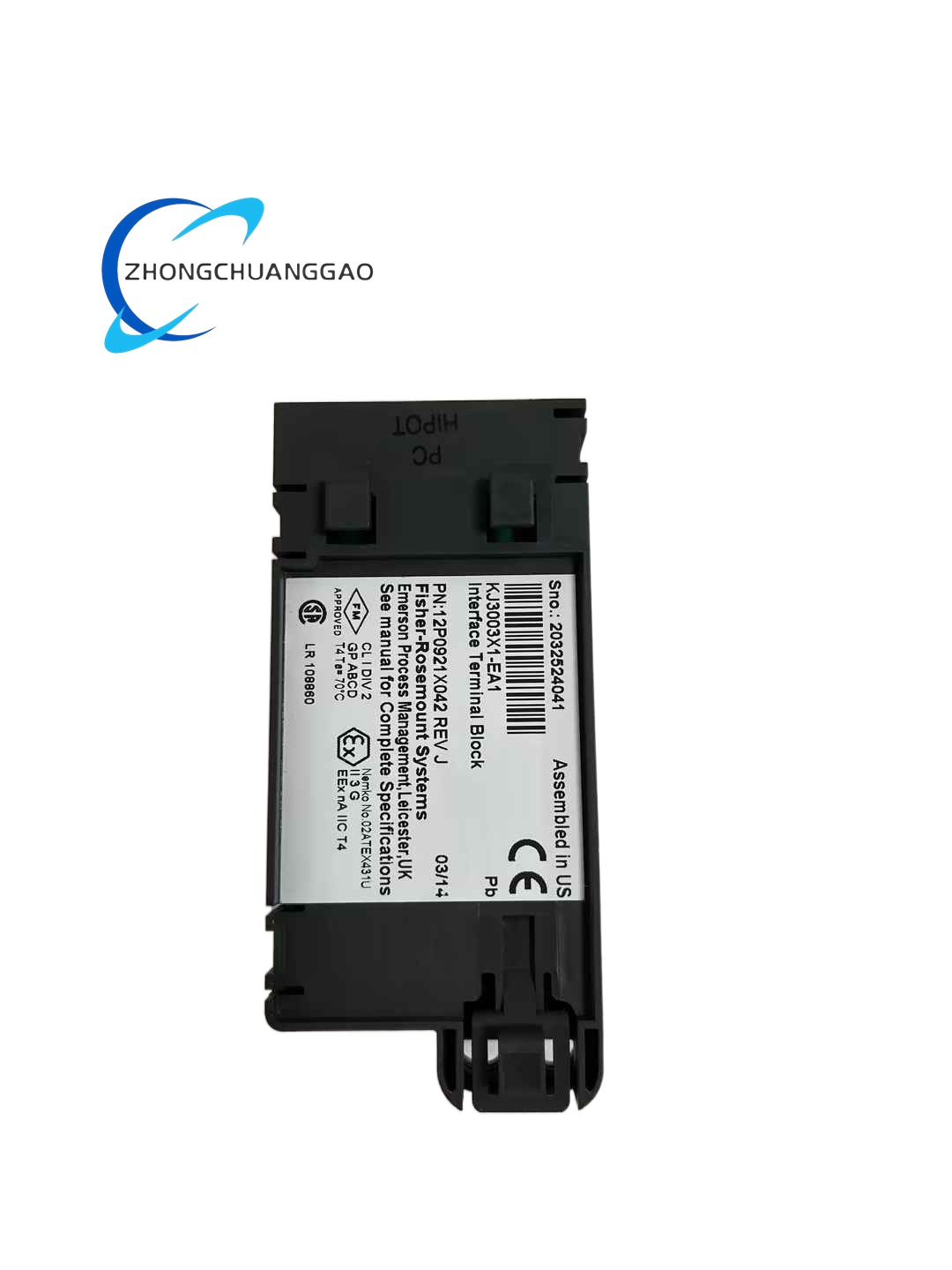

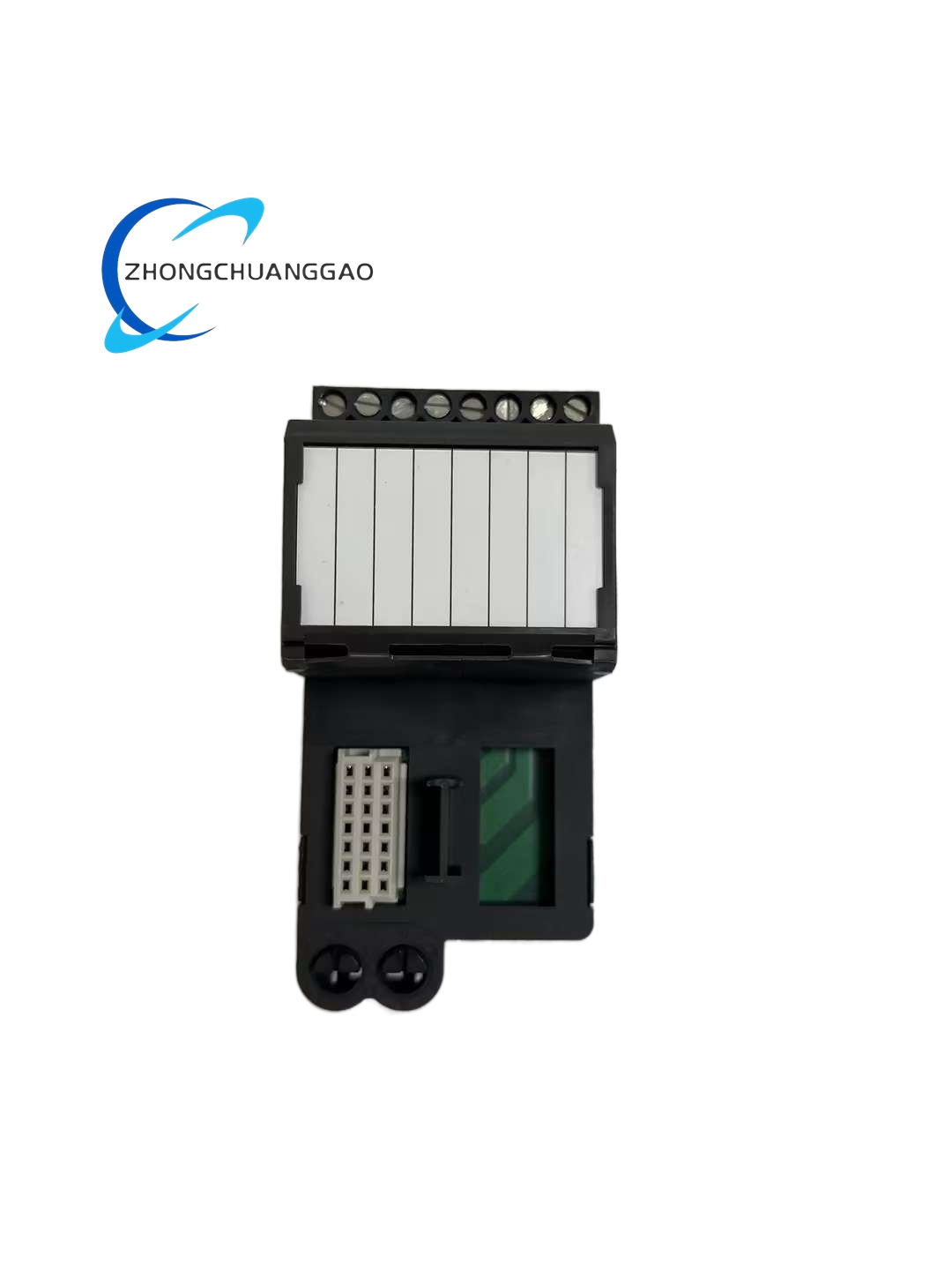

Emerson KJ3003X1-EA1

Product Name
  • DeltaV Analog Output Module (KJ3003X1 Series)
Product Name & Function
  • 8-channel analog output module for driving field actuators (control valves, VFD setpoints, recorders).
  • Delivers precise 4–20 mA or 0–20 mA current outputs from DeltaV controller calculations.
Category:
Description
Technical Specifications (Typical Series Values)
  • Channels: 8 isolated analog outputs
  • Output Signal: 4–20 mA, 0–20 mA
  • Accuracy: Typically ±0.1 % FS
  • Load Capability: Up to 750–1000 Ohm depending on supply
  • Resolution: 16-bit typical
  • Isolation: Channel-to-system isolation
  • Operating Temp: -40 °C to +70 °C
  • Mounting: DeltaV rack/carrier
Features
  • HART output capability on select firmware/versions.
  • Open-circuit and short-circuit detection per channel.
  • Supports fail-safe configurable output on communication loss.
Applications
  • Positioner control for control valves.
  • Speed reference to drives.
  • Analog recording and secondary instrumentation drive in process industries.
