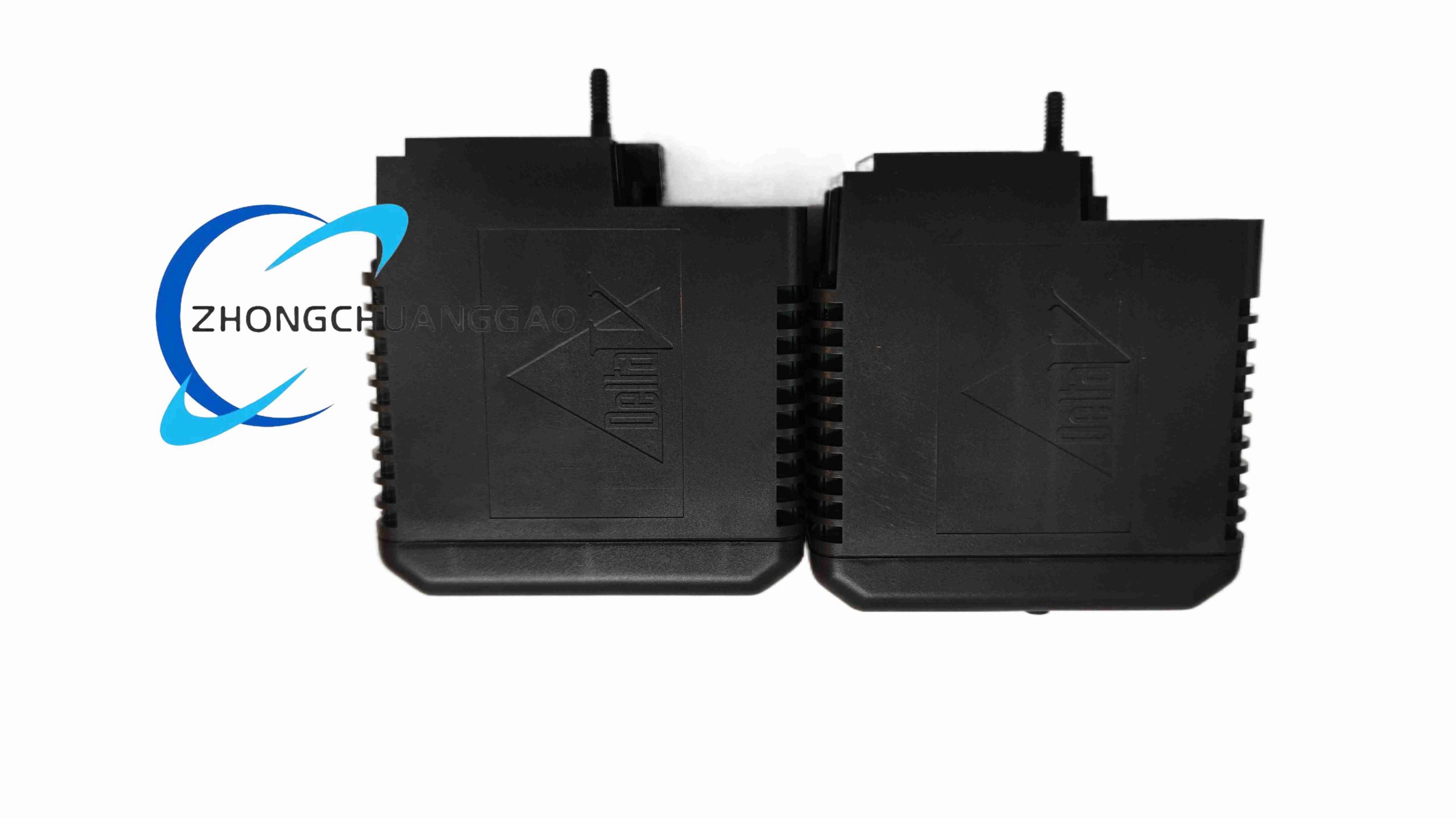

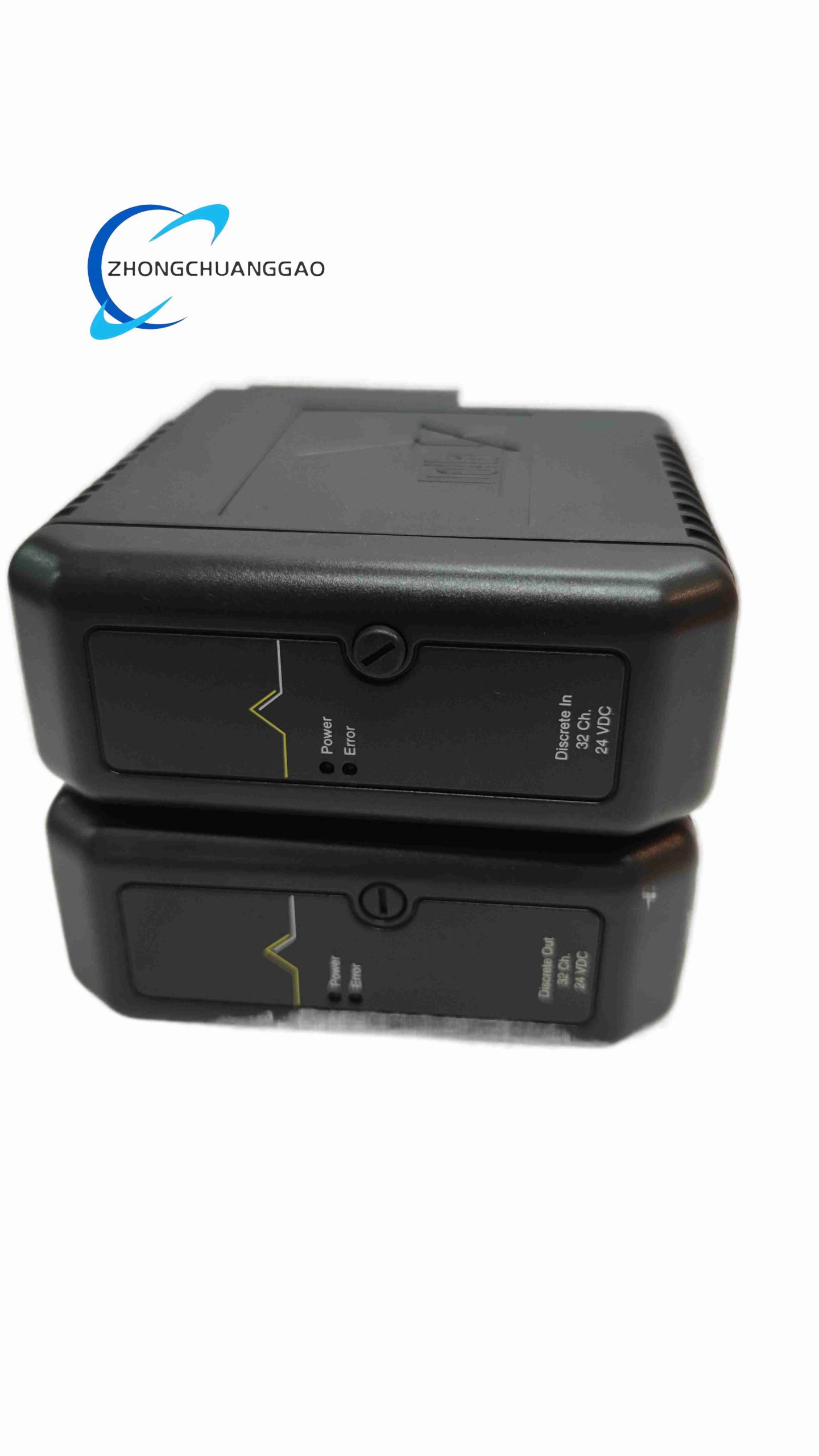

Emerson KJ3001X1-CA1

Product Name
  • DeltaV Discrete Input Card / Digital Input Module (KJ3001X1 Series)
Product Introduction
  • High-reliability discrete input interface for DeltaV systems.
Category:
Description
Technical Specifications
  • Channels: 16 isolated discrete inputs
  • Input Voltage: 18–30 VDC typical
  • Input Current: Nominal 6 mA per channel
  • Input Type: Dry / Wet contact supported
  • Response Time: <1 ms typical
  • Isolation: Channel-to-channel and channel-to-system isolation
  • Operating Temperature: -40 °C to +70 °C
  • Humidity: 5–95% non-condensing
  • Dimensions: 107 × 41 × 105 mm
  • Weight: Approx. 0.23 kg
  • Mounting: DeltaV system card slot / carrier
Features
  • Fast signal response for real-time control.
  • Enhanced noise immunity via galvanic isolation.
  • On-board diagnostics for wiring and channel faults.
Applications
  • Process automation in oil & gas, power generation, chemical plants.
  • Pharmaceutical batch process monitoring.
  • Pulp & paper and water/wastewater treatment plant control systems.
