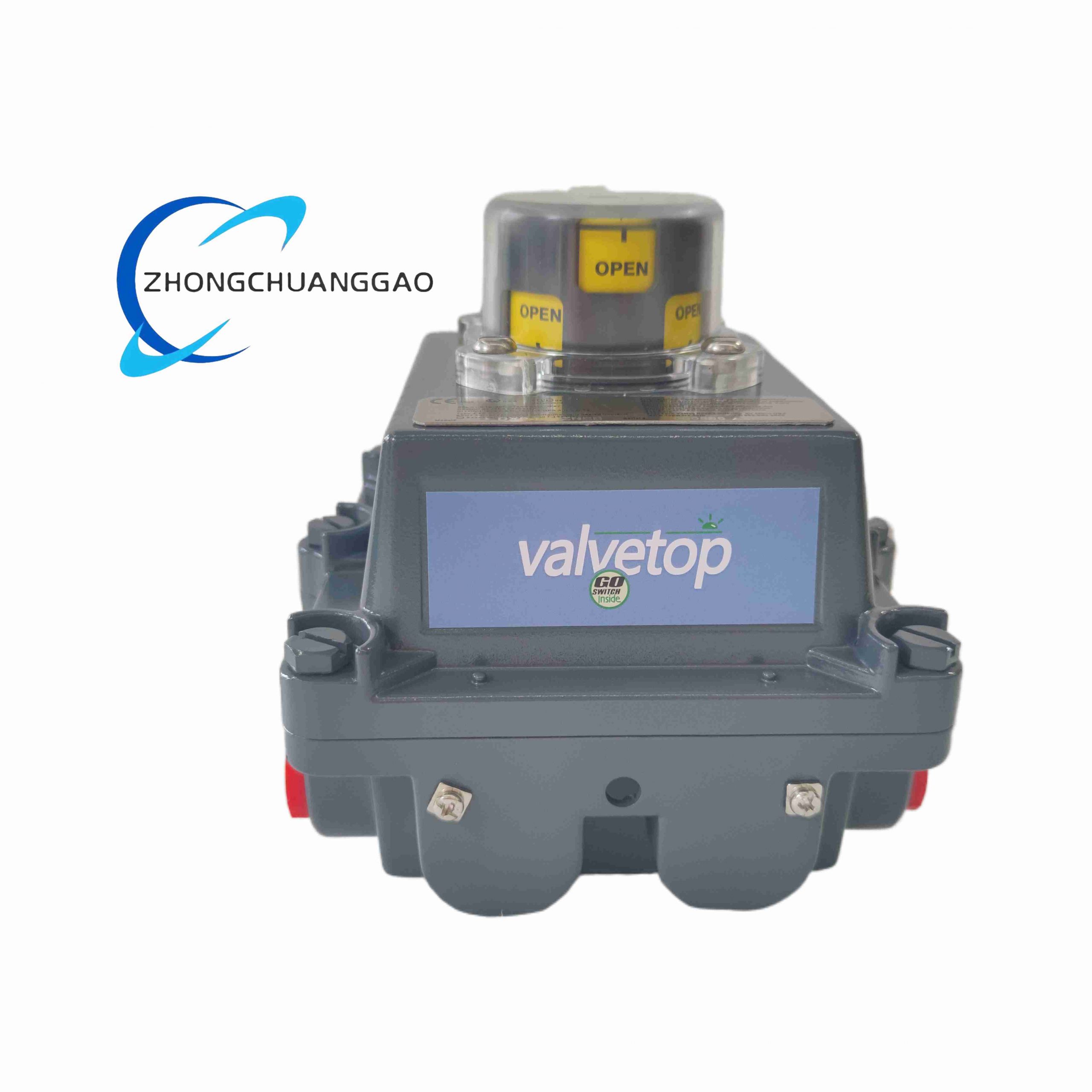

Emerson DXP-L21ZNEB - Image 1
Click to enlarge
Fisher DVC2000
Fisher DVC2000
Back to products
Chatillon E46-033-2
Chatillon E46-033-2

Emerson DXP-L21ZNEB

Product Name: TOPWORX DXP-L21ZNEB Discrete Valve Controller (Valve Position Monitor)
Product Introduction: An Emerson Topworx DXP series​ valve position indicator designed to provide visual and electrical confirmation of valve open/closed status in demanding process environments.
Category:
Description
Technical Specifications:
  • Series: DXP​ (Discrete eXternal Positioner)
  • Enclosure Material: Die-cast Aluminum​ (epoxy coated)
  • Protection Rating: IP67 / NEMA 4X / 6​
  • Temperature Range: -40°C to +80°C​
  • Electrical Interface: 1/2″ NPT​ or M20
  • Switch Type: Mechanical SPDT​ or V3 proximity​ (configured by suffix L21ZNEB specifics)
  • Certifications: ATEX, IECEx, UL, CSA​ for hazardous areas (Class I, Div 1/2, Groups C&D)
    Functional Characteristics: Color-coded adjustable cams, mechanical flag indicator (visible from distance), dual independent switch circuits for redundancy, direct mounting to pneumatic actuators via NAMUR​ standard VDI/VDE 3845.
    Performance Parameters: Contact Rating: 5A @ 250 VAC​ / 3A @ 30 VDC​ (typical V3); Mechanical Life: > 10 million cycles; Vibration Resistance: 10g​ per IEC 60068.
    Material Composition: Housing: Aluminum alloy with polyester powder coat; Seals: FKM (Viton)​ or NBR; Cam: UV-stabilized polymer; Shaft: Stainless Steel.
    Structural Features: Low-profile rugged enclosure, O-ring sealed cover, stainless steel mounting hardware, integrated conduit entry with anti-rotation lugs.
    Working Principle: As the valve actuator shaft rotates, it drives the monitor shaft via a coupling. Rotary motion adjusts cam position relative to switches; when cam lobes actuate the switch levers, electrical contacts change state to signal valve position.
    Advantages: Tamper-resistant internal settings, high corrosion resistance, universal actuator compatibility, no external power required for mechanical versions.
    Applicable Industries: Offshore Oil & Gas, Petrochemical, Refining, Pipeline Transmission, Marine, Mining.
    Model Series: Emerson Topworx DXP series.
    Installation Requirements: Mounts directly to ISO 5211​ or NAMUR​ pads; torque tightening per actuator manufacturer; ensure conduit seal fitting is properly grounded; verify shaft adapter fit.
    Usage Precautions: Verify voltage/current compatibility before wiring; do not open enclosure in explosive atmospheres unless power is isolated; periodically check cam setpoints for vibration-induced drift.
