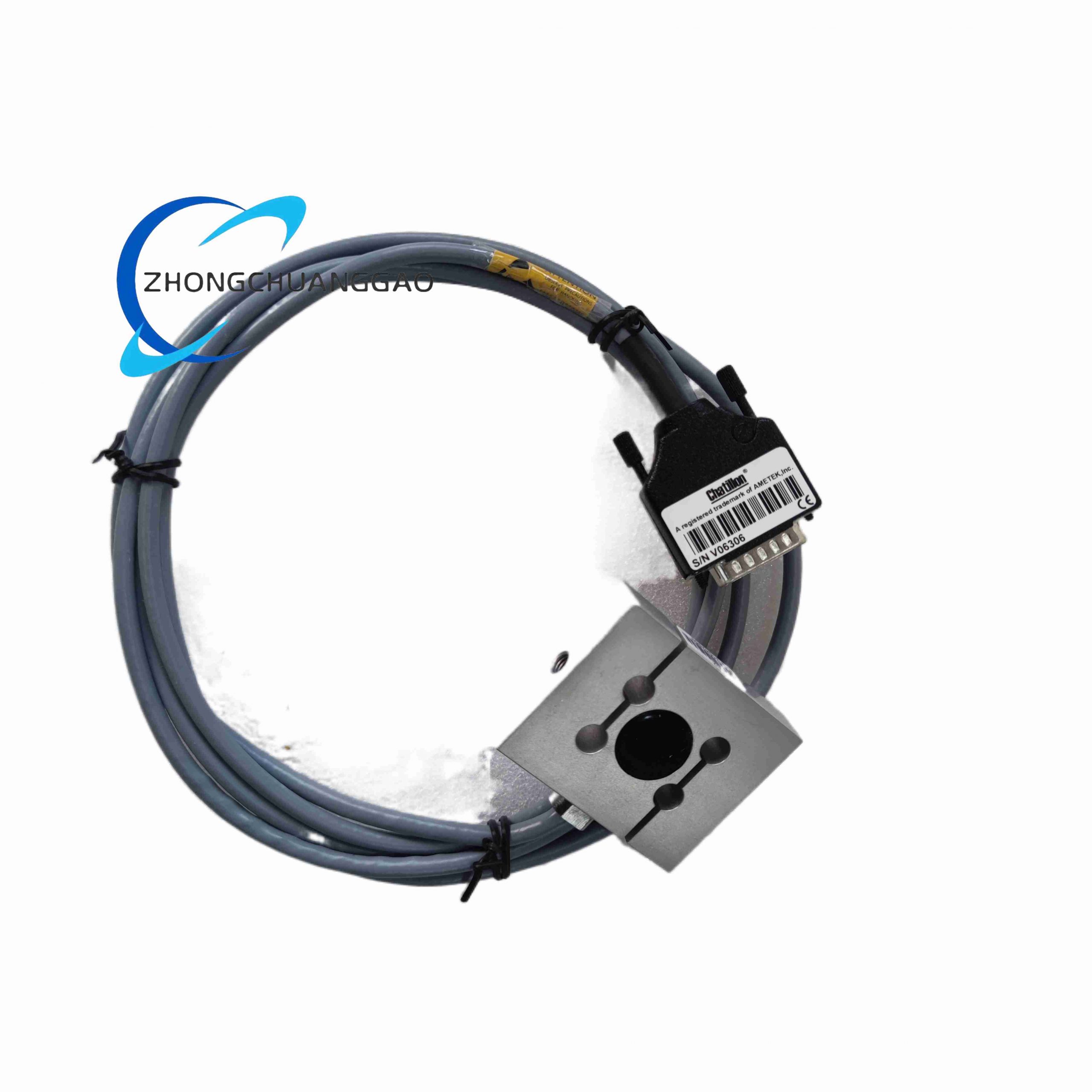

Chatillon E46-033-2

Product Name: Chatillon Force Gauge / Dynamometer (E46 Series)

Product Introduction: The Chatillon E46-033-2 is a precision mechanical or digital force measurement instrument used for tension and compression testing in quality control and laboratory settings.

Category: Others

Description

Technical Specifications:

Series: E46 series
Measurement Type: Tension (Traction) and Compression
Capacity: Model-dependent (typical E46 ranges from 0.5 N to 5000 N; suffix 033-2 indicates specific range/config)
Accuracy: ±0.1% to ±0.01% of full scale (depending on digital vs analog config)
Display: LCD (digital variants) or analog dial
Output: RS232, USB, or analog ±2 VDC (if equipped)
Sampling Rate: Up to 5000 Hz (digital peak capture)

Functional Characteristics: Peak hold (auto/manual), memory storage for readings, programmable setpoints with GO/NO-GO indication, overload protection (typically 150% of capacity).

Performance Parameters: Resolution: 1:5000 of full scale; Repeatability: ±0.05% FS; Linearity: ±0.1% FS; Operating Temp: 0°C to 40°C.

Material Composition: Housing: Anodized Aluminum or ABS polymer; Load Cell Element: Stainless Steel 17-4 PH; Sensor: Strain gauge based.

Structural Features: Ergonomic handheld or bench-mountable design, threaded load receptors (UNF or M6), protective rubber boot option, menu-navigable keypad.

Working Principle: Applied force deforms the internal strain-gauge load cell, generating a proportional electrical signal which is amplified, digitized, and converted to a force reading displayed on the screen or transmitted via serial interface.

Advantages: High accuracy traceable to NIST, bidirectional measurement, portable yet laboratory-grade precision, intuitive interface.

Applicable Industries: Aerospace component testing, Medical device verification, Packaging seal strength, Textile tensile testing, Automotive assembly.

Model Series: Ametek Chatillon E46 series.

Installation Requirements: Use only factory-specified adapters; ensure axial loading (no side loads > 3° misalignment); calibrate with certified weights annually or per usage frequency.

Usage Precautions: Never exceed 150% of rated capacity; avoid shock loading; store in dry environment (< 80% RH); zero the gauge before each use session.
