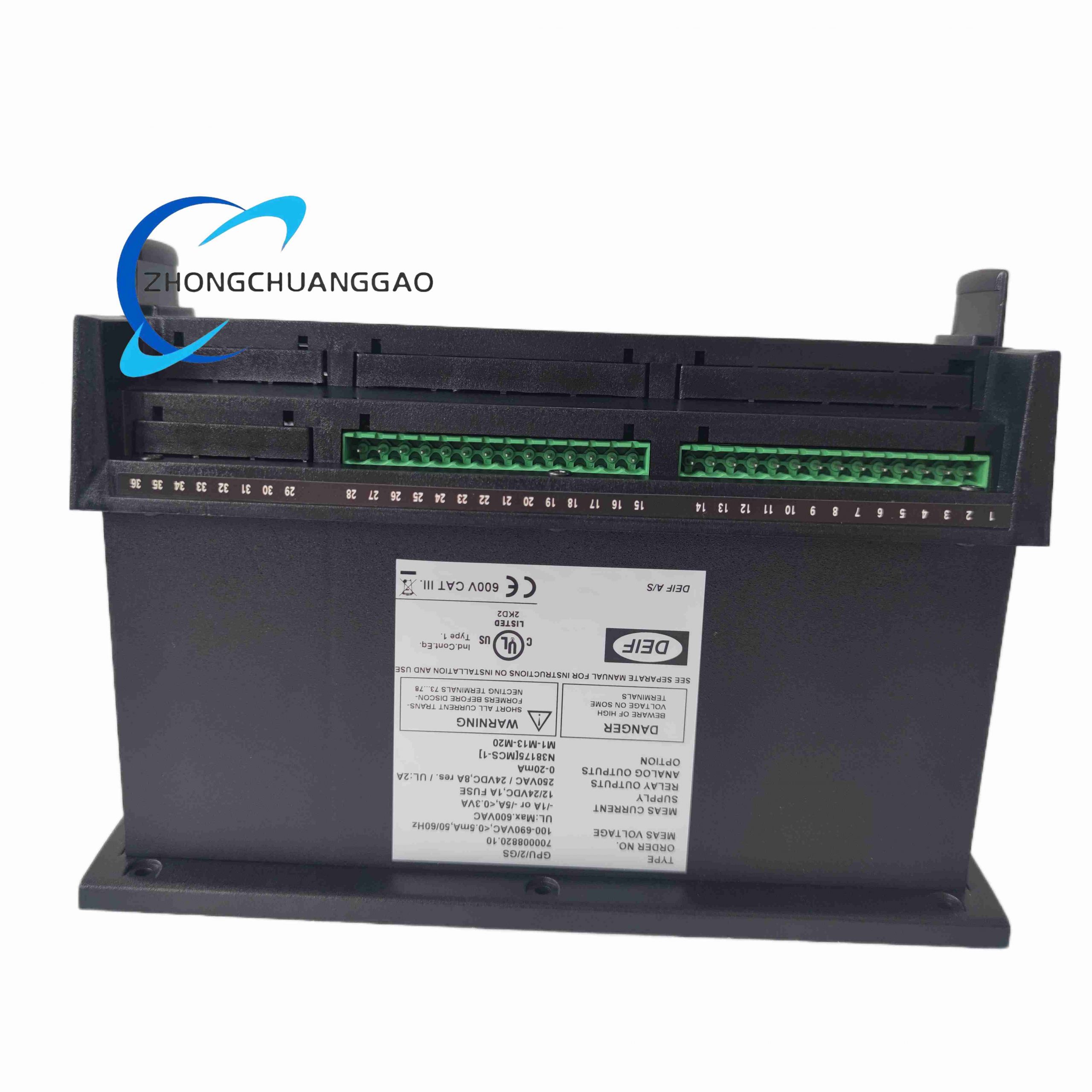

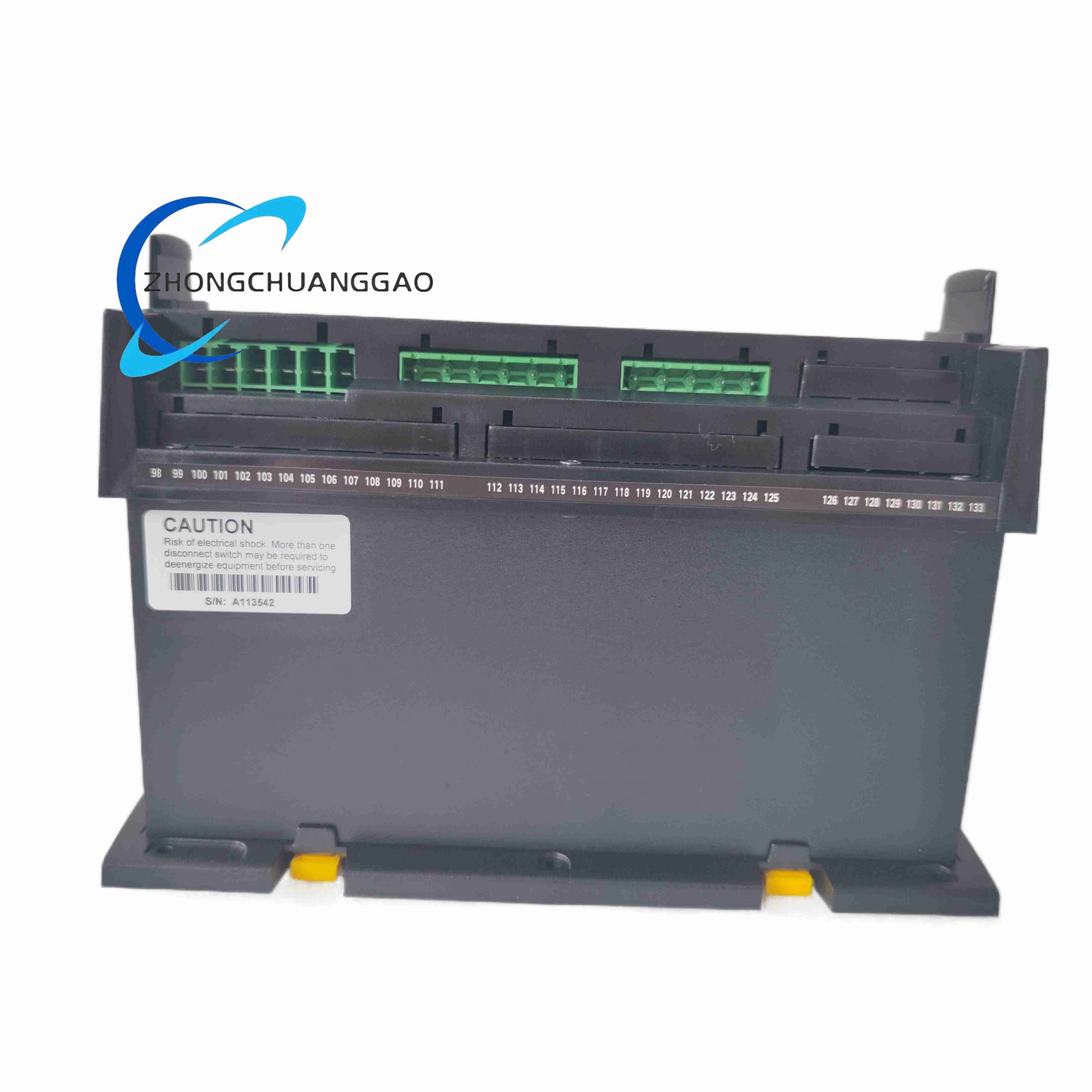

DEIF GPU2GS

  • Product Name: GPU/2/GS Generator Synchronization and Protection Controller
  • Product Introduction: A dual-channel digital controller by DEIF for automatic synchronization, load sharing, and protective relaying of two AC generator sets in marine or land-based power plants.
Category:
Description
  • Technical Specifications:
    • Inputs: 100-480V AC (PT coupled), 50/60Hz auto-sensing.
    • Load Share Accuracy: ±1% active/reactive power division.
    • Sync Window: Voltage ±5%, Frequency ±0.2Hz, Phase ±5° (configurable).
    • I/O: 8-12 programmable DI, 6-8 relay DO, analog 4-20mA / 0-10V governor outputs.
    • Communication: RS485 Modbus RTU, optional CAN Bus.
    • Supply: 24V DC or 110/220V AC (version dependent).
    • Environment: -20 to +70°C, Front IP54, Rear IP20.
  • Functional Features: Auto synchro-check, reverse power protection, over/under freq/voltage trip, dead bus closing logic, integrated speed/power trim control.
  • Structural Features: Panel mount housing with 7-inch optional TFT display (in extended versions) or LED status indicators, DIN rail compatible rear connectors.
  • Application Scenarios: Data center standby gensets, shipboard power management, hospital emergency power paralleling, microgrid control.
  • Usage Notes: Requires CT/PT ratio configuration before commissioning; ensure neutral grounding scheme compatibility; MTBF >100,000 hours; firmware updates via DEIF software tools.
