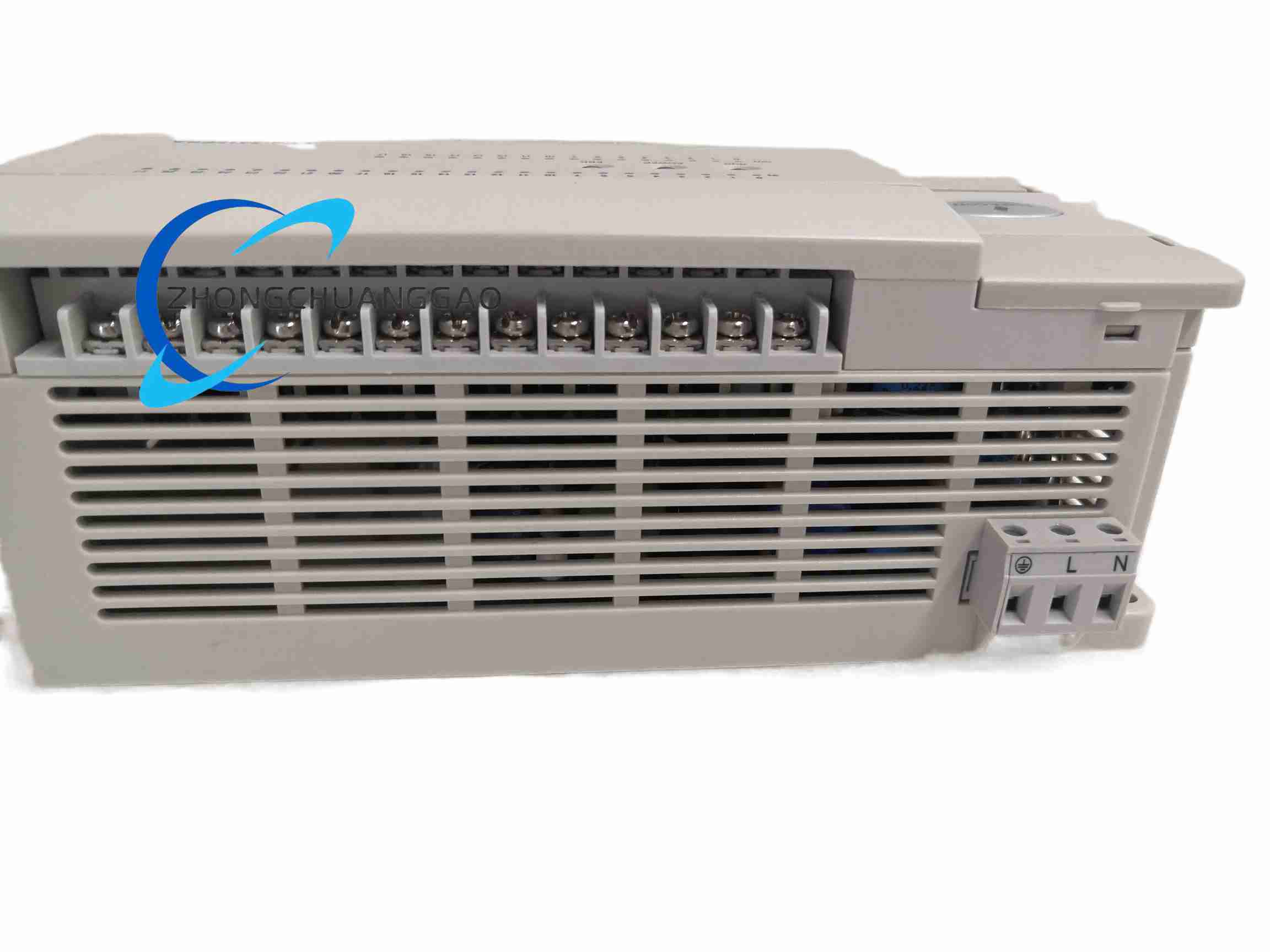

B&R EC10-2416BRA

Technical Specifications

• Output type: Sourcing (PNP), 24 V DC
• Number of channels: 16, grouped into two 8-channel banks
• Output current per channel: 1 A
• Maximum current per 8-channel bank: 8 A
• Operating voltage range: 20.4–28.8 V DC
• Response time: < 1 ms for on/off transition
• Isolation: 500 V AC channel-to-power, 250 V AC channel-to-channel
• Operating temperature: -20°C to +60°C
• Protection rating: IP20 (front panel)
• Dimensions: 120 mm × 85 mm × 60 mm
• Weight: 320 g

Functional Features

• Built-in short-circuit, overcurrent, and thermal shutdown protection per channel bank
• Fast fault detection with 50 µs response to short-circuit conditions
• Parallel backplane interface for high-speed data exchange with PLC CPU
• Status indication for output status and fault conditions
• DIN rail mounting with optional panel mounting kit
• Hot-swap support for maintenance without system power-off

Application Scenarios

• Discrete manufacturing production line control
• Packaging machinery actuator control
• Material handling system relay and solenoid driving
• Building automation lighting and equipment control
• General industrial automation I/O expansion

Working Principle

The module receives output command signals from the PLC CPU via the backplane bus. Internal MOSFET switching devices control the 24 V DC output to connected field loads. Each output channel includes protection circuits that monitor current and temperature; if an overcurrent or short-circuit condition is detected, the corresponding channel bank shuts down automatically and triggers a fault flag. The module also provides status feedback data to the CPU for system diagnostics.

Installation Requirements

• Mount on standard 35 mm DIN rail or dedicated panel mounting brackets
• Ensure proper backplane connector alignment when inserting into the PLC rack
• Use appropriately sized copper conductors for output wiring
• Connect external surge suppression devices for inductive loads
• Ensure common power supply for output channels is within rated voltage range
• Maintain minimum clearance for heat dissipation

Usage Notes

• Inductive loads require freewheeling diodes or surge suppressors to protect output transistors
• Do not exceed per-channel or per-bank current ratings
• Verify correct wiring polarity before applying power
• Fault conditions must be cleared and resolved before resetting the module
• Do not operate in environments with conductive dust or corrosive gases
• Perform periodic inspection of wiring terminals for tightness
