Functional Highlights
– Dual Ethernet – two independent copper ports support redundant plant networks and remote diagnostics rooms without external switches
– Hot-swap I/O – rear-board design allows replacement under power; no impact on protection or TDI operation
– Auto-negotiation – 10/100 Mb ports self-configure for half/full duplex and straight/cross cables
– Time sync – IRIG-B, PTP or SNTP delivered through the TDI timestamps events to ±1 ms across the entire plant network
– Transient capture – programmable pre- and post-trigger buffers (up to 16 000 samples) catch fast events such as blade loss, surge or gear-tooth breakage
– Cyber-secure – SSL/TLS encryption, role-based access and syslog forwarding to SIEM platforms
– Firmware flash – field-upgradeable via Ethernet in <3 min; rollback image stored for safety
– TMR ready – special firmware performs 2-out-of-3 channel voting when used in triple-modular-redundant racks.
Application Scenarios
– Steam & gas turbine TSI cabinets – interfaces rack data to GE Mark VIe, Siemens SPPA-T3000 or Emerson Ovation DCS
– Offshore platform centrifugal compressors – redundant fiber-Ethernet rings send vibration data to onshore System 1 servers
– LNG refrigeration trains – 102.4 kHz sampling captures gear-mesh harmonics for early tooth-fault detection
– Ethylene hyper-compressors – transient buffers store start-up and surge events for root-cause analysis
– Cross-country pipeline pump stations – IRIG-B time sync aligns multiple racks along 500 km right-of-way
– Steel mill blast-furnace blowers – Zone-2 certification allows direct mounting in hazardous junction boxes
– Wind-turbine test stands – high-speed Modbus TCP feeds real-time data to LabVIEW or MATLAB for modal analysis
– Nuclear feed-water pumps – TMR configuration meets IEEE 338 requirements for safety-related monitoring.
Installation & Maintenance

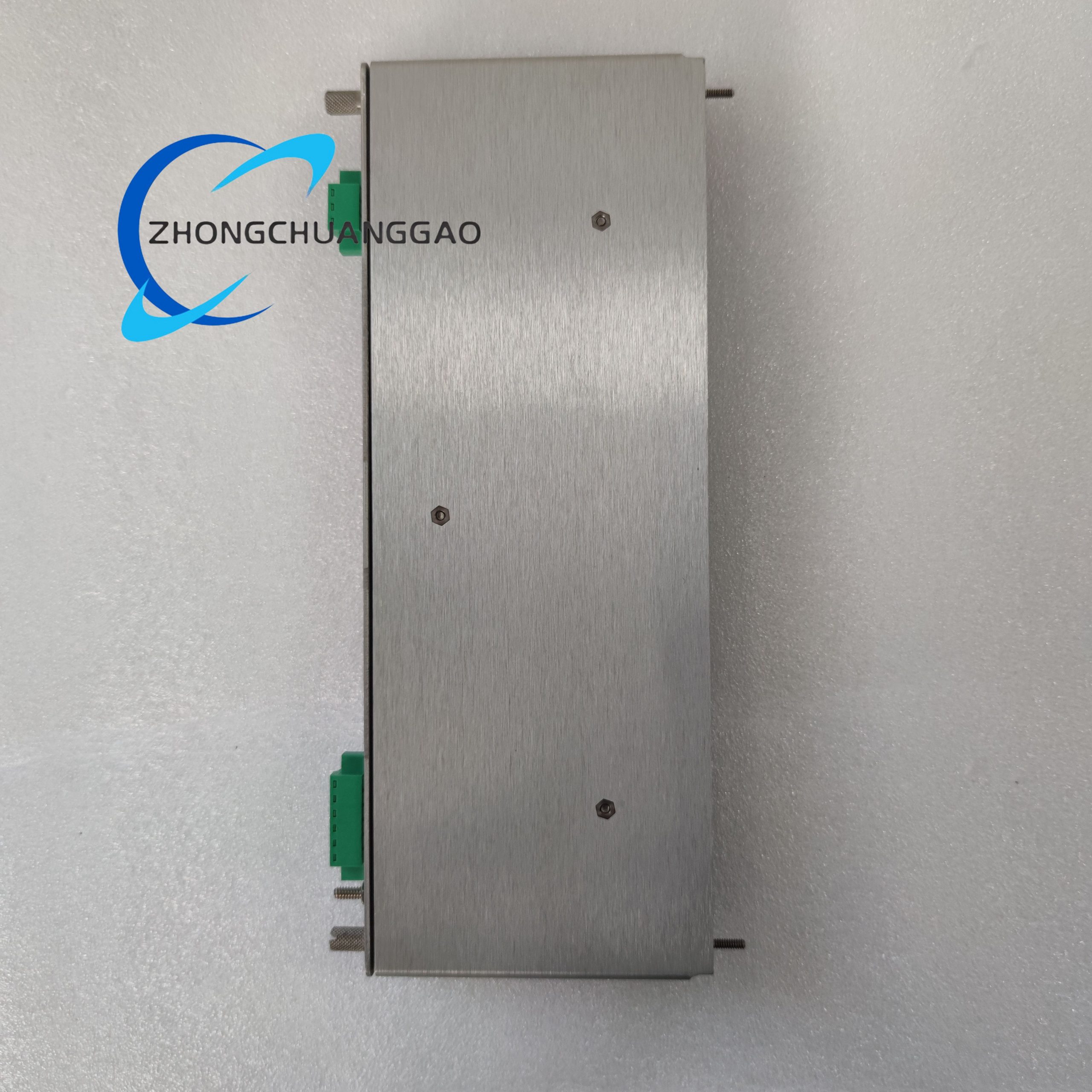

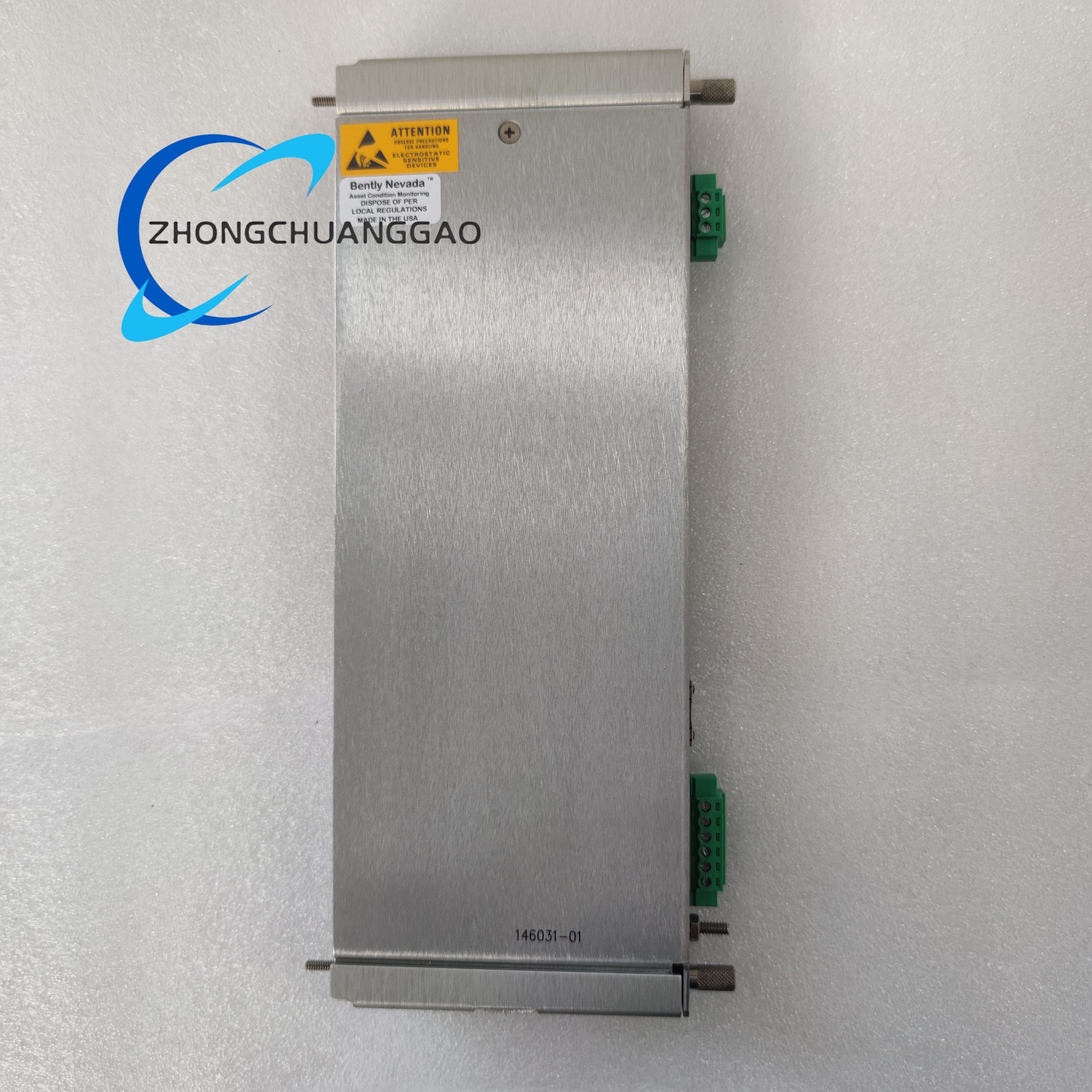

The 146031-01 I/O card installs on the rear of the 3500/22M TDI in slot 1; captive screws provide chassis earth bond. Front LEDs on the TDI indicate Ethernet link/activity, serial traffic and transient-capture status. RJ-45 and DB-9 connectors accept standard Cat-5e and RS-232 cables; no separate power wiring is required. Onboard diagnostics report temperature, supply margin and communication health over the same Ethernet link, enabling fully remote health dashboards. Card replacement takes <1 min; all rack parameters remain stored non-volatilely on every monitor, so no re-configuration is necessary.
Compatibility
Backward- and forward-compatible with every 3500 monitor produced since 1998 (3500/40M, 3500/42M, 3500/44M, 3500/45, 3500/46M, 3500/50, 3500/60, 3500/62, 3500/70M, 3500/72M, 3500/77M, 3500/90, 3500/92, 3500/93). Operates seamlessly with legacy TDIX/DDIX and current TDI communication processors. Supported by System 1 v6.5 onward and by third-party OPC UA, Modbus and DNP3 clients.
Ordering Reference
3500/22-01-01-00 138607-01 – Standard TDI + 146031-01 copper-Ethernet I/O kit
3500/22-01-02-00 138607-01 – TDI + 146031-02 fiber-optic Ethernet I/O kit
3500/22-02-01-00 138607-01 – TMR version for triple-redundant racks
3500/22-AXX-BXX-CXX – Full modular option table for cable length, firmware revision and hazardous-area certification .
