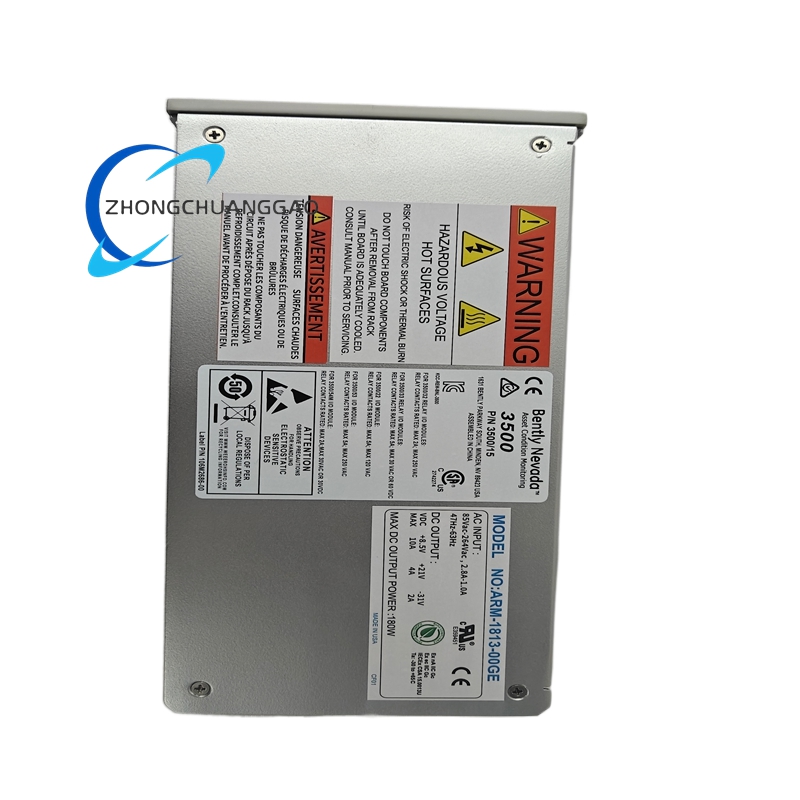

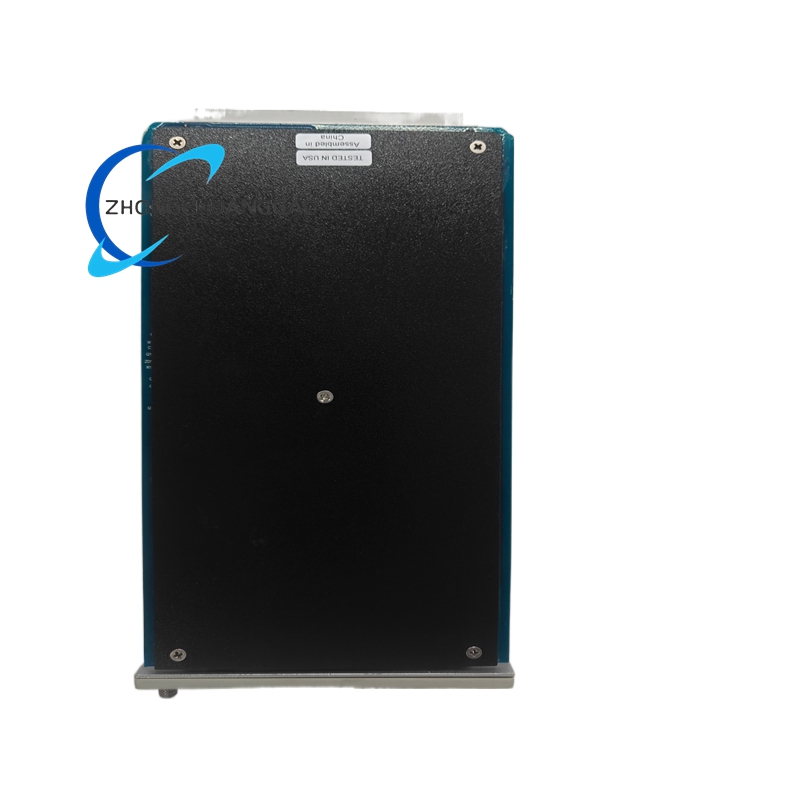

Bently 3500/15-05-05-00 106M1081-01 Power Supply Module

Technical Specifications

• Power Type: Universal AC voltage input (85 to 264 Vac rms).
• Power Configuration: Dual power supply design, allowing for both primary and backup power sources in the same frame.
• Physical Dimensions: Compact size, facilitating easy installation and integration into existing systems.
• Operating Temperature Range: -30°C to +65°C (-22°F to +150°F), ensuring reliable performance in harsh industrial conditions.
• Humidity Range: Up to 95% non-condensing, suitable for various environmental conditions.
• Certifications: Meets industrial safety and quality standards, ensuring compliance with regulatory requirements.

Key Features

• Redundancy: Supports dual power supply configuration, enhancing system reliability by providing backup power in case of primary power failure.
• Wide Input Voltage Range: Accommodates a broad range of input voltages, making it suitable for global applications with varying power standards.
• High Reliability: Designed for continuous operation in demanding industrial environments, minimizing downtime and maintenance costs.
• Easy Installation: Compact and modular design allows for straightforward integration into existing 3500 monitoring system frames.
• Status Indication: Features LED indicators for monitoring power status and detecting any issues promptly.

Functional Characteristics

• Power Conversion: Converts input AC voltage into stable DC outputs required by other modules in the 3500 monitoring system.
• Self-Diagnostics: Includes built-in diagnostics to monitor power health and detect faults, ensuring early identification of potential issues.
• Hot-Swappable: Allows for installation or removal without interrupting the operation of the monitoring system, enhancing maintainability.
• Compatibility: Fully compatible with other 3500 series modules, ensuring seamless integration and interoperability.

Application Scenarios
The Bently 3500/15-05-05-00 106M1081-01 power supply module is widely used in various industries for monitoring and protecting critical rotating machinery, including:

• Power Generation: Turbines, generators, and pumps in power plants require continuous vibration monitoring to prevent catastrophic failures and ensure reliable operation.
• Oil and Gas: Compressors, pumps, and pipelines in refineries and offshore platforms benefit from vibration monitoring to detect early signs of wear or imbalance, reducing downtime and maintenance costs.
• Chemical Processing: Large compressors, reactors, and distillation columns rely on vibration probes to maintain safe and efficient operation, preventing costly production interruptions.
• Metallurgy: Rolling mills, extruders, and blast furnaces use vibration monitoring to prevent unexpected downtime, extend equipment life, and improve product quality.
• Water Treatment: Pumps and agitators in water treatment facilities require vibration monitoring to ensure consistent performance, avoid costly repairs, and maintain water quality standards.
