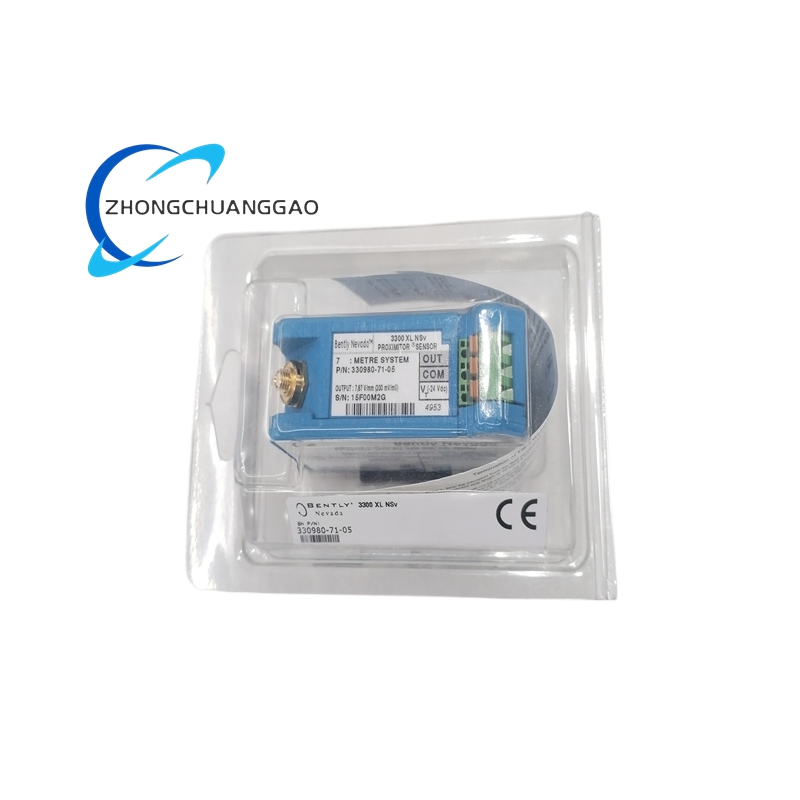

Bently 330980-71-05 Proximitor

Technical Specifications

• Compatibility: Works with Bently Nevada 3300 XL series eddy current sensors, including probes, extension cables, and proximitors.
• Output Signal: Provides a linear voltage output or a 4–20 mA current loop output, configurable based on system requirements.
• Sensitivity: Typically offers a sensitivity of 7.87 mV/μm (200 mV/mil) ± 6.5%, ensuring accurate and repeatable measurements.
• Frequency Response: Supports a wide frequency range, typically from DC to 100 kHz, making it suitable for both low-frequency displacement and high-frequency vibration measurements.
• Operating Temperature: Designed to operate reliably in temperatures ranging from -35°C to +65°C (-31°F to +149°F).
• Environmental Protection: Features an IP67-rated enclosure, providing protection against dust and water immersion, ensuring durability in harsh industrial environments.
• Electromagnetic Compatibility (EMC): Complies with European EMC standards, featuring strong resistance to radio frequency interference (RFI) and electromagnetic interference (EMI).

Key Features

• High Precision: Offers exceptional measurement accuracy with a sensitivity of 7.87 mV/μm, ensuring reliable detection of even minor changes in shaft position or vibration.
• Robust Design: Constructed with a durable metal housing and shielded cables to withstand harsh industrial conditions, including vibration, shock, and corrosive substances.
• Flexible Installation: Supports both DIN rail and panel mounting options, with spring-loaded terminal blocks for secure and tool-free connections.
• Self-Diagnostic Capabilities: Includes built-in diagnostics to monitor sensor health and detect issues such as cable breaks or excessive gaps, providing real-time feedback for maintenance.
• Interchangeability: Fully compatible with other 3300 XL series components without the need for individual calibration, simplifying system upgrades and replacements.

Functional Characteristics

• Signal Conditioning: Converts high-frequency eddy current signals into standardized outputs, enabling integration with PLCs, DCS, and SCADA systems for centralized monitoring and control.
• Multi-Parameter Measurement: Capable of measuring both static (displacement) and dynamic (vibration) parameters simultaneously, offering a comprehensive view of machinery health.
• Advanced Diagnostics: Supports dynamic acceleration waveform output for high-level fault analysis, such as identifying bearing defects or gear mesh issues.
• System Integration: Seamlessly integrates with Bently Nevada’s 3500 monitoring system and other condition monitoring platforms, facilitating centralized data acquisition and analysis.

Application Scenarios
The Bently 330980-71-05 is widely used across various industries for monitoring and protecting critical rotating machinery, including:

• Power Generation: Turbines, generators, and pumps in power plants require continuous vibration monitoring to prevent catastrophic failures and ensure reliable operation.
• Oil and Gas: Compressors, pumps, and pipelines in refineries and offshore platforms benefit from vibration monitoring to detect early signs of wear or imbalance, reducing downtime and maintenance costs.
• Chemical Processing: Large compressors, reactors, and distillation columns rely on vibration probes to maintain safe and efficient operation, preventing costly production interruptions.
• Metallurgy: Rolling mills, extruders, and blast furnaces use vibration monitoring to prevent unexpected downtime, extend equipment life, and improve product quality.
• Water Treatment: Pumps and agitators in water treatment facilities require vibration monitoring to ensure consistent performance, avoid costly repairs, and maintain water quality standards.
• Pulp and Paper: Paper machines, digesters, and pumps use vibration probes to optimize production processes, reduce energy consumption, and improve product quality.
