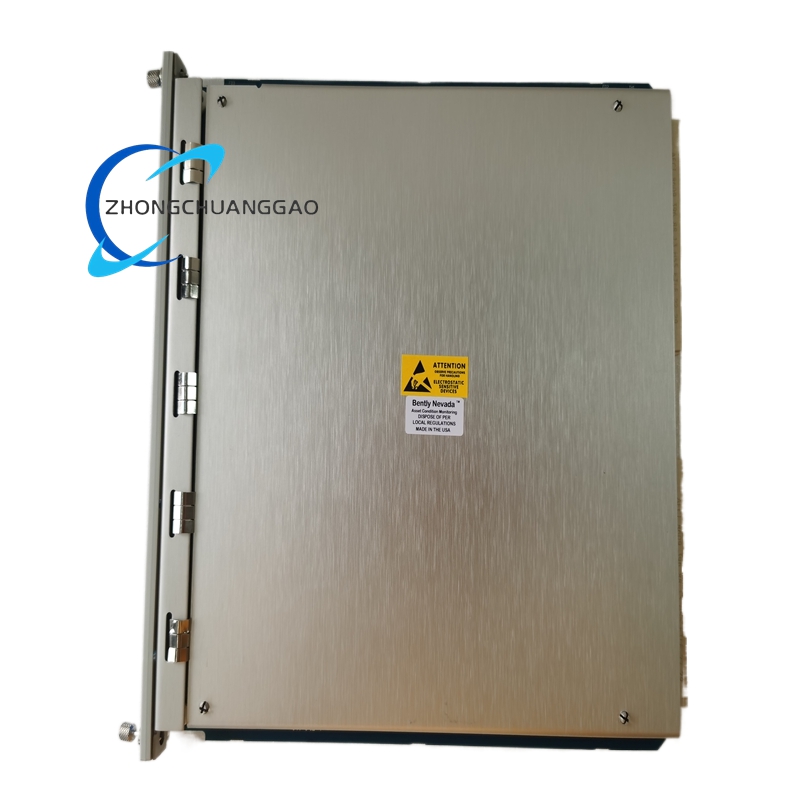

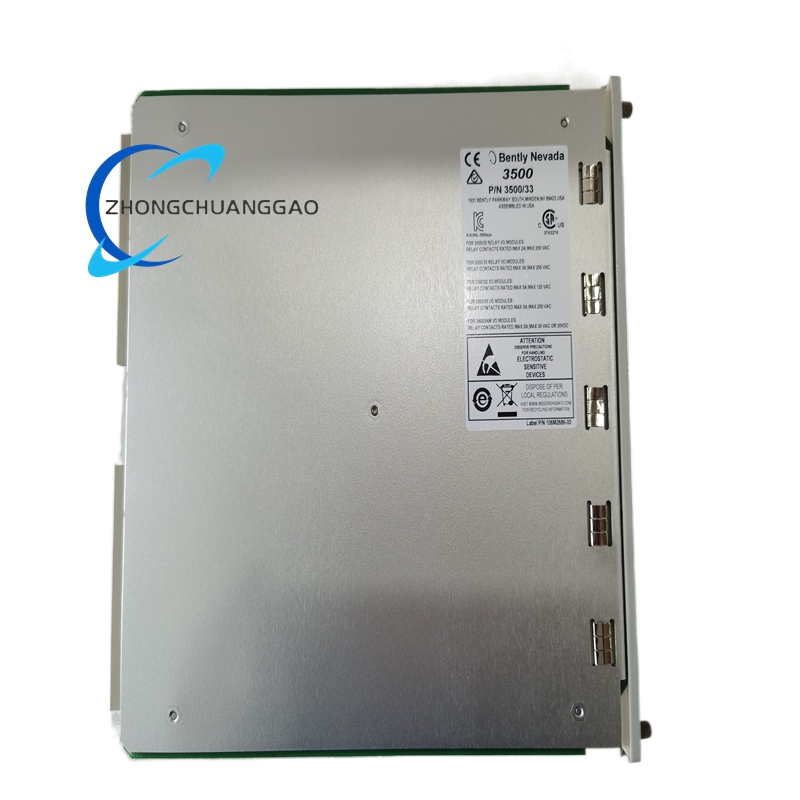

Bently 3500/33-01-02 149986-01 16-Channel Relay Module

Technical Specifications

• Relay Type: Single-pole, double-throw (SPDT) relays.
• Relay Sealing: Epoxy-sealed for environmental protection.
• Arc Suppression: Built-in 250 Vrms arc suppressor for enhanced durability.
• Relay Contact Life: Rated for 10,000 cycles, ensuring long-term reliability.
• Operating Modes: Each group of four channels can be switch-selected for normally de-energized (ND) or normally energized (NE) operation.
• Programming Capability: Supports “AND” and “OR” logic programming for alarm-driven relay activation, allowing customization based on specific application needs.
• Communication: Equipped with TX/RX LED indicators for monitoring communication with other modules in the 3500 rack.
• Status Indicators: Features OK and CH Alarm LEDs to indicate proper operation and relay channel alarm states.

Key Features

• High Reliability: Designed for continuous operation in harsh industrial environments, with robust construction to withstand vibration, shock, and temperature extremes.
• Flexible Configuration: Each of the 16 relay outputs can be independently programmed to execute specific voting logic, providing tailored control solutions.
• Advanced Diagnostics: Includes self-diagnostic capabilities to monitor relay health and detect faults promptly, ensuring early identification of potential issues.
• Easy Integration: Compatible with the Bently Nevada 3500 monitoring system, facilitating seamless integration into existing setups without requiring extensive modifications.
• Compact Design: Full-height module that fits into standard 3500 rack slots, optimizing space utilization while delivering powerful functionality.

Functional Characteristics

• Protective Actions: Triggers alarms or initiates shutdown procedures when predefined thresholds for vibration, temperature, or other parameters are exceeded, preventing equipment damage.
• Data Acquisition: Supports real-time data collection from connected sensors, enabling continuous monitoring of machinery health and performance.
• Remote Monitoring: Allows for remote access to relay status and system diagnostics, facilitating proactive maintenance and reducing downtime.
• Custom Logic Programming: Utilizes framework configuration software to program complex alarm-driven logic, meeting diverse application requirements.

Application Scenarios
The Bently 3500/33-01-02 149986-01 relay module is widely used across various industries for monitoring and protecting critical rotating machinery, including:

• Power Generation: Turbines, generators, and pumps in power plants require continuous vibration monitoring to prevent catastrophic failures and ensure reliable operation.
• Oil and Gas: Compressors, pipelines, and offshore platforms benefit from vibration monitoring to detect early signs of wear or imbalance, reducing downtime and maintenance costs.
• Chemical Processing: Large compressors, reactors, and distillation columns rely on vibration probes to maintain safe and efficient operation, preventing costly production interruptions.
• Metallurgy: Rolling mills, extruders, and blast furnaces use vibration monitoring to prevent unexpected downtime, extend equipment life, and improve product quality.
• Water Treatment: Pumps and agitators in water treatment facilities require vibration monitoring to ensure consistent performance, avoid costly repairs, and maintain water quality standards.
