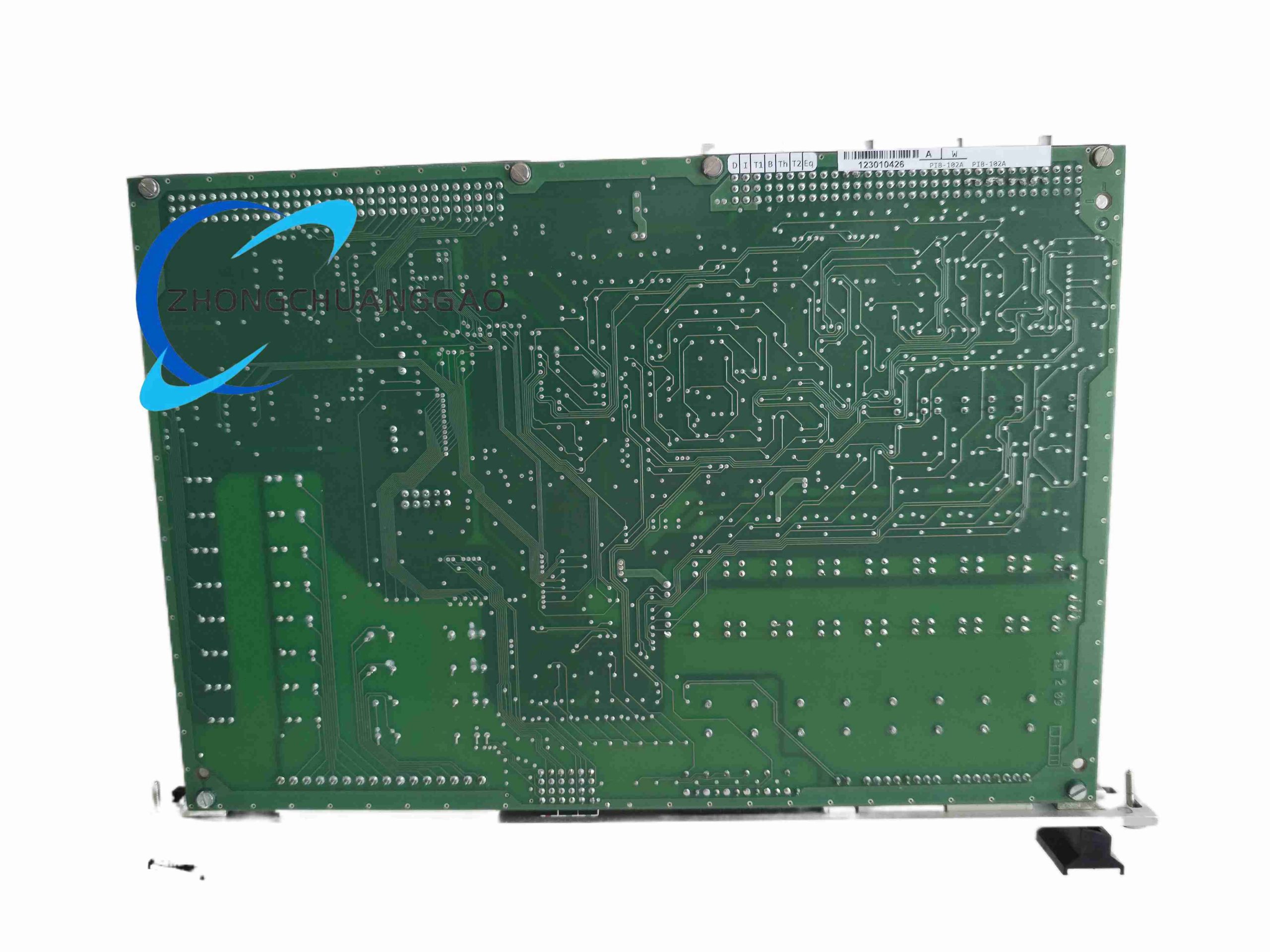

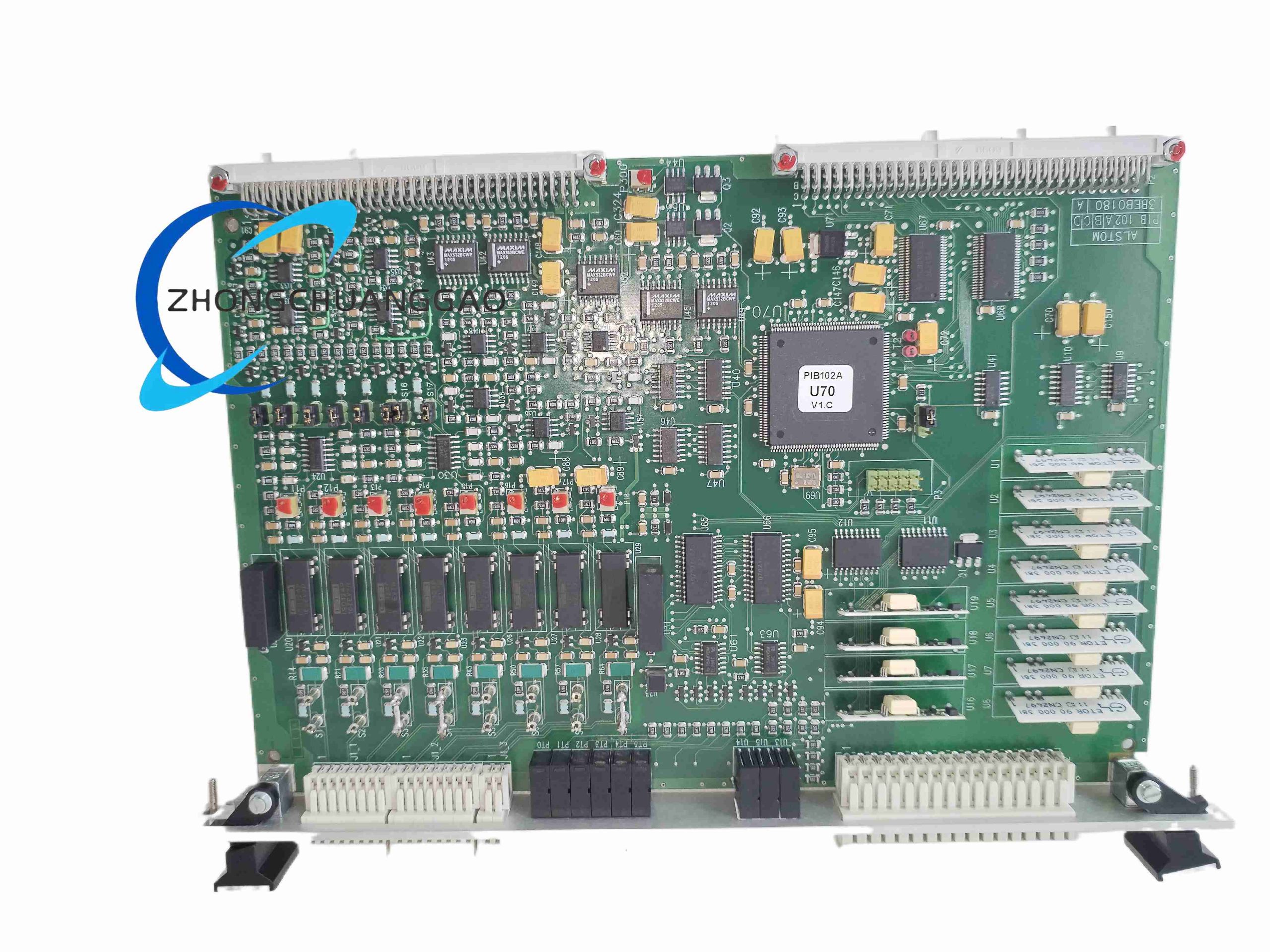

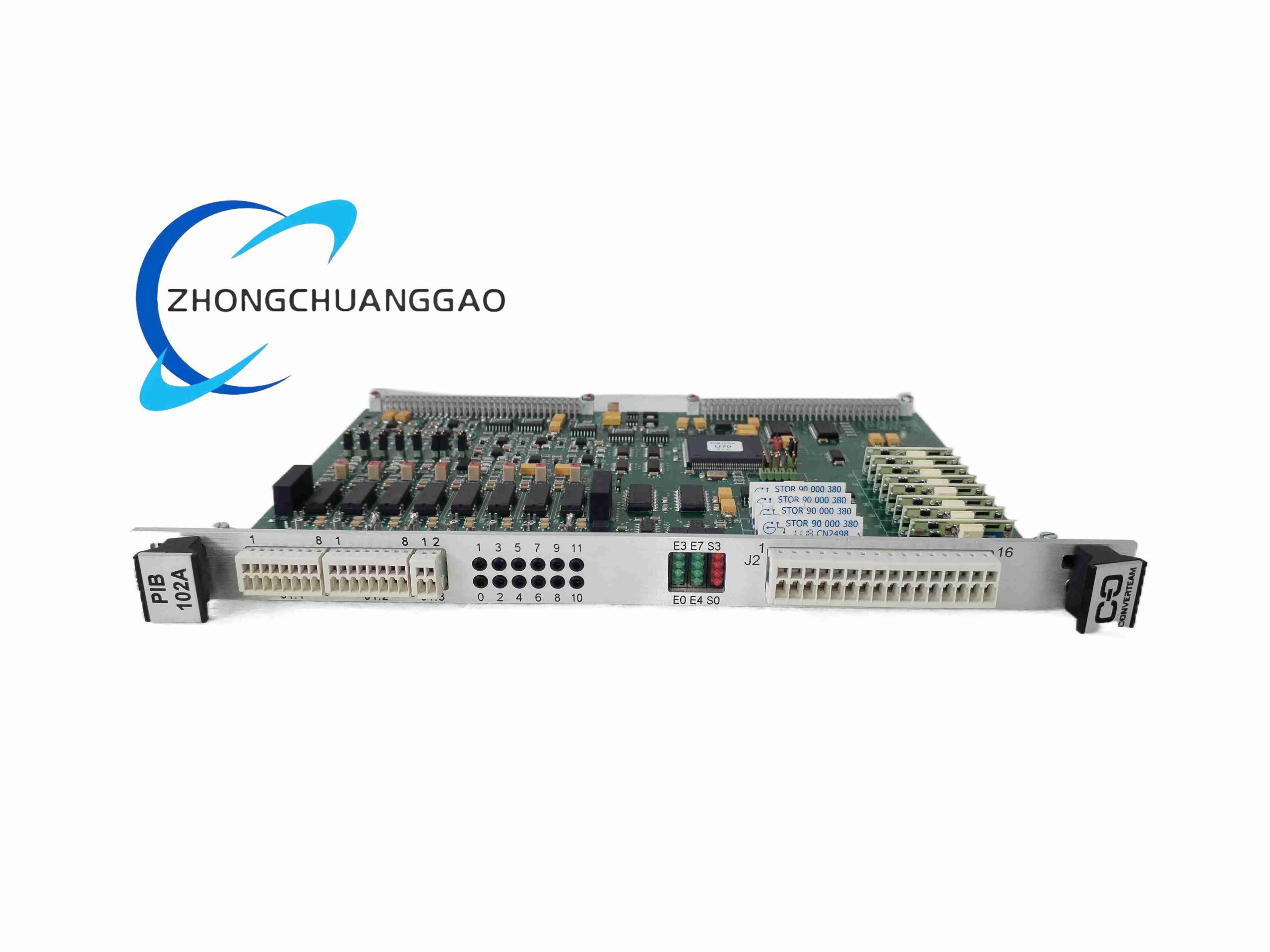

Alstom PIB102A 3BEB0180A

Product Introduction:

The PIB102A / 3BEB0180A is a digital input interface board for the Alstom Alspa C300 / Advant DCS platform. It accepts 16 isolated 24 V DC digital inputs (dry or wet contacts) from field devices such as limit switches, breaker aux contacts, and pushbuttons, and transfers the status to the control processor via the backplane bus.

Category: ALSTOM

Description

Key Technical Specifications:

Input Channels: 16, individually optically isolated
Input Voltage: 24 V DC nominal (18–30 V DC range)
Isolation Voltage: 500 Vrms channel-to-ground / channel groups
Input Filter / Debounce: Programmable typically 1–20 ms
Backplane Power: +5 V DC (primary logic), ±15 V DC (optional for some variants)
Operating Temperature: 0 °C to +60 °C
Mounting: Plug-in card for standard Alspa / Advant I/O rack
Protection: Reverse polarity protection, transient suppression diodes

Functional Features:

LED indication per channel (on most implementations)
Online diagnostics for open/short detection
High noise immunity suitable for EMI-heavy power plant environments

Application Scenarios:

Power plant turbine protection systems, switchyard status monitoring, heavy-industry DCS digital input aggregation.

Installation Notes:

Use pre-assembled termination cables; do not mix wet and dry contact wiring on same group if jumpers dictate
Verify field device sinking/sourcing type matches module configuration
