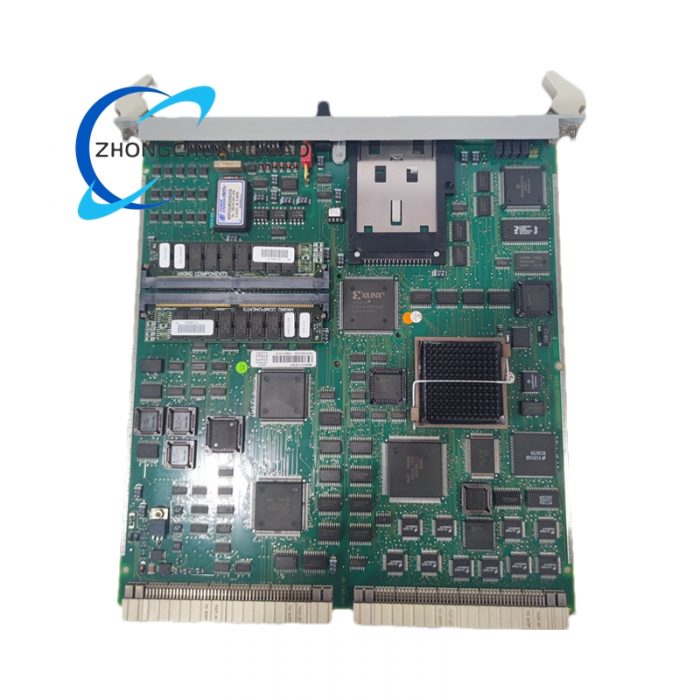

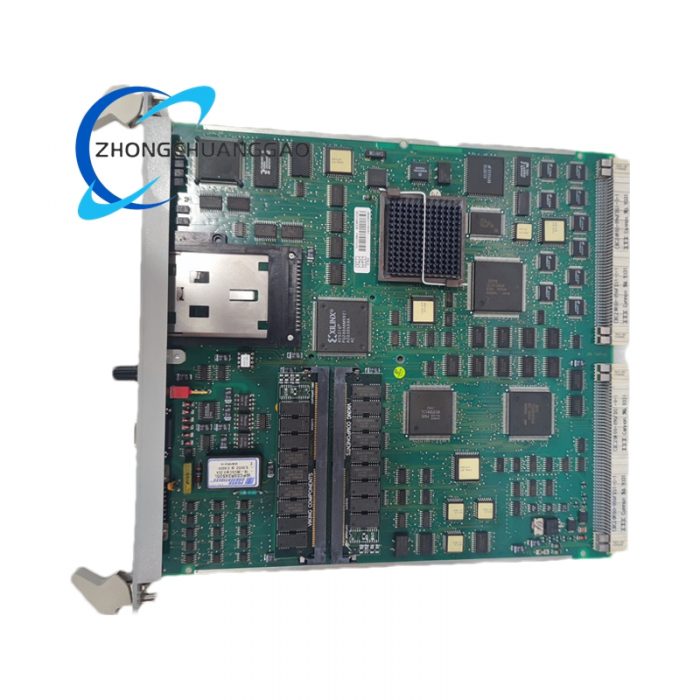

ABB PM511V16 3BSE011181R1

• Environmental Parameters:
  • Operating Temperature Range: 0°C to +60°C
  • Storage Temperature Range: -20°C to +85°C
  • Humidity Tolerance: 5% to 95% (non-condensing, up to 40°C)
  • Vibration Resistance: 2 g peak (10 Hz to 500 Hz, per IEC 60068-2-6)
  • Shock Resistance: 10 g peak (11 ms duration, per IEC 60068-2-27)
• Mechanical Specifications:
  • Dimensions (W × H × D): 160 mm × 233 mm × 40 mm (compatible with Advant OCS standard racks)
  • Mounting: Rack mounting (Advant OCS 19-inch system racks)
  • Weight: 0.8 kg
• Certifications:
  • EMC: IEC 61000-6-2 (industrial immunity), IEC 61000-6-4 (industrial emissions)
  • Safety: EN 60950-1 (IT equipment safety), UL 508 (industrial control equipment)
  • CE marking (EU compliance for low-voltage and EMC directives)

Function Features

• High-Density I/O: 16 digital inputs and 16 digital outputs in a single module—reduces rack space usage and simplifies wiring for systems requiring multiple digital control points.
• Configurable I/O Logic: Supports basic local control logic (e.g., interlocks, latches) via on-module dip switches, enabling standalone operation for simple tasks without relying on a central controller.
• Battery-Backed RAM: Retains critical process data (e.g., output states, fault logs) for up to 72 hours during power loss, ensuring system state recovery when power is restored.
• Grouped Output Protection: PTC fuses and current limiting for 4-channel DO groups prevent module damage from short circuits or overloads, while auto-resetting fuses reduce maintenance time.
• Comprehensive Diagnostics: Local LED indicators for each I/O channel (power, active state, fault) and a diagnostic RS-232 port for detailed fault logging—enables quick identification of wiring errors or device malfunctions.
• Seamless Advant OCS Integration: Native compatibility with Advant OCS controllers via the Local Bus ensures synchronized data exchange and centralized control, simplifying system setup and integration.
• Industrial-Grade Reliability: Withstands 0°C to +60°C temperatures and electromagnetic interference, ensuring stable operation in manufacturing, process, and infrastructure environments.

Application Scenarios

• Manufacturing Industry:
  • Automotive Component Production: Controls solenoid valves for robotic welding fixtures, limit switches for conveyor positioning, and status indicators for assembly stations. High I/O density supports multi-station control in a single rack.
  • Packaging Machinery: Manages digital inputs from photoelectric sensors (product detection) and digital outputs for packaging sealers, label applicators, and conveyor brakes. Local logic prevents mispackaging via interlocks.
• Process Industry:
  • Food & Beverage Processing: Controls contactors for pumps (fluid transfer), limit switches for tank level sensors, and digital outputs for valve actuation (ingredient dosing). Battery-backed RAM retains batch data during power interruptions.
  • Chemical Batch Processing: Monitors digital inputs from pressure switches and temperature alarms, while triggering digital outputs for emergency shutdown valves and agitator motors. Grouped output protection enhances safety in corrosive environments.
• Infrastructure & Utilities:
  • Water Treatment Plants: Manages digital inputs from flow meters and level sensors, and controls digital outputs for pump starters and valve solenoids (filter backwashing). Diagnostics reduce downtime for critical water supply systems.
  • Building Automation (Legacy Systems): Integrates with Advant OCS-based building control systems to manage digital I/O for HVAC dampers, lighting contactors, and fire alarm status inputs. Compact design fits in tight electrical rooms.
• Mining & Heavy Industry:
  • Conveyor Systems: Controls digital outputs for conveyor starters and brake solenoids, while monitoring digital inputs from belt alignment sensors and emergency stop buttons. Industrial-grade construction withstands dust and vibration.
