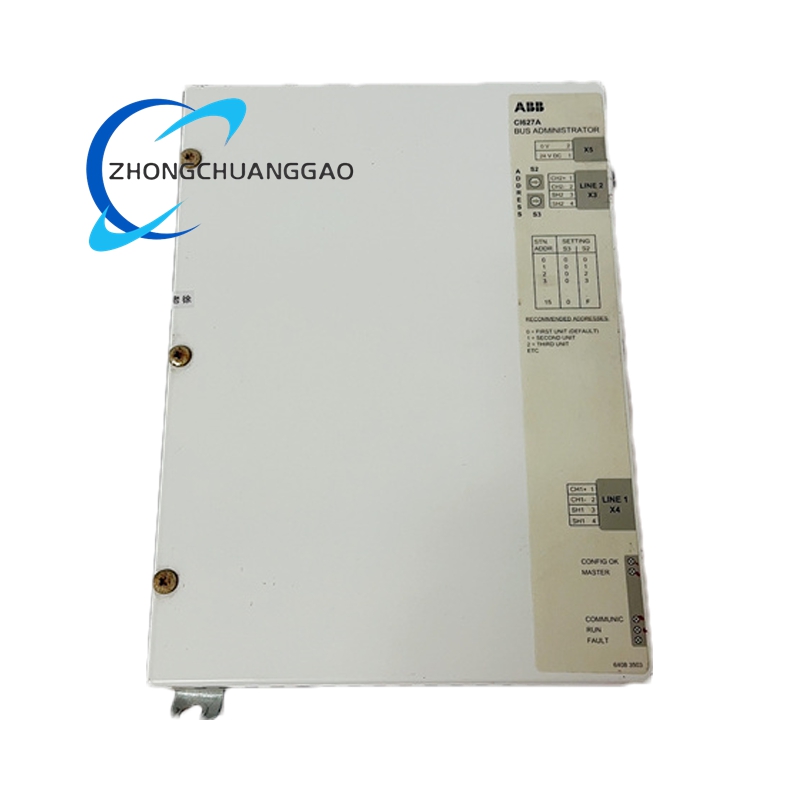

ABB CI627A 3BSE017457R1 Serial Communication Interface Module - Image 1

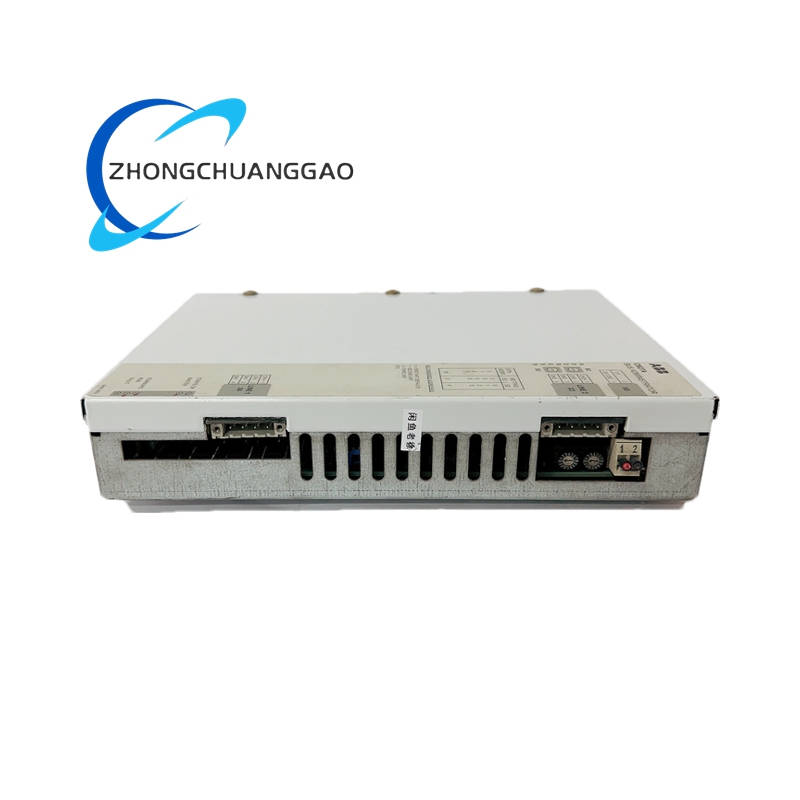

ABB CI627A 3BSE017457R1 Serial Communication Interface Module - Image 2

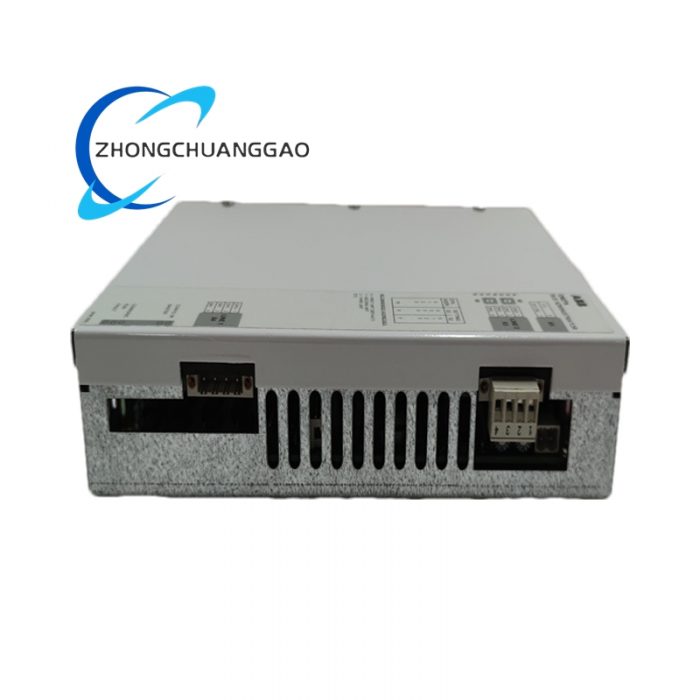

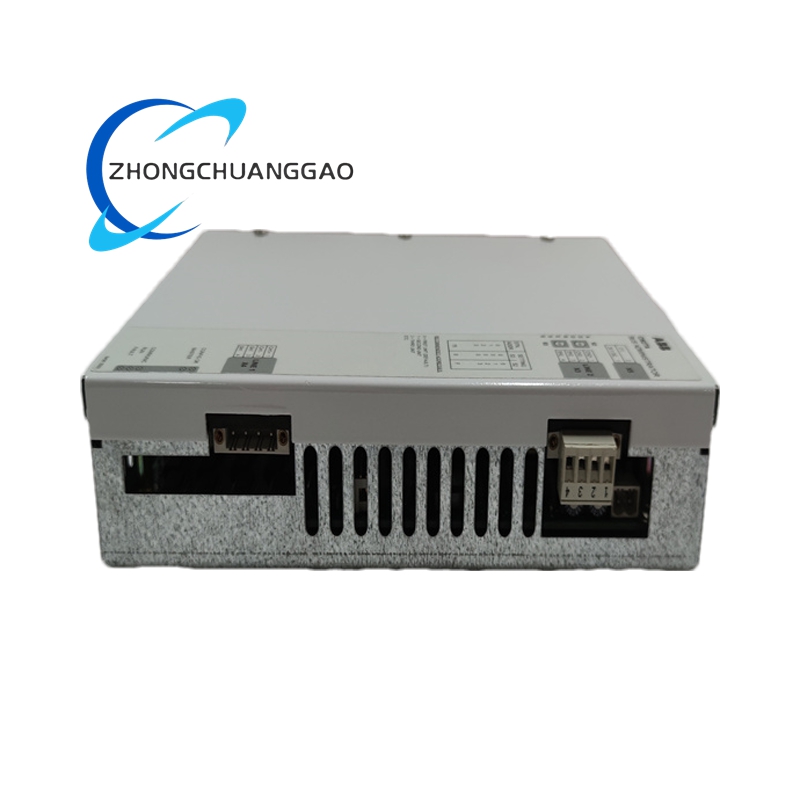

ABB CI627A 3BSE017457R1 Serial Communication Interface Module - Image 3
Click to enlarge
ABB CI627A 3BSE017457R1 Serial Communication Interface Module
ABB CI627A 3BSE017457R1 Serial Communication Interface Module - Image 2
ABB CI627A 3BSE017457R1 Serial Communication Interface Module - Image 3
ABB CI854A PROFIBUS-DP/V1 Interface Module
ABB CI854A PROFIBUS-DP/V1 Interface Module
Back to products
ABB CI854AK01 PROFIBUS-DP/V1 Interface Module
ABB CI854AK01 PROFIBUS-DP/V1 Interface Module

ABB CI627A 3BSE017457R1 Serial Communication Interface Module

Technical Specifications
  • Communication Specifications
    • Protocols Supported: RS-232, RS-422, RS-485 (full-duplex and half-duplex modes); compatible with Modbus RTU protocol
    • Serial Ports: 2 independent serial communication ports
    • Transmission Speed: 300 bit/s to 115200 bit/s (configurable via software)
    • Data Bits: 7 or 8 bits (selectable)
    • Parity Check: None, Even, Odd (configurable)
    • Stop Bits: 1 or 2 bits (selectable)
    • Flow Control: Hardware (RTS/CTS) and software (XON/XOFF) flow control supported
  • Power Specifications
    • Power Supply Voltage: 24 VDC (operating range: 20.4 VDC to 28.8 VDC)
    • Power Consumption: 2.5 W (typical value under normal operation)
Category:
Description
  • Environmental Specifications
    • Operating Temperature: -20°C to +60°C
    • Storage Temperature: -40°C to +85°C
    • Relative Humidity: 5% to 95% (non-condensing)
    • Protection Level: IP20 (intended for cabinet-mounted installation)
  • Physical Specifications
    • Dimensions: 110 mm × 60 mm × 25 mm (length × width × height)
    • Net Weight: 170 g (module alone); 620 g (including compatible baseplate)
    • Installation: DIN-rail mounting (requires matching baseplate for secure fixation)
Functional Features
  • Multi-Protocol Support: Compatible with RS-232, RS-422, and RS-485 protocols, enabling connection to a wide range of serial devices.
  • Flexible Configuration: All communication parameters (baud rate, data bits, parity, stop bits) can be configured via ABB’s engineering software (e.g., Control Builder M), adapting to different device requirements.
  • Error Detection: Integrates cyclic redundancy check (CRC) and frame error detection functions to ensure data transmission accuracy.
  • Status Indication: Equipped with 4 LED indicators (power, port 1 communication status, port 2 communication status, fault) for real-time monitoring of module operation.
  • Hot Swap Capability: Supports online replacement without shutting down the controller system, reducing maintenance downtime and improving system availability.
  • Electromagnetic Compatibility (EMC): Complies with IEC 61000-6-2 industrial EMC standards, resisting electromagnetic interference from surrounding equipment.
Application Scenarios
  • Legacy Device Integration: Connects ABB controllers to legacy serial devices (such as analog meters, temperature sensors, and mechanical actuators) in manufacturing plants, avoiding costly device replacement.
  • Process Data Acquisition: Used in chemical and petroleum industries to collect data from serial-based process analyzers and transmit it to the AC 800M controller for real-time process monitoring.
  • Power Monitoring Systems: Integrates with serial communication-enabled power meters in power distribution rooms to collect voltage, current, and power consumption data for centralized management.
  • Water Treatment Facilities: Links serial-based flow meters and pH sensors to the controller, enabling automated adjustment of treatment processes based on real-time data.
  • Food Processing Lines: Connects serial temperature controllers and pressure sensors to the automation system, ensuring compliance with food safety temperature and pressure standards during production.
