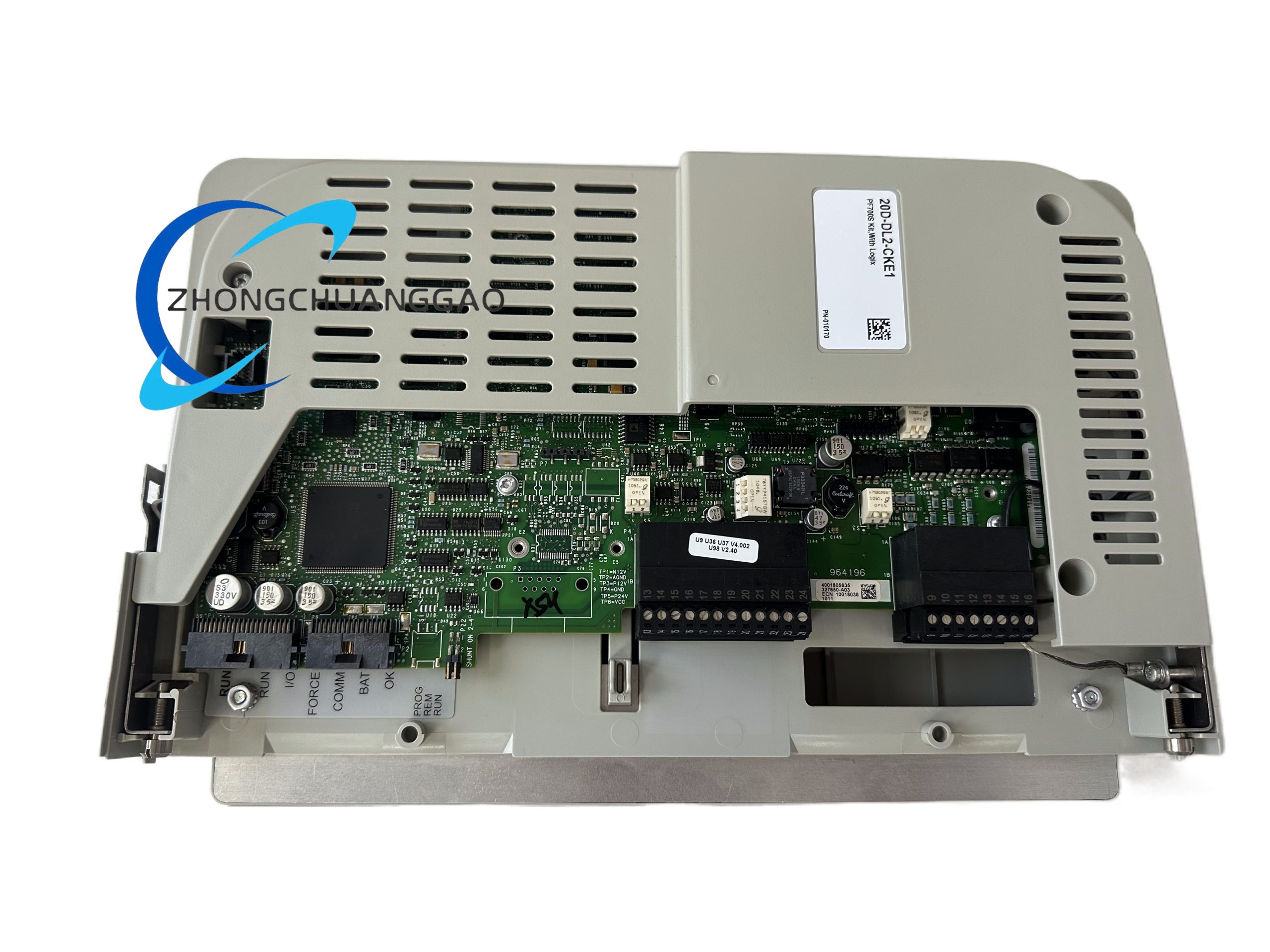

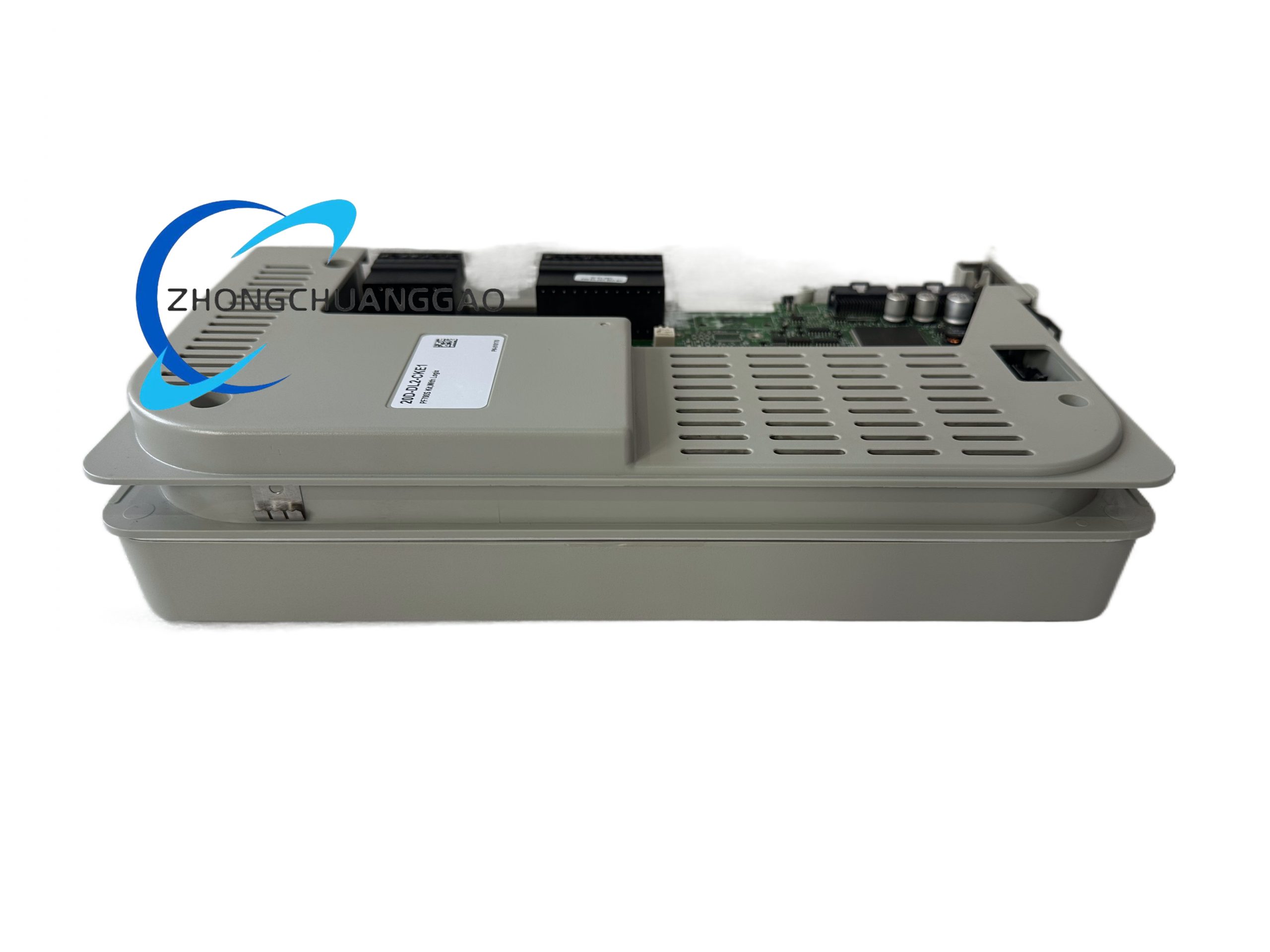

Product Name: Allen-Bradley (A-B) 20D-DL2-CKE1 — Bulletin 20D Series AC Drive (PowerFlex 20D / 20D-DL2 variant)

Product Overview: Variable Frequency Drive (VFD) designed for general-purpose AC motor control in industrial automation. Part of the Allen-Bradley Bulletin 20D family.

Category:
Description

Technical Specifications:

Parameter Value
Input Voltage 480V AC (3-phase), 50/60 Hz
Output Power Rating 2 HP (1.5 kW)
Output Current 4.8 A (rated)
Enclosure Rating IP20 (open type)
Control Mode Sensorless vector / V/Hz
Communication RS-485 (Modbus RTU), DeviceNet optional
Protocol EtherNet/IP, DF1 via adapter
Braking Dynamic braking (internal transistor)
Operating Temp -10°C to +50°C (derating above 40°C)
Altitude Up to 1000m (derate above)

Functional Features:

  • Sensorless vector control for torque response without encoder
  • Built-in EMI filter (CKE1 suffix = with EMI filter)
  • Dynamic braking for rapid deceleration
  • Auto-tuning for motor parameter identification
  • PID control built-in for process loops
  • Multi-speed presets (up to 16 speeds)
  • Fault logging with history recall

Performance Parameters:

Metric Value
Speed Range 0–400 Hz (output)
Torque Accuracy ±2% (sensorless vector)
Accel/Decel Time 0.1–600 sec (adjustable)
Frequency Resolution 0.01 Hz
Overload Capacity 150% for 60 sec, 200% for 3 sec

Structural Features:

  • Wall-mount / DIN-rail capable chassis
  • Terminal block connection (no screw terminals)
  • Snap-in cover for wiring access
  • LED status indicators on front panel

Applicable Industries: Conveyor systems, HVAC fans, pumps, compressors, packaging machines, material handling.

Installation Requirements:

  • Mount vertically with adequate ventilation (min 100mm clearance top/bottom)
  • Ground connection mandatory (PE terminal)
  • Shielded cable for motor leads if >15m
  • Input fuse rated per NEC/IEC guidelines

Usage Notes:

  • Do not operate above rated altitude without derating
  • Ensure motor nameplate matches drive parameters
  • CKE1 suffix confirms EMI filter is installed — do not remove
