A‑B 1203‑SM1

Technical Specifications

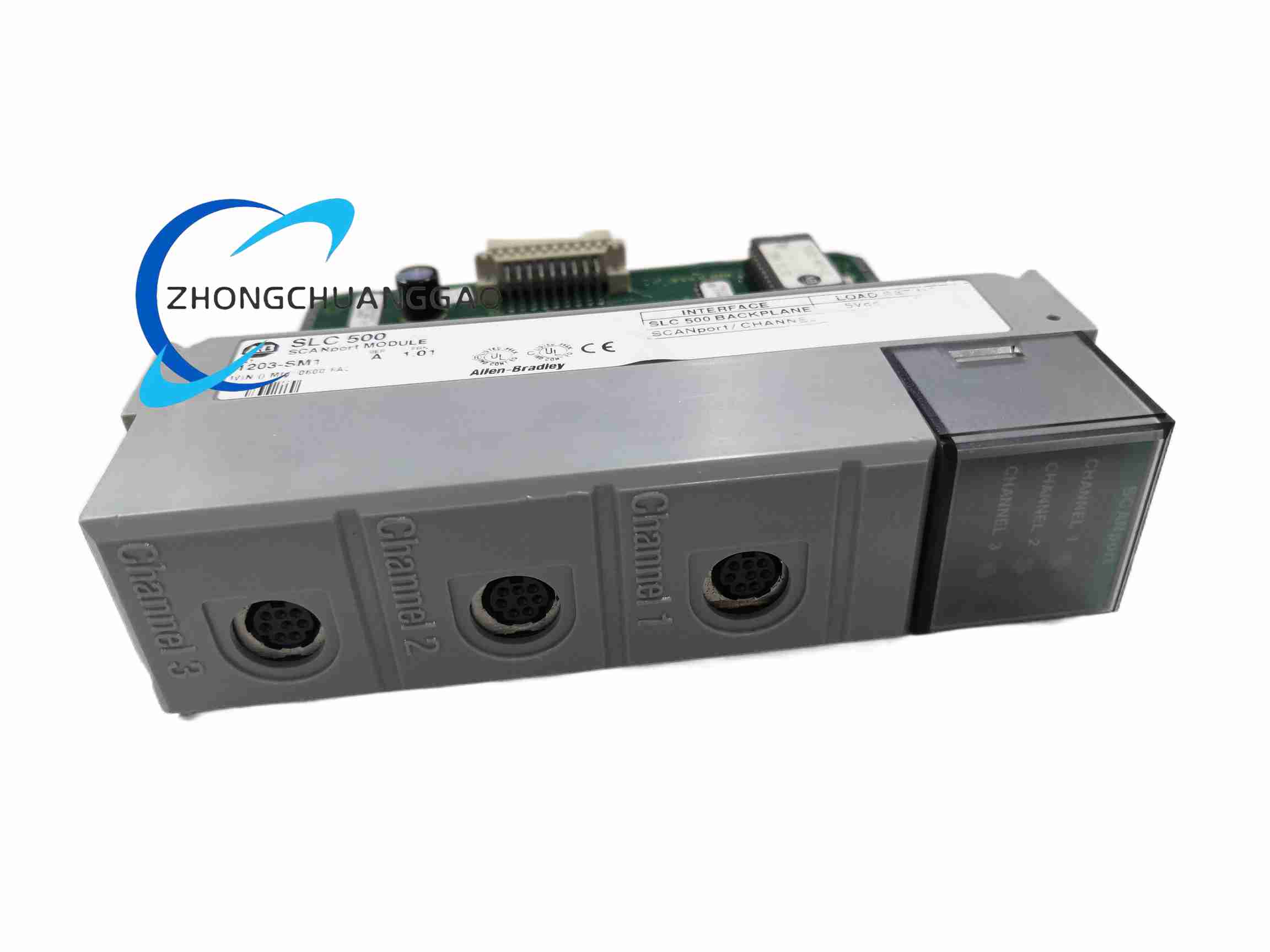

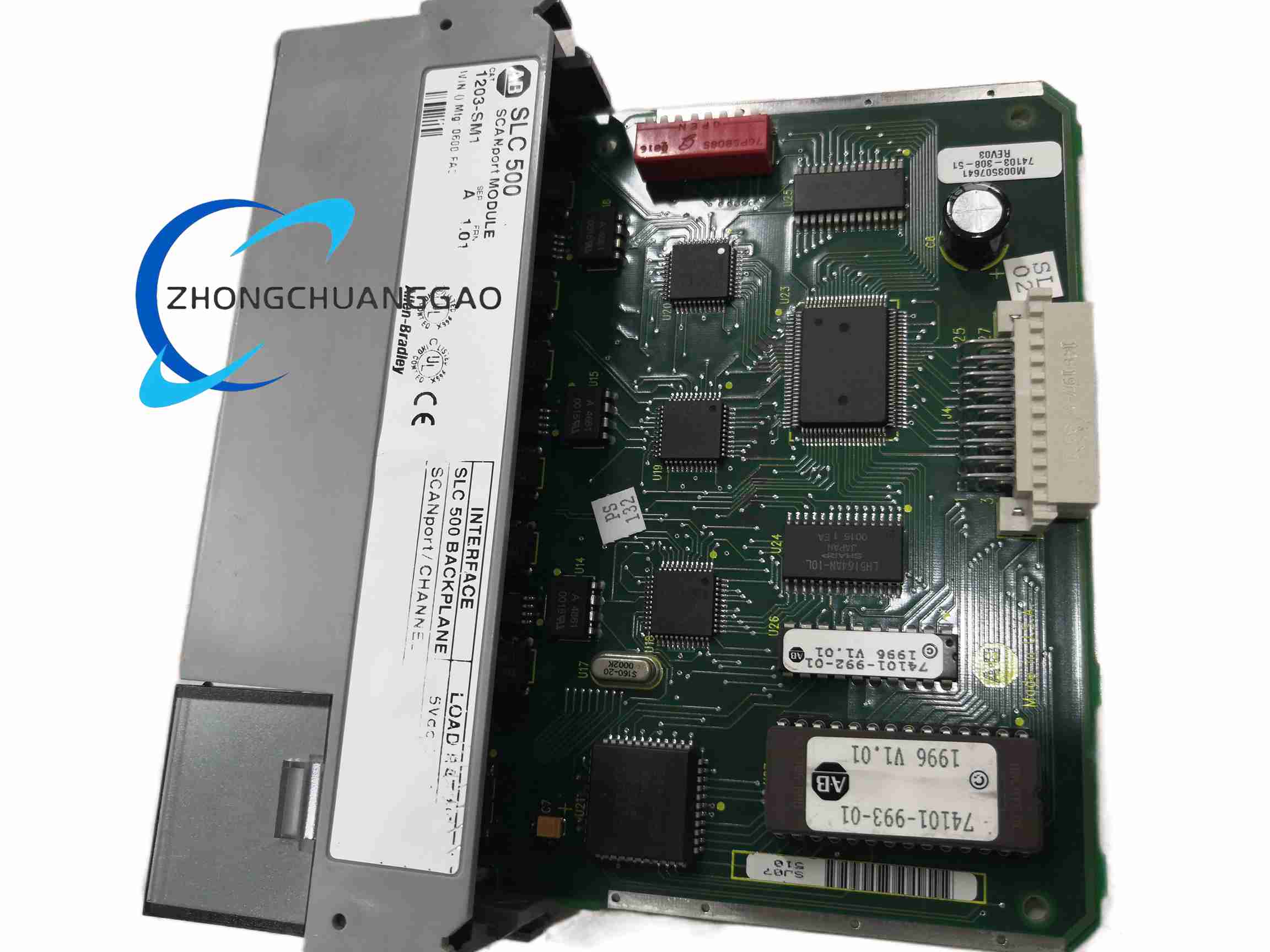

• Compatible Chassis: SLC‑500 I/O chassis
• SCANport Channel Count: 3 independent channels
• SCANport Power Output: 5 V / 12 V DC, 60 mA / 300 mA
• Module Type: Rack‑slot plug‑in module Function Features
• Connects up to three SCANport‑type drives to one SLC‑500 PLC rack
• Supports basic‑mode and enhanced‑mode SCANport data‑communication
• 16‑bit logic‑command transmission for drive‑control
• LED status‑indicators for module health, link‑status and channel‑fault
• DIP‑switch configurable fault‑response action for communication‑failure event Application Scenarios: Conveyor‑line drive‑control, material‑handling‑system variable‑frequency‑drive‑control, packaging‑machinery drive‑system, retrofitting SCANport‑drives into SLC‑500‑based automation‑control‑systems. Performance Parameters: Deterministic data‑exchange between PLC and SCANport‑drives; configurable fault‑fallback‑action upon communication‑loss; diagnostic‑status feedback for each SCANport‑channel. Material Composition: Industrial‑grade plastic module housing; gold‑plated SLC‑500 backplane‑connector; SCANport circular‑signal‑connectors; on‑board micro‑processor and memory‑components. Structural Characteristics: Standard SLC‑500 plug‑in‑module dimension; front‑panel three‑units SCANport circular‑connectors; status‑LED indicator‑window; DIP‑switch configuration‑access; backplane‑edge‑connector for SLC‑500‑chassis‑slot. Working Principle: Communicates with SLC‑500 CPU through chassis‑backplane bus; translates PLC‑process‑data into SCANport‑protocol‑telegrams; sends control‑commands to connected SCANport‑drives; receives drive‑status, fault‑code and operating‑parameter‑data from drives and transfers data back to SLC‑500 CPU memory. Installation Requirements: Power‑off SLC‑500 chassis power‑supply before module‑insertion; insert module into non‑processor reserved‑slot of SLC‑500 I/O‑chassis; push firmly until module‑latch clicks; connect SCANport‑cables between module‑front‑connectors and corresponding drives; set DIP‑switch configuration according to application requirementRockwell A…. Usage Notes: Route SCANport‑communication‑cables separated from high‑voltage‑power‑cables, avoid parallel‑routing with power‑cables; do not hot‑swap module under powered‑on‑chassis‑condition; verify DIP‑switch setting before power‑on; use original‑specification SCANport‑cables.
