ASYST 1380‑101545‑11

Technical Specifications

• Signal Type: Multi‑channel digital input / output
• Connector Types: Flat‑cable header, multi‑pin‑socket connectors, quick‑disconnect terminal‑connectors
• Application Environment: Semiconductor clean‑room environment Function Features

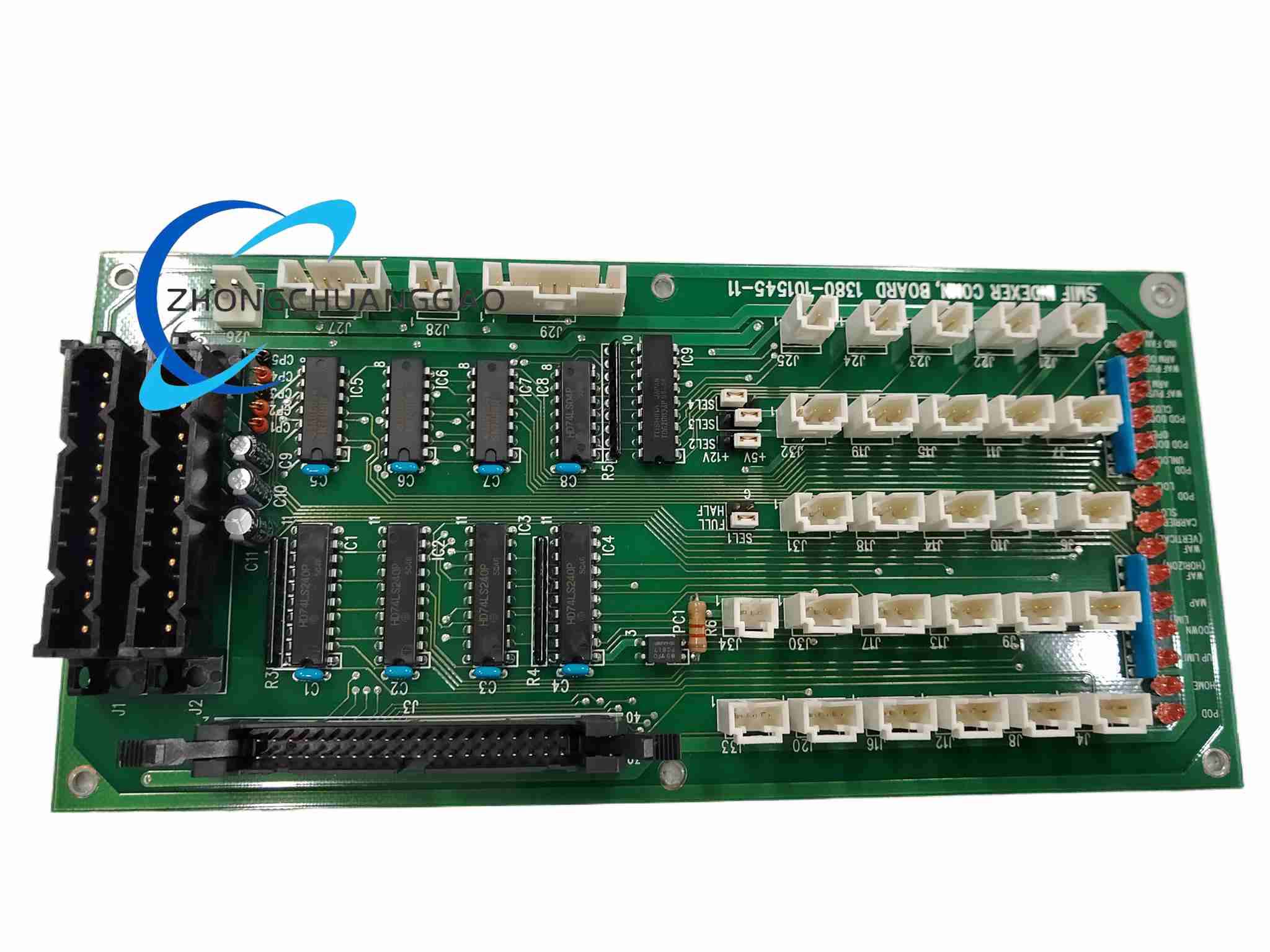

• Signal‑routing and distribution for SMIF indexer‑mechanism sensors and actuators
• On‑board status‑LED indicators for individual signal‑channel state
• Multi‑connector‑interface adapting internal‑equipment‑cable‑harness
• Passive‑signal‑interconnection board with signal‑indicator function

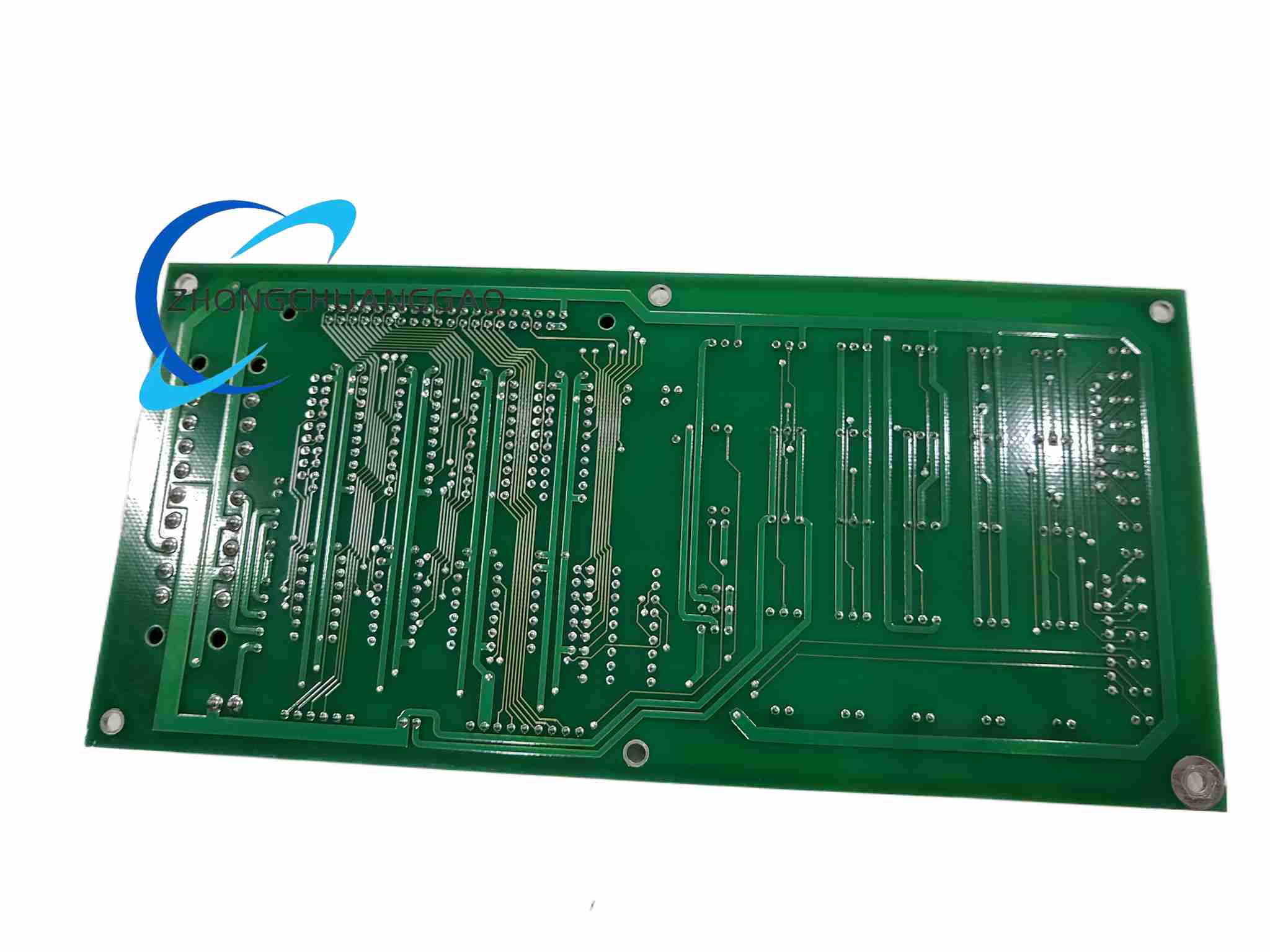

• Modular‑wiring‑interface for convenient harness‑assembly and maintenance Application Scenarios: Semiconductor‑manufacturing SMIF pod wafer‑transfer‑systems, wafer‑indexer‑handling‑equipment, front‑end‑wafer‑handling‑modules inside semiconductor‑fabrication‑facility process‑tools. Performance Parameters: Low‑signal‑attenuation for digital‑control‑signals; dust‑resistant clean‑room‑suitability; long‑term‑stable connection performance for repeated‑maintenance‑disassembly scenarios. Material Composition: FR‑4 printed‑circuit‑board; gold‑plated multi‑pin‑connectors; LED indicator‑components; plastic quick‑disconnect‑terminal‑blocks. Structural Characteristics: Rectangular custom‑form‑factor PCB; multiple groups of on‑board‑wiring‑connectors distributed over board‑surface; through‑hole mounting‑holes for cabinet‑frame‑fixation; visual‑LED‑indicator array for channel‑status observation. Working Principle: Passive signal‑distribution‑board; receives multi‑channel digital‑control‑signals from main‑controller‑cable‑harness; routes and distributes these signals through PCB‑internal copper‑traces to different output‑connectors connected to indexer‑sensors and actuators; corresponding LED lamps illuminate when signal‑channels become active for on‑site visual‑diagnosis. Installation Requirements: Fasten board‑by‑mounting‑holes onto designated equipment‑bracket; insert all cable‑harness‑connectors until fully‑seated; avoid mechanical‑pull‑stress on connected‑cable‑harness; keep board‑surface free‑of‑particle‑contamination. Usage Notes: Static‑electric‑discharge‑protection required during handling; do not bend PCB‑board with excessive‑force; keep all connector‑contacts clean‑and‑free‑of‑process‑residue; verify cable‑harness‑pin‑assignment matches board‑connector definition during replacement‑maintenance.
