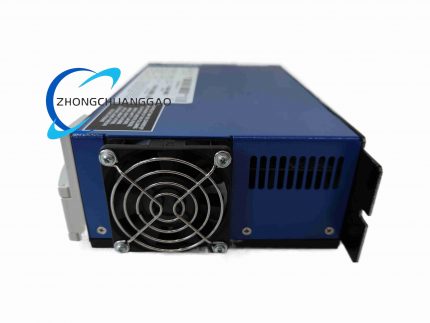

Kollmorgen PRD-B040EAIZ-33

Product Name:​ Kollmorgen AKD PRD-B040EAIZ-33 Digital Servo Drive
Product Brief:​ High-performance PWM servo amplifier from the AKD platform. Provides torque, speed, and position control for AKM-series permanent magnet synchronous motors. Supports EtherCAT (EAIZ = EtherCAT, no safe torque off in base code, I/O config variant) and advanced auto-tuning.
Read more
Quick view

Kollmorgen PRD-P320260Z-C2 Servo Drive

Technical Specifications
  • Brand: Kollmorgen
  • Model: PRD-P320260Z-C2
  • Power Rating: Supports up to high-power applications (specific ratings vary by configuration).
  • Input Voltage: Compatible with a wide range of AC/DC voltages, including 110-125V AC or 220V AC (region-dependent).
  • Output Frequency: 50kHz or 50/60Hz.
  • Feedback Support: High-resolution encoders such as EnDat, Hiperface®, and BiSS for precise position feedback.
  • Communication Protocols: Supports EtherCAT, EtherNet/IP, Profinet RT, and other industrial Ethernet protocols for seamless integration.
  • Environmental Rating: IP20 (standard); optional IP65/IP67 sealing for harsh environments.
  • Dimensions: Compact form factor for DIN rail or panel mounting.
  • Certifications: Complies with CE, UL, and other international safety standards.
Read more
Quick view

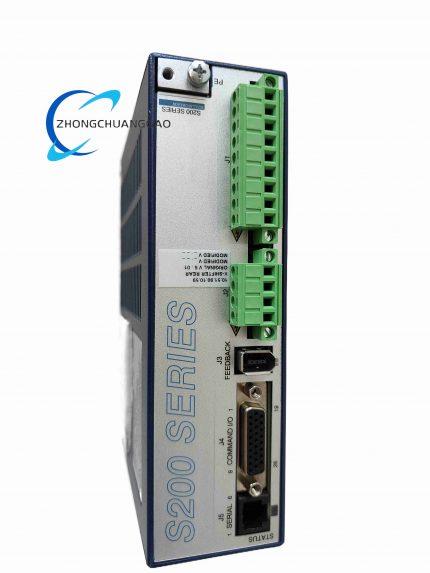

KOLLMORGEN S20260-VTS

Product Introduction:​
The Kollmorgen S20260-VTS is a member of the SERVOSTAR 200 (S200) family—a compact, high-performance digital servo drive for brushless (BLM) and synchronous AC servo motors. "260" = continuous output current capability ~26 A peak or 260 V class; "VTS" denotes a specific firmware/connector/I/O configuration.
Read more
Quick view

Kollmorgen S20330-SRS High-Performance Servo Drive

Technical Specifications
  • Input Voltage:
    • DC: 20 VDC to 90 VDC
    • AC: 0-264 VAC (50/60 Hz)
  • Continuous Current: 1.5 ARMS (rated)
  • Peak Current: 4.5 ARMS (for 3 seconds)
  • Velocity Loop Bandwidth: Up to 800 Hz
  • Current Loop Bandwidth: 3-5 kHz
  • Feedback Resolution: 24-bit high-resolution encoding
  • Communication Protocols: CANopen, SynqNet (optional), and other industrial Ethernet options
  • Environmental Rating: IP20 (standard); optional IP65/IP67 for harsh environments
  • Weight: Approximately 1.2-1.6 kg
  • Certifications: Complies with CE, UL, and other international safety standards
Read more
Quick view

Kollmorgen S20360-SRS High-Performance Servo Drive

Technical Specifications
  • Input Voltage: Supports 120/240 VAC and 20-90 VDC inputs.
  • Current Range: Continuous current from 1.5 ARMS to 48 ARMS peak.
  • Feedback Resolution: 24-bit high-resolution encoding for precise positioning.
  • Current Loop Bandwidth: Up to 3-5 kHz for high-speed dynamic response.
  • Communication Interfaces: EtherCAT, CANopen, Modbus, and other industrial Ethernet protocols.
  • Environmental Rating: IP20 (standard); optional IP65/IP67 for harsh conditions.
  • Weight: Approximately 1.2-1.6 kg (depending on configuration).
  • Certifications: Complies with CE, UL, and other international safety standards.
Read more
Quick view

Kollmorgen S20360-SRS S200 Series Compact Single-Axis Brushless Servo Drive

Key Features

  • High-Resolution Feedback & Control: 24-bit feedback resolution and 3–5 kHz current loop bandwidth ensure micron-level positioning accuracy and low-ripple speed regulation, minimizing following errors for complex trajectories.
  • SynqNet Network Integration: On-board SynqNet interface enables real-time multi-axis coordination, deterministic communication, and simplified system scaling for distributed motion control applications.
  • Keep-Alive Power Input: Dedicated control power maintains communication and allows fast recovery from E-stops, reducing downtime and improving system availability.
  • Comprehensive Protection: Integrates overvoltage, undervoltage, overcurrent, short-circuit, overheating, and phase-loss protection to safeguard the drive, motor, and connected equipment.
  • Compact & Rugged Design: Slim form factor optimizes cabinet space; robust construction resists vibration and electrical noise for reliable operation in harsh industrial settings.
  • Global Compliance: Meets UL 508C, CE, EN50178, and EN61800-3 standards, enabling direct integration into global automation systems without additional modifications.
Read more
Quick view

Kollmorgen S21260-SRS High-Performance Servo Drive

Technical Specifications
  • Input Voltage:
    • AC: 120 VAC or 240 VAC (50/60 Hz)
    • DC: 20 VDC to 90 VDC
  • Continuous Current Rating: 12 ARMS
  • Peak Current Rating: 18 ARMS (for 3 seconds)
  • Velocity Loop Bandwidth: Up to 800 Hz
  • Feedback Resolution: 24-bit high-resolution encoding
  • Communication Interfaces: Ethernet, CAN bus, SynqNet (optional with RJ connectors)
  • Output Power:
    • 10,000 VA at 240 VAC (3-phase)
    • 8,000 VA at 240 VAC (single-phase)
Read more
Quick view

Kollmorgen S21260-SRS S200 Series High-Performance Compact Brushless Servo Drive

Key Features

  • SynqNet Real - Time Communication: The on - board SynqNet interface realizes deterministic multi - axis synchronization, low - latency data transmission, and easy system expansion, which is suitable for high - speed and high - precision coordinated motion applications.
  • High - Resolution Feedback & Control: 24 - bit feedback resolution and 5 kHz current loop bandwidth ensure micron - level positioning accuracy and low - ripple speed regulation, and minimize following errors in complex motion trajectories.
  • Keep - Alive Power Function: The dedicated 24 VDC control power maintains communication and system parameters during emergency stops or power dips, enabling fast recovery and reducing downtime.
  • Comprehensive Protection Mechanisms: Integrates overvoltage, undervoltage, overcurrent, short - circuit, overheating, phase - loss, and motor stall protection to fully protect the drive, motor, and connected equipment.
  • Compact Fan - Less Design: The slim form factor saves cabinet space, and the fan - less design eliminates mechanical failure points, improving long - term operational reliability in dusty industrial environments.
  • Simplified Commissioning: Supports automatic motor parameter identification and one - click auto - tuning; Kollmorgen WorkBench software provides real - time monitoring, parameter backup/restore, and fault diagnosis functions, shortening the commissioning cycle.
Read more
Quick view

Kollmorgen S22460-SRS

Technical Specifications
  • Maximum Motor Power Cable Length: 50m (12 awg cable)
  • Feedback Options: Automatic with Smart Feedback Device (SFD), analog torque, or current control (with 6 Hall)
Read more
Quick view

KOLLMORGEN S30301-NA Servo Drive

技术规格：
  • 额定线电压：  3 x 110 V~ -10% ... 230 V+10%，3 x 208 V~ -10% ... 480 V+10%
  • S1 额定功率：  1.2 kVA 至 5 kVA（取决于型号）
  • 额定直流母线电压：  145–360 V 或 560–675 V，取决于输入电压
  • 额定输出电流（RMS/峰值）： 随电源电压变化，范围从 3/5 A RMS 至 10/20 A RMS
  • 尺寸： 通常高约 246 毫米，宽约 70 毫米，深约 171 毫米至 235 毫米（含连接器）
  • 认证：  EAC、CE、UL、cUL 认证
Read more
Quick view

Kollmorgen S72402-NANANA

  • Power Supply: Supports a wide voltage range (specific values vary by configuration, typically compatible with industrial standards).
  • Control Modes: Position, velocity, and torque control modes for flexible operation.
  • Communication Protocols: Compatible with EtherCAT, Profinet, CANopen, and other industrial Ethernet protocols for seamless integration into automation networks.
  • Feedback Options: Supports high-resolution encoders (e.g., SSI, Hiperface, EnDAT) for precise position feedback.
  • Environmental Rating: Designed to operate in harsh conditions with an IP65 protection rating (dust and water resistance).
  • Operating Temperature: -20°C to +60°C (extended range possible with derating).
  • Dimensions: Compact design for easy installation in control cabinets (exact dimensions depend on configuration).
Read more
Quick view

Kollmorgen S72402-NANANA High-Performance Servo Drive

Technical Specifications
  • Input Voltage: Compatible with global industrial grid standards, supporting 110 VAC to 480 VAC (50/60 Hz) and 20 VDC to 90 VDC.
  • Continuous Current Rating: Up to 12 ARMS (continuous) and 18 ARMS (peak for 3 seconds).
  • Output Power: Up to 10,000 VA at 240 VAC (3-phase) and 8,000 VA at 240 VAC (single-phase).
  • Feedback Resolution: Supports 24-bit high-resolution encoders for precise positioning.
  • Communication Interfaces: Ethernet (EtherCAT, Profinet), CAN bus, RS232, pulse/direction interface, and optional SynqNet (with expansion modules).
  • Environmental Rating: IP20 (standard); optional IP65/IP67 for harsh environments.
  • Weight: Approximately 1.2–1.6 kg.
  • Certifications: Complies with CE, UL, GOST-R, TÜV, and other international safety standards.
Read more
