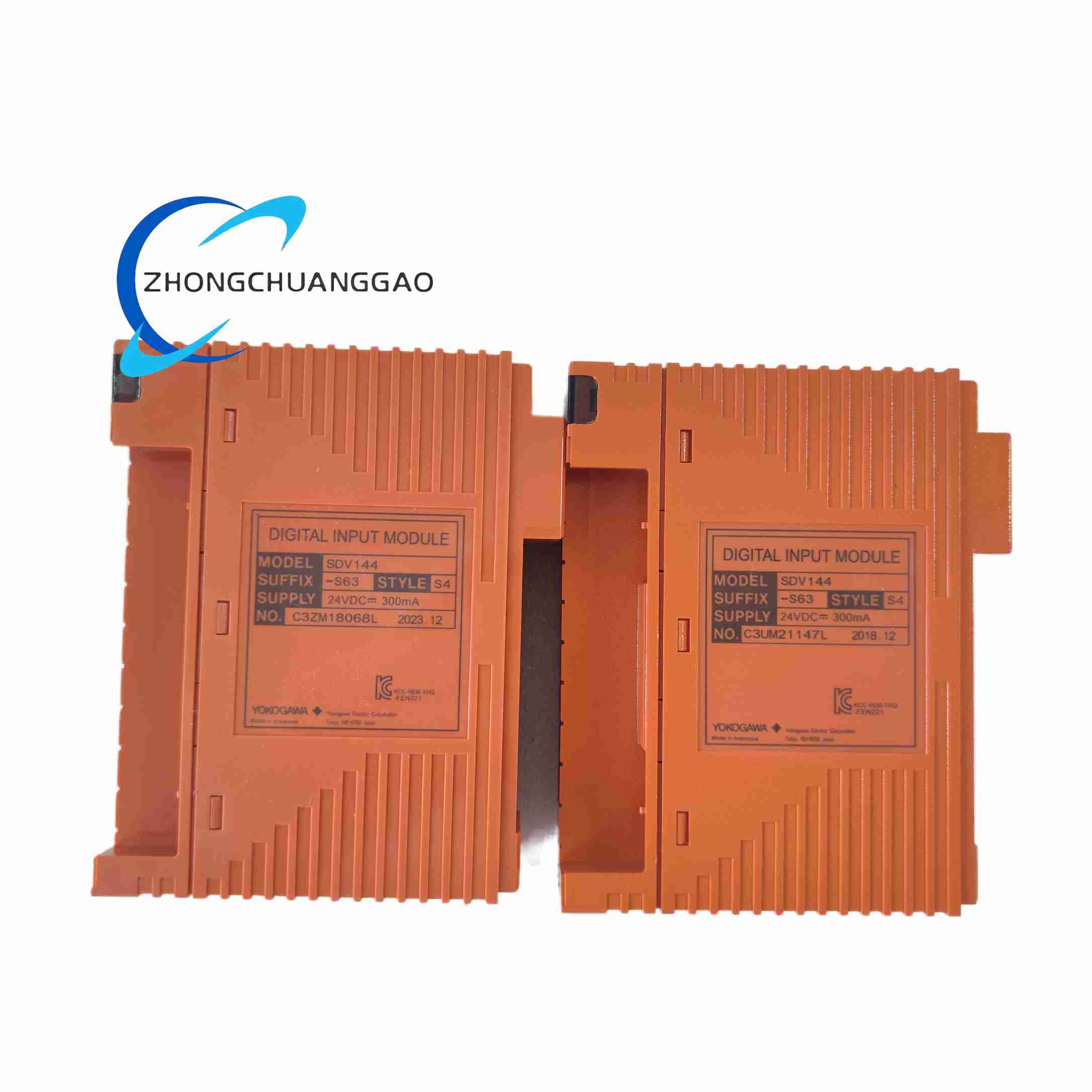

Yokogawa SDV144-S63

  • Product Name:​ CENTUM VP 16-Channel 24 V DC Isolated Digital Input Module
  • Introduction:​ Collects dry-contact/on-off status from field switches, relays, valve limit switches into Yokogawa DCS/SIS.
  • Technical Specifications:
    • Channels: 16, module-level isolation (2 kV AC/min)
Category:
Description
    • Input: Voltage-free contact, 24 V DC ±20 % external
    • ON resistance ≤1 kΩ, OFF ≥100 kΩ, 6 mA ±20 % per channel
    • Response: Max 40 ms
    • Field Power: 24 V DC, max 200 mA; Backplane 5 V DC max 290 mA, 24 V DC max 140 mA
    • Suffix: S=standard, 6=MIL cable adapter (non-ex), 3=ISA G3 coating
    • Weight: ~0.36 kg (0.41 kg with adapter)
    • Temp: -20 °C to +70 °C, 5–95 % RH non-condensing
  • Features:​ Conformal coating, SOE support, wire-break detection, SIL-capable in ProSafe-RS context.
  • Applications:​ CENTUM VP/FCS device status acquisition, ESD interlock inputs, pump/motor feedback.
  • Installation & Notes:​ Use AKB331 cable or MIL adapter; do not apply wet voltage to inputs; verify ISA G3 coating for corrosive areas; map correctly in FCS builder.
