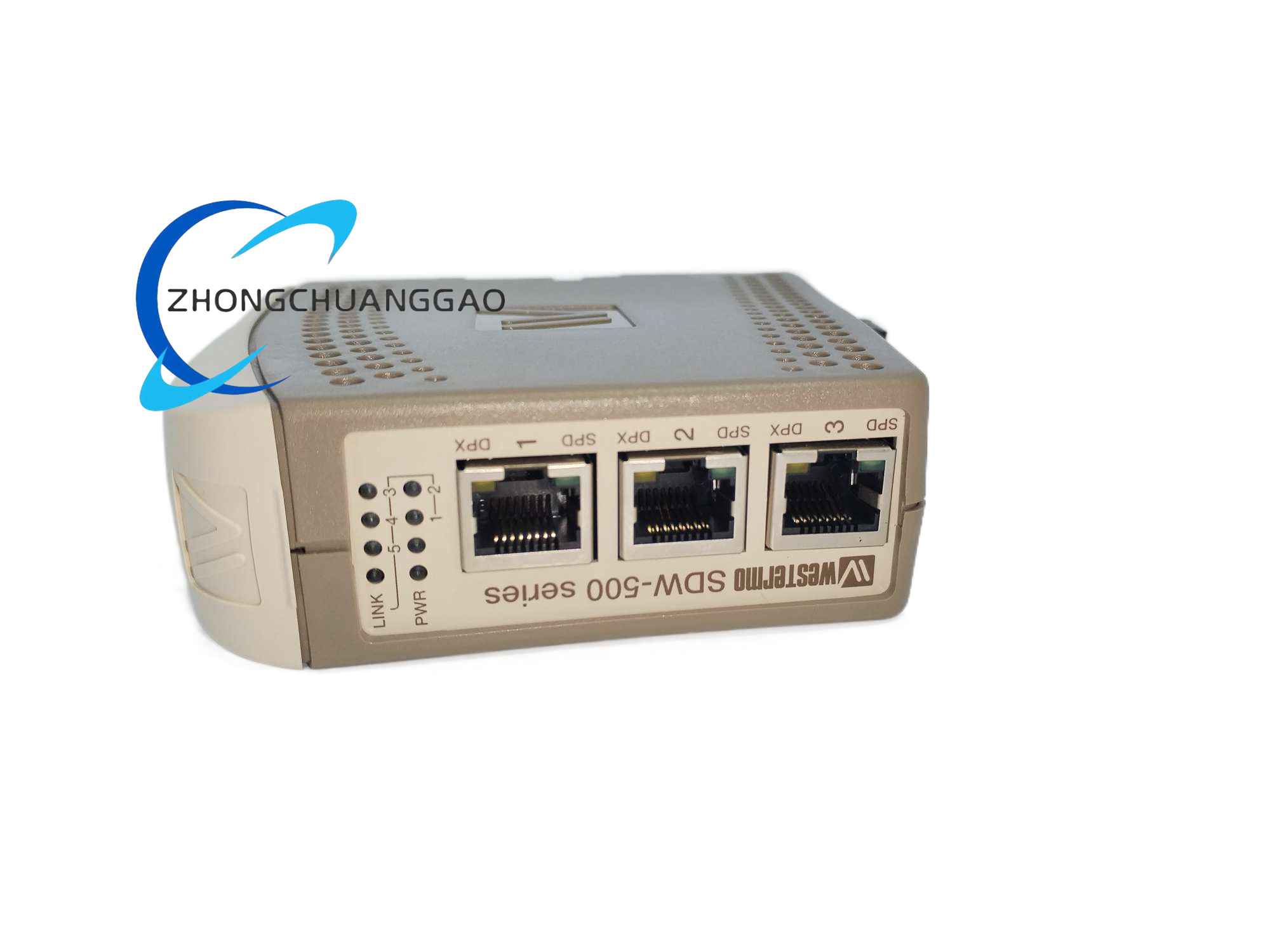

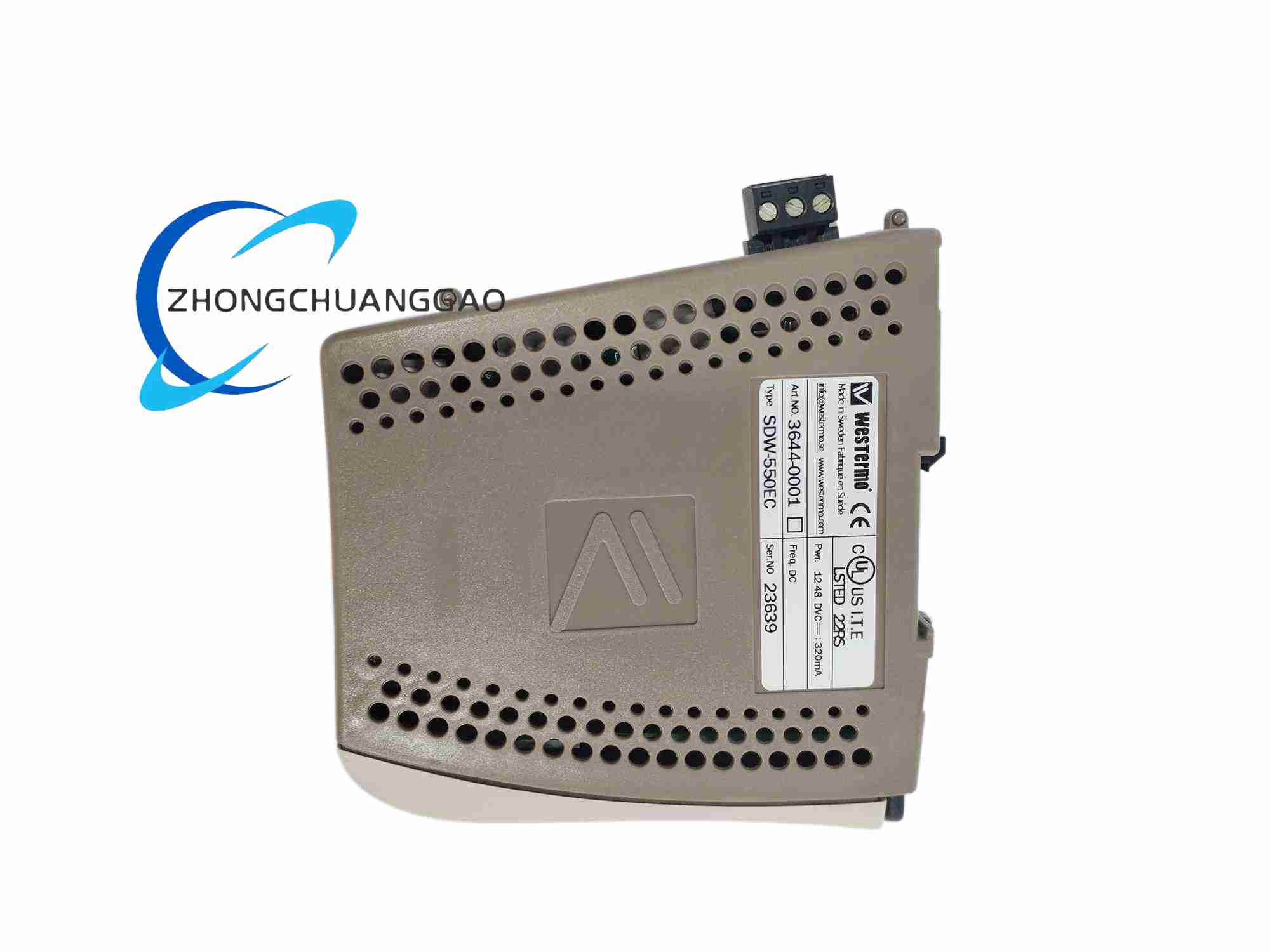

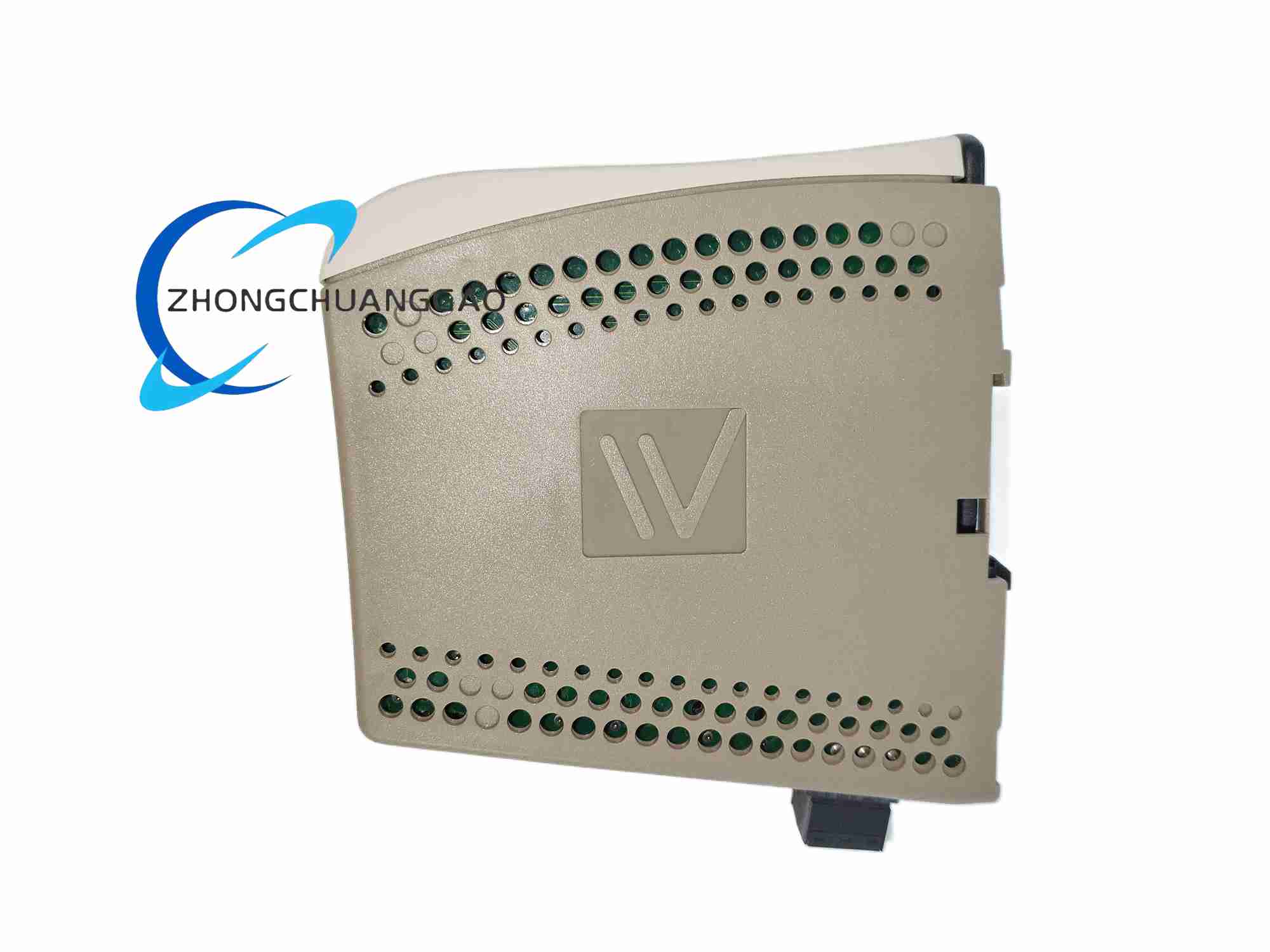

Honeywell SDW-550EC 20230720

  • Product Name:​ Industrial Managed/Unmanaged Ethernet Switch, 5-Port
  • Introduction:​ Rugged 10/100 Mbps Ethernet switch for Honeywell DCS/SCADA and general industrial networks.
  • Technical Specifications:
    • Ports: 5 × RJ45 10/100 Mbps, auto-negotiation
Category:
Description
    • Backplane: 1 Gbps
    • Power: 24 V DC nominal (18–30 V DC or 12–48 V DC depending on managed/unmanaged variant), <10 W
    • Redundancy: STP/RSTP (managed variant)
    • Enclosure: Metal, DIN-rail/panel mount, 135 × 50 × 110 mm, 0.65 kg
    • Temp: -40 °C to +70 °C (some variants +75 °C)
    • Protection: ESD/surge on ports, IP30/IP20 cabinet use
    • Standards: UL, CE, FCC, IEC 61850, RoHS
  • Features:​ MAC-learning store-and-forward switching, EMI resistant, zero-config or managed diagnostics.
  • Applications:​ Process automation backbones, power plant networks, oil & gas ring topologies.
  • Installation & Notes:​ Install inside cabinet; use shielded CAT5e/6 with proper grounding; confirm managed vs unmanaged firmware before STP use; avoid outdoor exposure without enclosure.
