Yaskawa SGM-01A314B

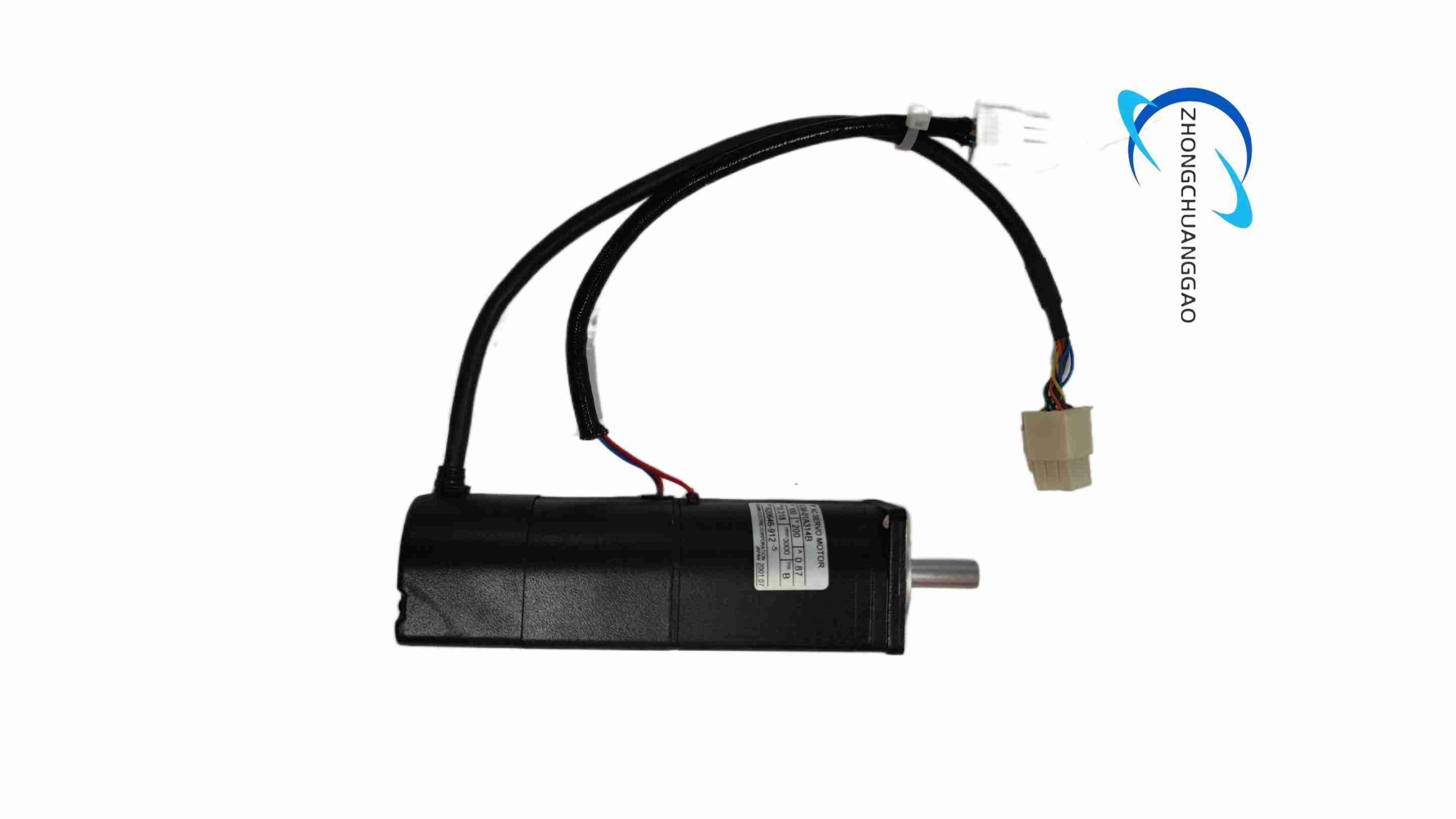

Product Name: AC Servo Motor, SGM Series, 100 W

Product Introduction: A compact low-inertia 200 V class rotary AC servo motor for precision motion axes, designed to pair with Yaskawa SGDA/SGD-series drives. Suffix “A” denotes 200 V class; “314” body length variant; incremental or absolute encoder depending on drive config.

Category: Others

Description

Technical Specifications:

Rated power: 100 W (0.1 kW)
Rated voltage: 200–240 VAC
Rated current: 0.87 A (motor) / 1.7 A referenced in some drive combos
Rated speed: 3000 rpm
Rated torque: 0.32 N·m
Peak torque: ~0.96 N·m
Rotor inertia: low-inertia class (~0.063 × 10⁻⁴ kg·m²)
Encoder: 2048 P/R incremental standard (17-bit absolute on Σ-7 variants; confirm nameplate)
Insulation: Class F (155 °C)
Protection: IP55 (IP54 on some SGM revisions), oil-resistant lead
Shaft: 14 mm plain with key, radial load 78 N, thrust 49 N
Dimensions: flange 60 × 60 mm, body Ø60 mm class
Weight: 0.9 kg

Material Composition: Laminated silicon-steel stator, rare-earth permanent-magnet rotor, aluminum alloy frame, polyurethane insulated leads (UL2464motor, UL2854encoder)

Structural Features: Square flange B5 mount, rear encoder plug, separate power plug, optional holding brake (90 VDC de-energize type on braked variants)

Working Principle: 3-phase PMSM with sinusoidal commutation; drive synthesizes PWM voltage from encoder feedback for position/speed/torque loop closure.

Installation Requirements: Flange flatness ≤0.02 mm; shaft coupling without axial preload; encoder cable double-shielded twisted pair ≤20 m, shield grounded one end; use 200 V class Yaskawa drive only.

Usage Notes: Do not splash coolant despite IP55; derate above 40 °C; never disconnect encoder while powered; brake requires separate 90 VDC supply on braked models; confirm encoder type matches drive before commissioning.
