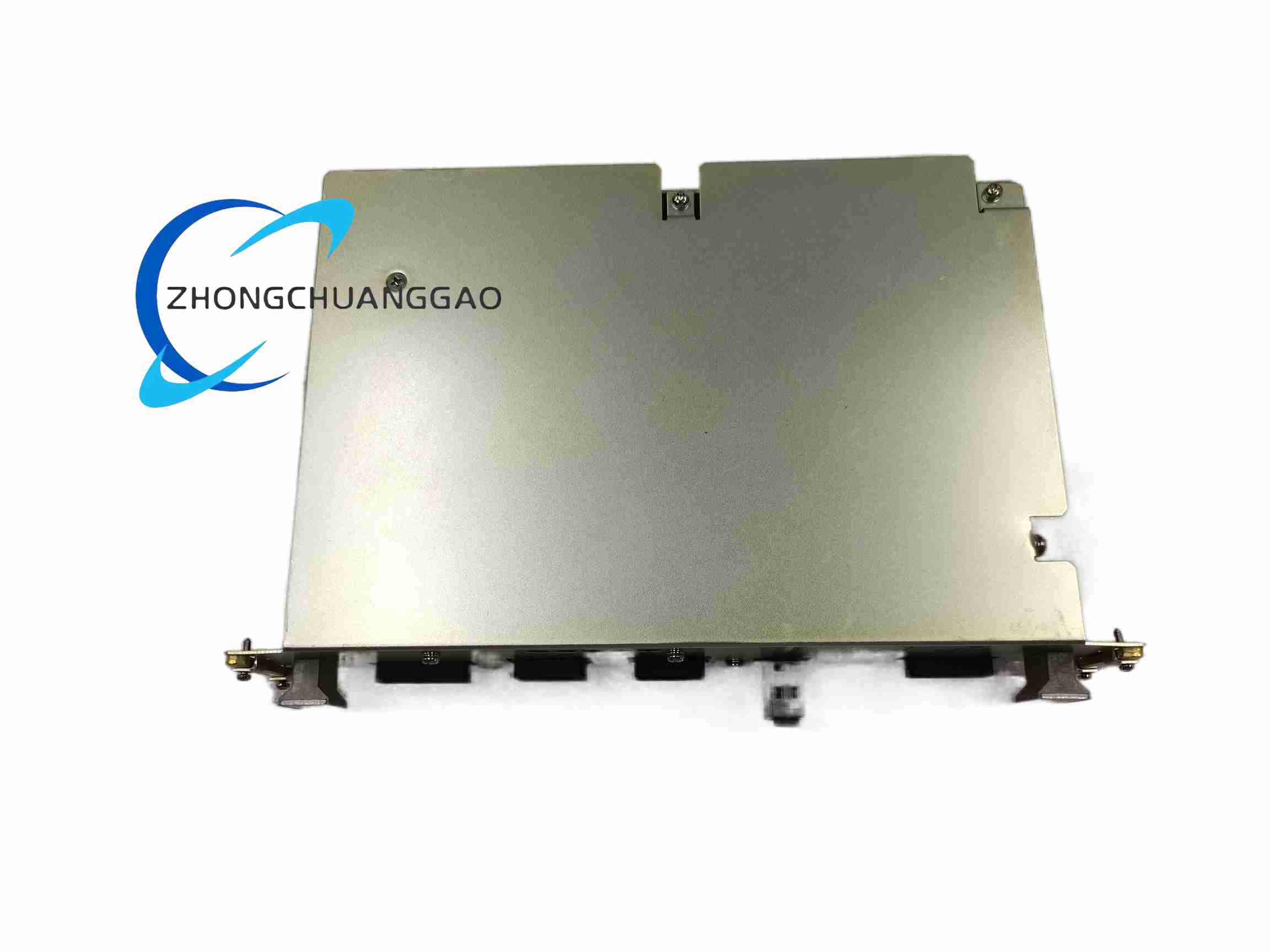

Yaskawa CPS‑150F - Image 1
Click to enlarge

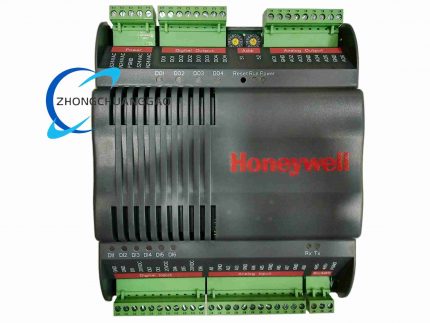

Honeywell CP‑EXPIO
Honeywell CP‑EXPIO
Back to products
GE CR215GH12+CR215GFE
GE CR215GH12+CR215GFE

Yaskawa CPS‑150F

Product Name: XRC Robot Control System Power Supply Module
Product Brief: CPS‑150F is dedicated power‑supply unit for Yaskawa XRC robot controller cabinet, converting AC mains input to stable DC control power for robot control logic boards and peripheral circuits inside robot cabinet.
Category:
Description
Technical Specifications:
  • Input voltage: AC 100‑240 V, 50/60 Hz
  • Output: DC 24 V, maximum output current 6.5 A
  • Efficiency: Greater than 80 %
  • Operating temperature: 0 °C to +55 °C
  • Storage temperature: ‑20 °C to +70 °C
  • Humidity: 20‑90 % RH non‑condensing
  • Dimensions: 135 mm × 100 mm × 60 mm
  • Weight: Approximately 0.7 kg
  • Protection class: IP20
Functional Features:
  • Integrated multiple protection functions: over‑voltage protection, over‑current protection, short‑circuit protection, over‑temperature protection
  • Built‑in status indicator LEDs for power and fault condition
  • Compact rack‑mount module form‑factor for robot cabinet backplane installation
  • Stable output voltage under input voltage fluctuation
  • Fast shutdown upon fault occurrence to protect downstream control hardware
Application Scenarios: Yaskawa XRC series industrial robot controller cabinet, supplying control power for robot logic boards, I/O boards and peripheral signal circuits inside robot control cabinet.
Performance Parameters:
  • Hold‑up time: Maintain stable output under brief input voltage drop
  • Output voltage tolerance: ±5 % of nominal 24 VDC
  • Isolation: Galvanic isolation between AC input and DC output
Material Composition: Metal shielding housing; switching‑mode power‑supply PCB with high‑frequency transformer; electrolytic capacitors; power semiconductors; front‑panel status LED array.
Structural Characteristics: Plug‑in rack‑mount module; rear‑side cabinet backplane connector; front‑side multiple multi‑pin output connectors for downstream boards; ventilation slots on metal housing.
Working Principle: Adopt switching‑mode power‑supply topology. AC mains input passes EMI filter, rectifier and high‑frequency transformer isolation, then undergoes secondary rectification and voltage regulation to produce stabilized 24 VDC output. Internal monitoring circuit continuously detects output voltage, output current and internal temperature and triggers protection action once exceeding threshold.
Installation Requirements: Install inside original Yaskawa XRC robot controller cabinet; insert to corresponding backplane slot; ensure cabinet ventilation; tighten module fixing screws; match original connector wiring definition.
Usage Notes: Only apply within robot cabinet environment; do not use for non‑Yaskawa equipment; confirm input AC voltage matches local mains before power‑on; replace when output voltage deviates beyond tolerance range.
