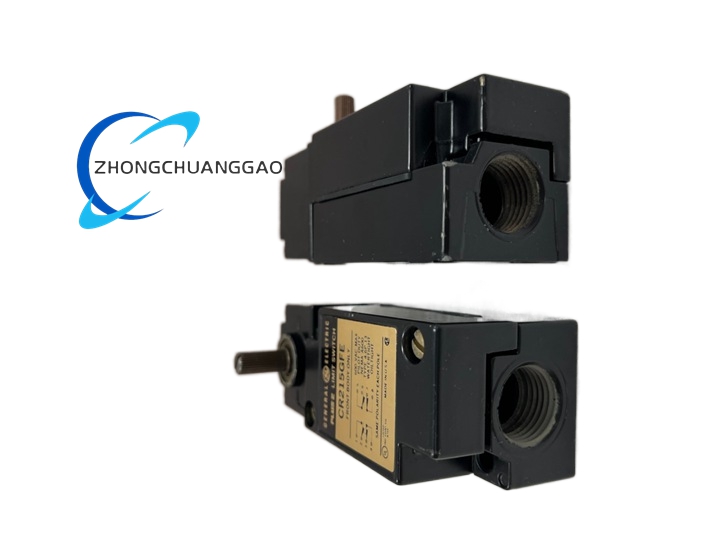

GE CR215GH12+CR215GFE - Image 1
Click to enlarge
Yaskawa CPS‑150F
Yaskawa CPS‑150F
Back to products
ABB CS513
ABB CS513

GE CR215GH12+CR215GFE

Product Name: Combined Limit Switch Assembly (Actuator + Receptacle)
Product Brief: CR215GH12 is limit‑switch actuator head, CR215GFE is matching receptacle base; they compose complete heavy‑duty industrial limit‑switch assembly, used for mechanical position detection and electrical circuit switching under harsh industrial conditions.
Category:
Description
Technical Specifications:
  • Resistive load rating: 5 A @ 250 VAC
  • Inductive load rating: 2.5 A @ 250 VAC
  • Maximum operating temperature: 105 °C
  • Mechanical service life: Minimum 1 000 000 operations
  • Electrical service life: Minimum 100 000 operations at rated load, 6 operations per minute
  • Housing material: Thermoset molded compound
  • Conduit entry: Threaded conduit port on receptacle unit
Functional Features:
  • Robust thermoset housing resistant to heat and mechanical impact
  • Separable actuator‑head and receptacle‑base design for easy maintenance and replacement
  • Positive‑opening contact structure meeting industrial safety requirements
  • Conduit‑ready port for protected field wiring installation
  • High temperature resistance for proximity to heat‑generating machinery
Application Scenarios: Industrial machinery position limit detection, machine‑tool travel end stop, material‑handling equipment safety interlock, heavy‑duty conveyor position sensing, factory equipment safety circuit triggering.
Performance Parameters:
  • Contact configuration: Standard limit‑switch contact set inside assembly
  • Mounting method: Surface mounting of receptacle base; mechanical actuation by cam or moving machine part against GH12 actuator head
Material Composition: Thermoset phenolic molded housing; metal mechanical actuator mechanism; silver‑alloy electrical contacts; threaded metal conduit fitting.
Structural Characteristics: Two‑piece construction: rotating‑type mechanical actuator head CR215GH12 and wiring receptacle base CR215GFE; actuator head mechanically couples to receptacle base; receptacle base contains wiring chamber with conduit inlet.
Working Principle: Machine motion pushes against CR215GH12 actuator head. Mechanical displacement transfers into receptacle base CR215GFE, actuating internal contact set to open or close electrical circuit, transmitting mechanical position information into electrical switching signal for control system interlock or position feedback.
Installation Requirements: Surface‑mount receptacle base on rigid machine frame; install proper threaded conduit for wiring entry; adjust cam position to achieve correct actuator travel and contact switching point; fasten all mounting screws securely.
Usage Notes: Do not exceed rated electrical load; avoid corrosive chemical atmosphere; inspect actuator mechanical freedom periodically; ensure sufficient over‑travel to prevent mechanical damage to switch assembly.
