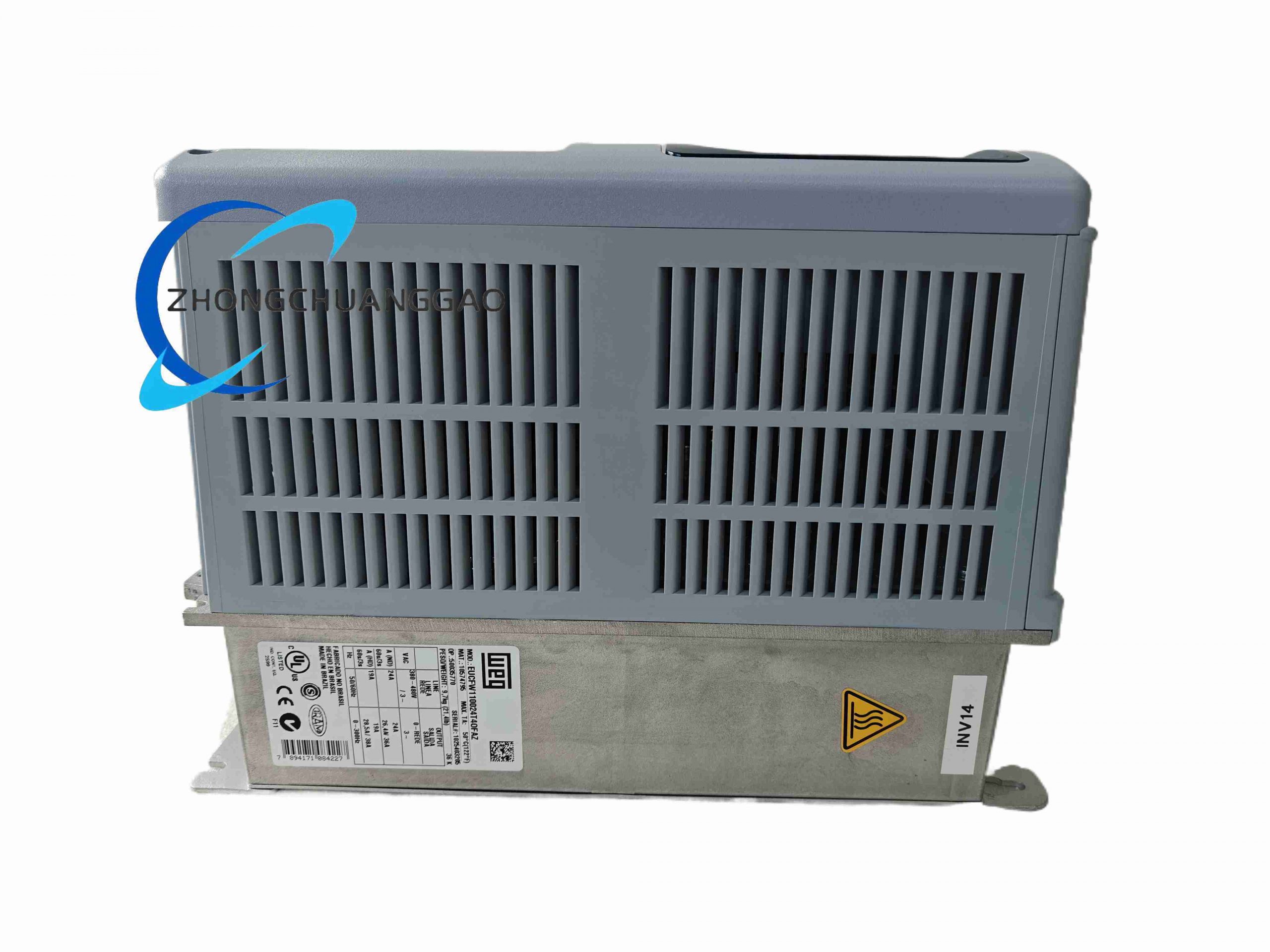

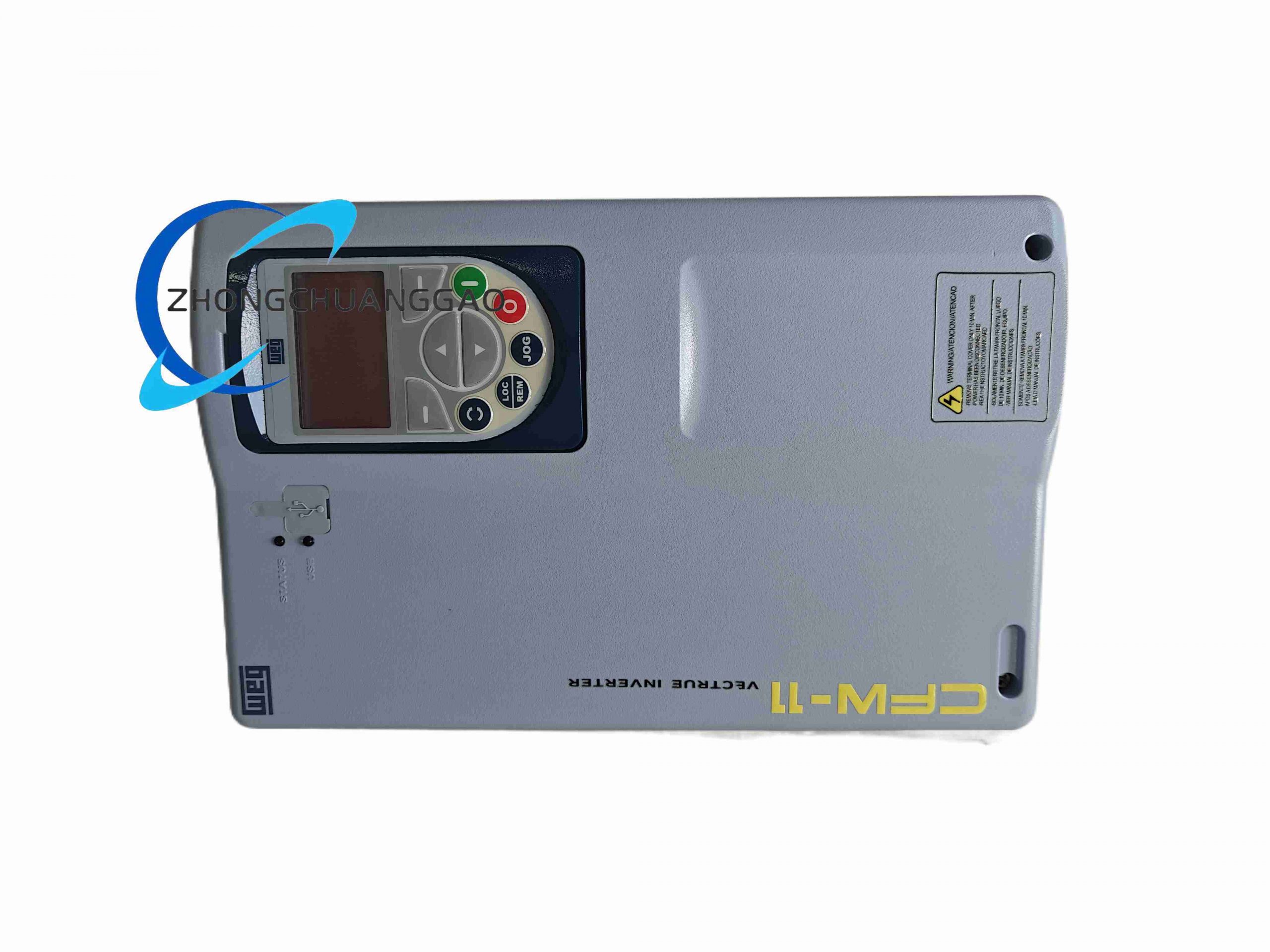

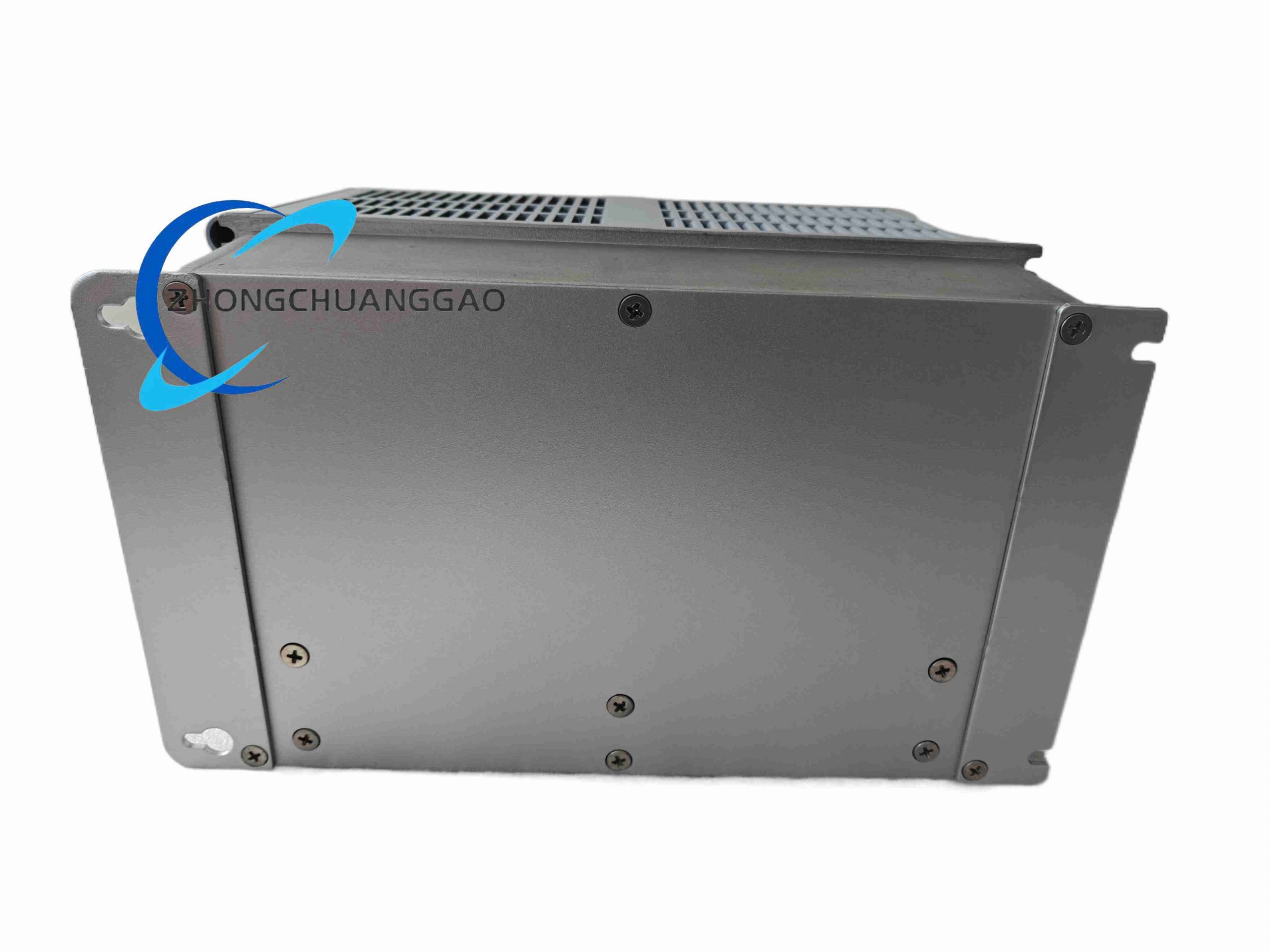

WEG EUCFW110024T40FAZ

Product Name:​ WEG CFW11 Series Variable Frequency Drive — Model EUCFW110024T40FAZ
Product Brief:​ A micro-sized to compact member of WEG’s CFW11 (Compact Frequency Inverter) family — 3-phase input 380–480 V, 2.4 A rated output (~0.75–1.1 kW / 1–1.5 HP depending on region), with built-in EMC filter (C2/C3 class), RS485 (Modbus), and standard braking chopper. The “FAZ” suffix typically denotes IP20 enclosure, with RFI filter and specific firmware/language pack.
Category:
Description
Typical Specifications (CFW11 0024T 4…):
  • Input Voltage:​ 3×380–480 VAC, 50/60 Hz
  • Rated Output Current:​ 2.4 A
  • Motor Power Rating:​ ~0.75 kW (1 HP) @ 400 V (verify local catalog)
  • Overload Capacity:​ 150 % for 60 s, every 10 min
  • Control Method:​ V/f, Sensorless Vector (open-loop), optional closed-loop with encoder card
  • Switching Frequency:​ 2.5 / 5 / 10 / 15 kHz selectable
  • Built-in Features:​ DC braking, JOG, flying start, skip frequencies, PID process control, preset speeds
  • Communication:​ RS485 with Modbus-RTU standard; optional DeviceNet, Profibus, Ethernet/IP
  • Protection:​ Motor overload, over-current, over/under-voltage, over-temp, output short-circuit, external fault input
  • Enclosure:​ IP20 (panel mount), UL/cUL listed
  • Ambient Temp:​ –10 to +50 °C (derating above 40 °C)
  • Cooling:​ Forced air (internal fan)
Application:​ Pumps, fans, small conveyors, mixers, packaging machinery — general-purpose AC induction motor speed control.
Installation Notes:
  • Mount vertically in ventilated enclosure with ≥50 mm top/bottom clearance for airflow.
  • Ensure proper grounding (PE) and separate signal/control wiring from power cables (use shielded twisted pair for RS485 & analog I/O).
  • Perform auto-tuning (motor parameter identification) before first run in vector mode.
