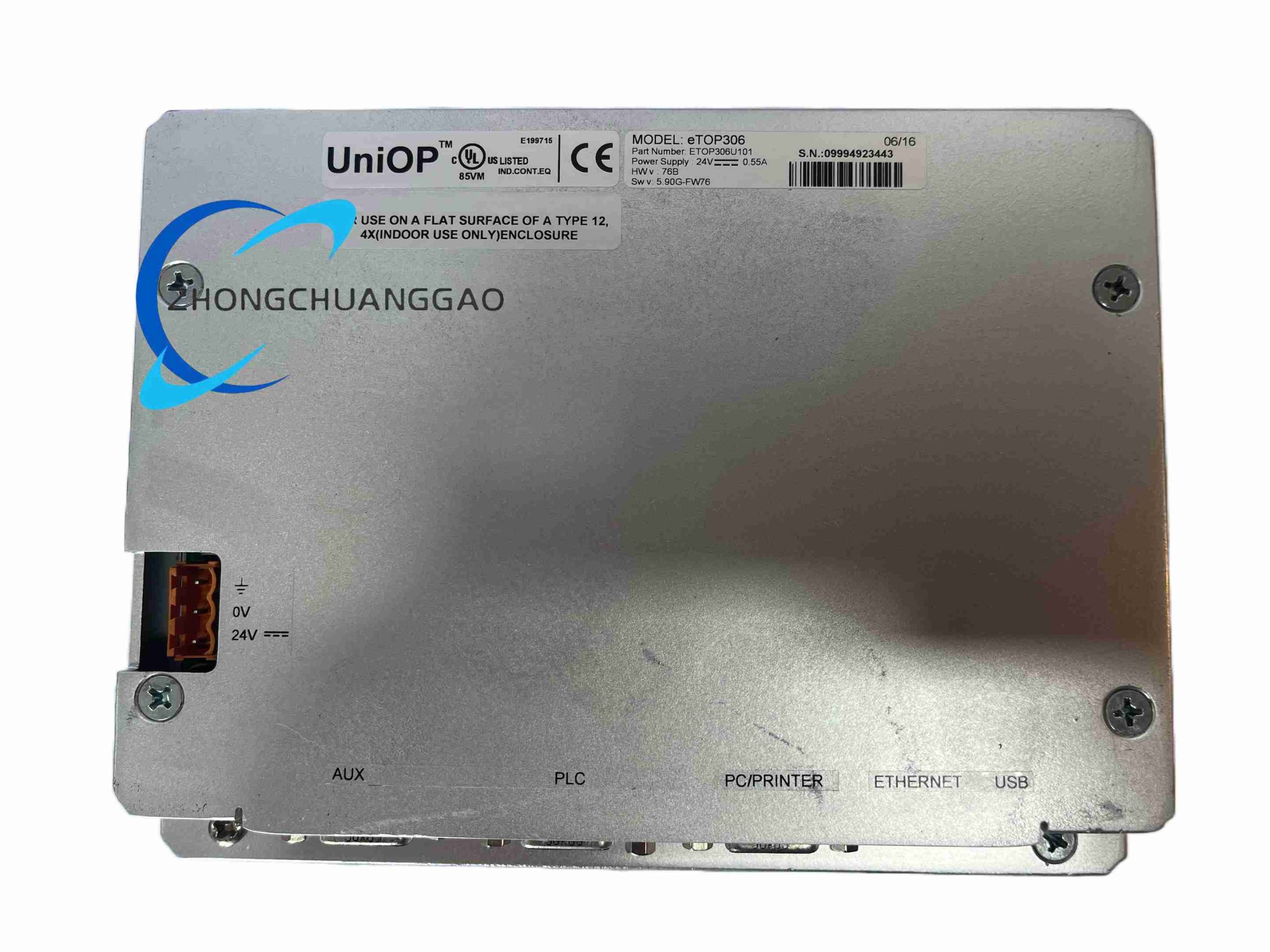

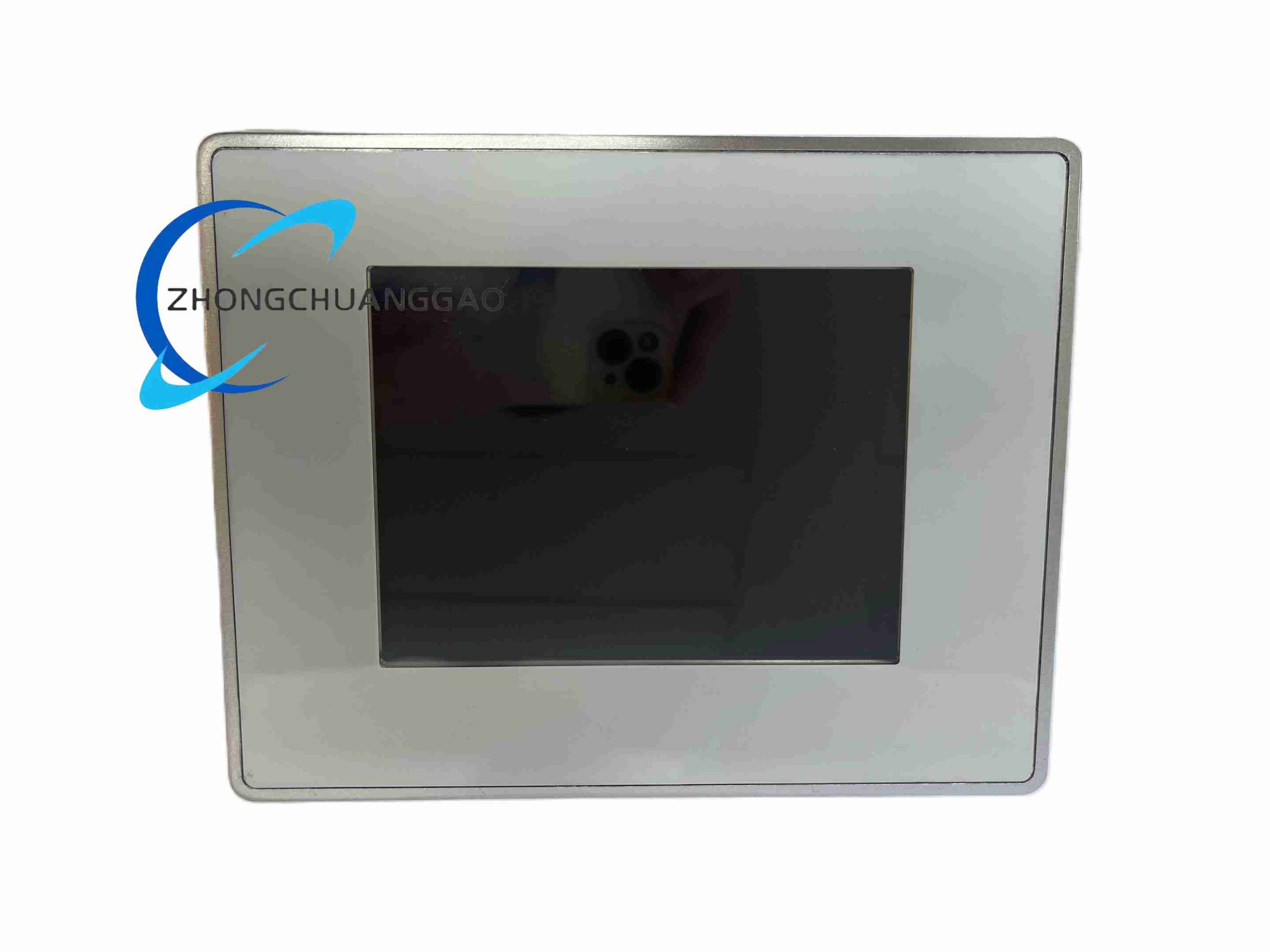

UNIOP ETOP306
UNIOP ETOP306 - Image 2
Lenze ESMD113L4TXH509
Lenze ESMD113L4TXH509
Back to products
Data F1-130DR
Data F1-130DR

UNIOP ETOP306

Product Name: Industrial Operator Panel / Human Machine Interface (HMI)
Product Introduction: The UniOP ETOP306 is a 5.7-inch​ color TFT touchscreen operator panel designed for visualization and control in industrial automation environments.
Category:
Description
Technical Specifications:
  • Display Size: 5.7​ inch diagonal
  • Display Type: Color TFT LCD
  • Resolution: 320 x 234​ pixels (64K​ colors option available)
  • Touch Screen: Analog resistive
  • Brightness: 130-200 cd/m²​ (typical)
  • Processor: 32-bit RISC
    Functional Characteristics: Vector graphics support; object dynamics; TrueType fonts; alarm management (1024​ alarms); recipe memory; data acquisition and trends; multilanguage support.
    Performance Parameters:
  • Memory: 2 MB Flash / 512 KB RAM​ (Typical), 64 MB​ Internal Flash (Variant)
  • Power Supply: 24 V DC​ (18-30 V DC​ range)
  • Current Consumption: 0.55 A​ at 24Vdc​ (max)
  • Communication Ports: 1x Ethernet​ (10/100 Mbit), 1x USB​ (Host 1.1), 1x RS-232, 1x RS-422/485, PC/Printer Port, Aux Port
  • Operating Temperature: 0°C to 50°C
  • Storage Temperature: -20°C to +70°C
  • Humidity: 5-85%​ RH, non-condensing
  • Front Panel Protection: IP65​ / NEMA 4X
  • Rear Protection: IP20
    Material Composition: Industrial plastic or aluminum bezel (White/Grey/Black options); LED​ backlight.
    Structural Features: Panel mount; faceplate dimensions 187 x 147 mm; cutout 176 x 136 mm; depth 45+4 mm; weight approx 1.0 kg.
    Working Principle: Runs embedded OS processing user application project; communicates with PLCs via serial/Ethernet protocols (Modbus RTU/ASCII, UniOP protocol) to exchange real-time data.
    Advantages: Rugged design for factory floor; wide viewing angle; glove-operable resistive touch; flexible protocol support.
    Applicable Industries: Packaging, plastics, ceramics, automotive assembly, general machinery.
    Model Series: UniOP eTOP Series.
    Installation Requirements: Panel cutout mounting with gasket seal; torque clamp screws evenly; ensure rear clearance for connector access.
    Usage Precautions: Use only soft cloth for cleaning screen (no solvents); ensure 24V DC​ supply is isolated from high-power circuits; backup battery (if equipped) is non-user-replaceable; avoid static discharge on communication ports.
