Tricon 9000-025

Product Brief Introduction

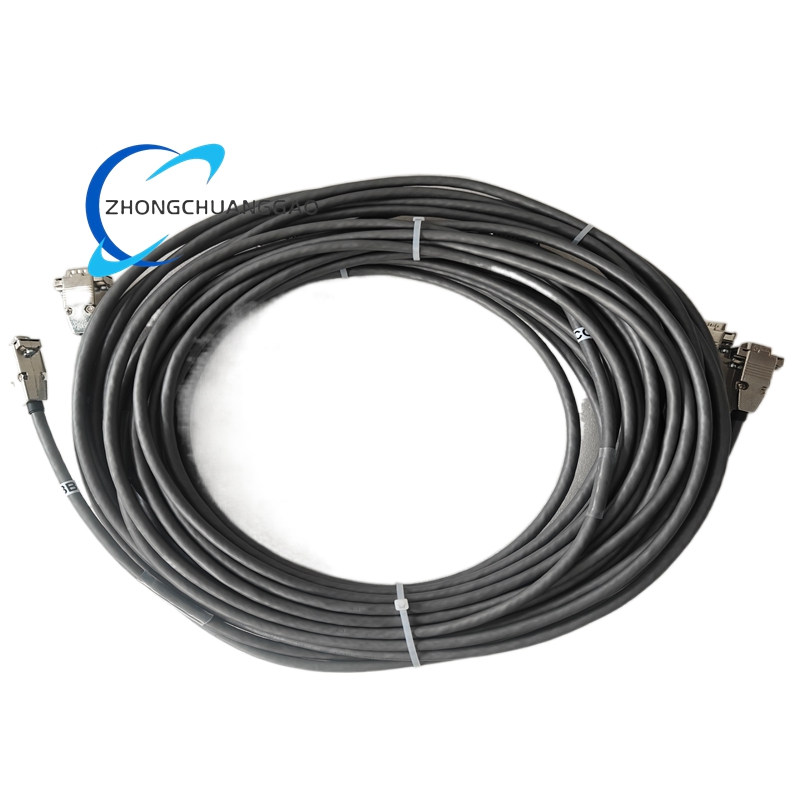

• Tricon 9000-025 is factory pre-terminated double-ended D-SUB plug TriBus dedicated communication cable customized for Tricon 9000 series triple modular redundant (TMR) safety control chassis, realizing high-speed TriBus data interaction between master controller chassis and remote expansion I/O chassis inside complete SIS system.
• Both cable terminals are factory crimped with gold-plated standard D-SUB 37P male connectors, every finished cable undergoes continuity testing, insulation resistance detection and actual TriBus communication compatibility verification before factory delivery to eliminate on-site wiring error risk.
• The cable strictly follows Triconex proprietary TriBus physical layer transmission standard, matching full-series 9000 rack chassis backplane TriBus interface, supporting synchronous three-channel redundant data transmission required by TMR voting mechanism.
• The product complies with CE, UL, IEC61508 SIL3 industrial safety certification standards, designed for fixed wiring installation inside closed industrial control cabinet of ESD/F&G/BMS safety system.

3. Technical Specification

• Nominal finished effective cable length: 2.5m fixed factory standard length
• TriBus rated communication baud rate: 25Mbps fixed physical layer transmission speed per official TriBus protocol
• Connector specification: Both terminals adopt 37Pin D-SUB male gold-plated shielded industrial connector
• Internal core wire layout: 3 groups independent differential twisted-pair conductors corresponding to TMR three-channel A/B/C TriBus signal circuit separately
• Cable outer dimension: Outer jacket overall diameter 8.2mm fixed nominal size
• Single complete cable assembly net weight: 0.32kg
• Cable outer sheath protection grade: IP54 compliant with IEC60529 standard
• Continuous rated working ambient temperature range: -40℃ ~ +75℃; long-term storage extreme temperature range: -50℃ ~ +85℃
• Allowable working environment relative humidity: 5%RH~95%RH non-condensing, no corrosive acid and sulfide gas ambient condition
• Anti-vibration execution standard: IEC60068-2-6, continuous anti-vibration capacity 1.5g RMS within 10Hz~1000Hz frequency range
• Safety certification standard: UL2464 cable specification certification, CE-EMC, IEC61508 SIL3 auxiliary component certification

4. Functional Features

1. Three fully independent differential twisted-pair internal wiring layout corresponds to TMR A/B/C three redundant TriBus channels respectively, each group of twisted wire adopts independent shielding partition to eliminate cross-channel signal crosstalk interference.
2. Double-end factory integrated shielded D-SUB connector with full 360° metal shell shielding structure, cable overall outer shielding layer continuously connected with connector metal housing for complete whole-loop electromagnetic shielding.
3. Strictly match Tricon proprietary TriBus communication physical layer definition, completing synchronous real-time data exchange between master chassis three main processors and expansion chassis I/O modules for TMR input/output data three-out-of-two voting calculation.
4. Embedded internal EMC anti-interference design, stably maintain complete TriBus data transmission integrity under severe industrial electromagnetic field interference complying with IEC61000-6-2 standard.
5. Fixed 2.5m standard finished length eliminates on-site field cutting and terminal crimp construction work, avoiding artificial wiring defect leading to system bus communication failure.
6. Full outer shielding grounding design reserves dedicated shield earthing terminal on each D-SUB connector housing for single-end cabinet PE fixed grounding construction.
7. Standardized mechanical positioning notch on D-SUB connector shell to prevent reverse insertion during chassis interface docking, avoiding pin bending damage to chassis backplane TriBus socket.
8. Each cable outer jacket is printed with fixed model number 9000-025 and production serial number for rapid spare part identification and inventory management.

5. Performance Parameter

• TriBus full-load signal transmission delay under standard 25℃ environment: ≤18ns per meter fixed nominal transmission latency
• DC insulation resistance between any two internal core conductors and core wire to overall shielding layer: ≥2000MΩ measured via DC500V megohmmeter at normal ambient
• Dielectric withstand voltage between internal conductor and outer shielding layer: AC2000V/1min without insulation breakdown and creepage discharge phenomenon
• Differential signal crosstalk attenuation between adjacent internal twisted pairs: ≤-75dB under rated 25Mbps full-speed transmission status
• Long-term continuous service mechanical bending lifespan: ≥2000 times 90° repeated bending without internal conductor breakage and shielding layer cracking damage
• Whole cable assembly average MTBF value under rated working environment: ≥180000 continuous operating hours
• Maximum allowable rated ambient temperature fluctuation drift of transmission performance: ±0.03% signal attenuation variation within full -40℃~+75℃ working range

6. Material Composition

Internal Signal Conductor Raw Material

• Core conductor: Solid bare oxygen-free copper wire with 0.25mm fixed single-wire diameter, surface adopts tin plating anti-oxidation corrosion treatment for long-term stable conductive performance.

Core Wire Insulation Layer Material

• Single conductor insulating layer: High-density cross-linked polyethylene (XLPE) insulating material with UL94-V0 flame retardant characteristic, fixed insulation wall thickness 0.32mm.

Twisted Pair Partition & Intermediate Shield Material

• Every group of differential twisted pair wraps independent aluminum polyester composite foil shielding layer; middle overall cable inner shielding layer adopts tinned copper braided mesh with 85% weaving density.

Outer Cable Jacket Raw Material

• Outermost outer sheath: Black flame retardant PVC compound material conforming to UL2464 standard, added anti-ultraviolet and low-temperature brittle-resistant auxiliary formulation.

Terminal Connector Component Material

• D-SUB connector contact pin: Phosphor bronze base with 1.5μm full gold plating anti-corrosion treatment; connector outer shielding shell: cold-rolled steel plate with nickel plating anti-rust coating; connector plastic insulator: UL94-V0 glass fiber reinforced PA66 insulating nylon.

Fixed Strain Relief Auxiliary Parts

• Cable and connector connection strain relief sleeve: Injection molded identical flame retardant PVC material, eliminating wire breakage caused by cable bending stress concentration.

7. Structural Characteristics

1. Overall integrated finished cable split into three fixed structural partitions: left-end D-SUB connector assembly, middle continuous multi-layer shielded cable main body, right-end D-SUB connector assembly, all connection positions fixed via injection molding strain relief structure without loose separation.
2. Internal three groups differential twisted pairs are independently wrapped with aluminum foil shielding respectively before overall copper mesh outer shielding wrapping, forming dual-layer hierarchical shielding structure for each signal channel.
3. Both terminal D-SUB 37P connectors reserve dedicated metal grounding tab extending outward from shielding shell for convenient fixed PE grounding construction on cabinet ground bus bar.
4. Outer jacket surface continuously printed with white ink fixed model code 9000-025, factory production batch number and safety certification mark at equal spacing intervals along cable length direction.
5. Connector side shell reserves small rectangular locking hole for installing fixed locking screw to lock D-SUB plug onto chassis TriBus socket and prevent loose dropout from equipment vibration.
6. Cable main body maintains circular uniform outer diameter after finished processing without local bulging or concave deformation, guaranteeing neat cabinet wiring bundling arrangement.

8. Working Principle

1. After two D-SUB terminals separately plug into master chassis TriBus interface and expansion chassis TriBus backplane socket, connector internal gold-plated pins complete electrical docking with chassis backplane bus contact terminals to build full physical TriBus transmission link.
2. Three groups internal independent differential twisted pairs separately transmit A/B/C three redundant channel digital data defined by Tricon TriBus protocol between master controller MP modules and remote expansion I/O modules.
3. Master chassis three main processors synchronously transmit sampled field input data via this cable to expansion chassis I/O circuit, meanwhile expansion chassis uploads real-time channel fault diagnostic information back to main controller through opposite-direction TriBus signal transmission.
4. Double-layer full shielding structure of cable absorbs external industrial electromagnetic interference pulse introduced by cabinet internal high-power equipment, preventing differential signal distortion and TriBus communication frame loss during high-speed data transmission.
5. Connector metal shielding shell is connected to cabinet PE ground bar via reserved grounding tab to lead stray induced interference current into protective earth and stabilize bus reference potential.
6. The cable keeps three redundant channel signal transmission synchronism required by TMR architecture, supporting system to complete three-out-of-two voting logic calculation at controller side to shield abnormal error signal from single faulty chassis channel.

9. Advantage Highlights

1. Original Triconex factory pre-terminated finished product design fully matches Tricon 9000 series chassis TriBus electrical definition, completely eliminating self-made on-site cable pin assignment mismatch and communication failure risk.
2. Three independent differential dual-shielded twisted pair internal structure fully adapts TMR three-redundant architecture requirement, ensuring each redundant channel signal runs without mutual interference under complex cabinet strong electromagnetic environment.
3. Full range wide-temperature raw material selection enables stable continuous transmission performance within -40℃~+75℃ ambient without auxiliary temperature control accessory inside closed control cabinet.
4. Fixed 2.5m standard finished length shortens system cabinet wiring construction cycle and standardizes complete SIS project wiring layout specification.
5. Complete 360° double-end connector shielding plus whole cable outer braided shielding hierarchical design achieves superior EMC anti-interference performance satisfying petrochemical and oil&gas hazardous site installation standard.
6. Standard locking hole on connector shell prevents cable plug loose caused by long-term equipment running vibration, improving long-term SIS safety system continuous operation stability.
7. SIL3 compliant auxiliary component certification matches full Tricon SIS safety system safety integrity level requirement for ESD/BMS/F&G critical safety loop configuration.

10. Applicable Industries

• Oil & Gas Upstream Industry: Onshore oilfield gathering station, offshore platform SIS safety control cabinet inter-chassis TriBus connection for ESD emergency shutdown system deployment.
• Petrochemical Refining Industry: Crude oil refinery, ethylene cracking plant fire&gas detection safety system master chassis and remote expansion I/O rack bus wiring matching.
• Coal Chemical Industry: Coal-to-olefin, synthetic ammonia plant critical equipment burner management BMS control system inter-chassis communication cable configuration.
• Thermal Power Generation Industry: Large-scale coal-fired unit boiler FSSS furnace safety interlock control system Tricon SIS rack interconnection wiring.
• LNG Energy Industry: Liquefied natural gas storage tank area emergency shutdown safety instrument system master and expansion chassis bus link construction.
• Pharmaceutical Fine Chemical Industry: Hazardous chemical synthesis workshop explosion-proof safety control cabinet inter-chassis TriBus fixed wiring installation.

11. Model Series Classification

• Base standard model: 9000-025 (Factory default standard length 2.5m indoor conventional shielding version, general non-corrosive cabinet environment)
• Derivative variant 1: 9000-025-OC (Oil-resistant outer jacket customized model for oil splash-prone petrochemical field cabinet internal wiring)
• Derivative variant 2: 9000-025-LT (Low-temperature enhanced insulation version for outdoor heat preservation cabinet -50℃ minimum ambient installation scenario)
• Derivative variant 3: 9000-025-FR (Enhanced fire retardant outer sheath variant for confined enclosed hazardous area control cabinet application)

12. Installation Requirements

1. Cabinet pre-installation environmental standard: Arrange cable wiring inside IP42 and above closed metal control cabinet; maintain minimum 50mm spacing between cable routing path and cabinet internal contactor, transformer high magnetic field components.
2. Connector plug-in specification: Align D-SUB connector positioning notch with chassis TriBus socket positioning buckle, horizontally insert plug completely into socket until locking hole aligns with chassis fixed screw hole, install standard locking screw to finish fixed locking; forced reverse plug insertion is strictly forbidden to avoid pin bending damage.
3. Cabinet wiring bundling rule: Bundle multiple parallel 9000-025 cables separately from power strong-current AC wiring harness with fixed plastic wire clip; signal cable and power cable keep minimum 100mm parallel routing separation distance.
4. Shield grounding construction specification: Complete single-end grounding only for cable shielding layer at master chassis side via connector grounding tab connected to cabinet PE copper ground bus bar; expansion chassis side shielding terminal remains suspended without grounding treatment.
5. Pre-commissioning inspection requirement: After cable two terminals full docking finished, use multimeter to test internal core wire full continuity and insulation resistance before powering on entire SIS system and starting TriBus communication commissioning.
6. Cable bending constraint: Minimum allowable static bending radius of cable main body is 8 times cable outer diameter; sharp-angle forced bending less than specified radius is prohibited during routing fixation.
7. Post-installation space constraint: Keep cabinet cable channel ventilation unobstructed without heavy component compression and extrusion on cable outer sheath surface.

13. Usage Precautions

1. Electrostatic protection regulation: Wear certified anti-static wristband reliably connected to cabinet PE ground bar when plugging/unplugging D-SUB connector; bare-hand direct contact with exposed connector gold-plated pins is strictly forbidden to avoid electrostatic damage to chassis backplane TriBus circuit chip.
2. Live operation restriction: Cut off full SIS control cabinet total DC/AC input power completely before cable disassembly and replacement; live hot plugging of TriBus D-SUB connector during system normal running state is prohibited.
3. Daily maintenance specification: Clean cable outer surface accumulated floating dust every twelve months with dry compressed air at maximum 0.2MPa air pressure; avoid high-pressure air direct blowing into D-SUB connector internal pin gap position.
4. Mechanical load constraint: Prohibit heavy object compression, pulling and over-tight bundling of cable main body; sharp metal edge scratch contact with cable outer jacket is forbidden during cabinet daily overhaul operation.
5. Spare cable storage standard: Store unused spare cables inside original factory anti-static sealed plastic bag under 18℃~26℃ dry constant-temperature warehouse environment, far away from corrosive chemical solvent and high-temperature heat source storage area.
6. Fault disposal criterion: Immediately replace defective cable once TriBus communication frame loss, intermittent signal dropout occurs during system operation; unauthorized peeling off cable outer jacket and modifying internal core wire wiring layout are prohibited, purchase original factory 9000-025 spare part for direct replacement maintenance.
7. Long-term idle equipment management: If SIS safety cabinet keeps continuous shutdown over 90 consecutive days, loosen D-SUB connector locking screw and separate cable plug from chassis socket; store detached cable inside sealed moisture-proof spare part storage box to prevent connector pin oxidation corrosion.
