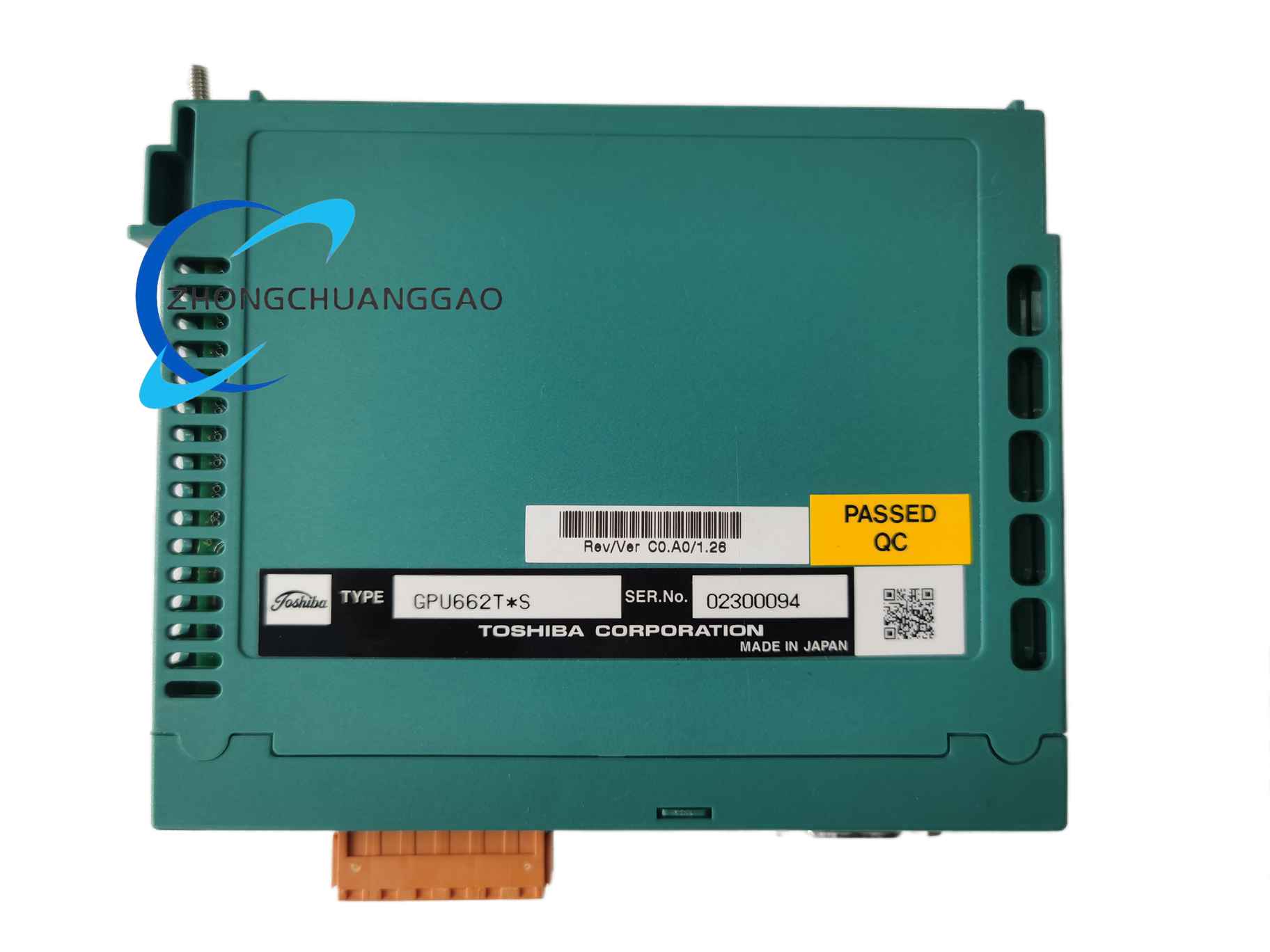

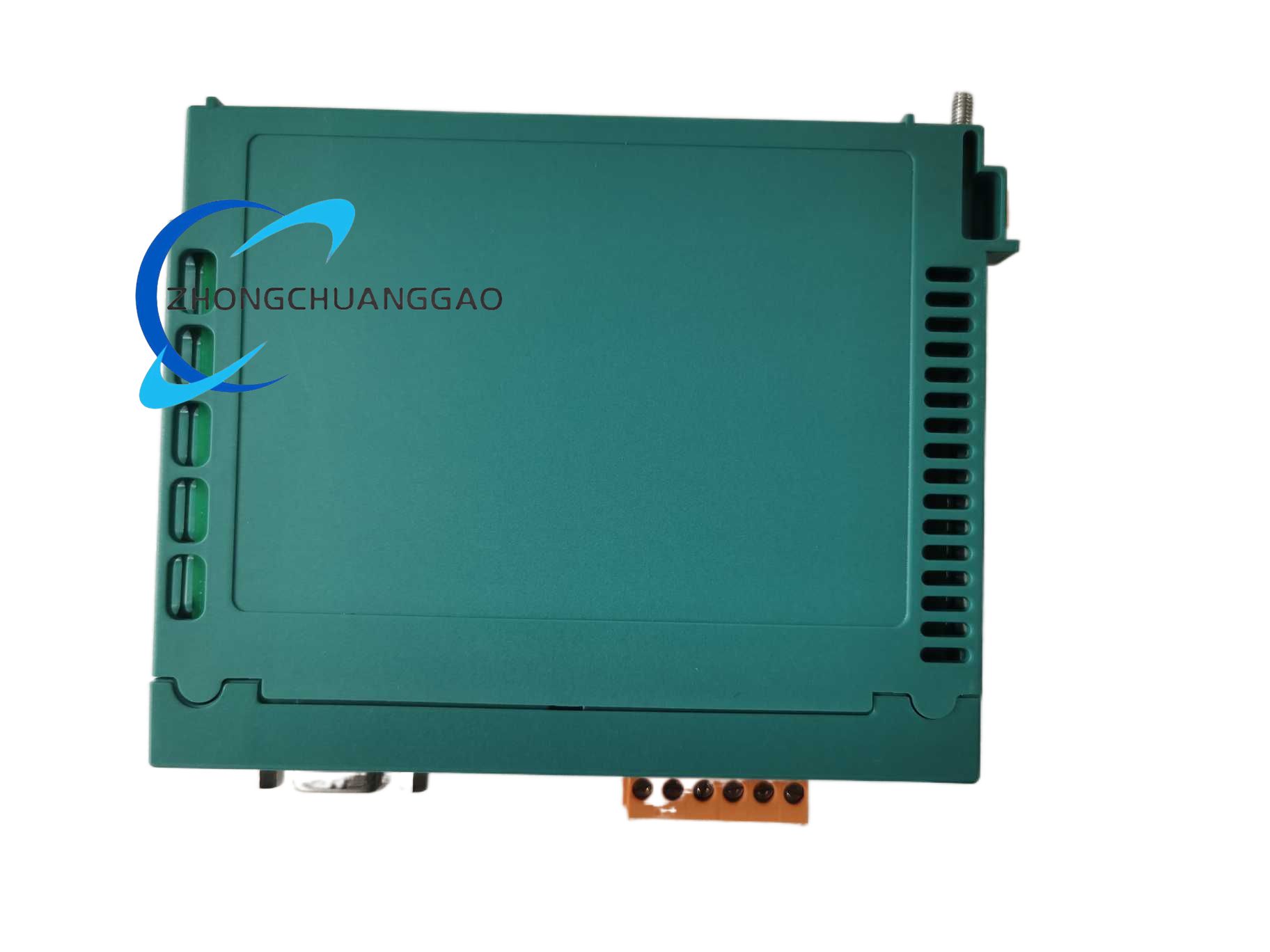

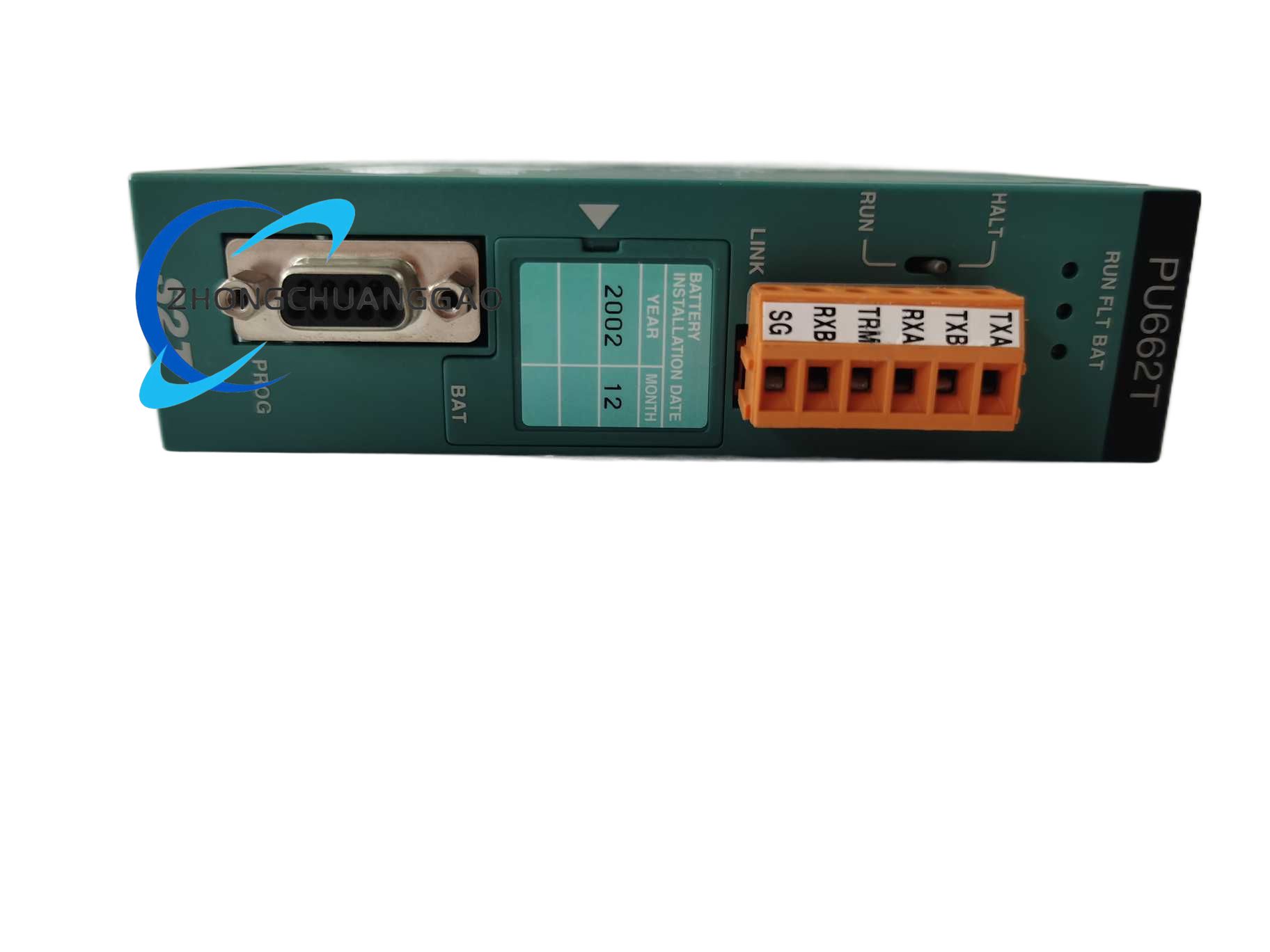

Toshiba PU662T

Product Name:​ Toshiba T-Series Unified Controller CPU Module
Product Introduction:
The PU662T is a central processing unit for Toshiba T-series (S2T/S2E compatible) programmable logic controllers. It executes ladder and SFC programs and coordinates G2 I/O stations through station bus.
Category:
Description
Technical Specifications:
  • Model:​ PU662T
  • Program Capacity:​ 32 k steps
  • Languages:​ LD (Ladder), SFC (Sequential Flow Chart)
  • I/O Registers:​ 512 words
  • Data Registers:​ 8 k words
  • Execution Speed:​ 0.09 µs/contact, 0.18 µs/coil, 0.54 µs/move, 0.9 µs/add
  • Communication:​ RS-232C (programming), RS-485 (link)
  • Compatible I/O:​ G2 I/O series
  • Station Bus:​ Yes
  • Ethernet:​ No native (requires expansion)
  • Mounting:​ Controller base unit
Functional Features:
  • Deterministic scan execution
  • Retentive data registers with battery backup
  • Watchdog and self-diagnostics
  • Converts/migrates to PUM11/PUM12 in newer T-series
Working Principle:
The CPU reads G2 I/O image tables via station bus, executes user logic in cyclic scan, and refreshes outputs. Communication ports allow HMI/SCADA polling via proprietary Toshiba protocol or Modbus RTU through RS-485.
Application Scenarios:
  • Medium-scale factory automation
  • Water treatment PLC panels
  • Legacy Toshiba DCS/PLC retrofits
  • Material handling sequence control
Installation Requirements:
  • Seat firmly into T-series base
  • Provide 24 V DC control supply to I/O racks
  • Isolate RS-485 bus ends with termination resistors
Usage Notes:
  • Not directly pin-compatible with PUM-series CPUs without conversion kit
  • Backup program before firmware changes
  • Keep firmware matched to TPDS engineering tool version
