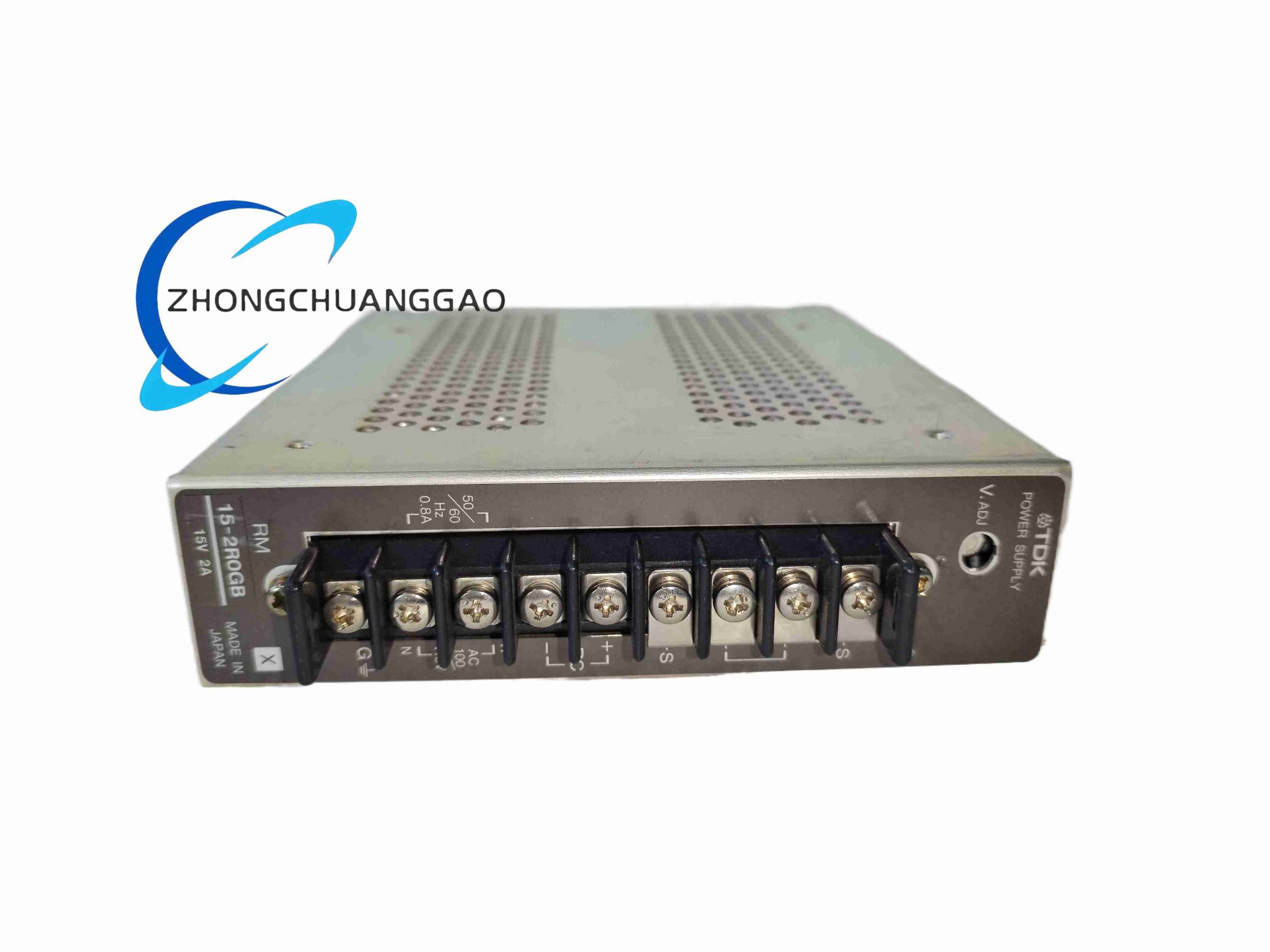

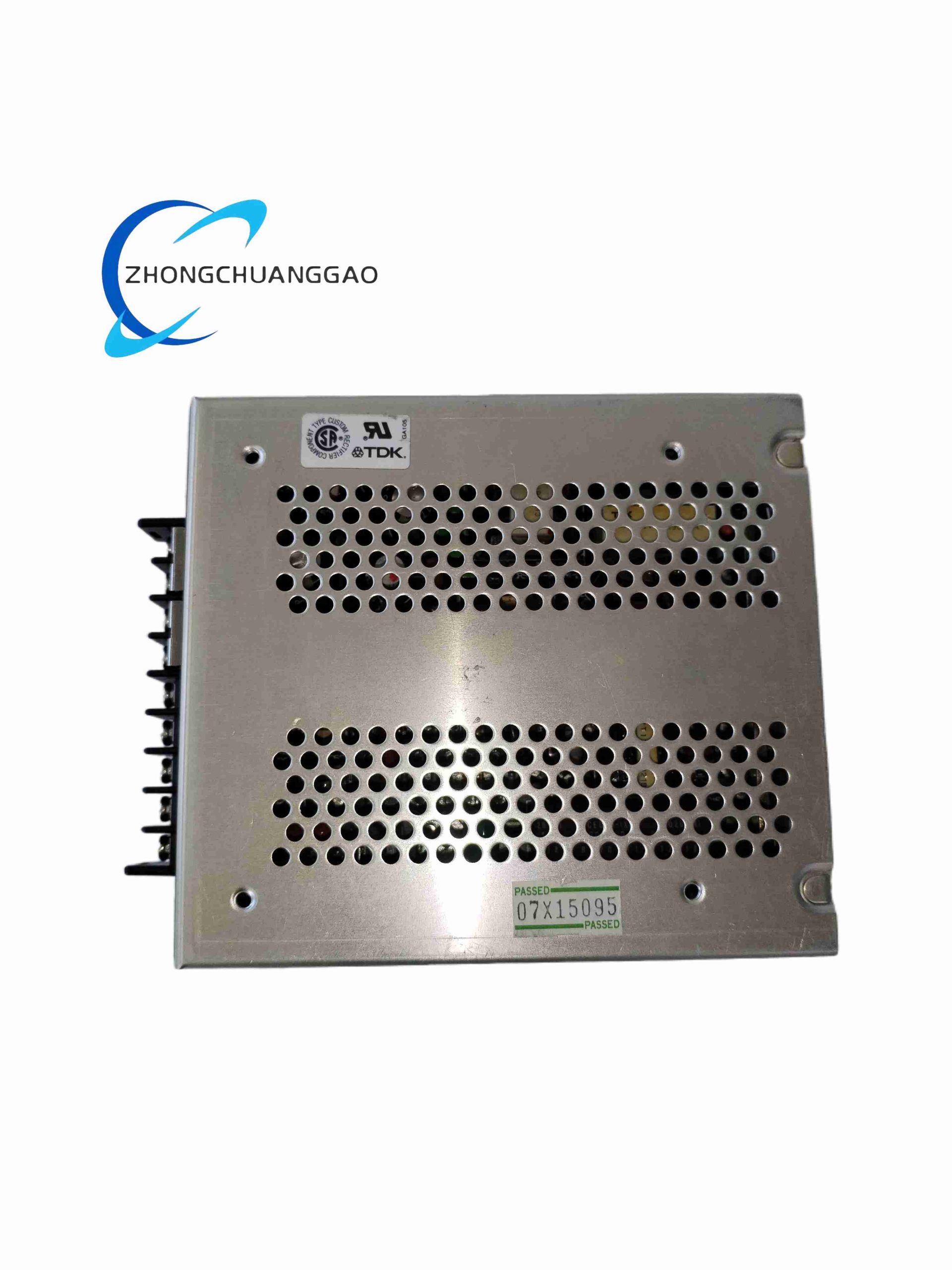

TDK-Lambda RM15-2R0GB

  • Product Name:​ RM15 Series 15 W Single-Output Open-Frame Switching Power Supply
  • Models:
    • RM15-2R0GB:​ +5 V DC output, 3.0 A, 15 W
    • RM15-4R0GB:​ +12 V DC output, 1.25 A, 15 W (Note: some catalogs show RM15-12 = 12V; “4R0” typically denotes 5V/3A — verify label; RM15-xxGB suffix indicates GB = universal input, grounded, medical approval)
Category:
Description
  • Input:​ 85–264 V AC (47–63 Hz) universal, or 120–370 V DC
  • Output Adjustment:​ ±5 % via onboard trim potentiometer
  • Efficiency:​ Typically 75–80 % (depending on model)
  • Ripple & Noise:​ < 100 mV p-p
  • Protections:​ Overvoltage (crowbar/OVP), overload (hiccup mode auto-recovery), short circuit
  • Safety / EMC:
    • Approvals:​ UL/cUL 60950-1 (ITE), EN 60601-1(2×MOPP medical), CE
    • Leakage Current:​ < 100 µA (medical grade)
    • EMI:​ EN 55022 Class B (conducted & radiated)
  • Isolation:​ Input–Output 3 kV AC, Input–Ground 1.5 kV AC, Output–Ground 500 V DC
  • Environmental:
    • Operating Temp.:​ –25 °C to +70 °C (derating above 50 °C)
    • Cooling:​ Convection (no fan)
  • Construction:​ Open-frame PCB with M3 mounting holes, plastic cover optional; weight ≈ 55 g
  • Application:​ Low-power system auxiliary supply in medical devices, industrial control panels, DIN-rail mounted controllers, signal conditioning modules.
  • Installation:​ Ensure minimum creepage distance; provide input line fuse (slow-blow 2 A recommended); do not operate without proper enclosure in accessible areas due to mains exposure.
