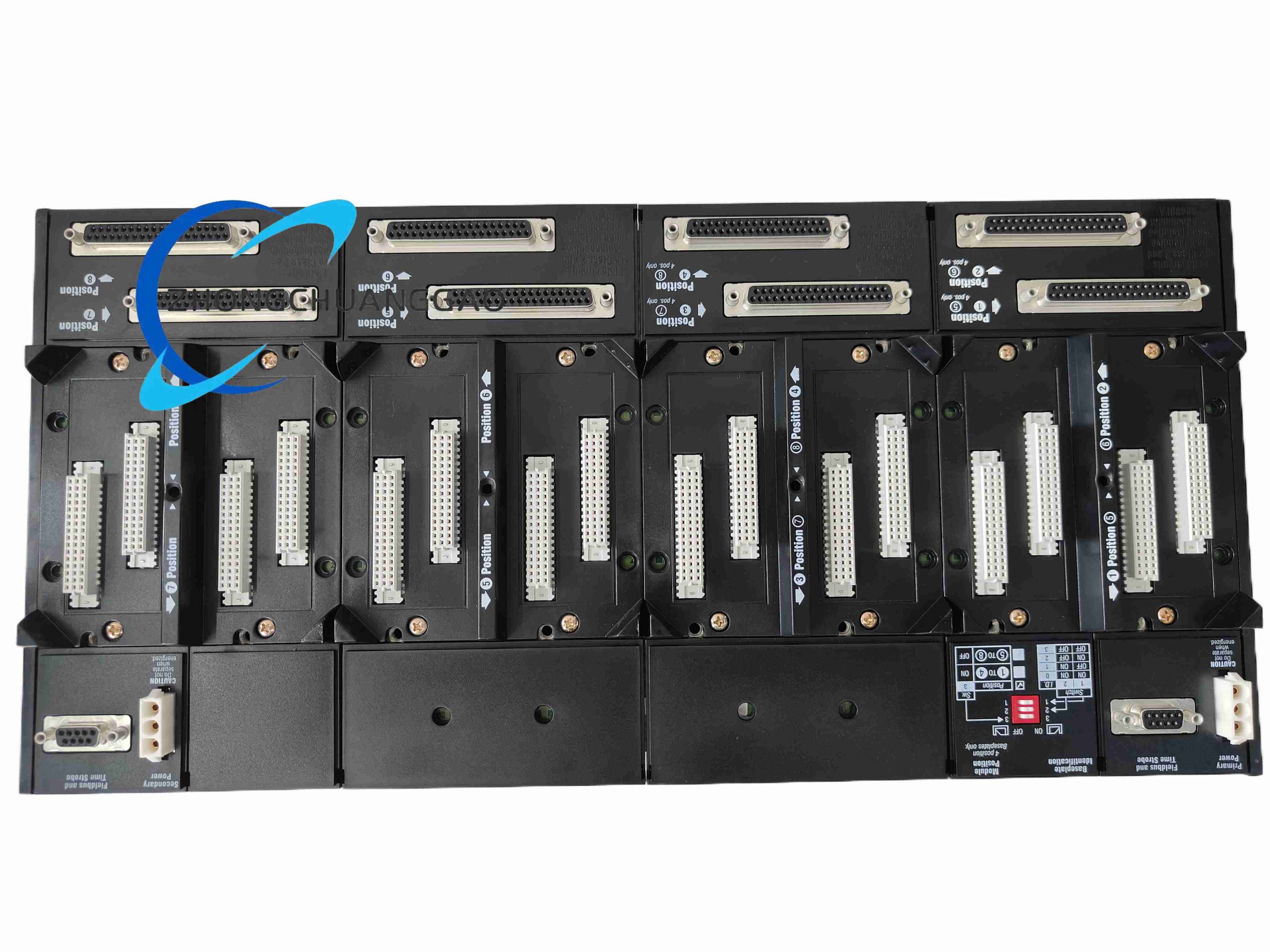

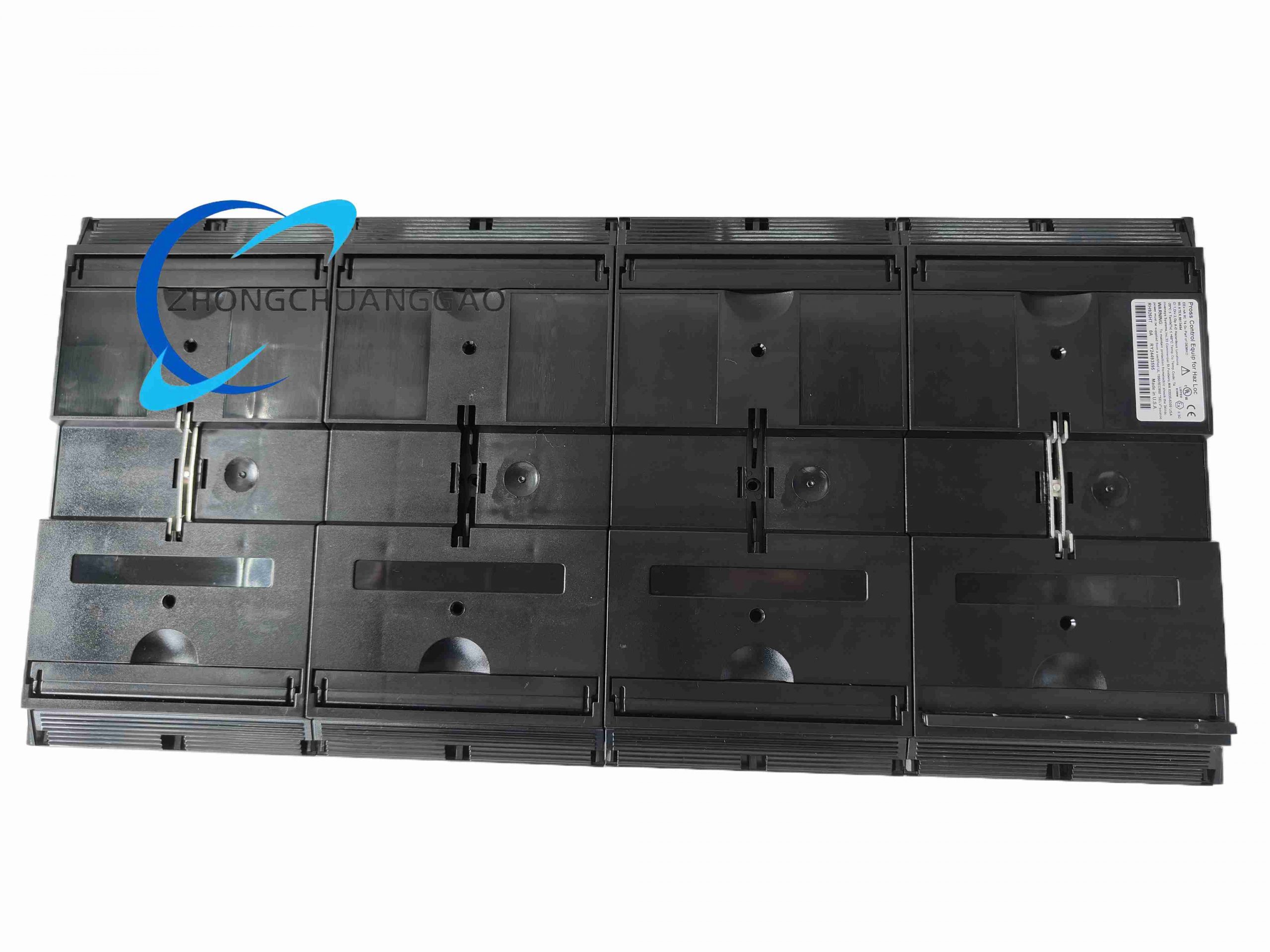

Foxboro RH926HT
Foxboro RH926HT - Image 2

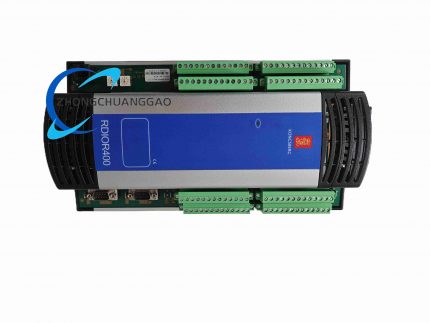

Kongsberg Maritime RDIOR400
Kongsberg Maritime RDIOR400
Back to products
TDK-Lambda RM15-2R0GB
TDK-Lambda RM15-2R0GB

Foxboro RH926HT

  • Product Name:​ Foxboro I/A Series Fieldbus Module – RH926HT (typically a HART-enabled analog input or thermocouple/millivolt input FBM)
  • Series:​ Foxboro Evo / I/A Series FBM (Field Bus Module)
  • Function:​ Converts analog sensor signals (TC, RTD, mV, 4–20 mA with HART) to digital data on Foxboro fieldbus (50 Mbps serial highway or FCP fieldbus)
Category:
Description
  • Input Types (typical for RH92x HT variant):​ 8 differential analog inputs — supports TC (J/K/T/E/S/B/R/N), RTD (Pt100, Cu10), mV, 4–20 mA (with external shunt)
  • Resolution:​ 16-bit A/D
  • Accuracy:​ ±0.1 % of full scale (typical for RTD/mA), ±1 °C (TC dependent on cold-junction compensation)
  • HART:​ Optional HART 5/6/7 digital communication superimposed on 4–20 mA loops
  • Isolation:​ 500 V channel-to-bus, channel-to-channel group isolation
  • Power:​ Supplied from FBM baseplate (trickle power + 24 V DC field power separately if loop-powered)
  • Operating Temp.:​ –20 °C to +70 °C
  • Mounting:​ Snap into Foxboro FBM baseplate (vertical DIN rail style)
  • Application:​ Process temperature & analog measurement in oil & gas, power, chemical plants integrated with Foxboro DCS (Distributed Control System).
  • Caution:​ Verify jumper/resistor network on baseplate for 4–20 mA vs. passive sensor; perform sensor burn-in / lead resistance compensation for RTDs.
